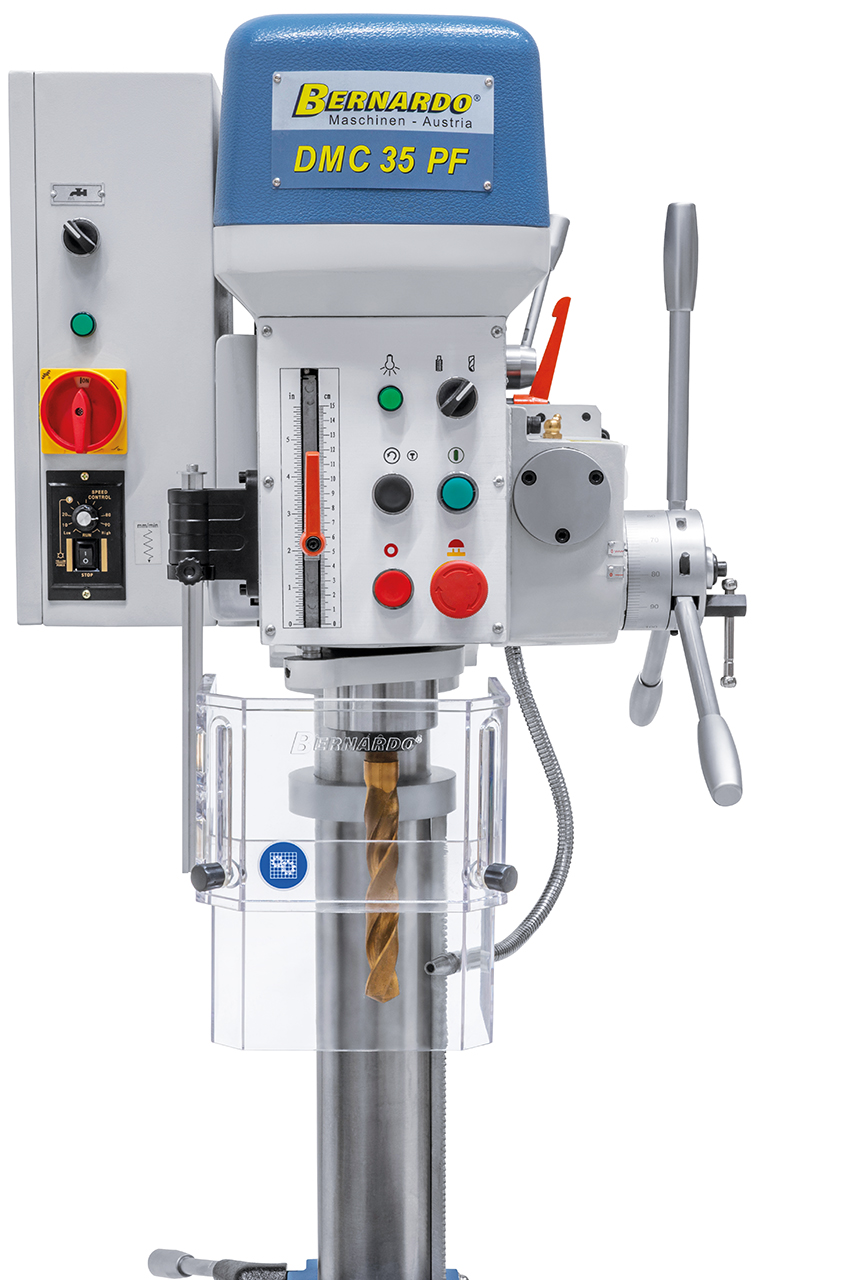

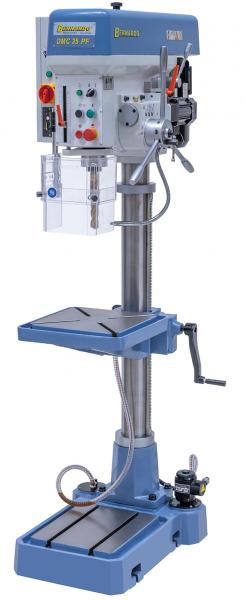

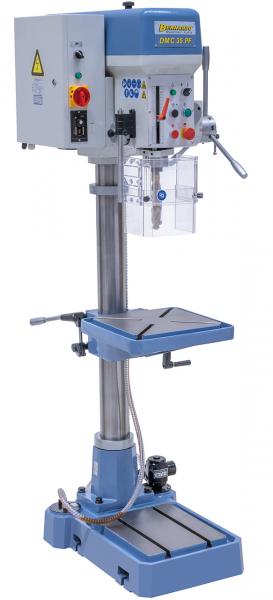

Pillar drill Bernardo DMC 35 PF

Scope of delivery Pillar drill Bernardo DMC 35 PF

• Keyed chuck 5 - 20 mm / B 22
• Chuck mandrel MK 3 / B 22
• Reducing sleeve MK 3 / MK 2
• Automatic quill feed
• Coolant device
• Thread cutting device
• LED machine light
• Height-adjustable protective cover

Features Pillar drill Bernardo DMC 35 PF

The DMC 35 PF column drilling machine is equipped with a thread cutting device and automatic drilling feed as standard. This model is used in repair shops, mechanical workshops and also in training facilities.


• Protective cover in accordance with CE standard, adjustable to the respective drill length
• Surface-finished work table, height-adjustable via rack and pinion and hand crank
• Precisely machined base plate with T-slots and integrated coolant pump

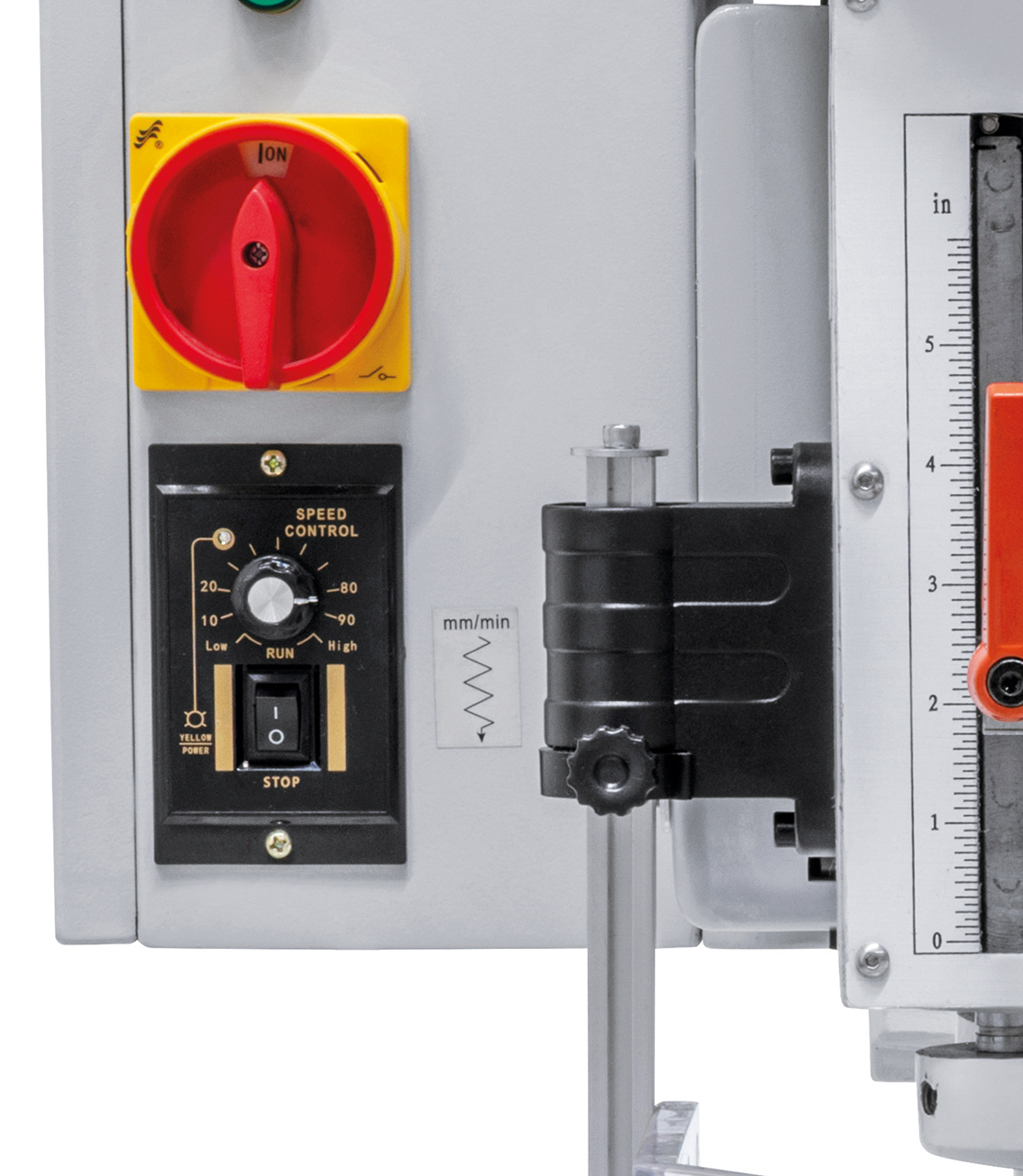

• Automatic quill feed as standard
• Adjustable drilling depth stop for precise quill feed

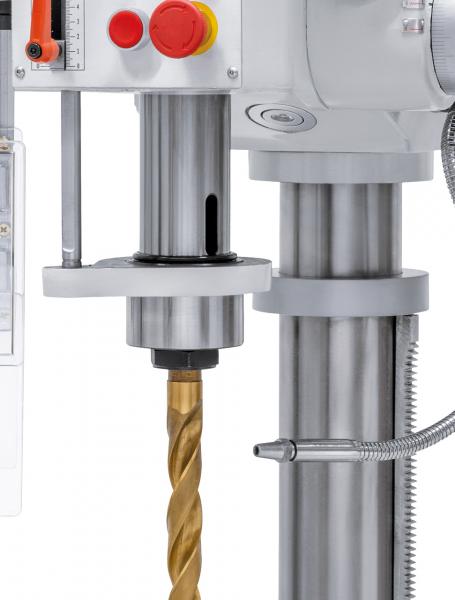

• Guaranteed concentricity ≤ 0.02 mm measured in the quill

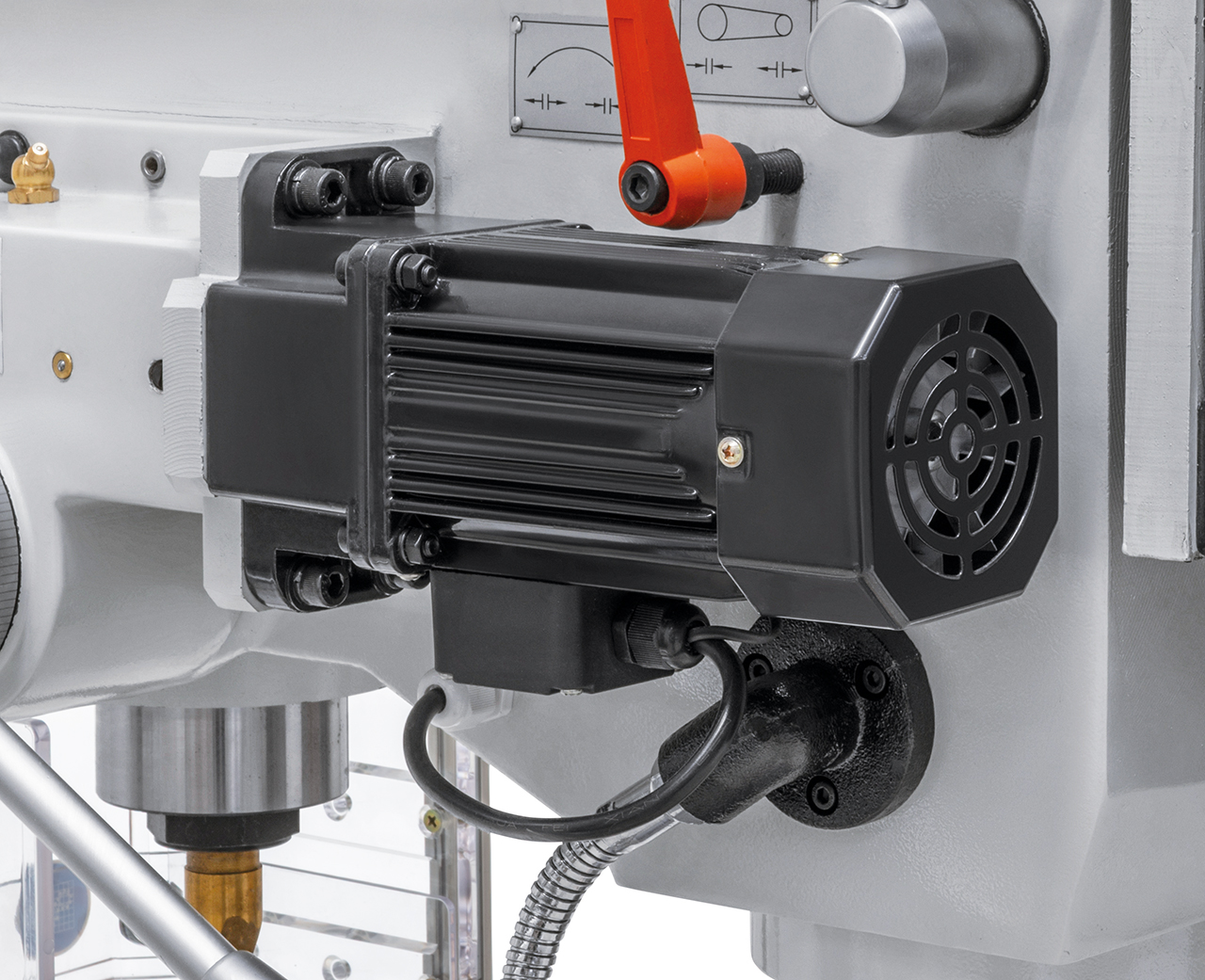

• Powerful drive motor even during continuous operation
• Robust and powerful drilling machine for heavy-duty use
• Includes automatic direction reversal for thread cutting
• Stable and ground steel column, designed for heavy-duty use

Technical data Pillar drill Bernardo DMC 35 PF
