Oscillating spindle sanding machine Bernardo OVS 80
Scope of delivery Oscillating spindle sanding machine Bernardo OVS 80
- 3 sanding spindles
- 3 sanding sleeves - K80

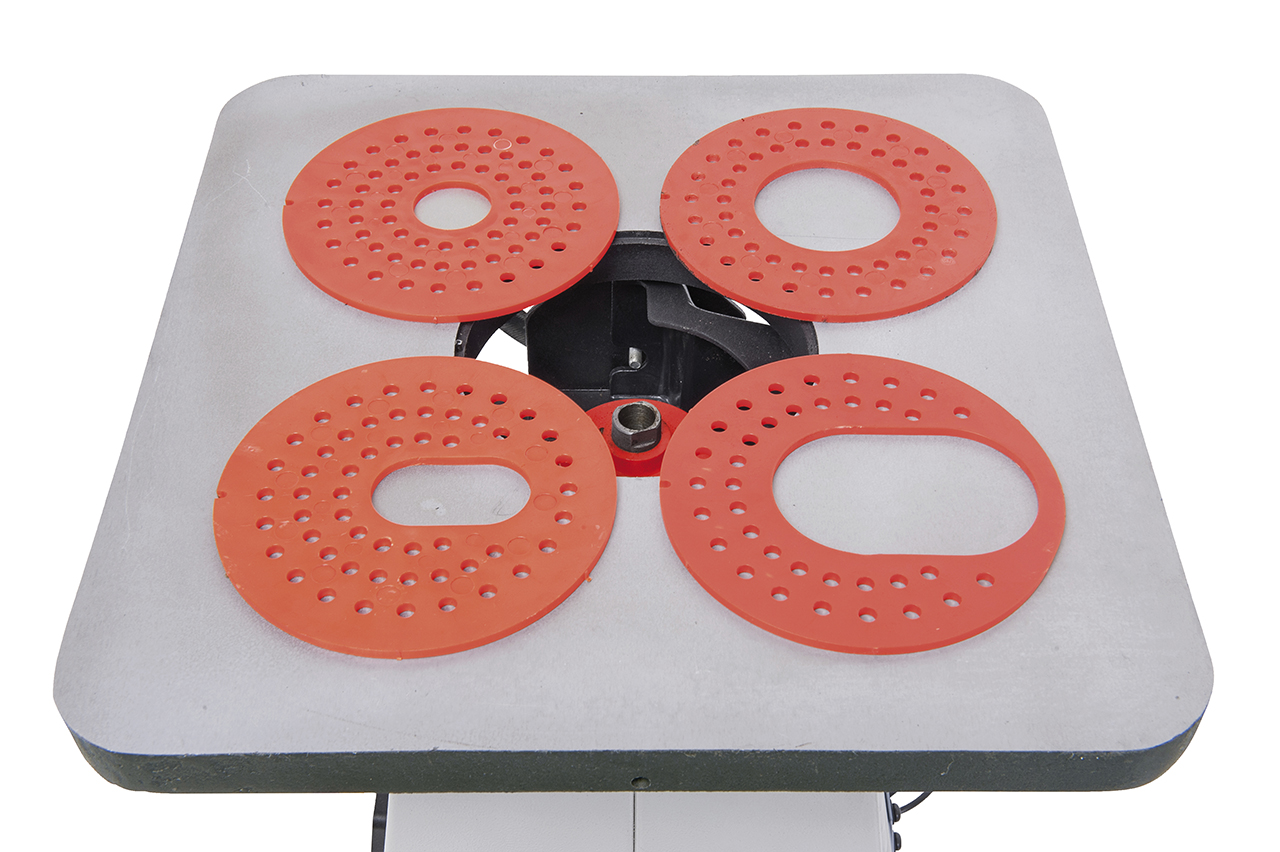

- 2 table inserts round
- 2 table inserts oval
- Stand
Features Oscillating spindle sanding machine Bernardo OVS 80
- Complete with three sanding spindles, 19 x 90 mm, 38 x 140 mm, 50 x 140 mm
- Quick and easy change of sanding sleeves

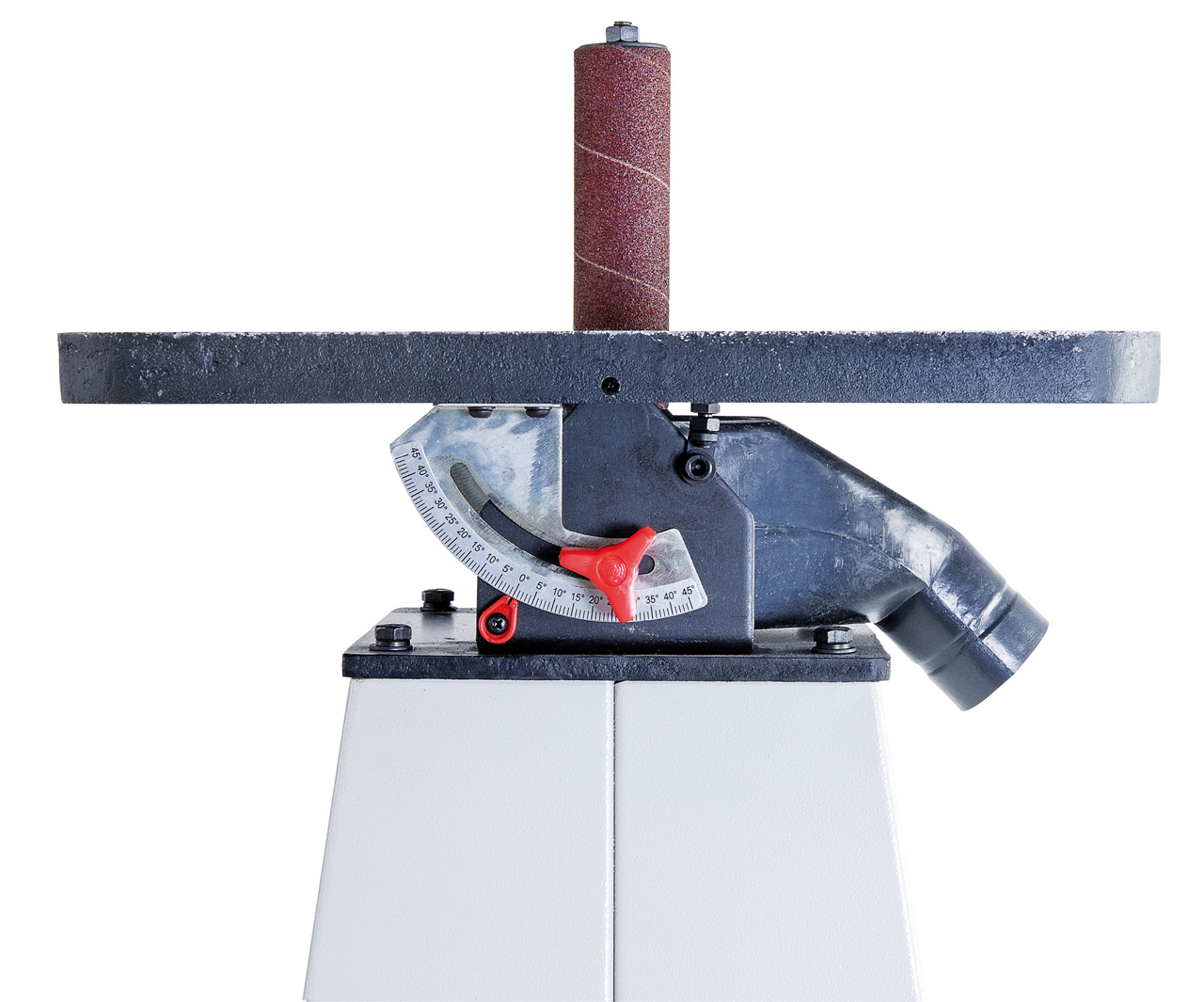

- Work table tilts from 0° to 45° to widen the application range
- Convenient shelf on machine frame to rest sanding sleeves and table inserts

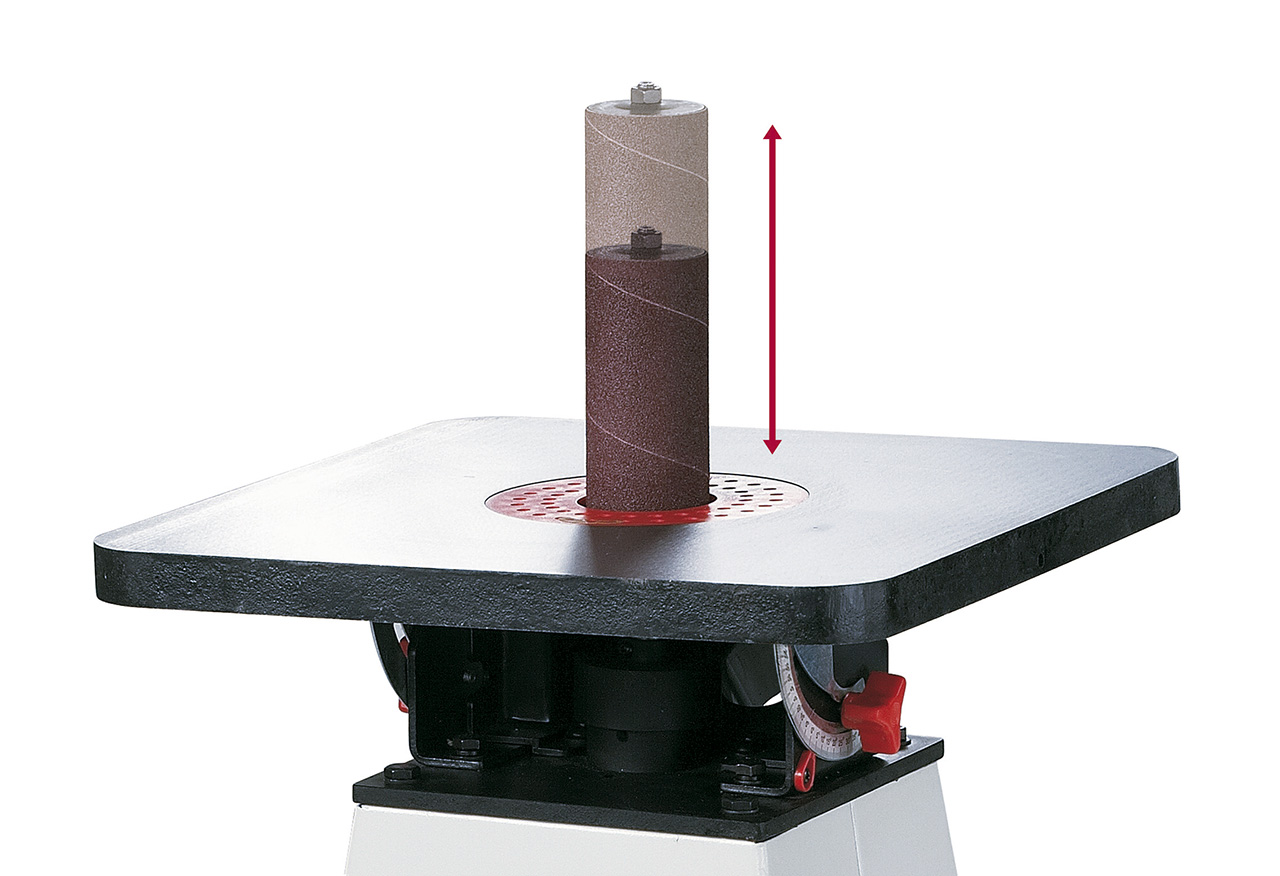

- Oscillating stroke 24 mm to achieve perfectly polished surfaces
- On-off switch with undervoltage release in accordance with IP54
- Standard dust port (50 mm) allows the connection of a dust collector
- Top price-to-performance ration, ideal for amateurs and craftsmen
Technical details Oscillating spindle sanding machine Bernardo OVS 80
Table size | 370 x 370 mm |
Oscillation / min | 60 |
Oscillation stroke | 24 mm |
Max. sanding height | 95 mm |
Table tiltable | 0° - 45° |
Dust extraction outlet | 50 mm |
Spindle speed | 1400 rpm |
Table height | 910 mm |
Motor power | 0,37 kW / 230 V |
Machine dimension (W x D x H) | 460 x 460 x 1060 mm |
Weight approx. | 33 kg |
