The model PEB 300 is an economic edge banding machine and built to suit the needs of the professional users. This model combined the characteristics of a stationary edge banding machine with the comfort of a mobile device.

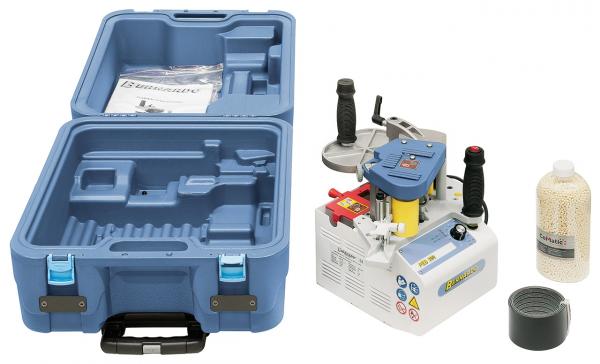

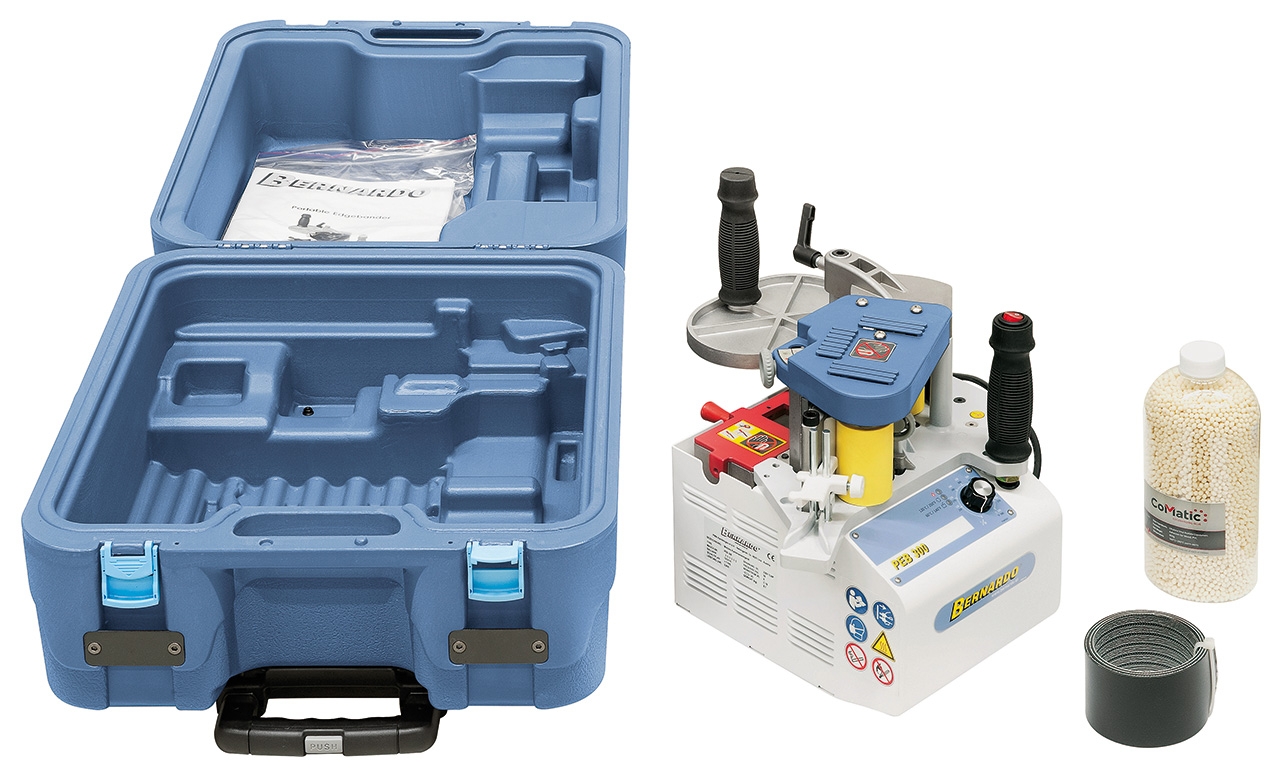

Scope of delivery Mobile edge banding machine Bernardo PEB 300

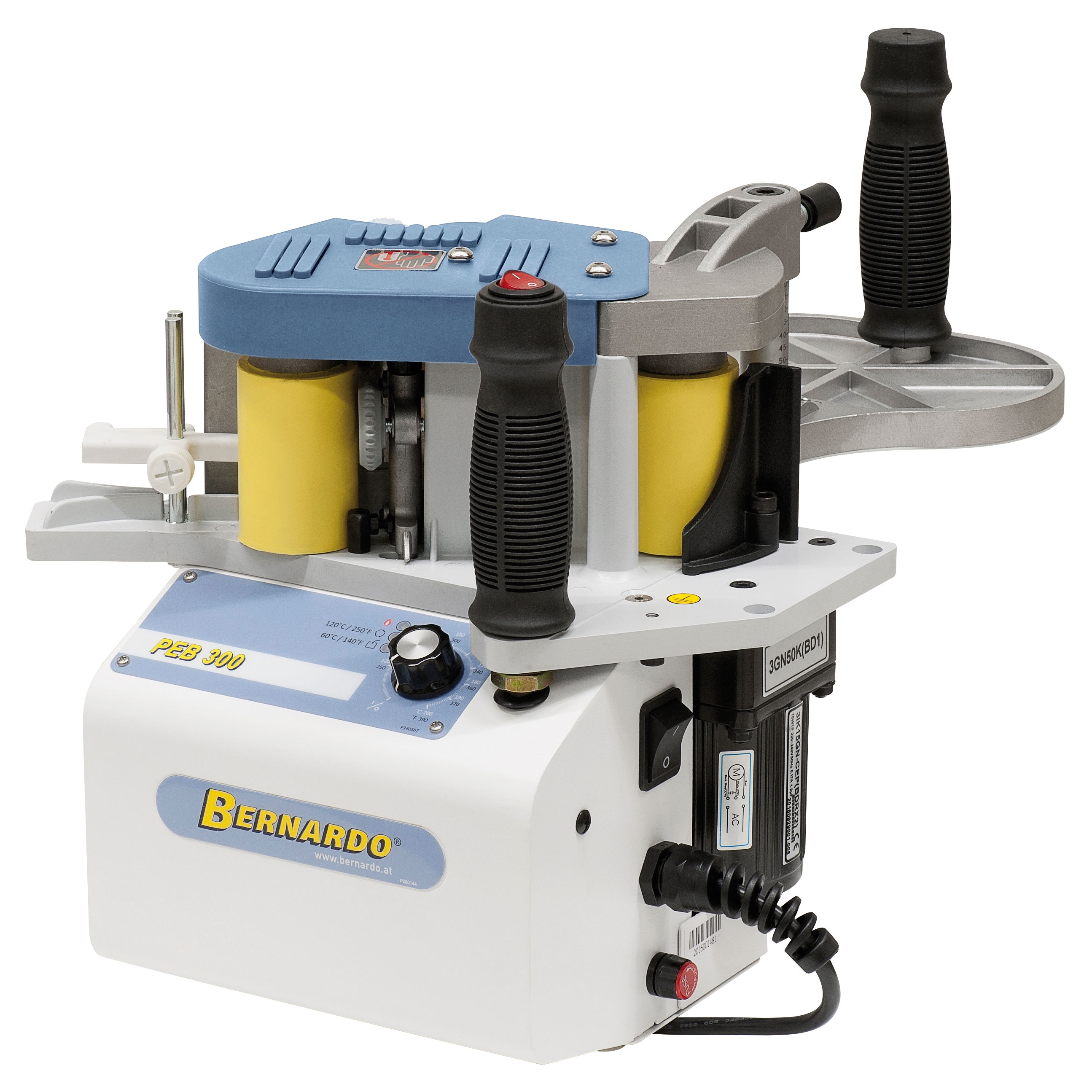

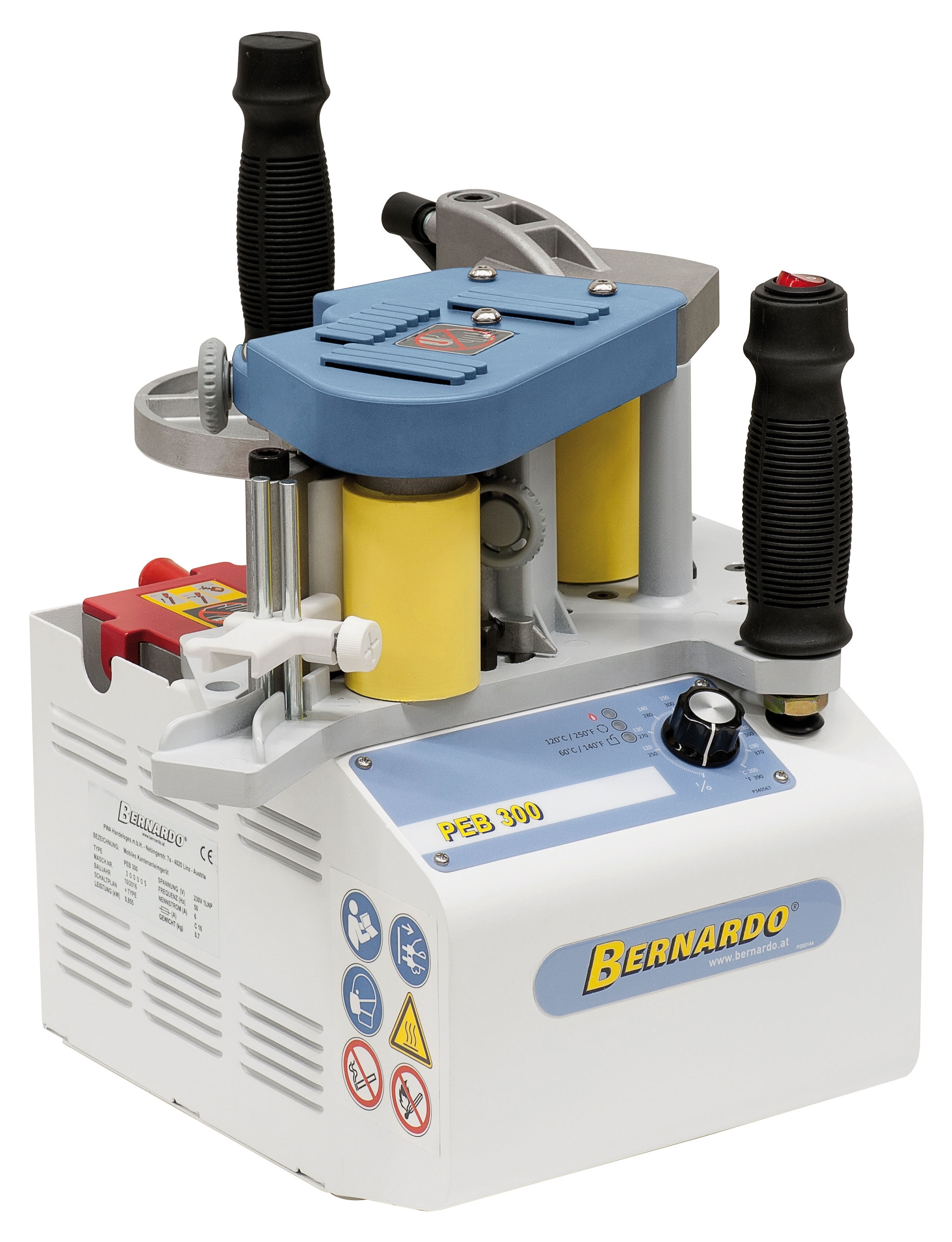

Mobile edge banding machine Bernardo PEB 300
Features Mobile edge banding machine Bernardo PEB 300

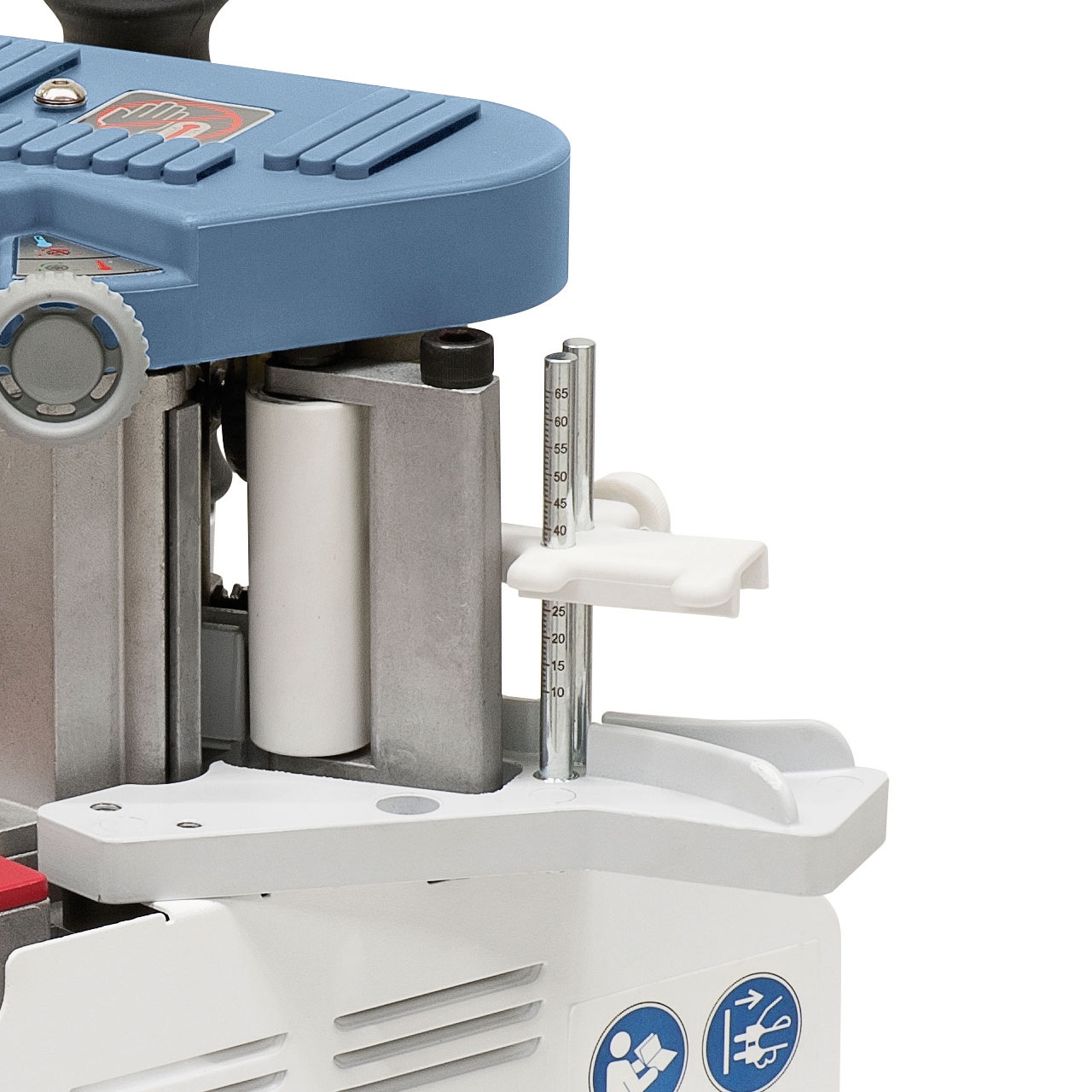

- Adjustable guide system for use of edge thicknesses of 0,3 - 3 mm or edge heights of 10 - 65 mm

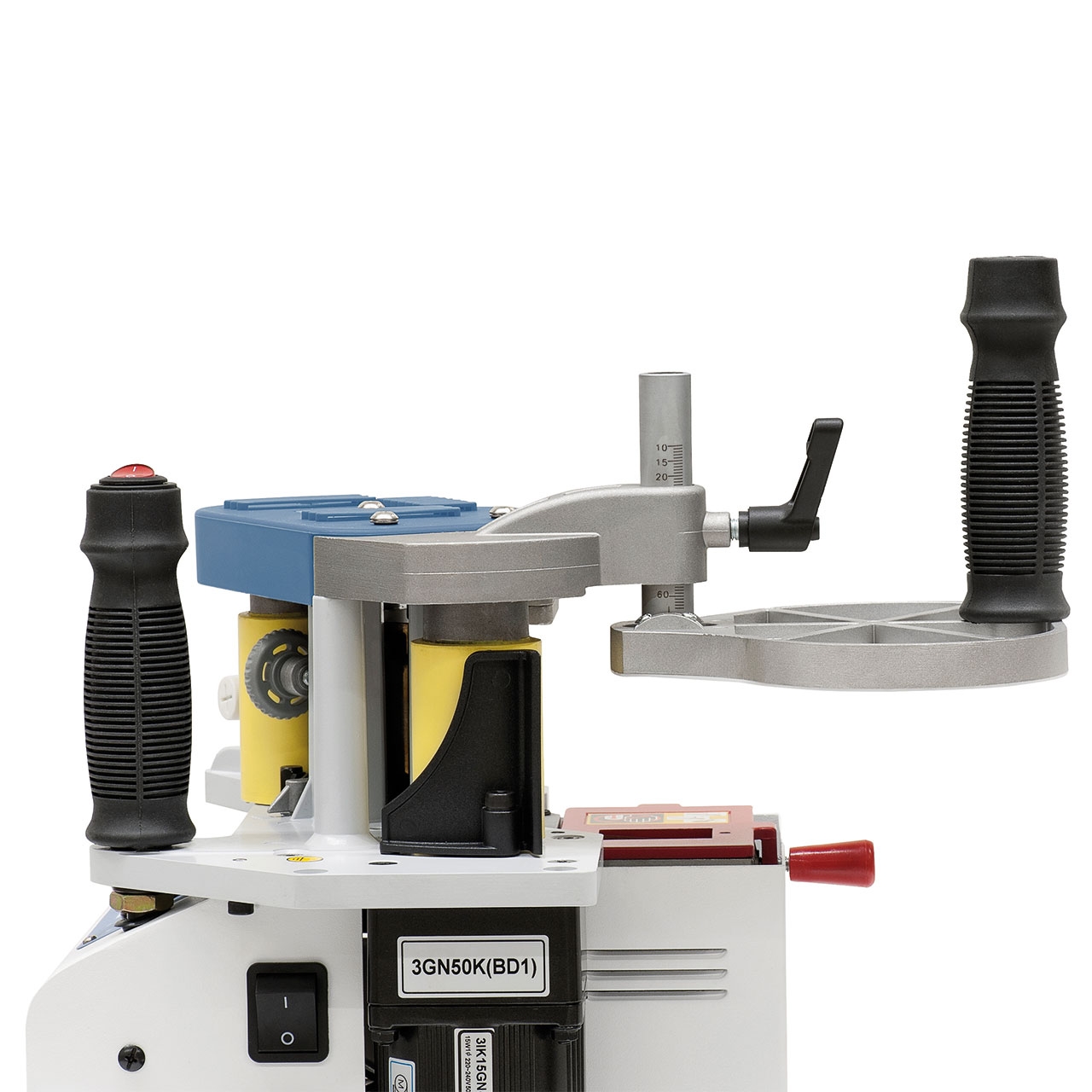

- 2 rubberized handles and a height-adjustable guide plate ensure effortless working
- Ideal for application of adhesives onto straight or curved workpieces, minimal inside radius 25 mm
- High efficiency, no edge material with advanced glue necessary
- Ideal for processing of ABS-, PVC-, melamine and veneer edges
- Glue is applied directly to the edge material
- On-off switch directly on the handle for easy operation
- Suitable for mobile or stationary use
Technical details Mobile edge banding machine Bernardo PEB 300
| Edge thickness (PVC) | 0,3 – 3,0 mm |
| Edge height min./max. | 10 – 65 mm |

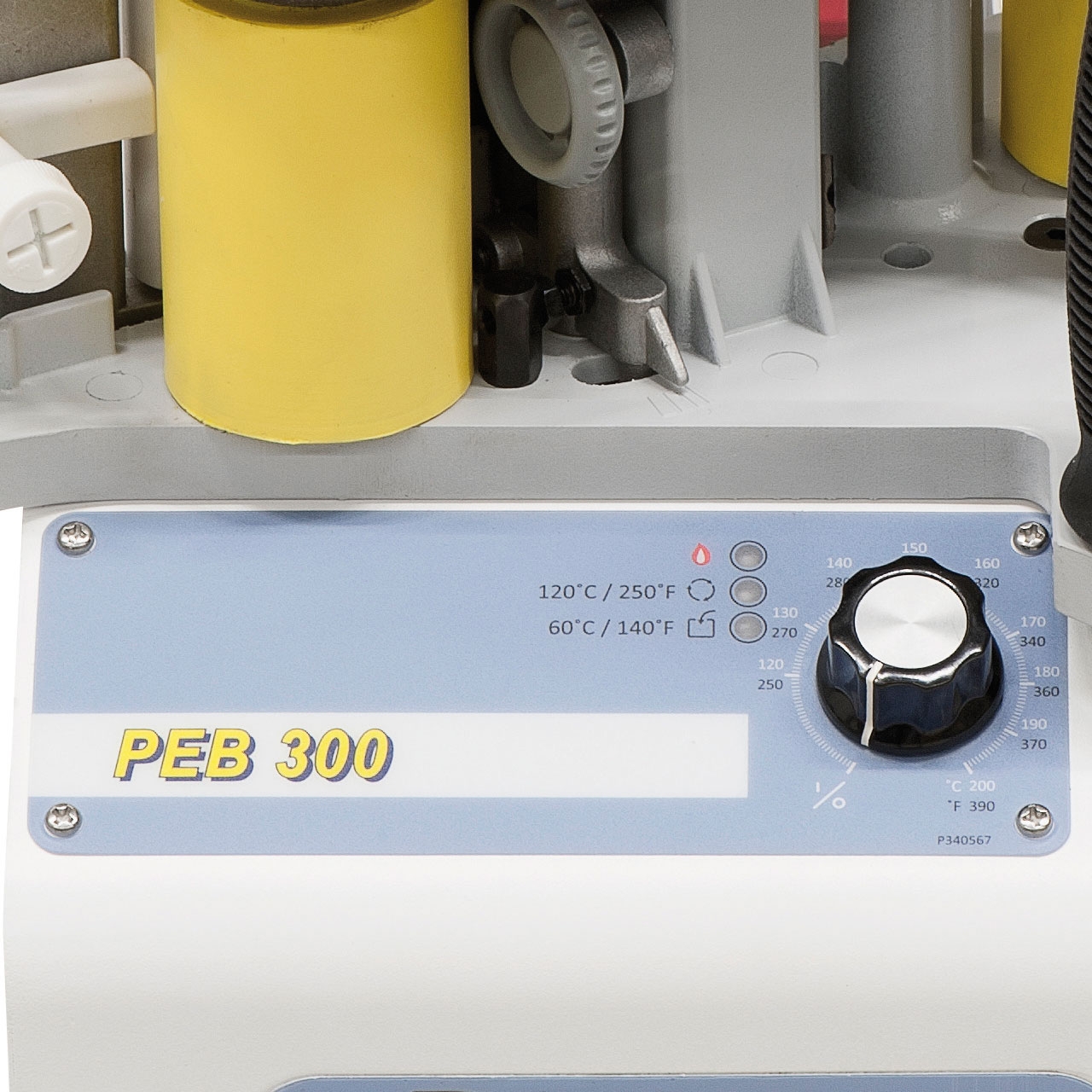

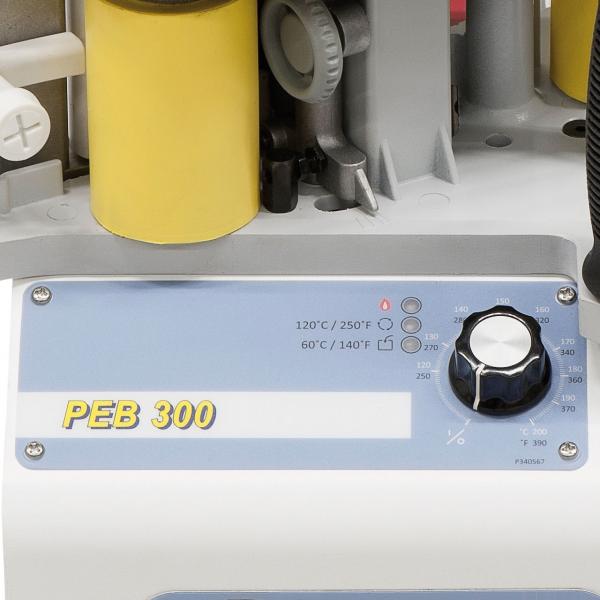

| Heating-up time | 4 min (120°) |
| Working temperatur | 120 – 200° |
| Glue tank | 400 ml |
| Feed speed | 4 m/min |
| Motor power | 855 W |
| Voltage | 230 V |
| Machine dimension (W x D x H) | 340 x 300 x 350 mm |
| Weight approx. | 8,0 kg |
