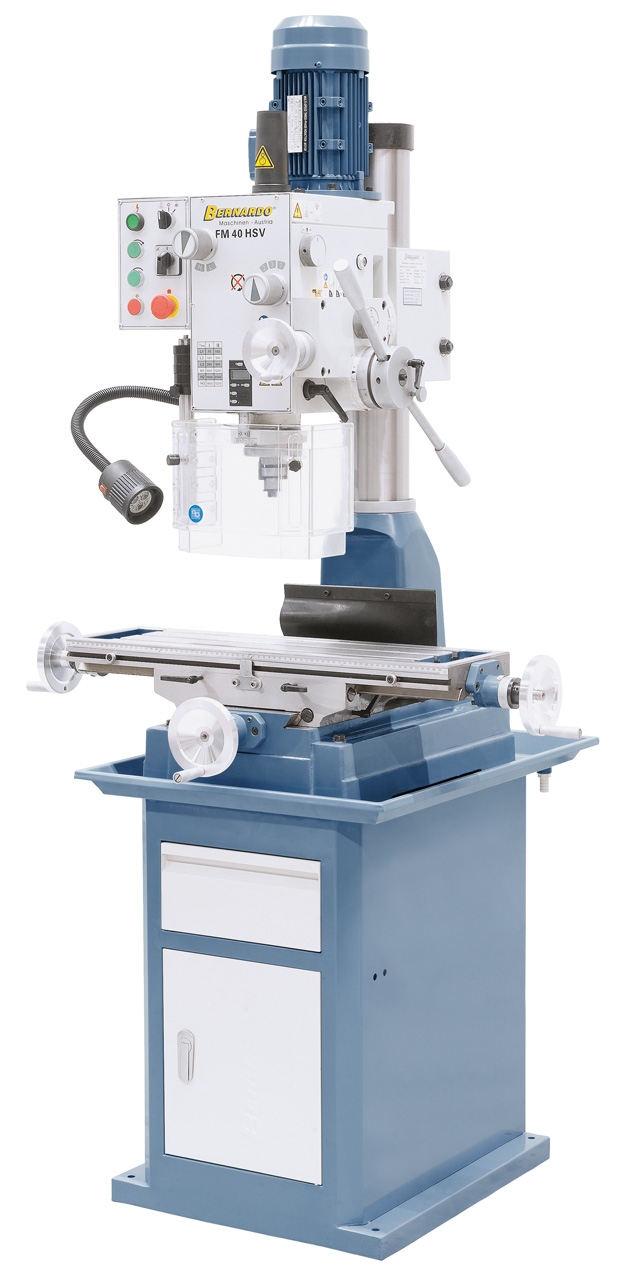

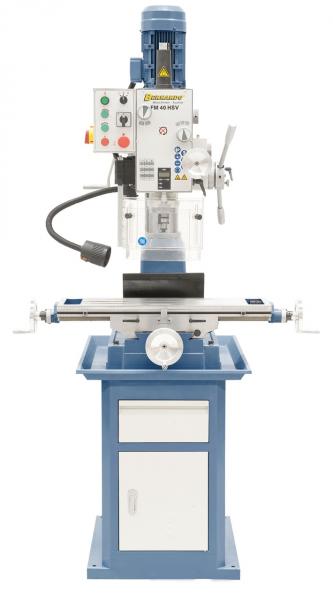

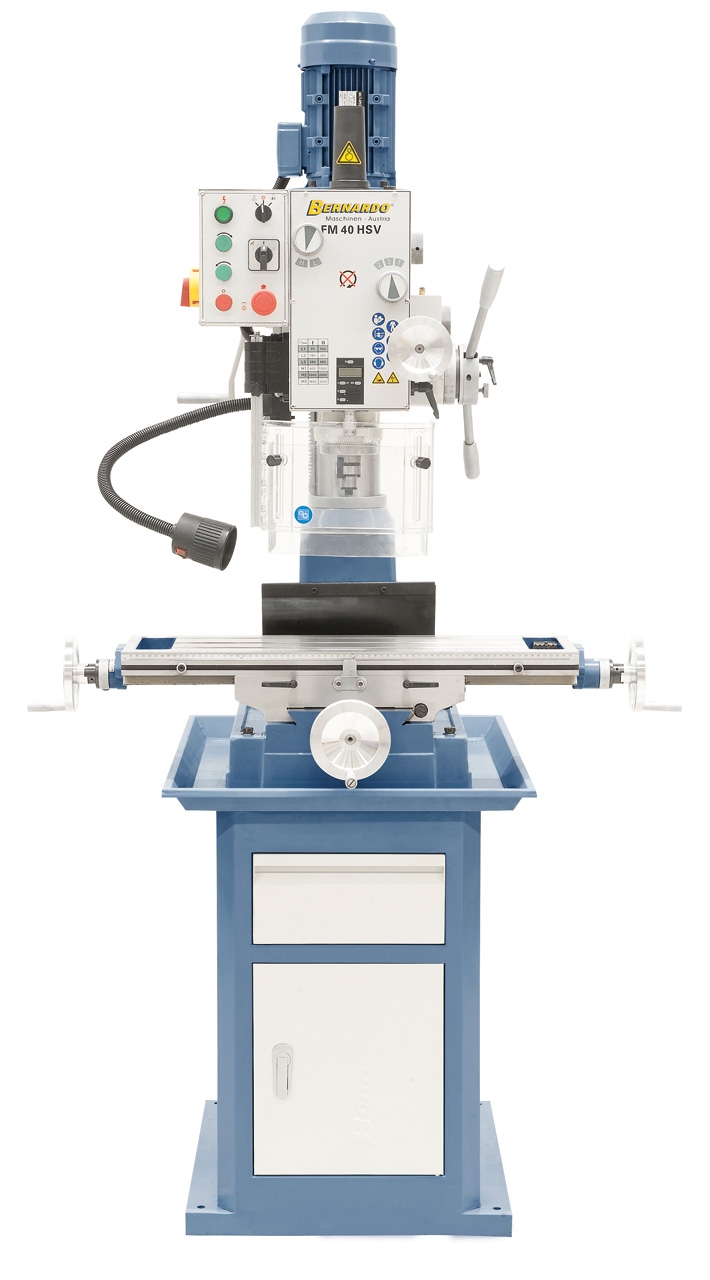

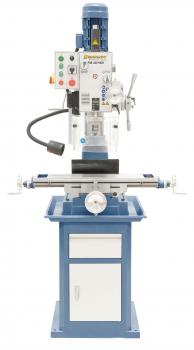

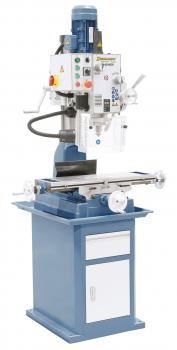

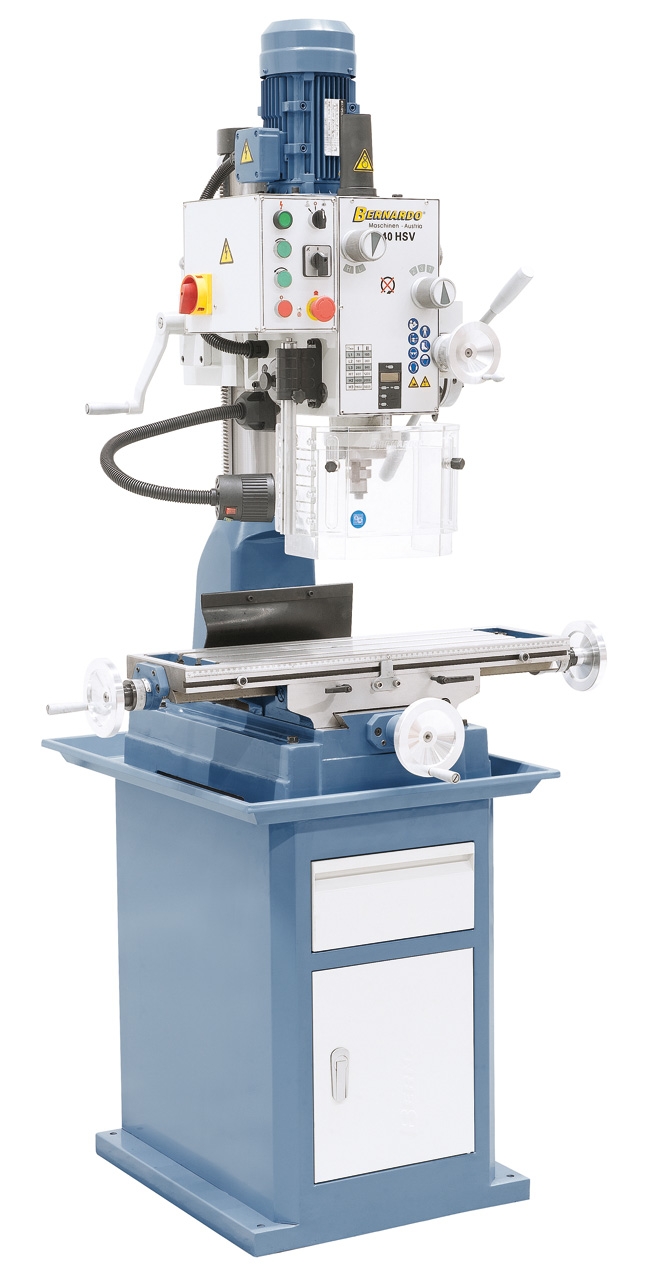

Metal Bernardo FM 40 HSV

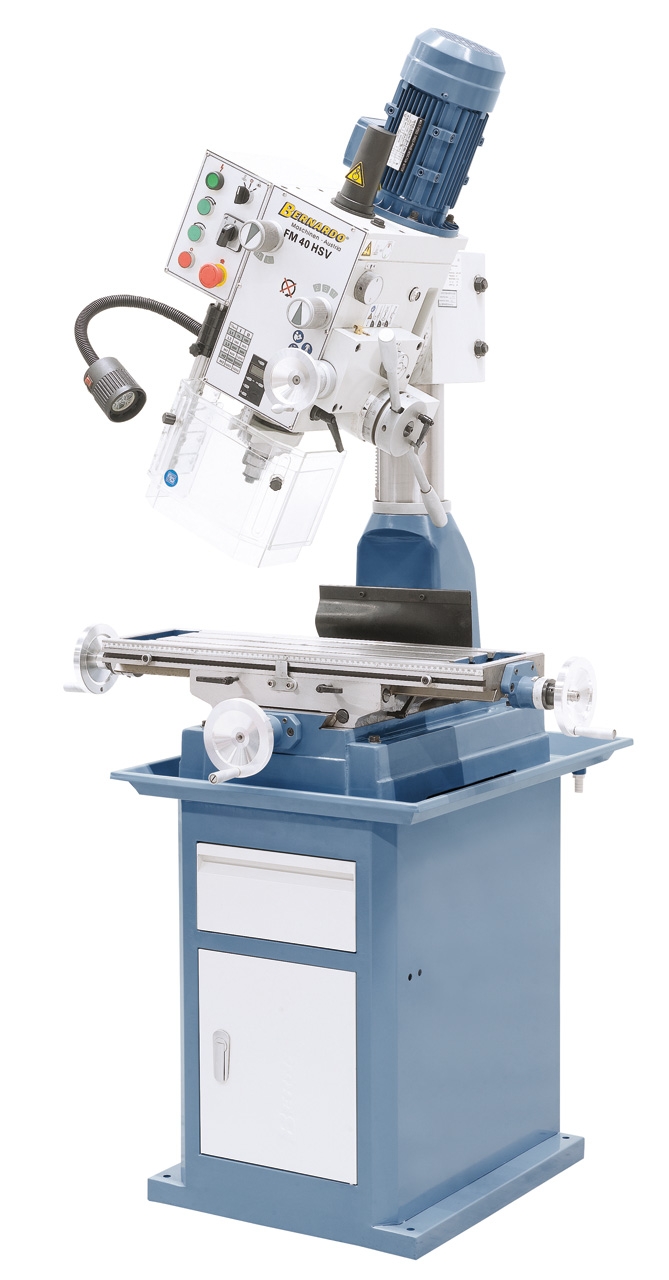

The FM 40 HSV features a solid construction, a serially spindle feed, a digital spindle stroke indication and extraordinary performance. This model is popular at model-makers, craftsmen and repair shops.

Scope of delivery Metal Bernardo FM 40 HSV

• Keyless drill chuck 3 – 16 mm / B 16
• Drill chuck arbor MT 3 / B 16
• Drawbar M 12
• Morse taper drill sleeve
  • MT 3/2
  • Taper shell end mill holder MT 3 / 27 mm
  • Height adjustable protective cover
  • Automatic spindle feed
  • LED machine light
  • Digital spindle stroke indication

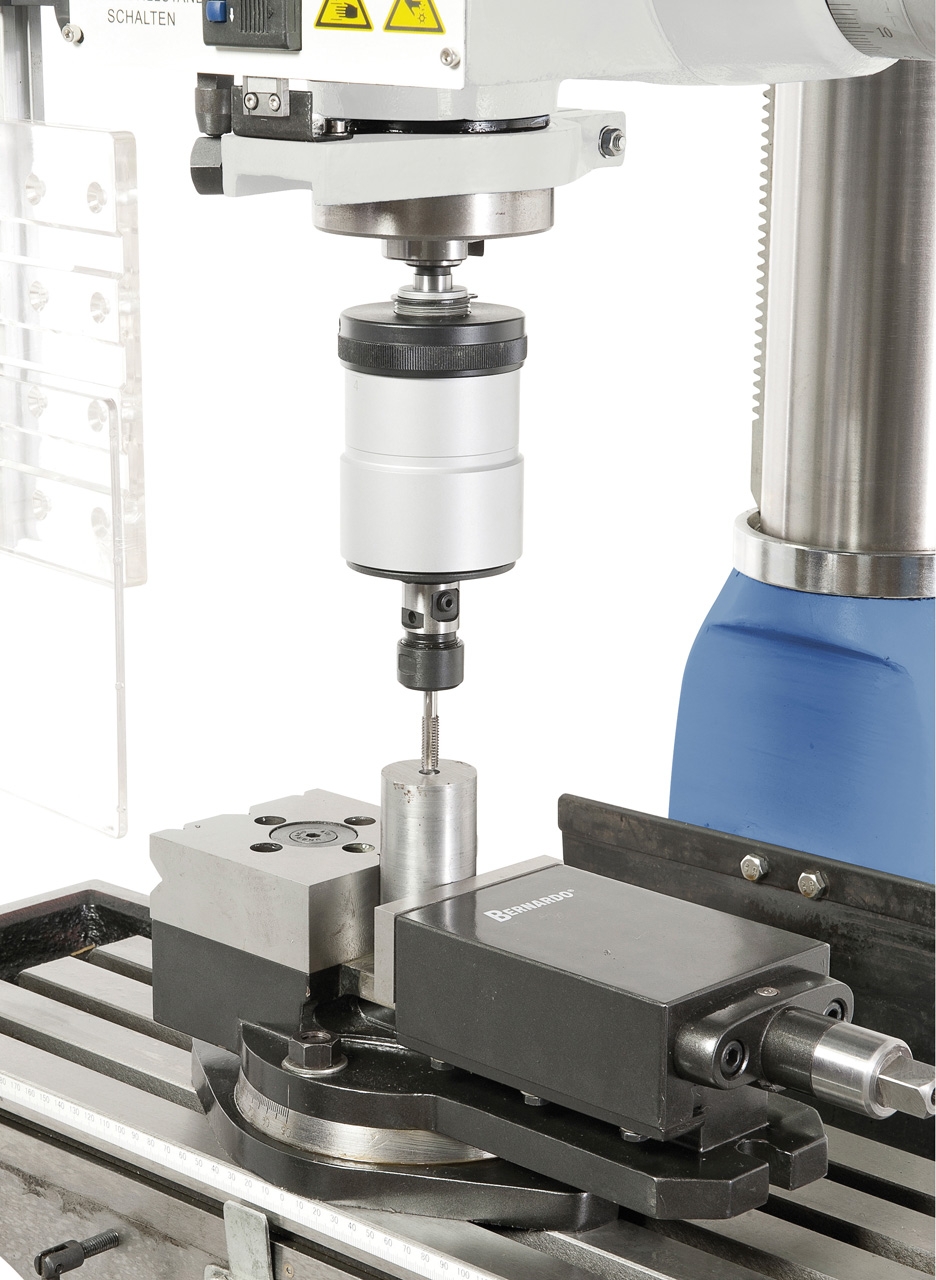

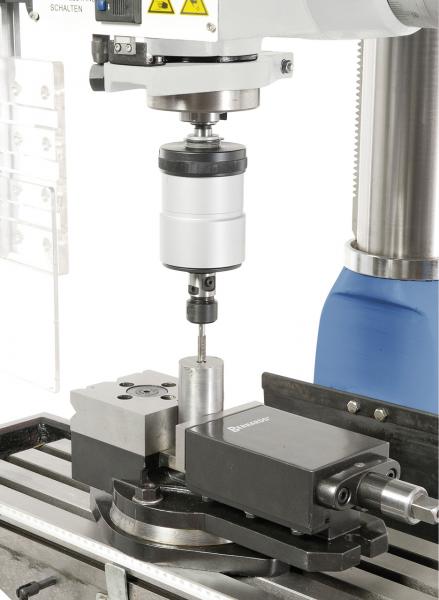

  • Thread cutting device
  • Longitudinal scale
  • Tools

  Features Metal Bernardo FM 40 HSV

  • Gear selector switch allows easy and quick speed change
  • Serially equipped with 3 adjustable drill feeds

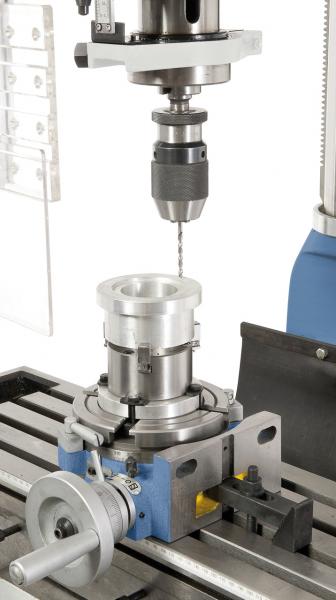

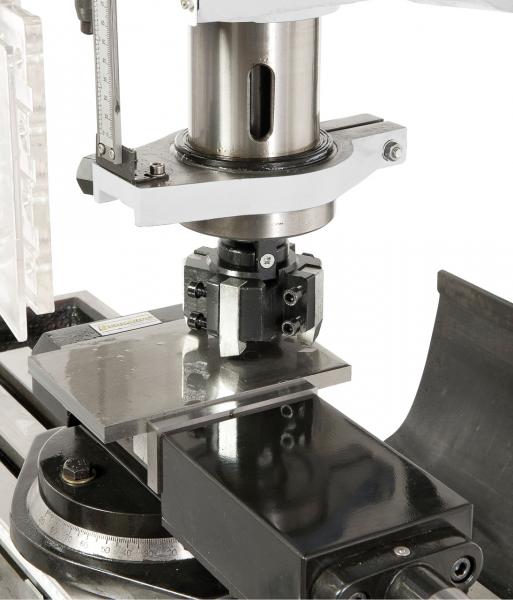

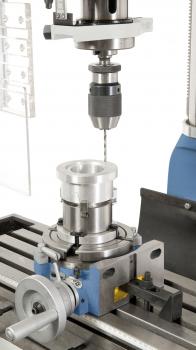

  • Multiple application possibilities such as drilling, milling and thread cutting
  • Large cross table, precisely processed surface
  • Gibs adjustable at the table
  • Polished gears, in oil bath, for smooth running
  • Taper roller bearings guarantees high concentricity
  • Right and left rotation allows thread cutting

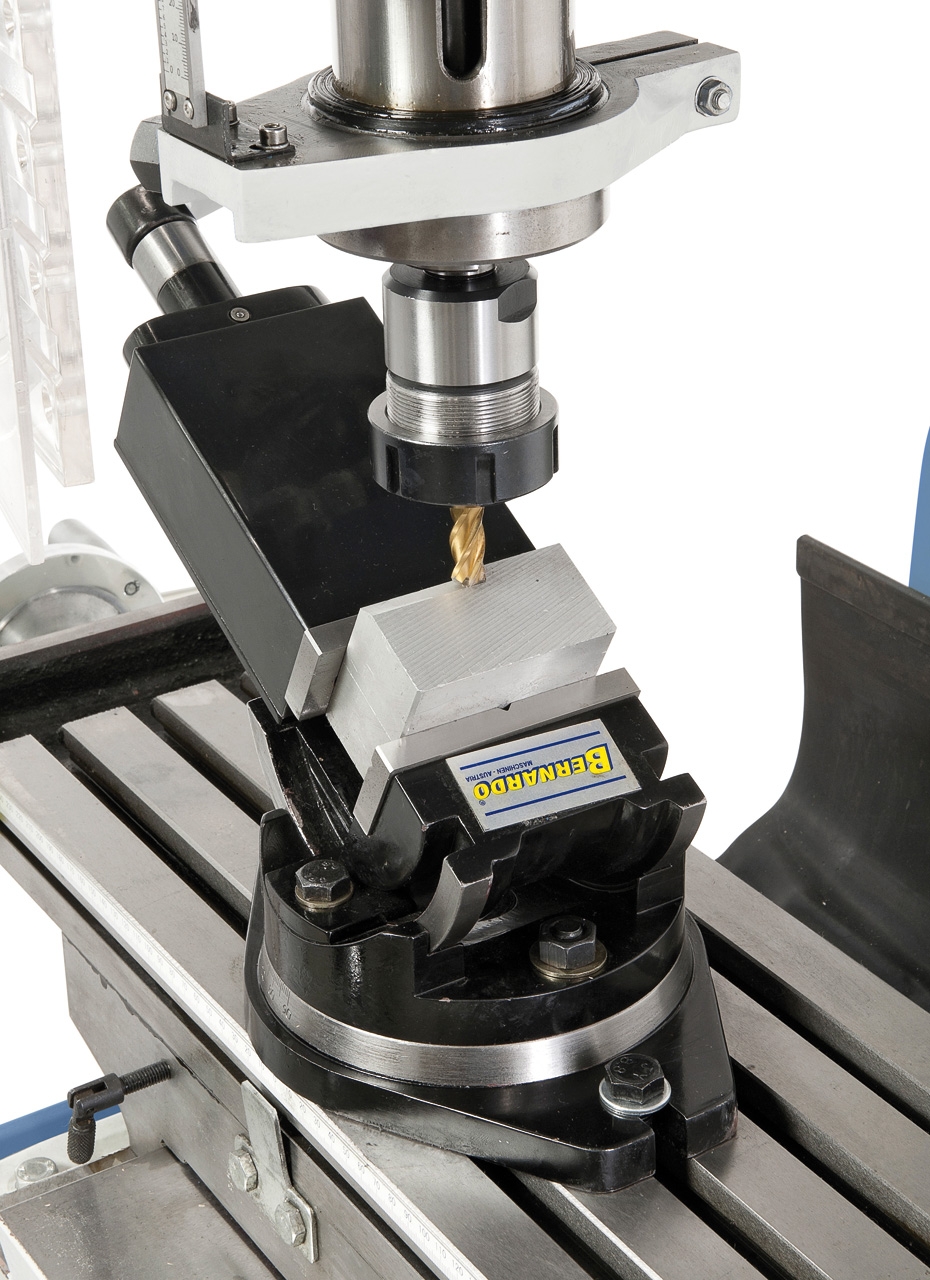

  • Gear head 180° tiltable, 360° rotatable and adjustable in height
  • Powerful 2-step motor, speed range 75 - 3200 rpm
  • Handle for spindle adjustment, handwheel for fine feed

  Technical details Metal Bernardo FM 40 HSV

  Drilling capacity in steel	32 mm
  Drilling capacity in cast iron	40 mm
  Milling head max.	80 mm
  Distance spindle to column	255 mm
  Spindle speeds	(12) 75 - 3200 rpm
  Spindle taper	MT 3
  Spindle stroke	120 mm
  Spindle feed	0,10 / 0,18 / 0,26 mm/rev.
  Table size / T-slot size	730 x 210 mm / 14 mm
  Travel (x / y)	520 mm / 175 mm
  Mill head tiltable	-90° to +90°
  Distance spindle to table	135 - 460 mm
  Height adjustment of mill head	325 mm
  Column diameter	115 mm
  Motor power output S1 100%	1,1 / 1,5 kW (400 V)
  Motor power input S6 40%	1,5 / 2,2 kW (400 V)
  Machine dimension (W x D x H)*	1100 x 830 x 1450 mm
  Weight approx.	270 kg

  * without stand
