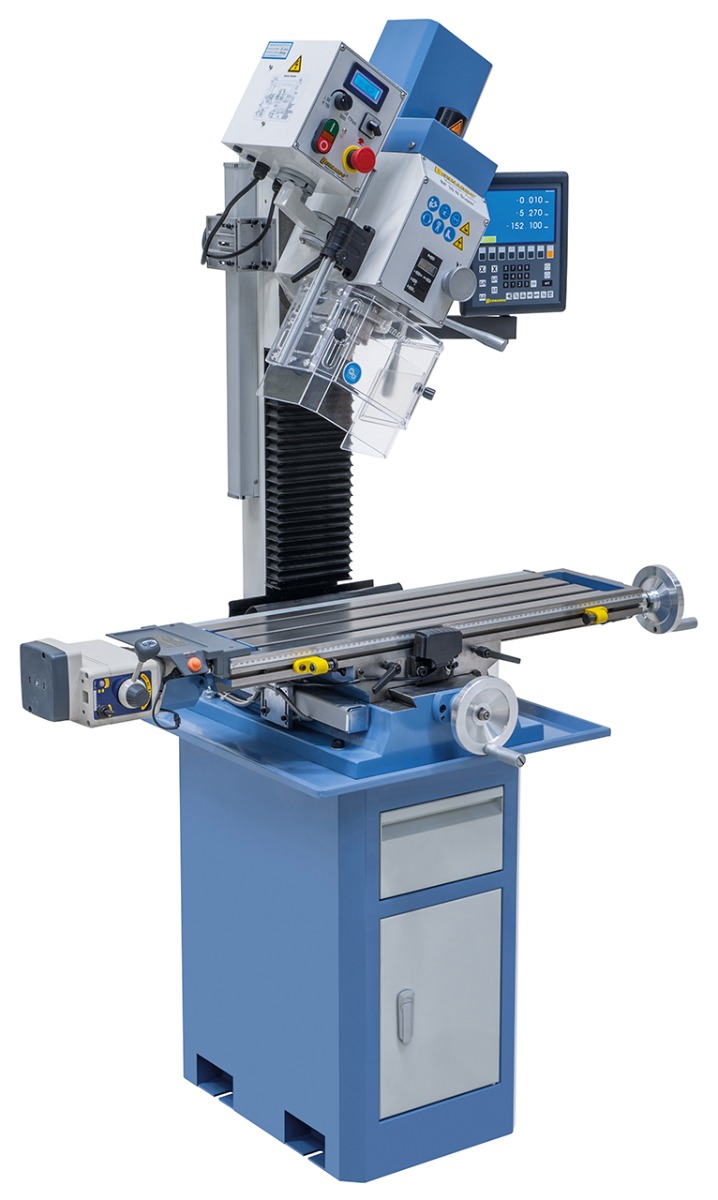

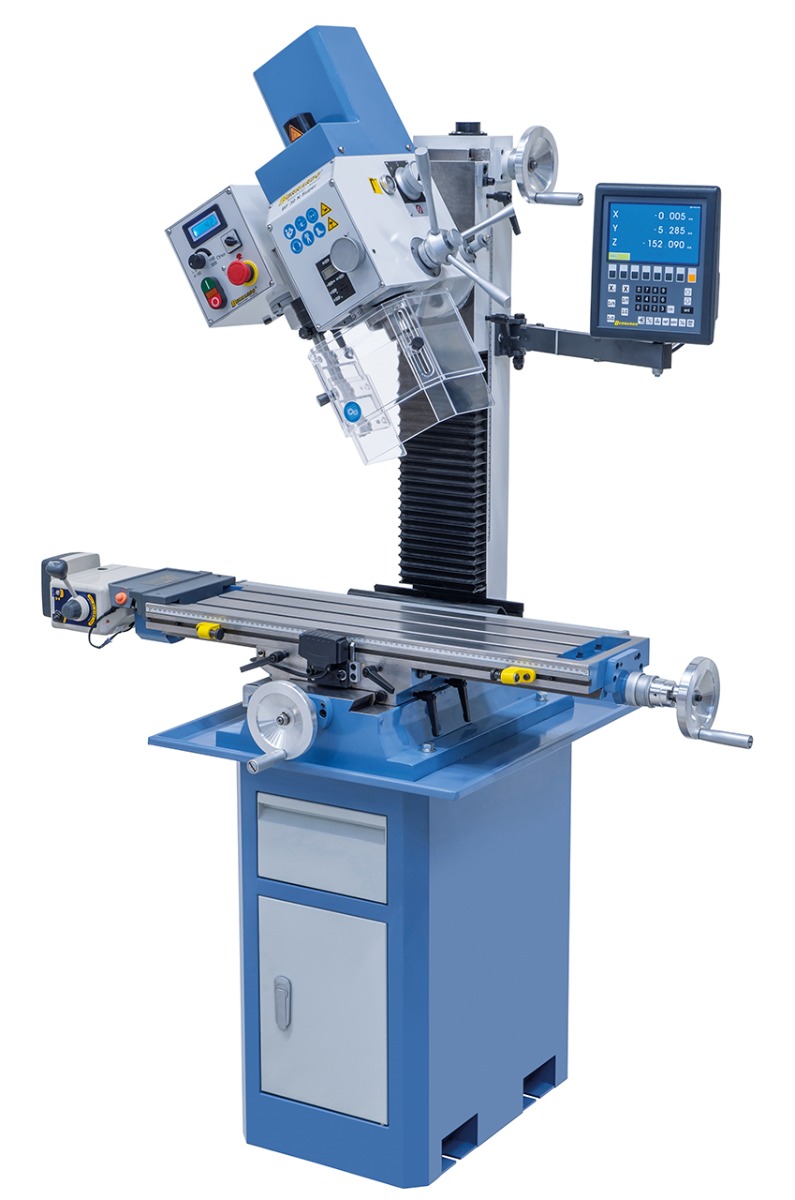

Metal Bernardo BF 30 N Super with table feed and digital readout ES-12 V

The model BF 30 N Super is an upgrade of the approved classic KF 25 Vario. The spindle taper is now even bigger, the table is larger and it is serially equipped with two digital displays, showing speed (50 - 3000 rpm) and spindle stroke.  In addition, this model features stepless speed adjustment  as well as a tiltable mill head from -90° to +90°.

Scope of delivery Metal Bernardo BF 30 N Super with table feed and digital readout ES-12 V

• 3-axis digital readout ES-12 V with LCD-display
• x-axis power feed AL 350 D
• Keyless drill chuck 1 - 16 mm / B 16
• Drill chuck arbor MT 3 / B 16
• Drawbar M 12
• Digital speed indicator
• Digital spindle stroke indicator
• EMC filter according to CE standard
• Height adjustable protective cover
• Tools

Features Metal Bernardo BF 30 N Super with table feed and digital readout ES-12 V

• Many possible applications, such as groove milling, face milling, reboring etc.
• Digital speed and spindle stroke indicator included as standard equipment
• 2-step gear unit for optimal power transmission
• Serially equipped with left and right turning, ideal for thread cutting
• Direct current motor for ideal torque at lower speed
• Dovetail guiding for the x-, y- and z-axis, adjustable via gibs
• High-quality bearings guarantees high spindle concentricity (≤0.015 mm)
• Mill head tiltable to both sides for angular boring, milling of bevels etc.
• Large, surface treated cross table
• Handle for spindle adjustment, handwheel for fine feed

Technical details Metal Bernardo BF 30 N Super with table feed and digital readout ES-12 V

* without stand
