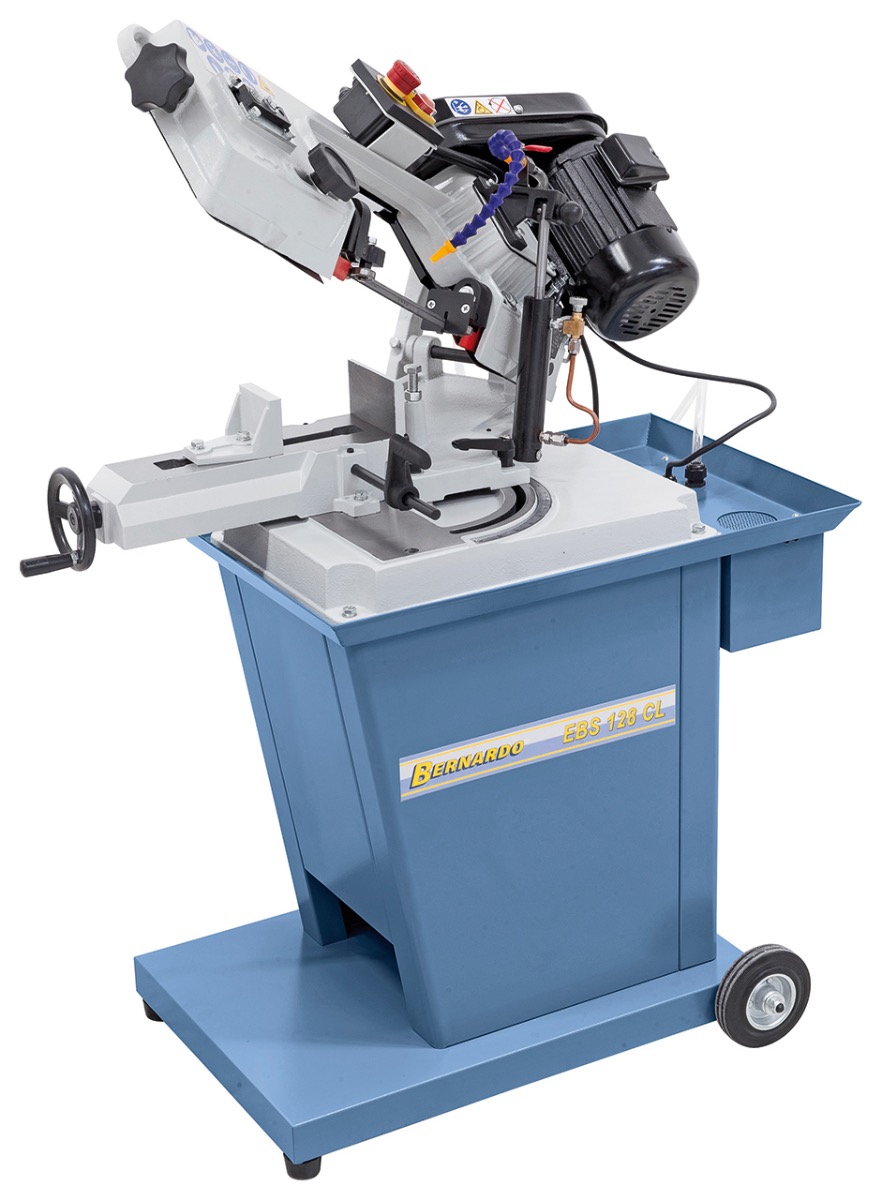

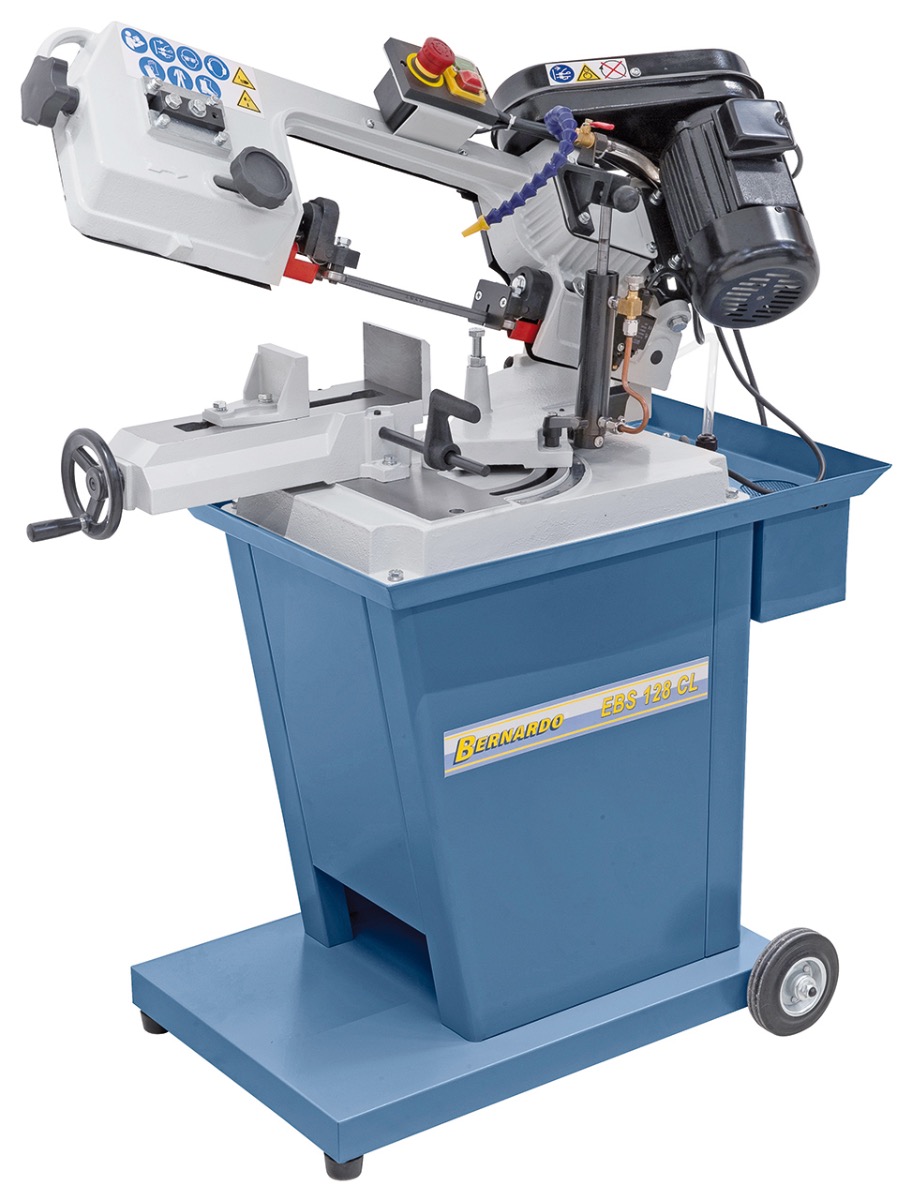

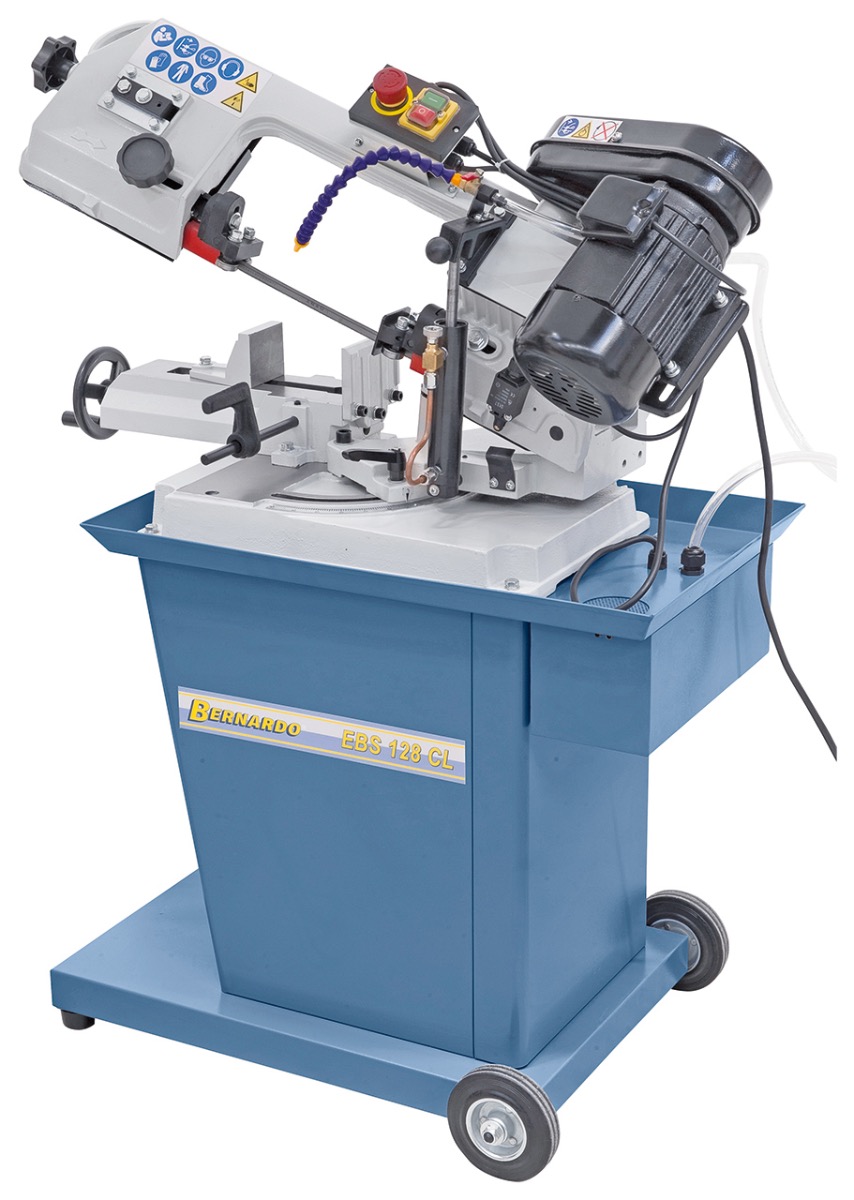

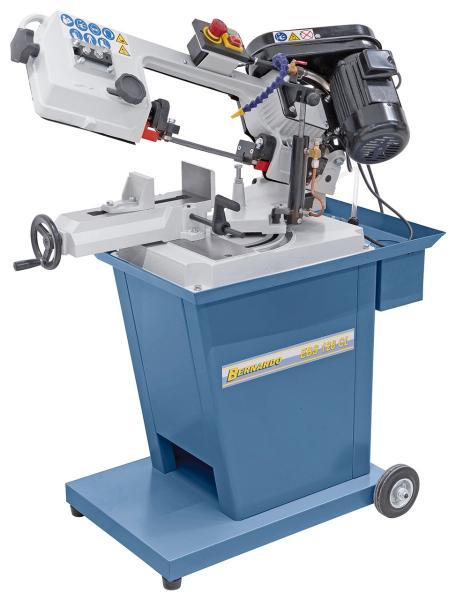

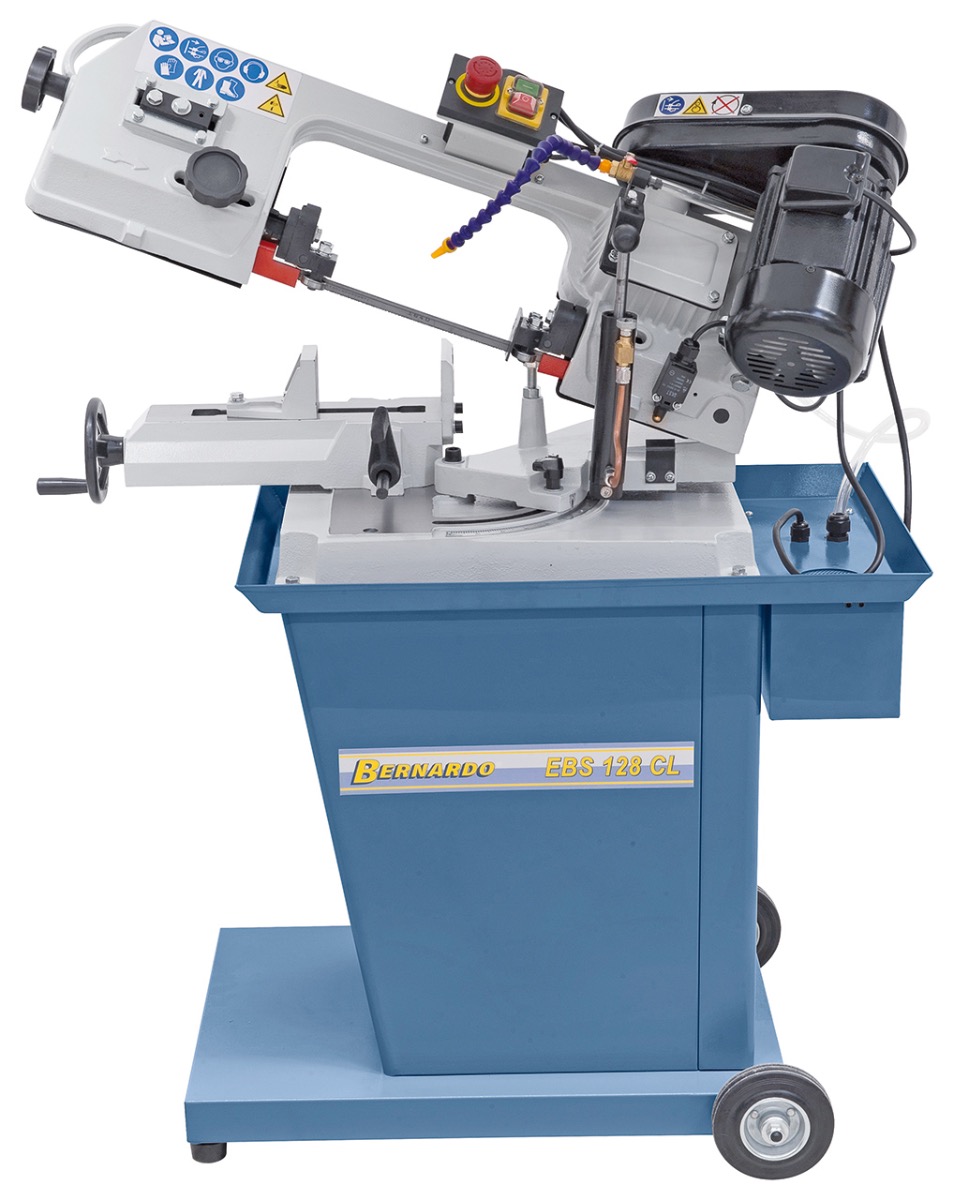

The double miter band saw EBS 128 CL - compared to the proven EBS 128 C - is equipped as standard with a coolant device. The saw arm tilts up to 60° to reduce space requirements when processing long workpieces.
Scope of delivery Metal bandsaws Bernardo EBS 128 CL - 400 V
- Bandsaw blade

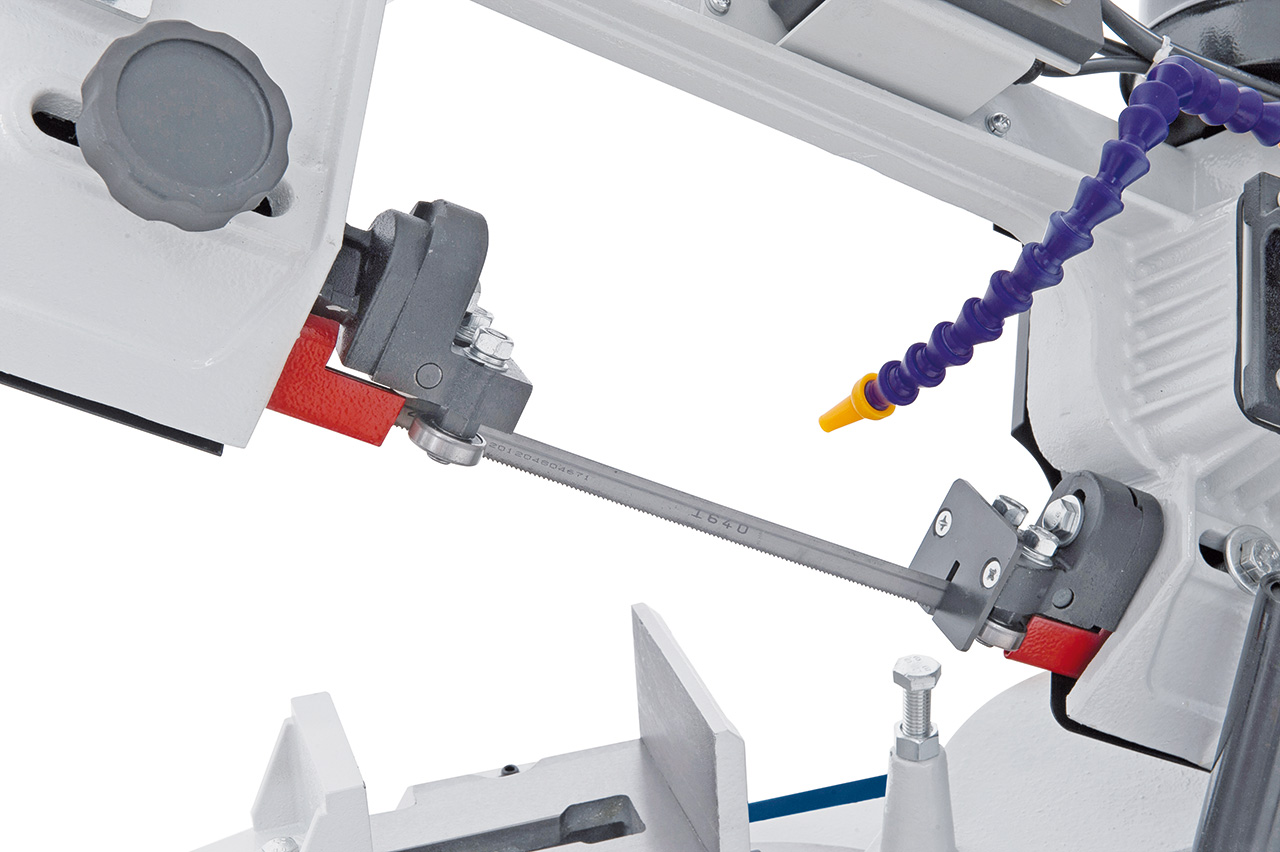

- Coolant device

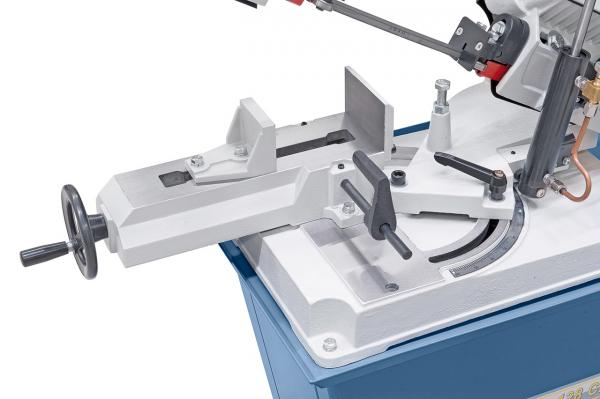

- Quick clamping vice
- Material fence
- Automatic shut-down
- Mobile machine base
- Hydraulic cylinder

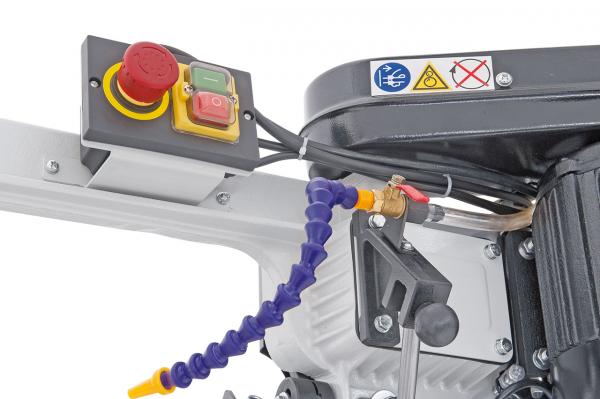

- Separate emergency stop button according CE
Features Metal bandsaws Bernardo EBS 128 CL - 400 V
- Suitable for cutting profiles, pipes, solid iron, non-ferrous metals, plastics etc.

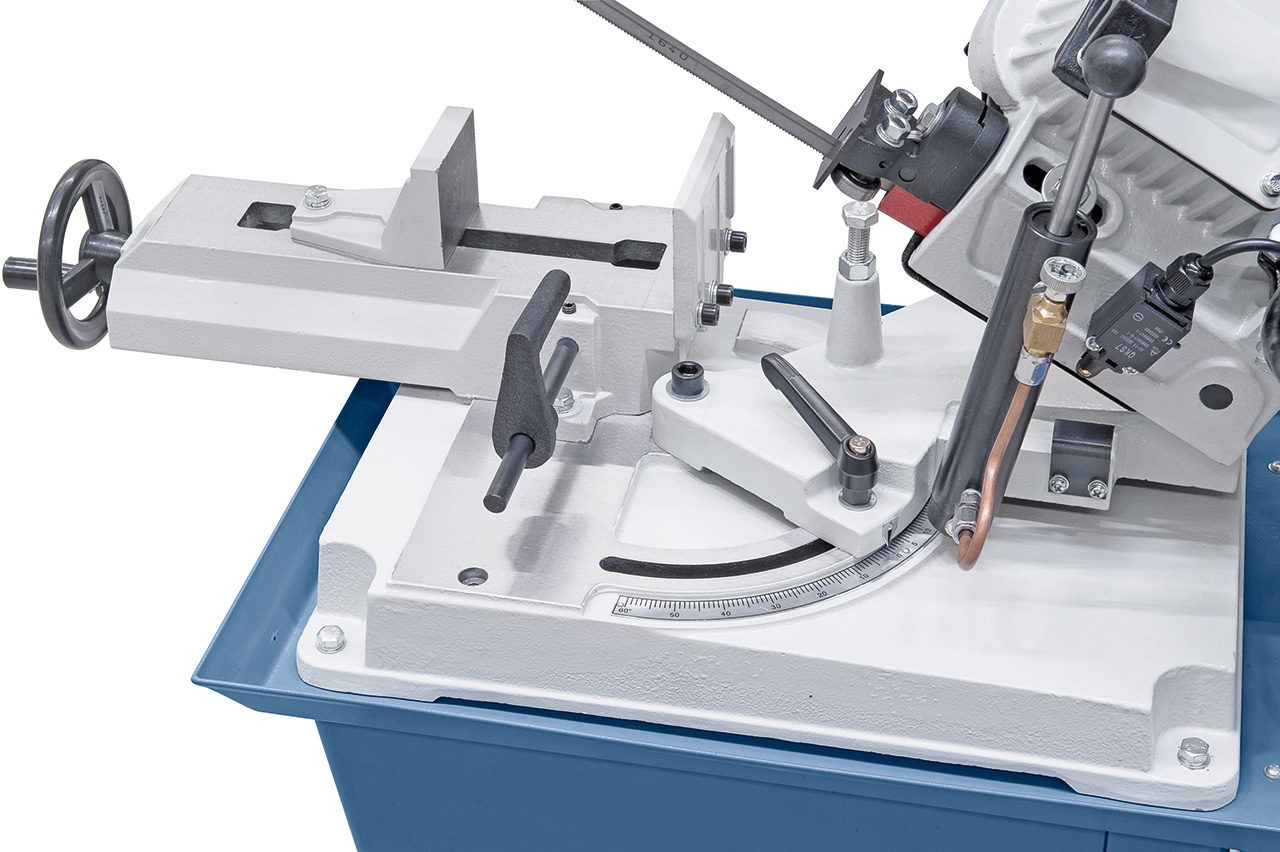

- Sawframe swings left (-60°) and right (+45°) for double mitre cutting
- Automatic shut-down at cutting end
- Torsion-free, solid saw frame
- 3 speed setting adjustable by v-belt
- Solid construction allowing smooth running free of vibrations
- Equipped with machine base and coolant device
- Quick clamping vice and material fence included
Technical details Metal bandsaws Bernardo EBS 128 CL - 400 V
| Cutting capacity round 90° | 125 mm |
| Cutting capacity flat 90° | 100 x 150 mm |
| Cutting capacity round 45° | 95 mm |
| Cutting capacity flat 45° | 95 x 76 mm |
| Cutting capacity round 60° | 50 mm |
| Cutting capacity flat 60° | 50 x 56 mm |
| Working height | 740 mm |
| Bandsaw blade dimension | 1638 x 13 x 0,65 mm |
| Cutting speeds | 24 / 35 / 55 m/min |
| Motor power output S1 100% | 0,55 kW |
| Motor power input S6 40% | 0,75 kW |
| Voltage | 400 V |
| Machine dimension (L x D x H) | 1000 x 550 x 1100 mm |
| Weight approx. | 85 kg |
