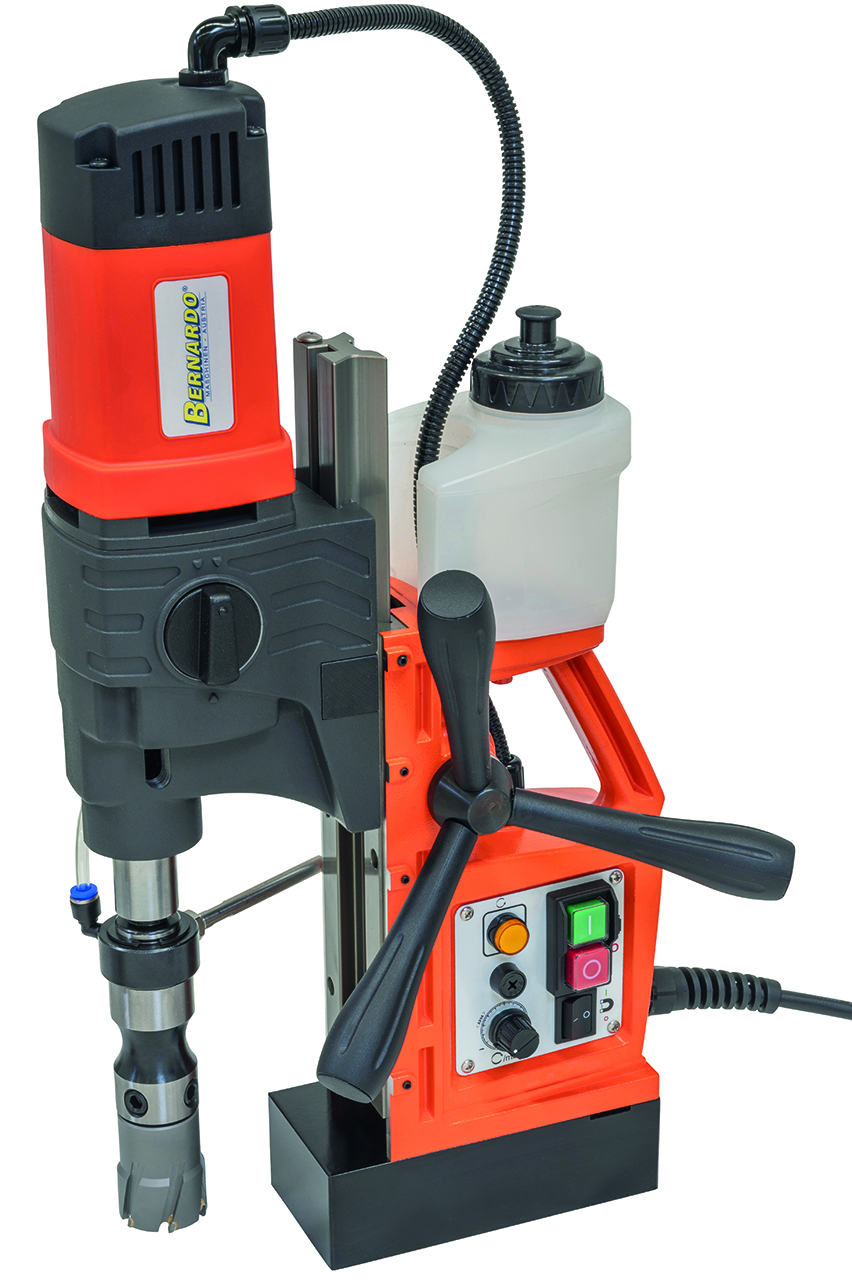

Magnetic drilling and threading machine Bernardo TPC 1000
NEW

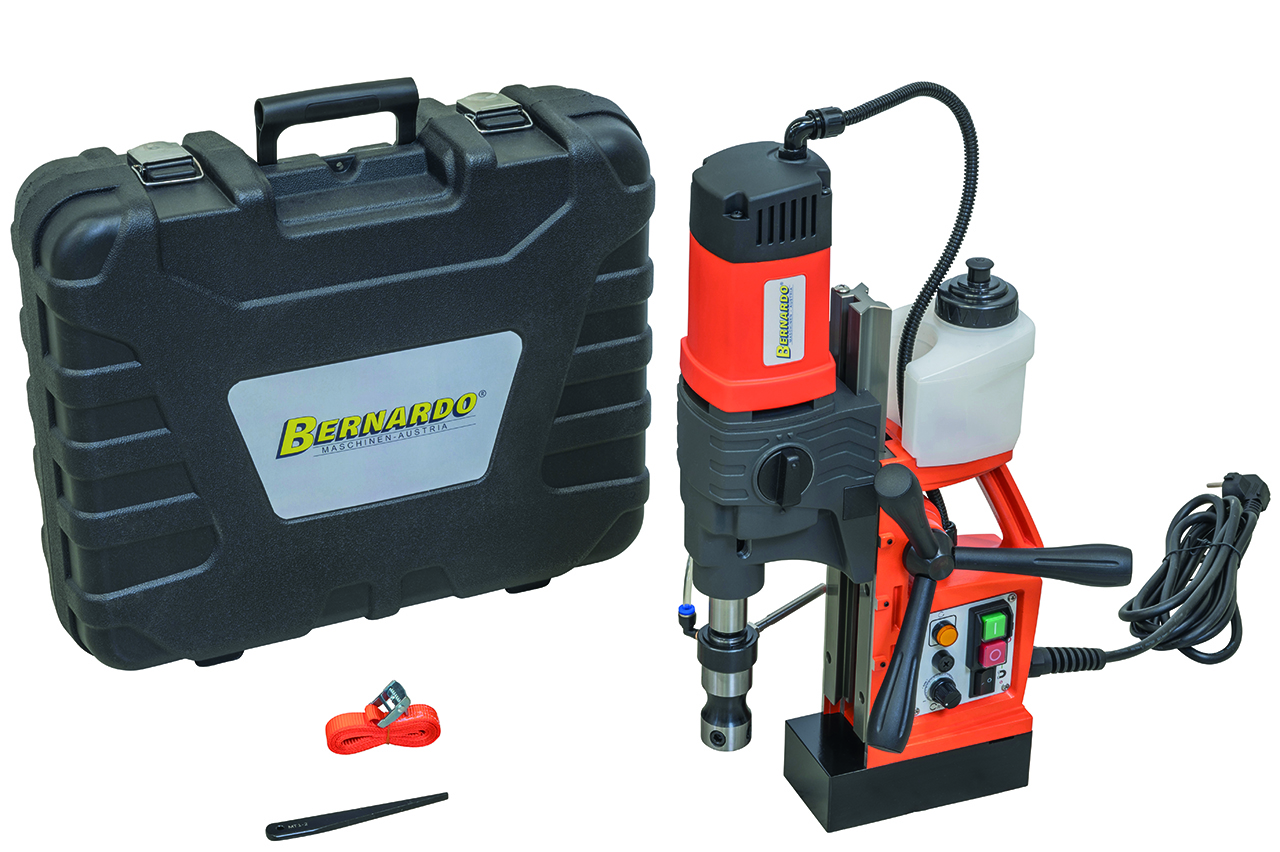

Scope of delivery Magnetic drilling and threading machine Bernardo TPC 1000
- Plastic box
- Coolant reservoir
- Tool holder with automatic internal cooling MK 2 / 19 mm Weldon shank
- Safety harness
- Operating instructions
- Hand tool
Features Magnetic drilling and threading machine Bernardo TPC 1000

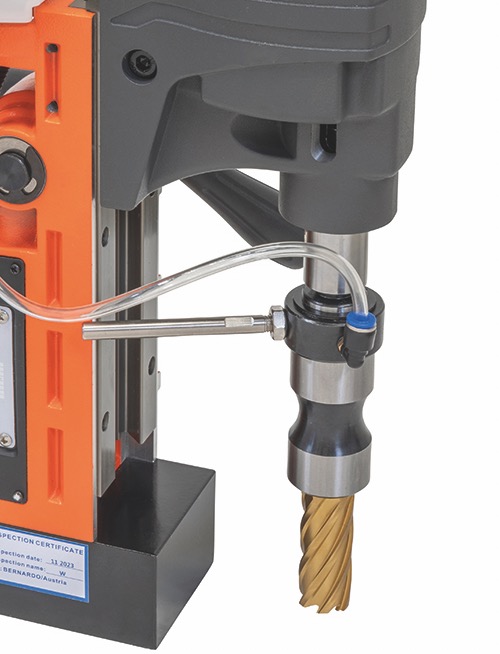

- Automatic internal lubrication; the coolant is fed directly to the tip of the core drill

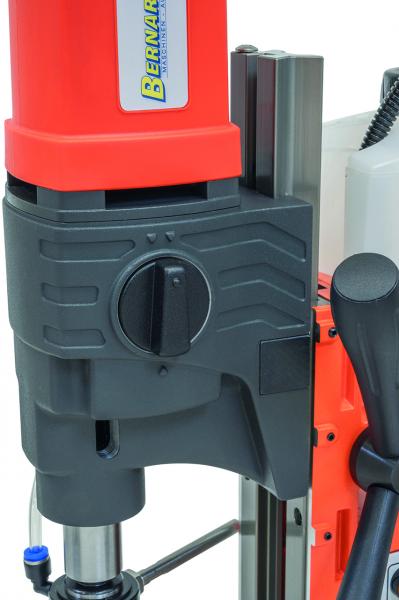

- Variable speed control for optimum adjustment of the cutting speed during
- core drilling, thread cutting, countersinking and reaming
- Fitted as standard with an MK 2 taper for holding various tools (twist drills, countersinks, reamers, threading chucks, hole saws, etc.)
- High-torque drive motor with soft start and overload protection
- Powerful electromagnet ensures maximum magnetic holding force
Technical details Magnetic drilling and threading machine Bernardo TPC 1000
| Core drill max. Ø | 36 mm |
| Core drill max. drilling depth | 50 mm |
| Twist drill max. Ø | 18 mm |
| Max. drilling head travel | 160 mm |

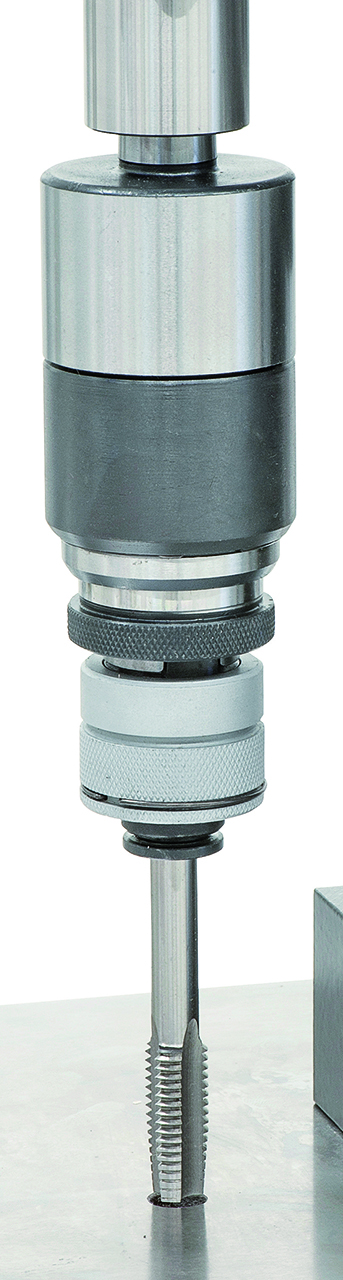

| Thread cutting max. | M 18 |
| No-load speed, variable | 100 - 360 / 360 - 660 rpm |
| Spindle taper | MK 2 |
| Weldon shank holder | 19 mm |
| Distance spindle / base plate max.* | 180 mm |
| Distance Weldon holder / base plate max.* | 80 mm |
| Magnetic holding force | 14200 N |
| Magnetic base dimensions (L x W x H) | 165 x 80 x 50 mm |
| Motor power | 1550 W |
| Voltage | 230 V |
| Machine dimensions (W x D x H) | 200 x 330 x 560 mm |
| Weight approx. | 13.5 kg |
* Extendable up to 60 mm
