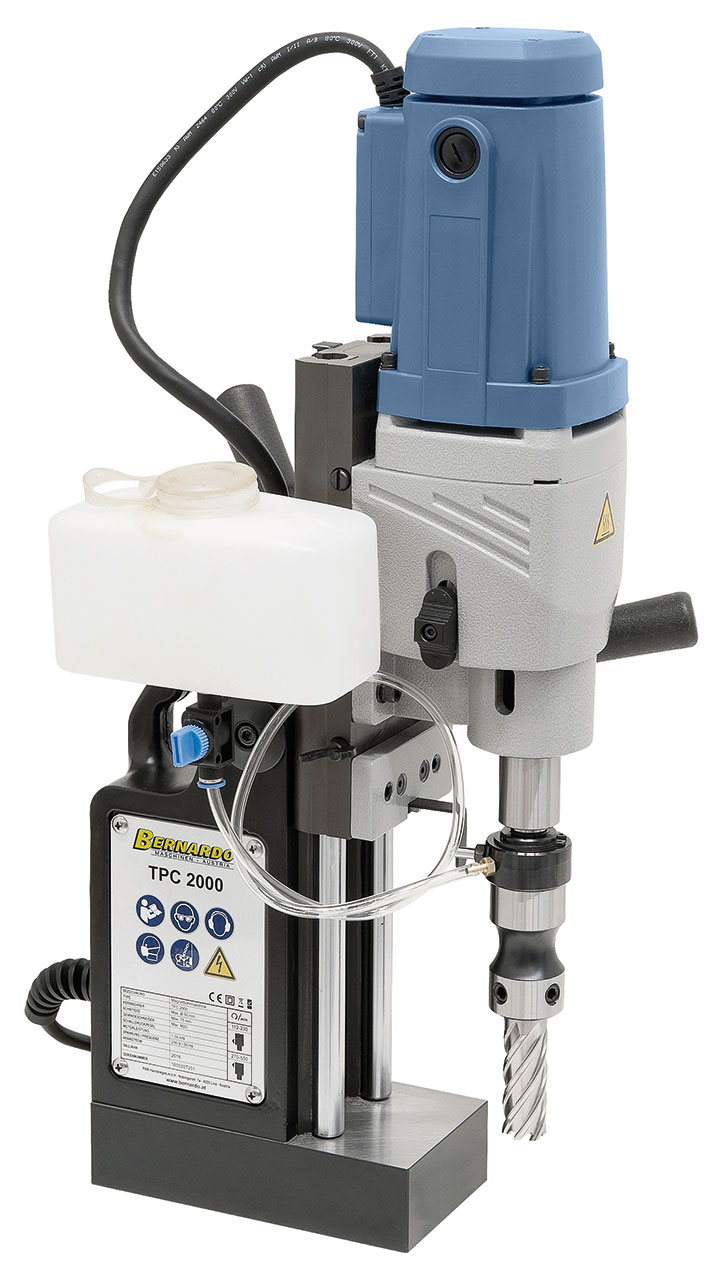

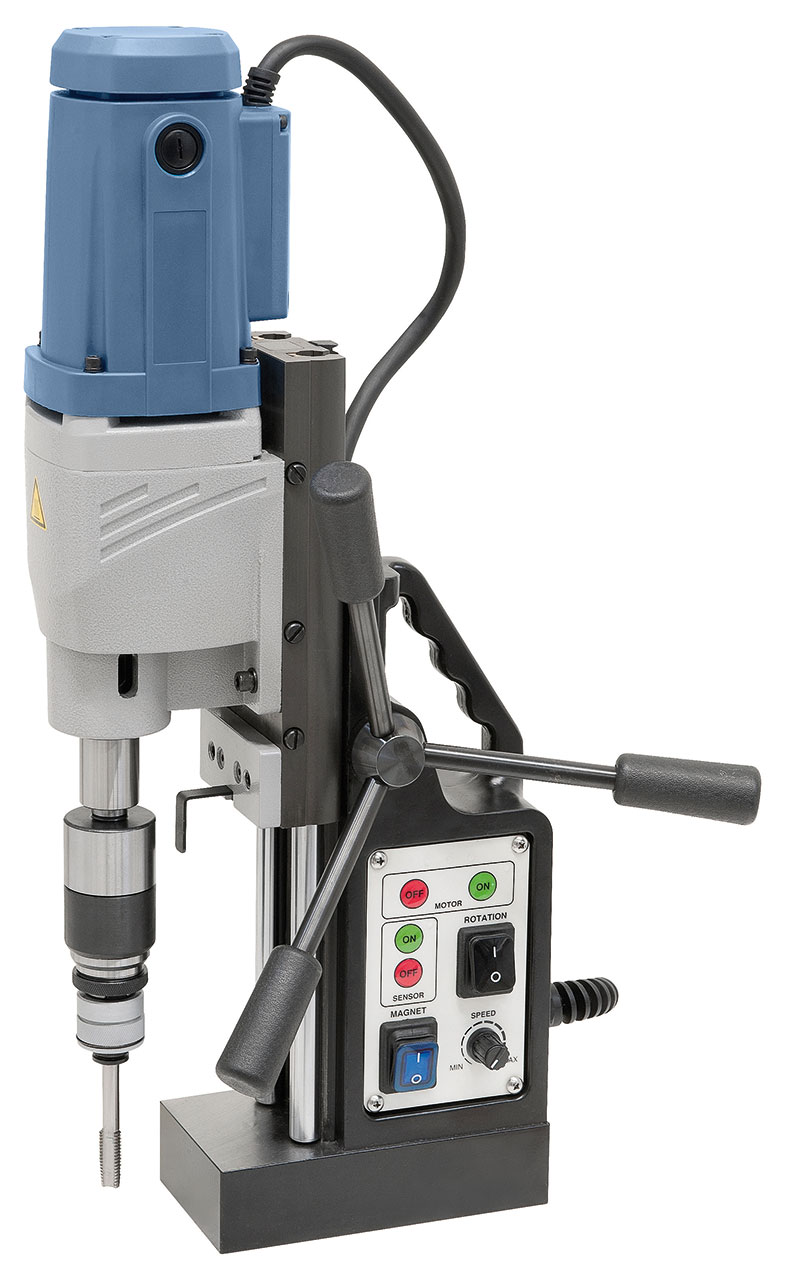

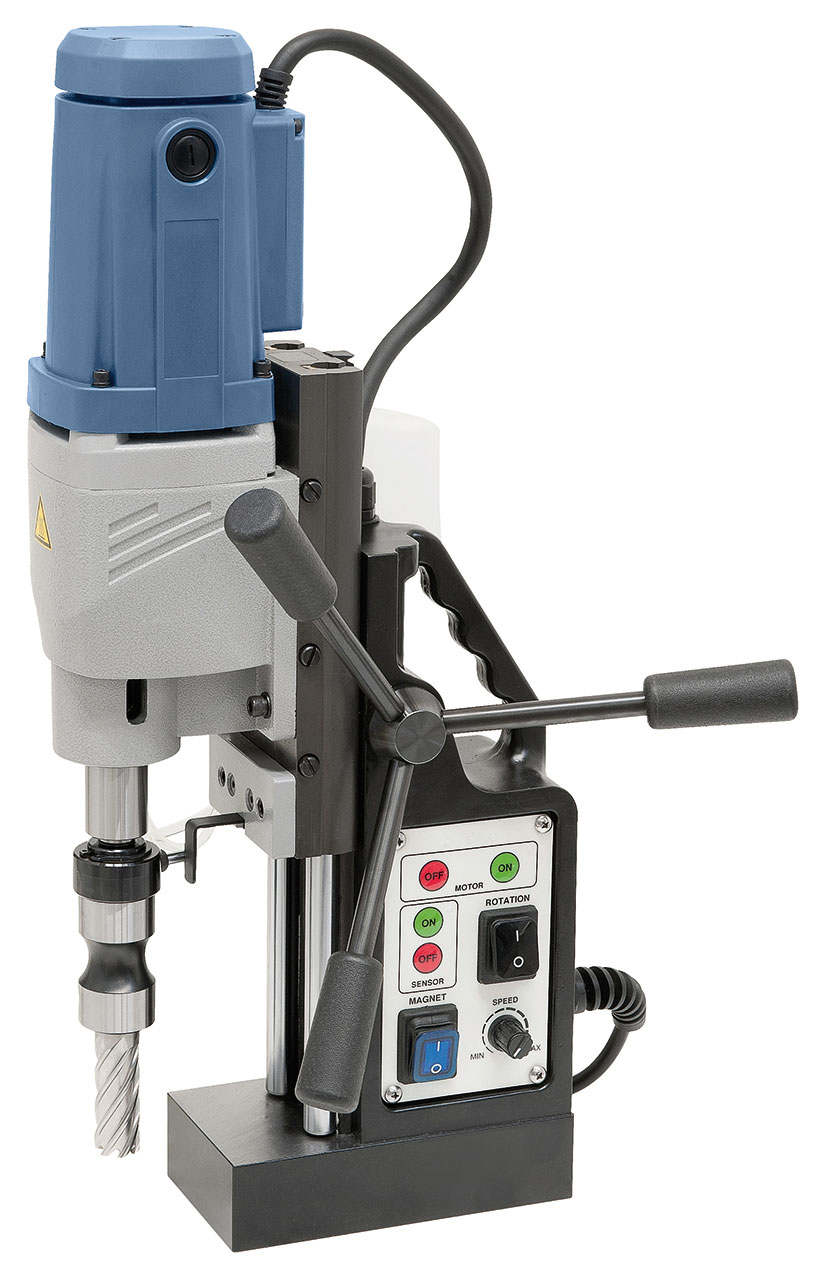

Magnetic core drilling machine with vario drive
Scope of delivery Magnetic core drilling machine Bernardo TPC 2000
- Safety chain
- Plastic container
- Coolant tank
- Arbor with automatic internal cooling MT 2 / Weldon shank 19 mm
- User manual
- Tools
Features Magnetic core drilling machine Bernardo TPC 2000

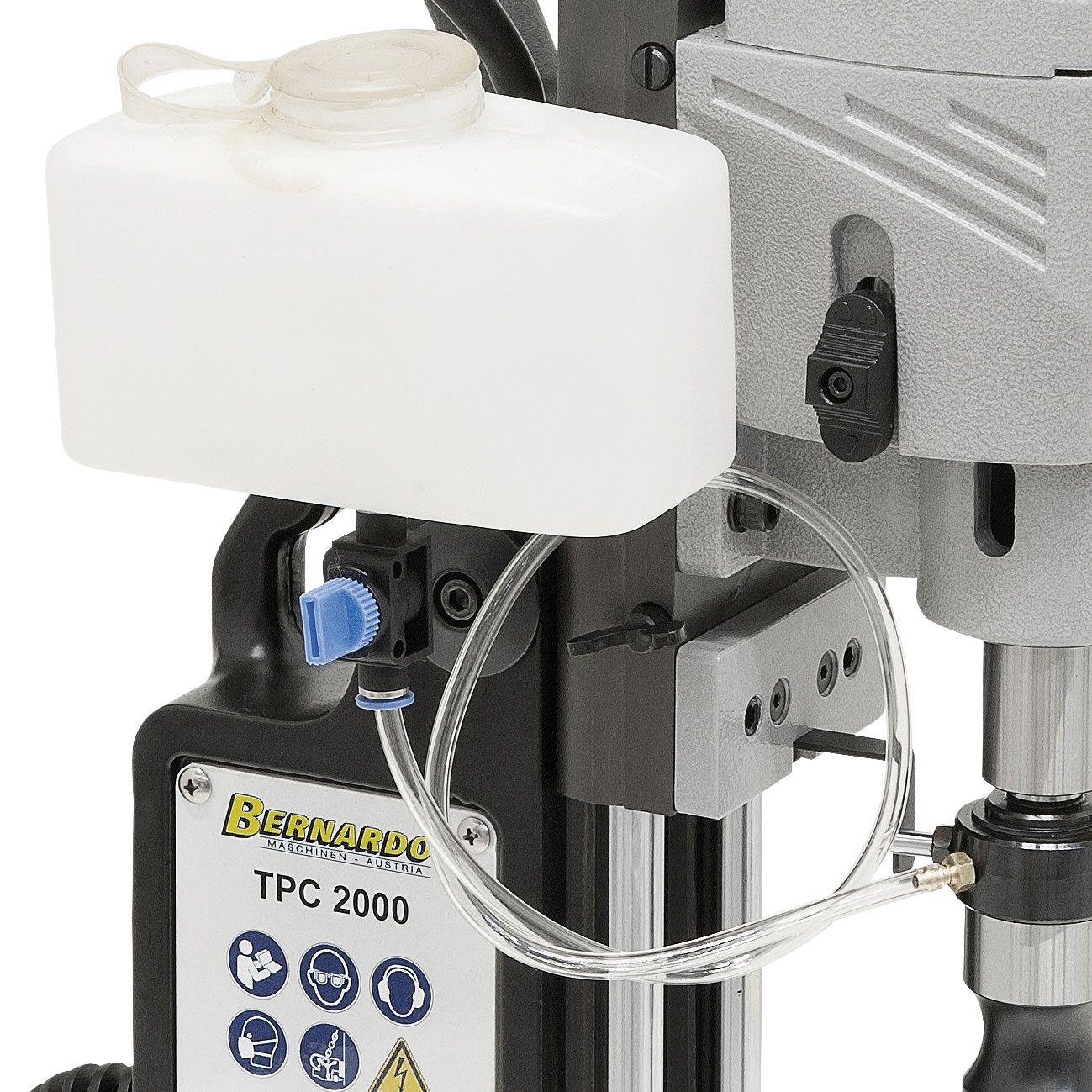

- Automatic internal lubrication, coolant fluid goes straight to tip of core drill

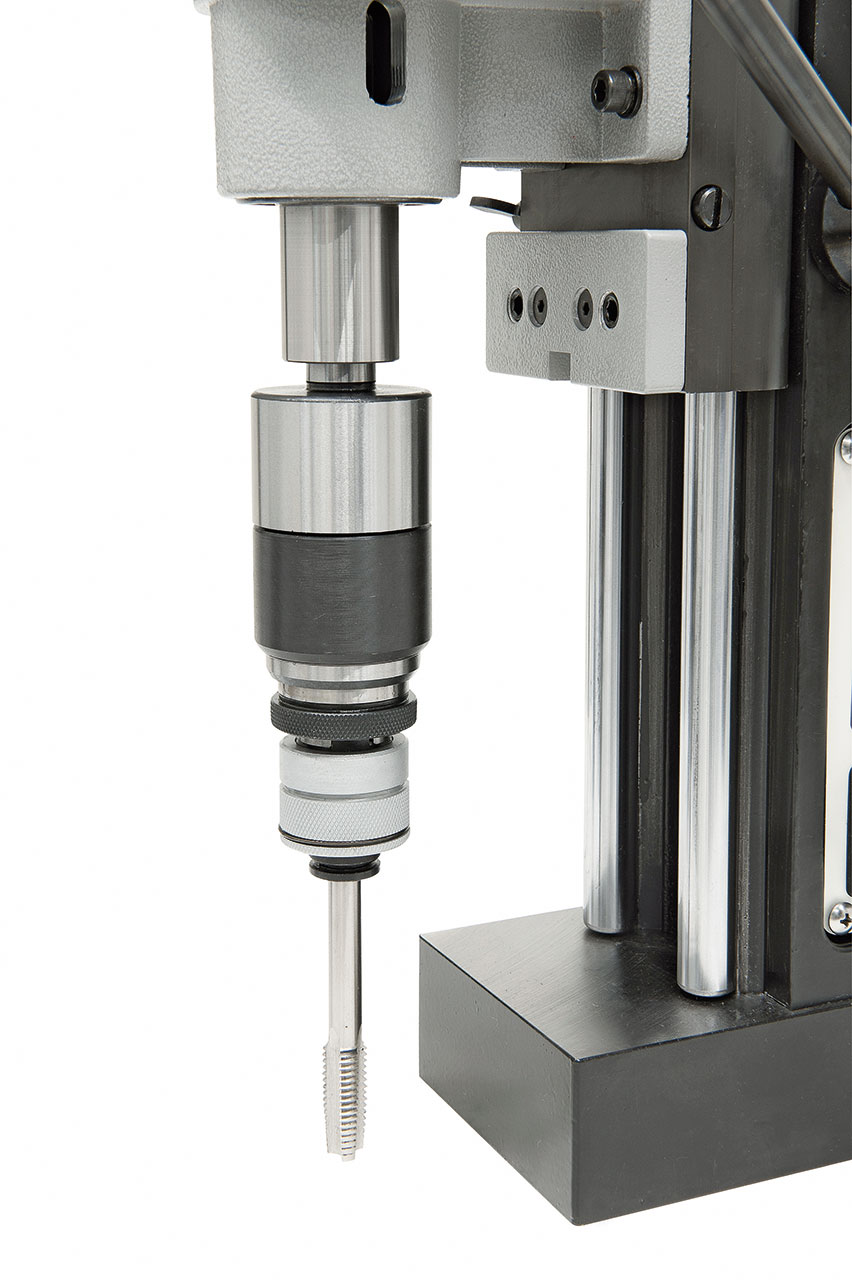

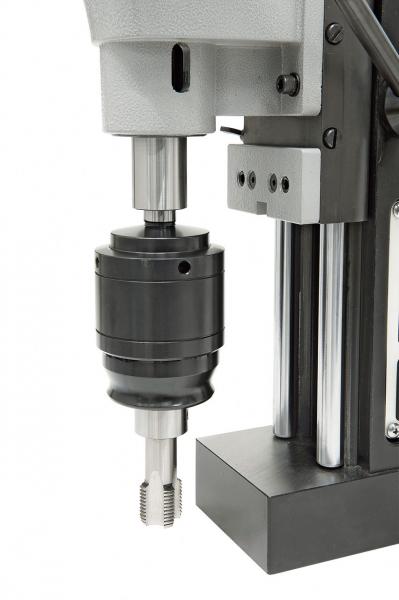

- Variable speed setting allows optimal adjustment of speed when core drilling, tapping, countersinking or reaming

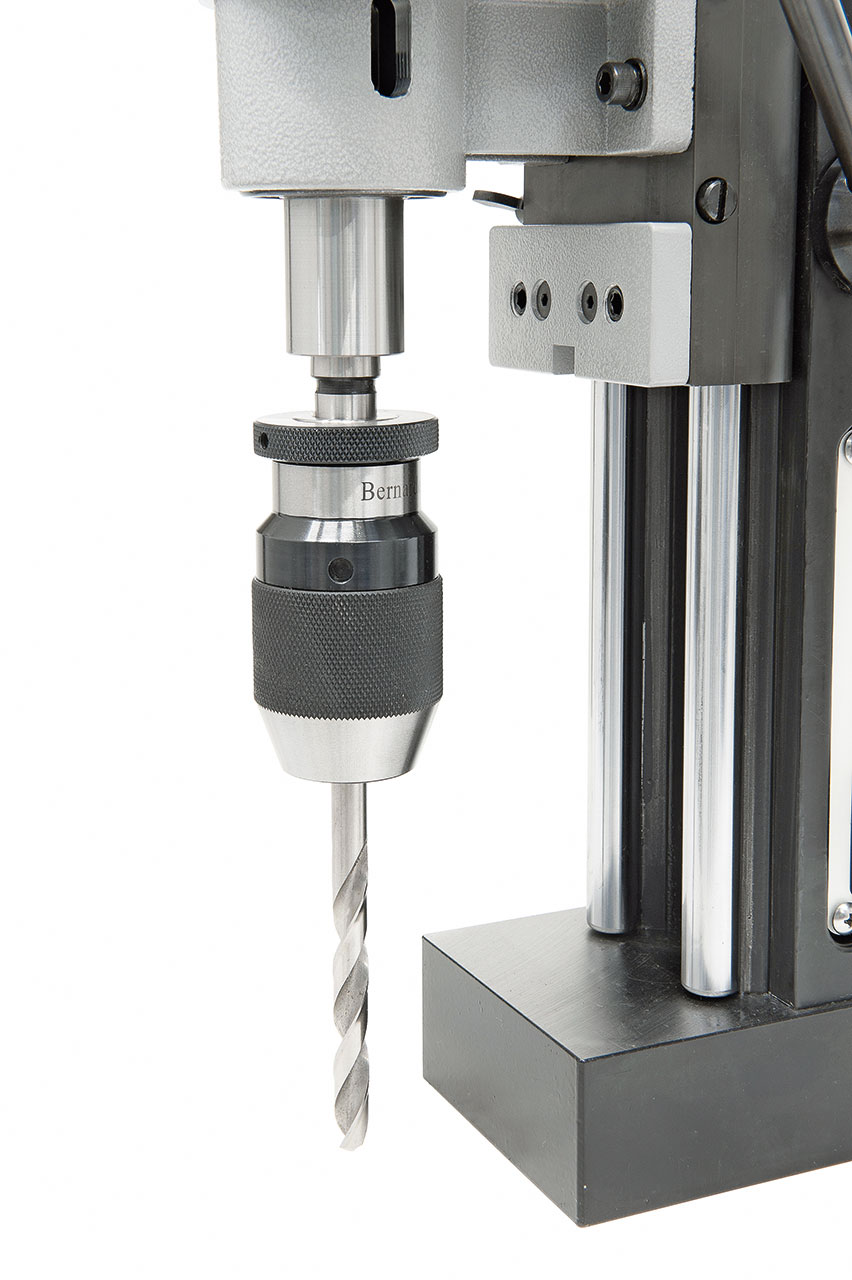

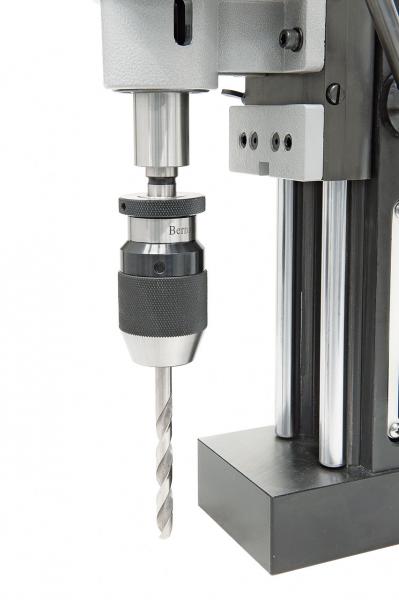

- Complete with MT 2 taper for mounting of several tools (twist drills, countersinking bits, reamers, tapping chucks, keyhole saws etc.)
- Powerful, high torque drive motor features soft start and overload protection
- Powerful electro magnet guarantees high magneti
Technical details Magnetic core drilling machine Bernardo TPC 2000
|
Core drill max. Ø
| 50 mm |
|
Core drill max. drill depth
| 75 mm |
|
Twist drill max. Ø
| 16 mm |
|
Travel of drill head max.
| 195 mm |
|
Tapping max.
| M 20 |
|
Idle speed, stepless
| 112 - 230 / 270 - 550 rpm |
| Spindle taper | MT 2 |
|
Arbor weldon shank
| 19 mm |
| Distance spindle / base max. | 250 mm |
| Distance weldon shank / base max. |
155 mm
|
|
Magnetic adhesion
| 12800 N |
|
Dimension magnetic base (L x W x H)
| 178 x 94 x 44 mm |
|
Motor power
| 1550 W |
|
Voltage
| 230 V |
|
Machine dimension (W x D x H)
| 280 x 300 x 625 mm |
|
Weight approx.
| 18,28 kg |
