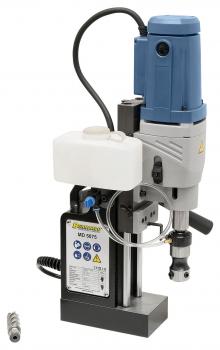

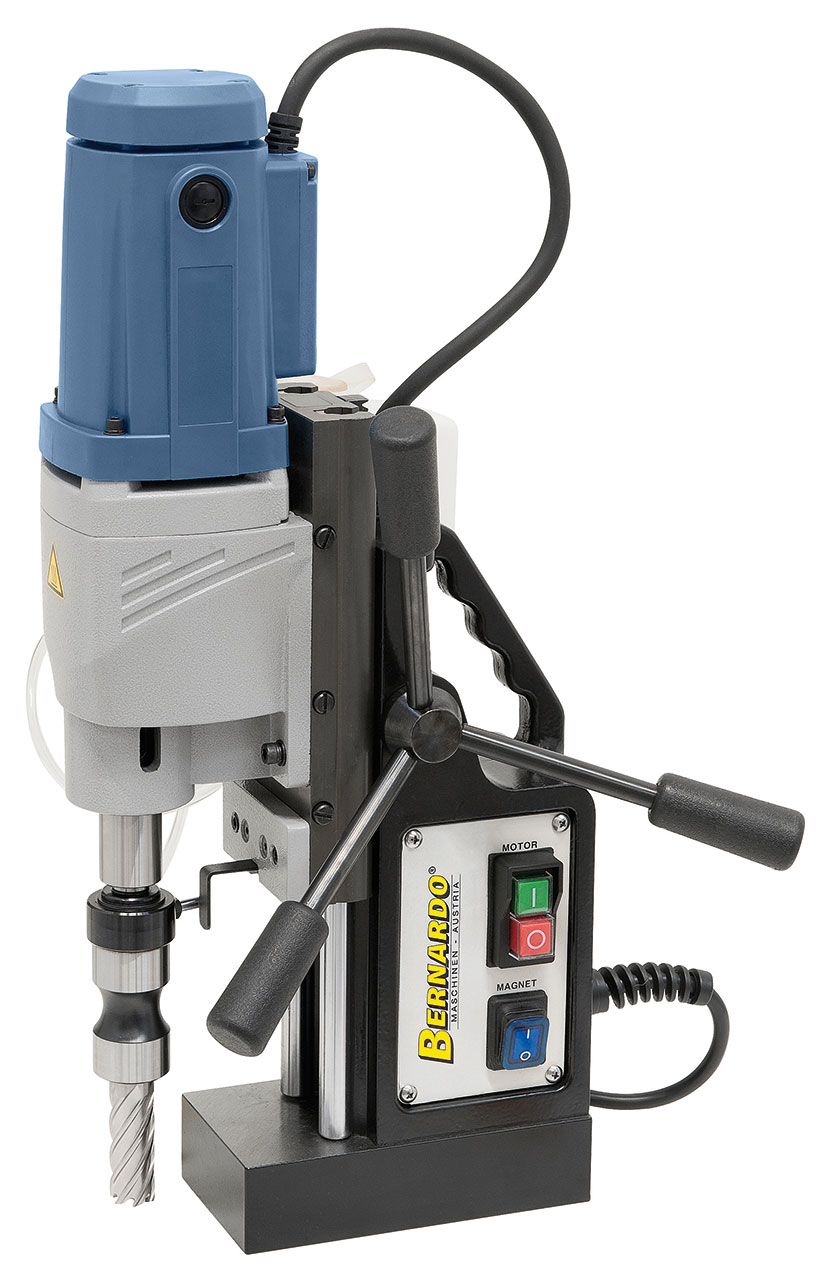

The MD 5075 mechanic 2-step gear magnetic core drilling machine ensure high torque for drilling diameters up to 50 mm. Due to the large number of optional accessories this machine is very versatile useable.

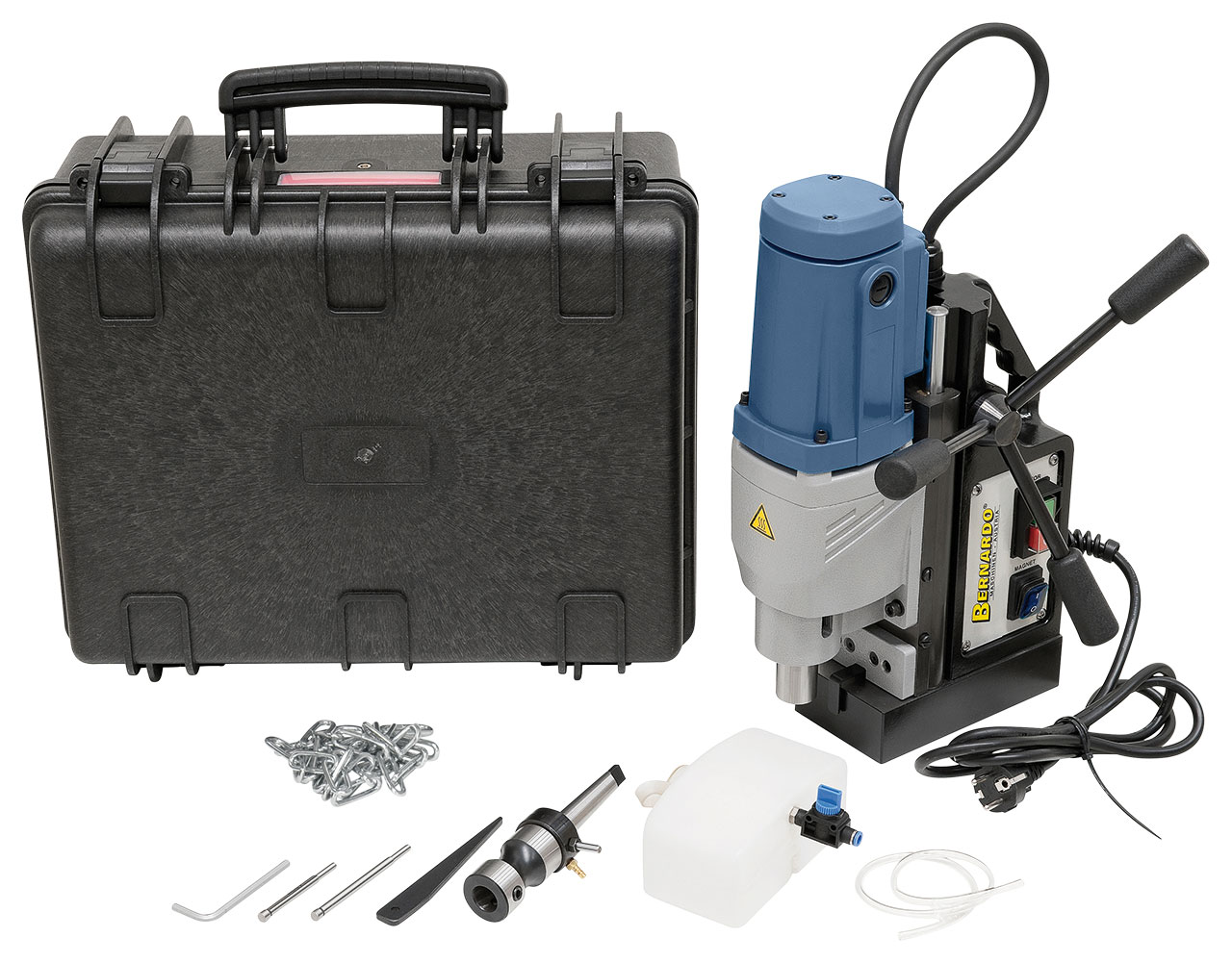

Scope of delivery Magnetic core drilling machine Bernardo MD 5075
- Safety chain

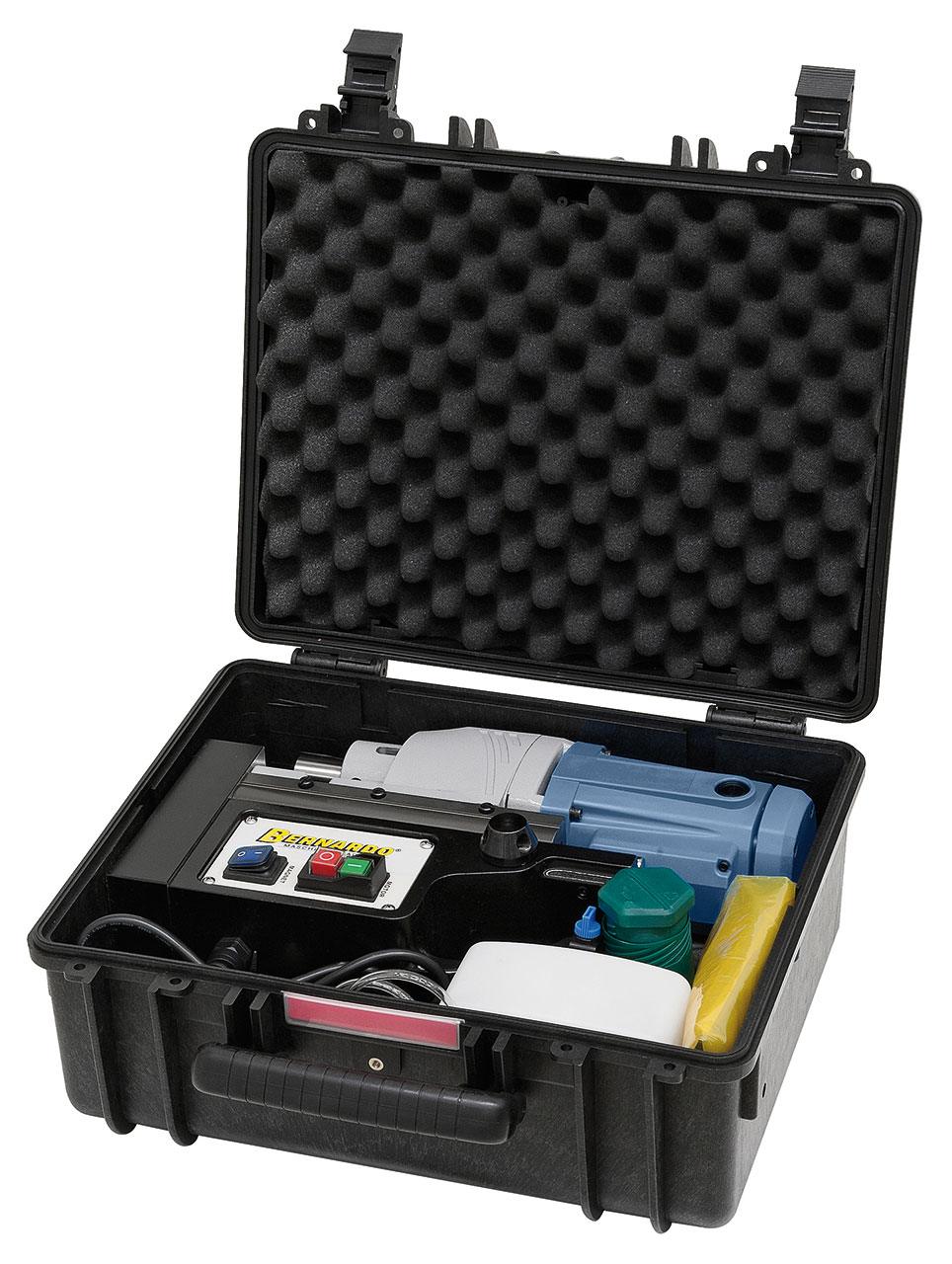

- Plastic container

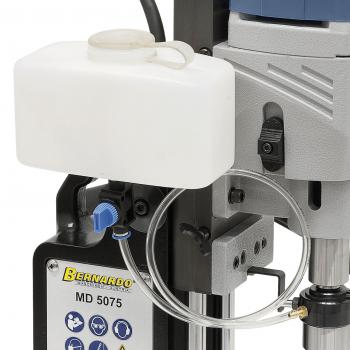

- Coolant tank
- Arbor with automatic internal cooling MT 2 / Weldon shank 19 mm
- User manual
- Tools
"
Features Magnetic core drilling machine Bernardo MD 5075

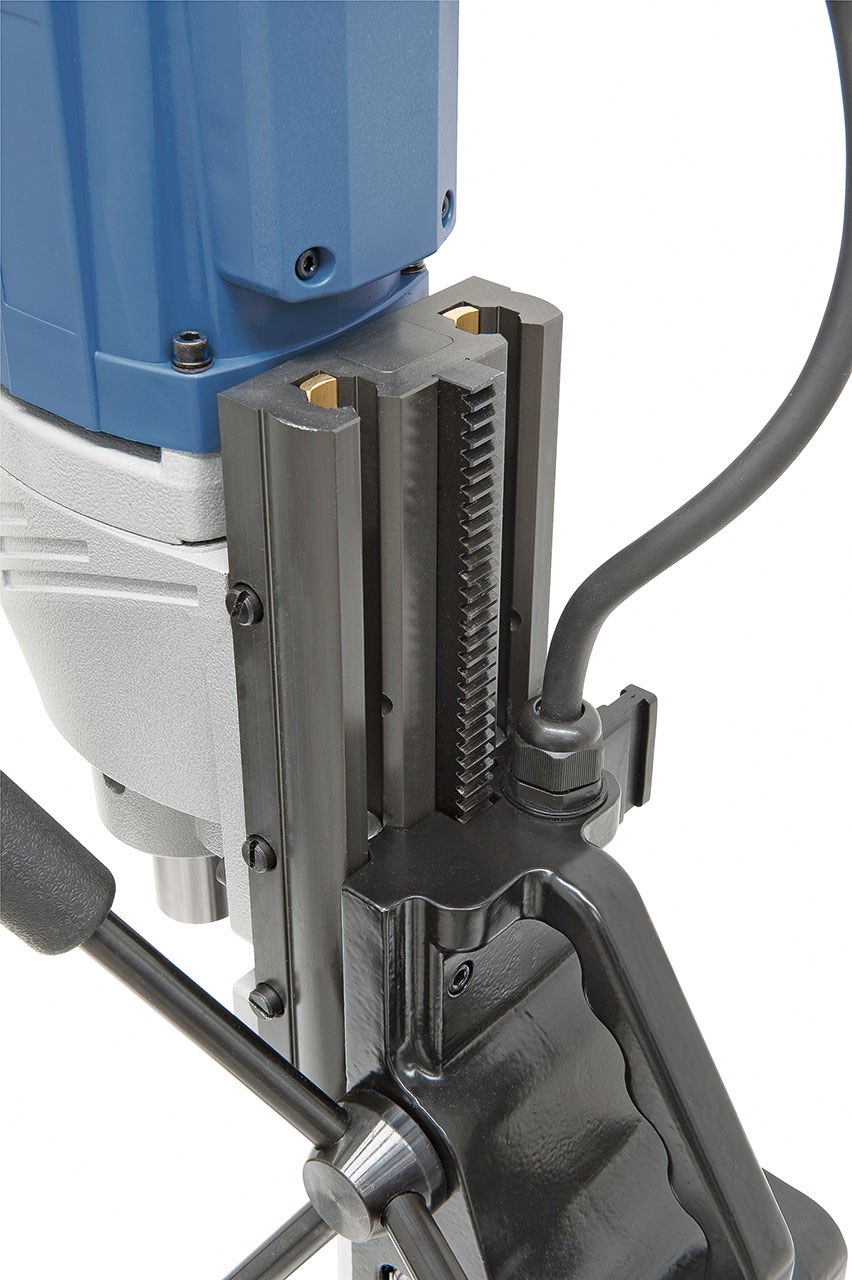

- Stepless height adjustment of drill head – ideal when processing long drill bits
- Compared to twist drills, machine requires significantly less feed force when using core drills
- Powerful electro magnet guarantees best possible magnetic force
- Including arbor with coolant feed MT 2 / Weldon 19 mm
- 2-step gear allows ideal speed adjustment to each workpiece
- Serially with safety chain for vertical or over head operation
- Powerful, high-torque motor constructed for continuous operation
- Ideal for steel construction, automobile industry and machine construction
Technical details Magnetic core drilling machine Bernardo MD 5075
|
Core drill max. Ø
| 50 mm |
|
Core drill max. drill depth
| 75 mm |
|
Twist drill max. Ø
| 16 mm |
|
Travel of drill head max.
| 195 mm |
|
Idle speed
| 230 / 550 rpm |
| Spindle taper | MT 2 |
|
Arbor weldon shank
| 19 mm |
| Distance spindle / base max. | 250 mm |
| Distance weldon shank / base max. |
140 mm
|
|
Magnetic adhesion
| 12800 N |
|
Dimension magnetic base (L x W x H)
| 178 x 94 x 44 mm |
|
Motor power
| 1550 W |
|
Voltage
| 230 V |
|
Machine dimension (W x D x H)
| 270 x 300 x 625 mm |
|
Weight approx.
| 18 kg |
