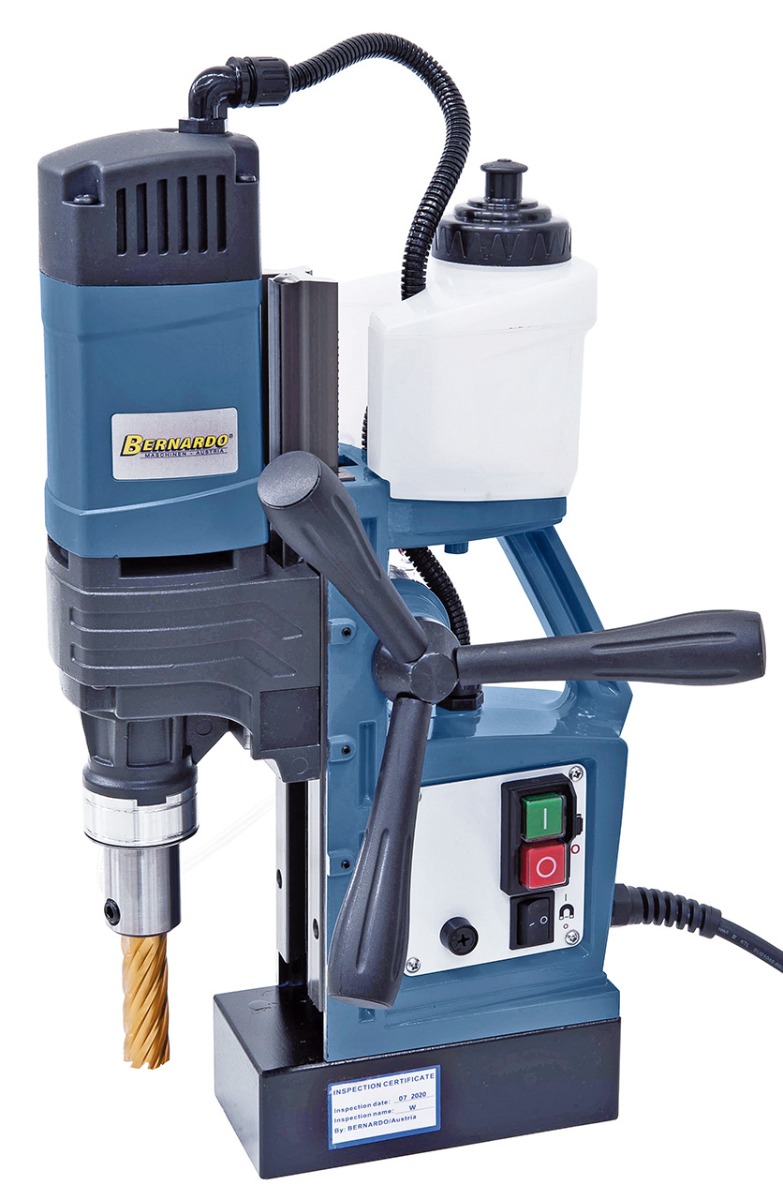

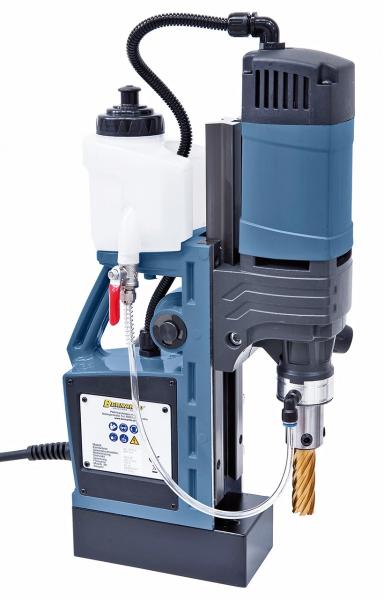

The model MD 5050 E is a versatile magnetic core drilling machine for core drilling in the range 12 - 50 mm. The characteristics of this machine are the low weight, the powerful drive motor and the optimal price-performance ratio.

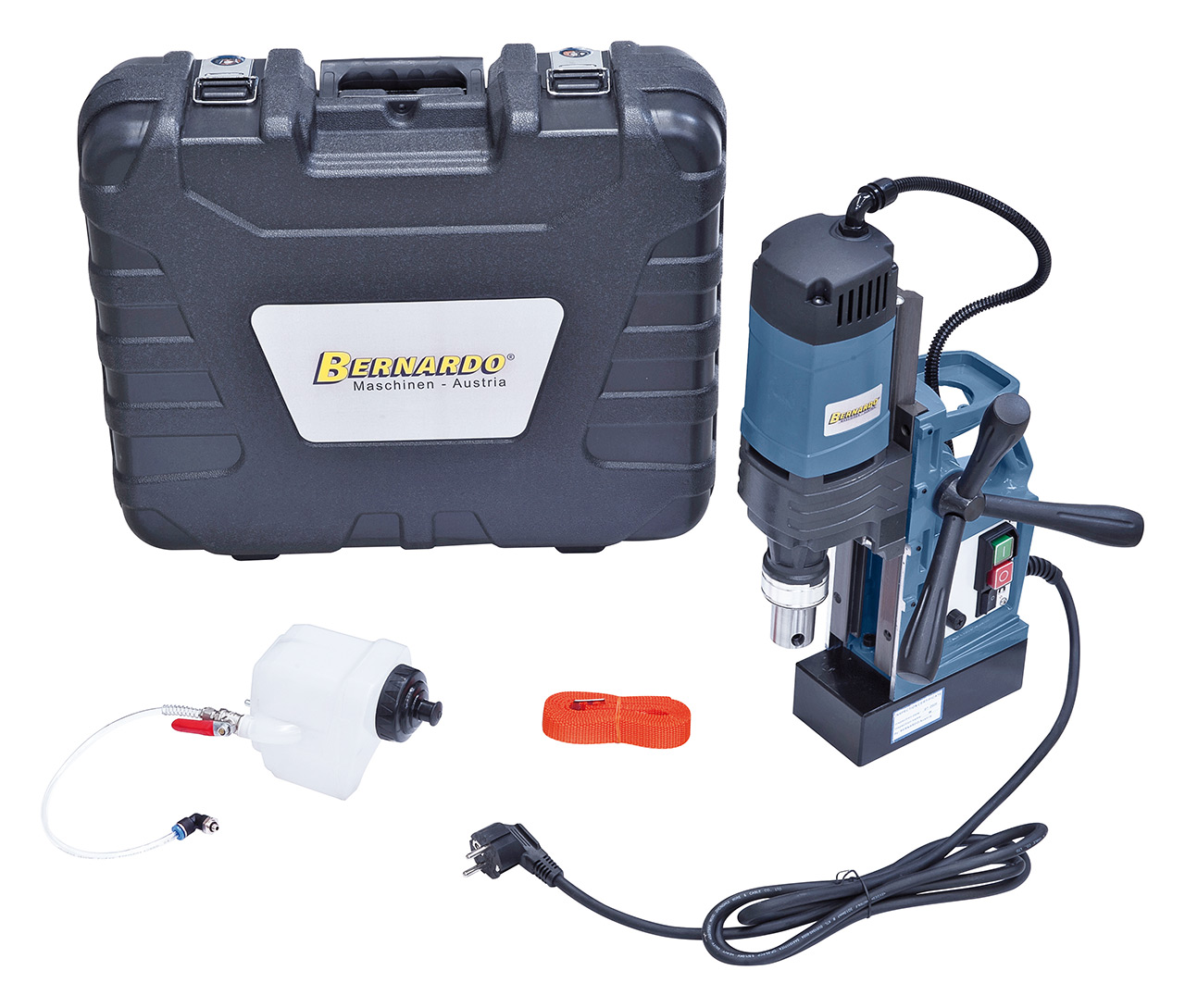

Scope of delivery Magnetic core drilling machine Bernardo MD 5050 E

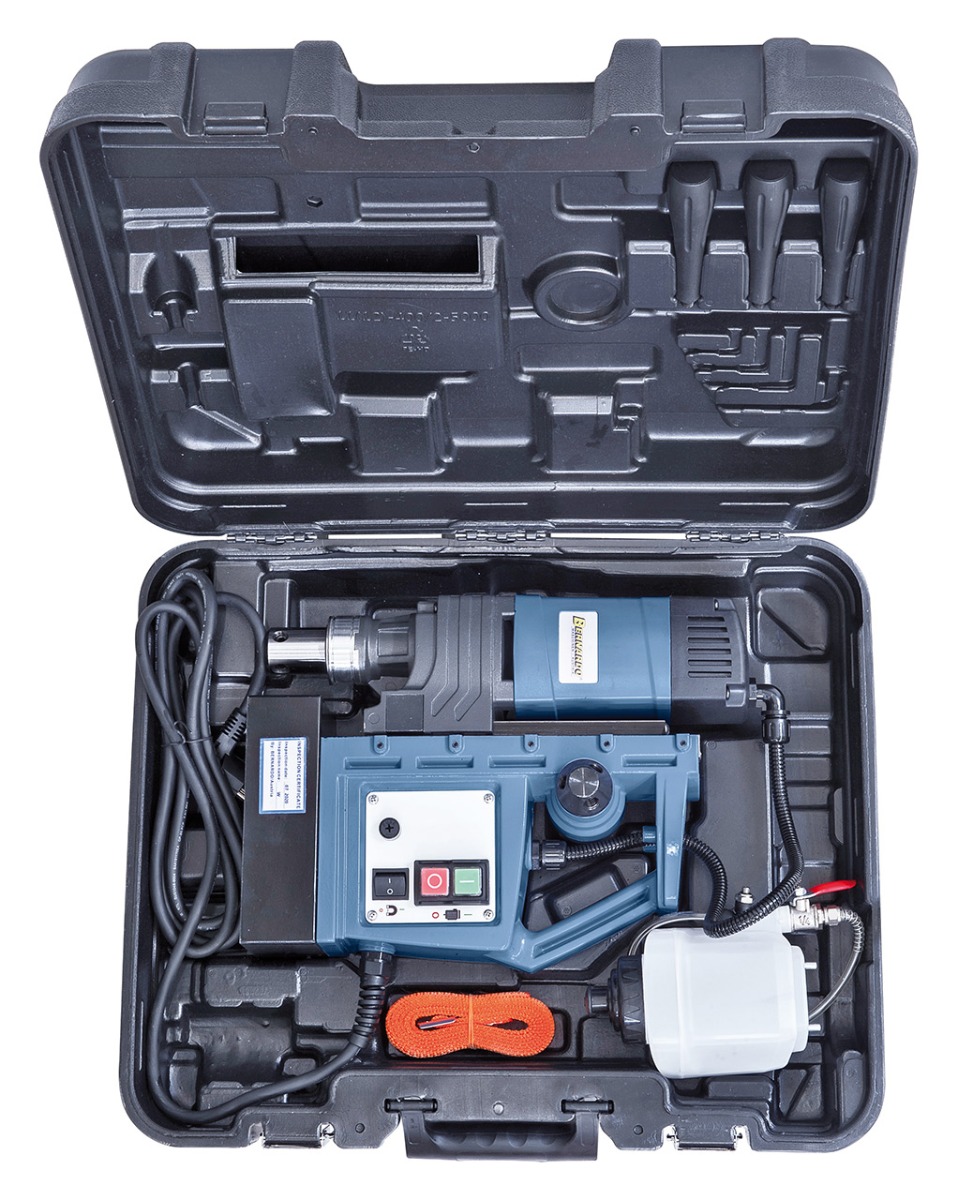

- Plastic container

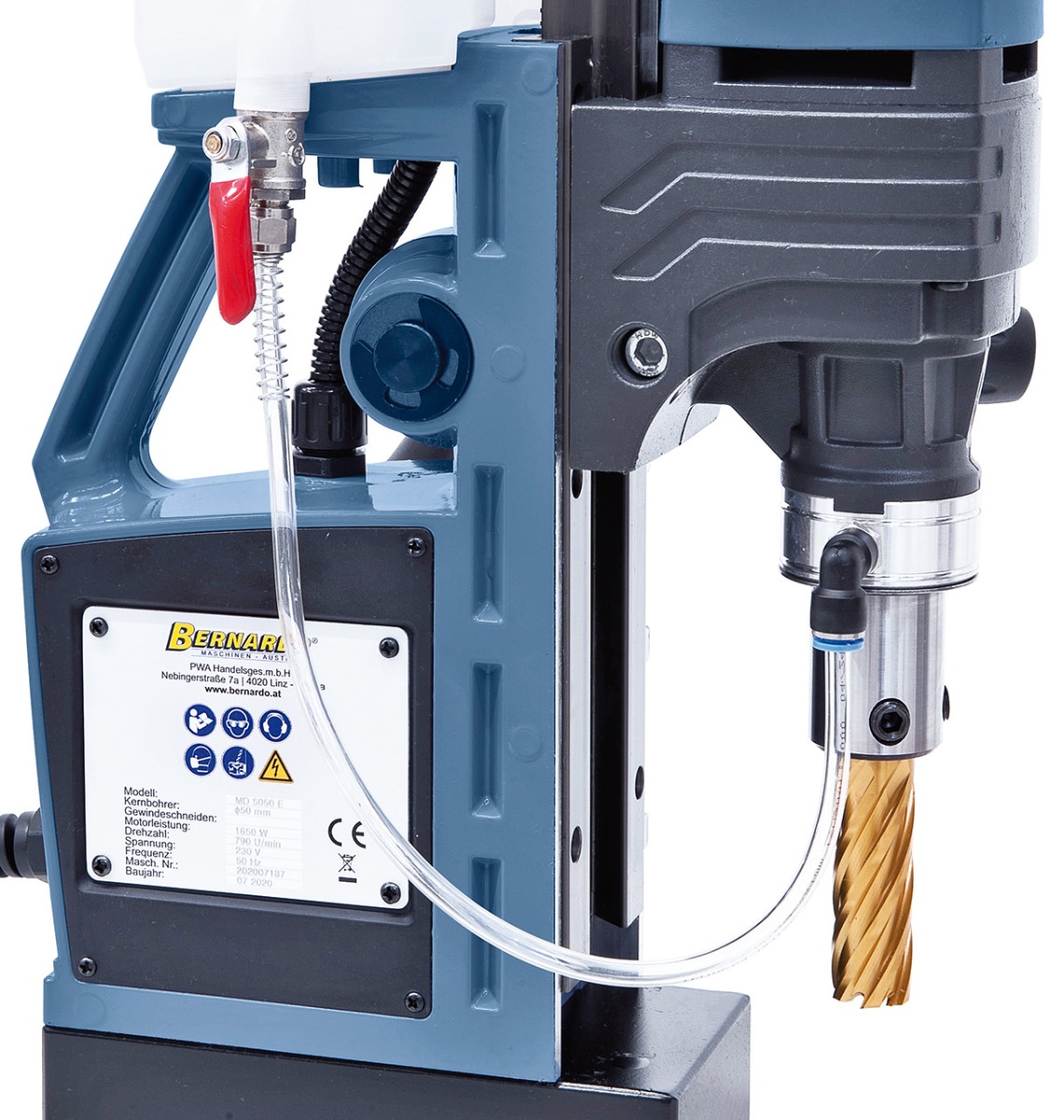

- Coolant tank
- Safety belt
- User manual
- Tools
Features Magnetic core drilling machine Bernardo MD 5050 E

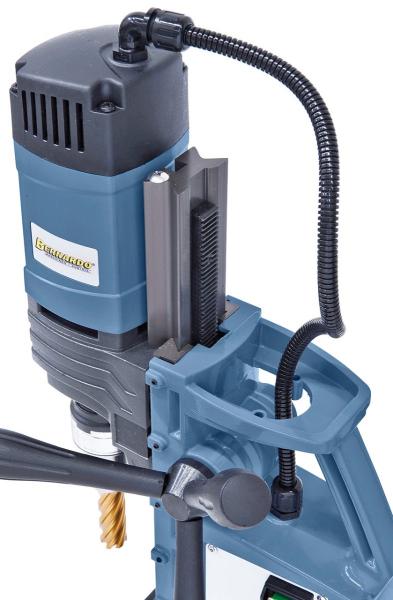

- Stepless, drill head height adjustment, ideal when using long drill bits
- Ideal for steel construction, automobile industry and machine construction
- High magnetic force ensures high safety

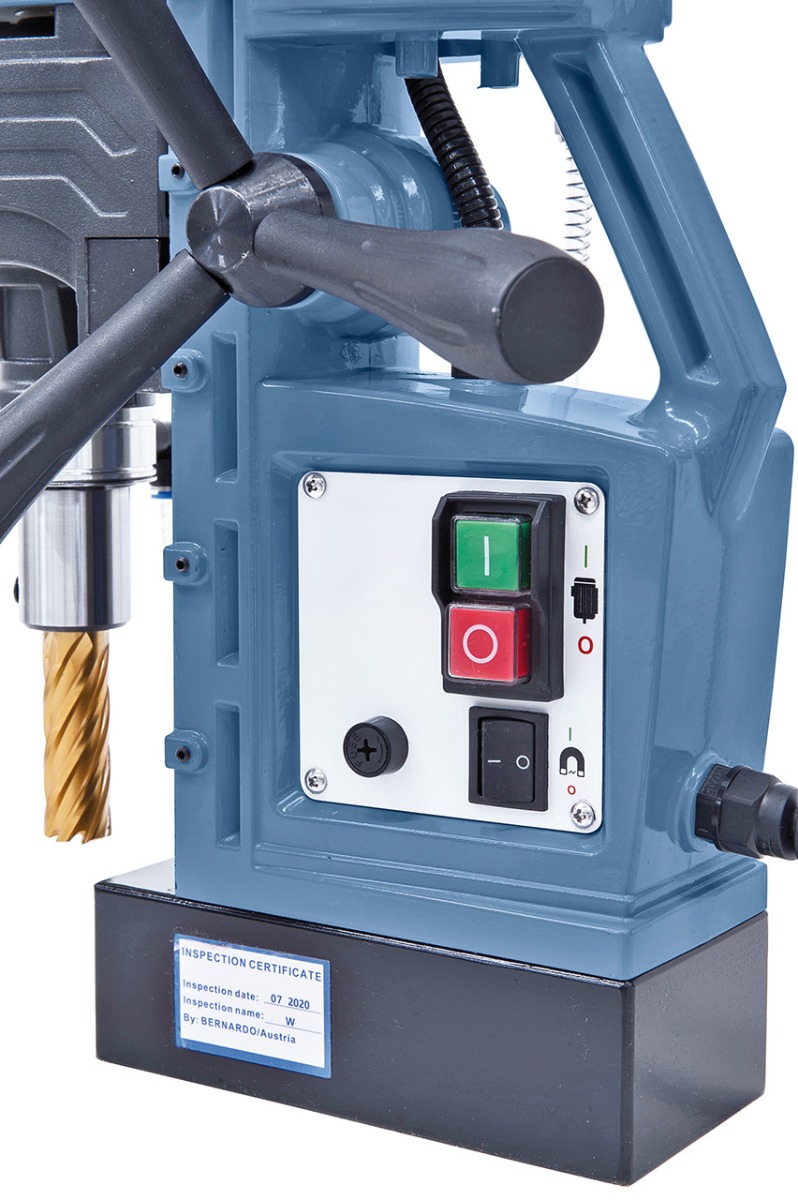

- Ergonomically arranged control elements allow practical single hand operation
- Standard safety belt for vertical or over head operation
- Tool holder designed for core drills with 19 mm weldon shaft
- High-quality component ensure long life span
- Solid drill guide ensures optimal results
Technical details Magnetic core drilling machine Bernardo MD 5050 E
|
Core drill max. Ø
|
50 mm
|
|
Core drill max. drill depth
| 50 mm |
|
Twist drill max. Ø
| 13 mm |
|
Travel of drill head max.
| 170 mm |
|
Idle speed
| 790 rpm |
|
Arbor weldon shank
| 19 mm |
| Distance weldon shank / base max.
|
145 mm
|
|
Magnetic adhesion
| 16200 N |
|

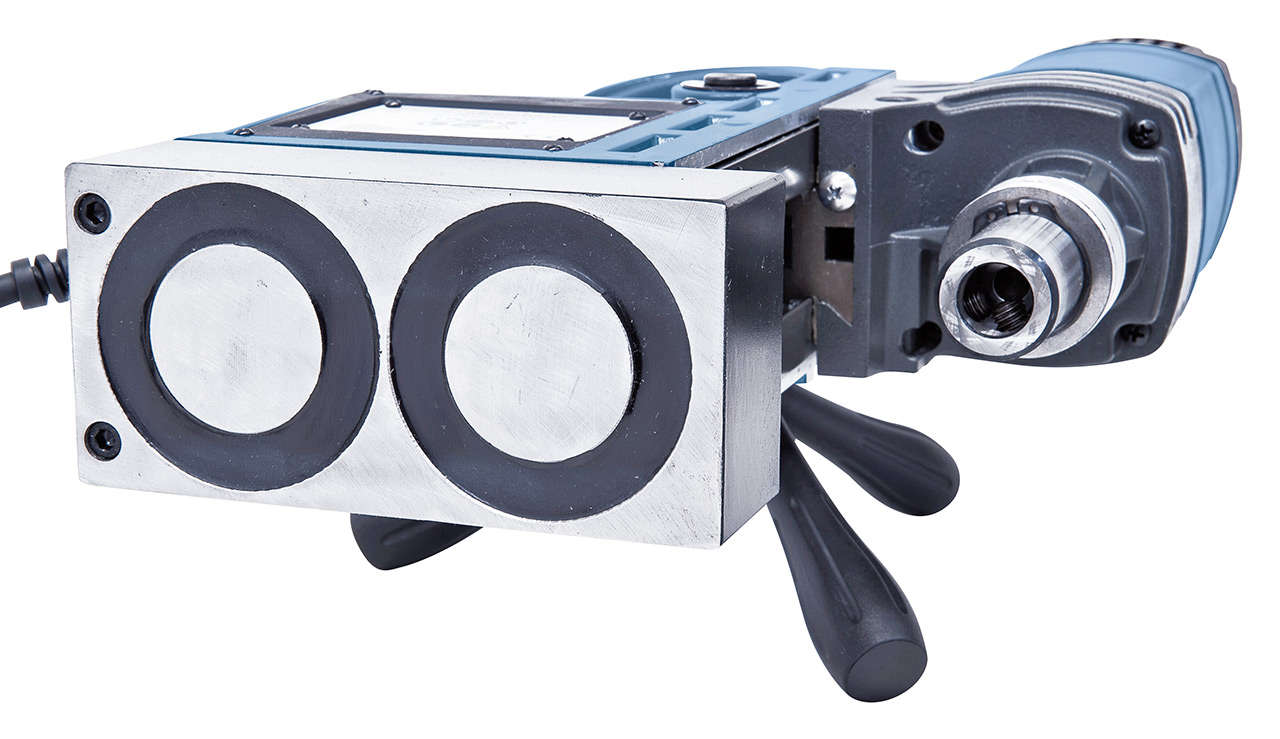

Dimension magnetic base (L x W x H)
| 165 x 80 x 50 mm |
|
Motor power
| 1650 W |
|
Voltage
| 230 V |
|
Machine dimension (W x D x H)
| 170 x 280 x 400 mm |
|
Weight approx.
| 11,5 kg |
