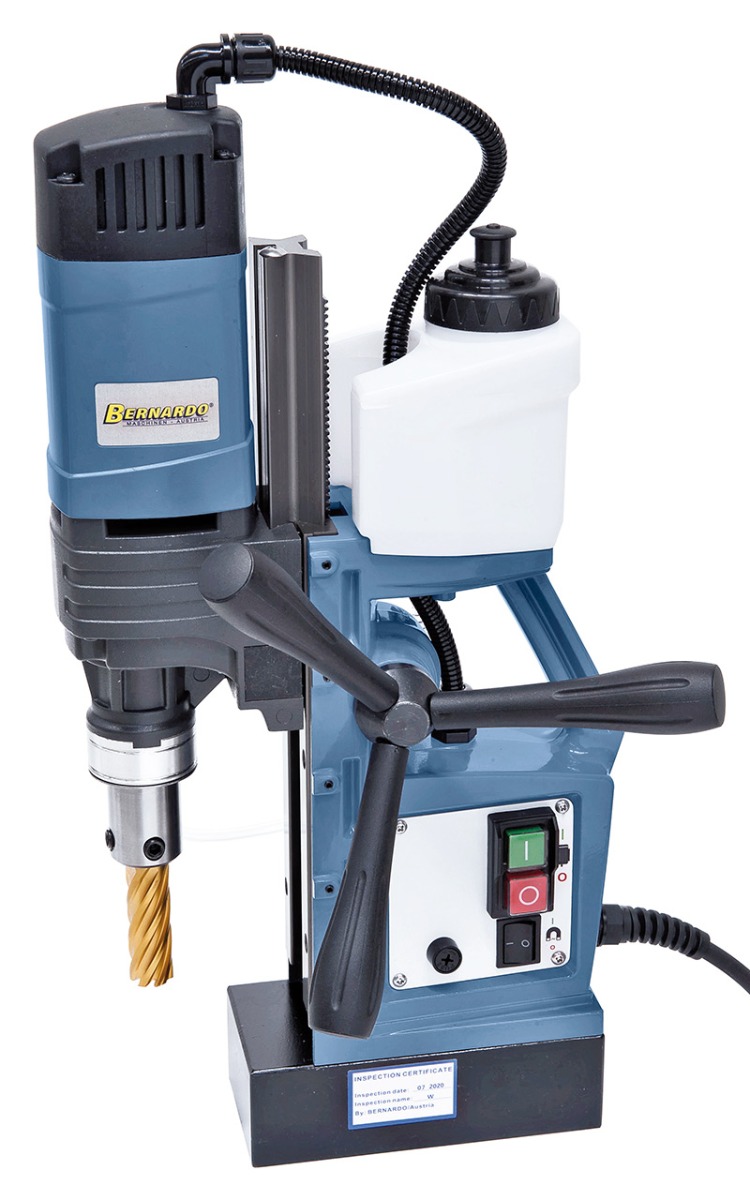

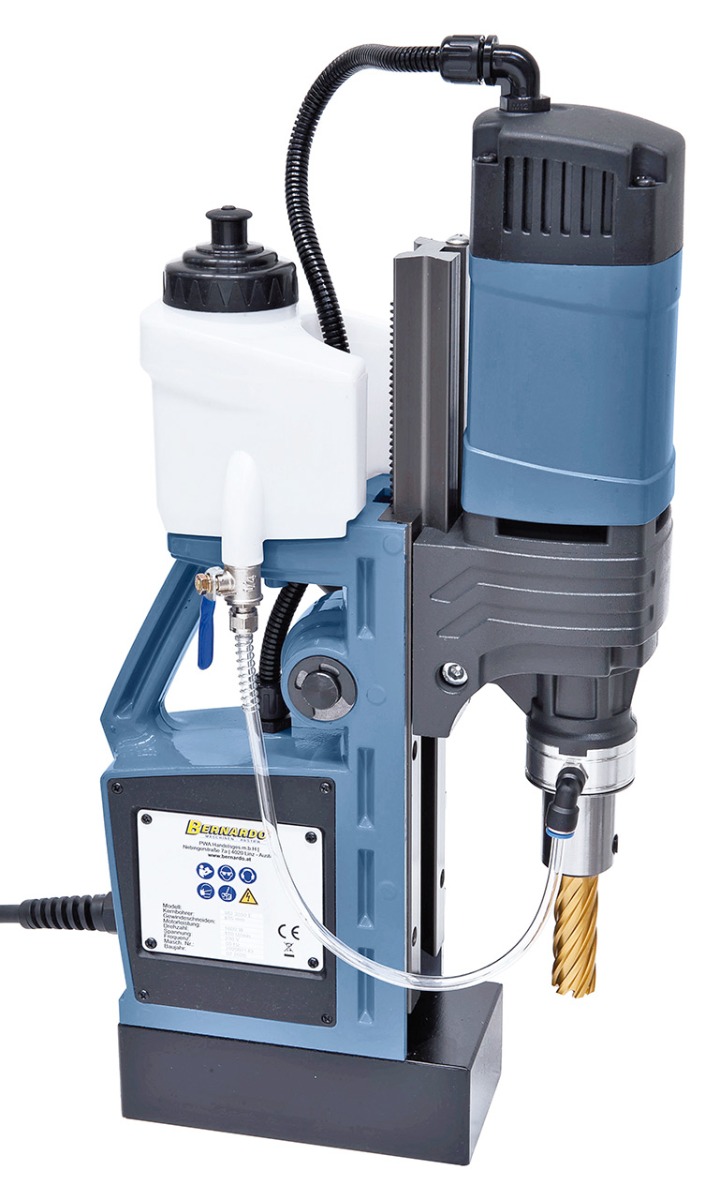

The MD 3550 E magnetic core drilling machine is suitable for core drilling from 12 – 35 mm. Its low weight (11 kg) makes this model very mobile and great for vertical or over head operation.

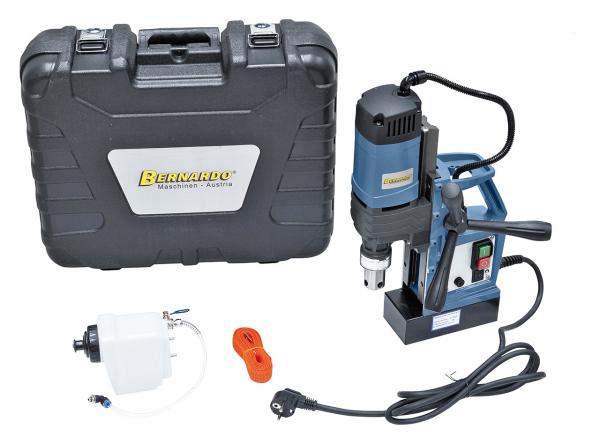

Scope of delivery Magnetic core drilling machine Bernardo MD 3550 E

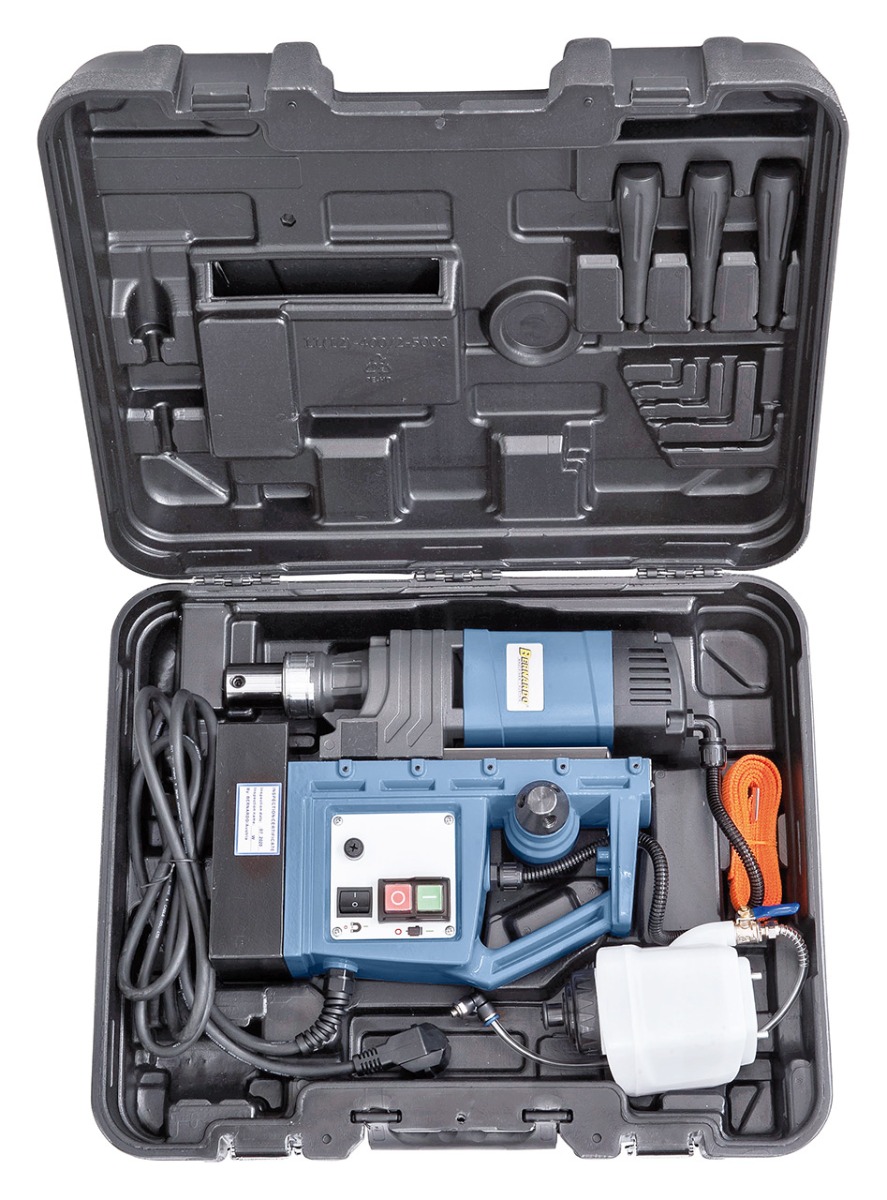

- Plastic container

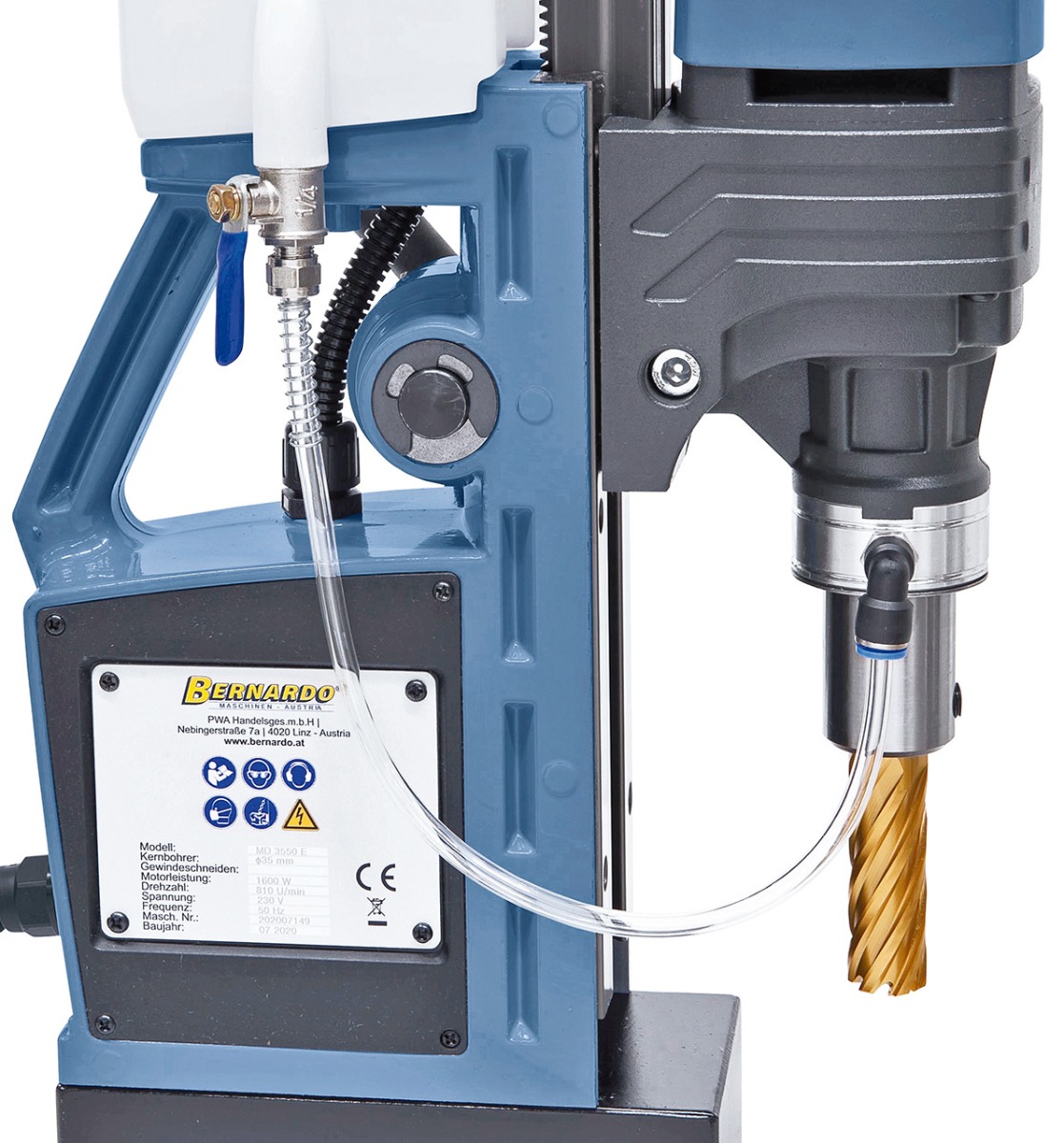

- Coolant tank
- Safety belt
- User manual
- Tools
Features Magnetic core drilling machine Bernardo MD 3550 E

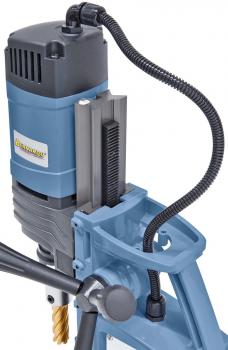

- Stepless, drill head height adjustment, ideal when using long drill bits
- Ideal for steel construction, automobile industry and machine construction
- High magnetic force ensures high safety

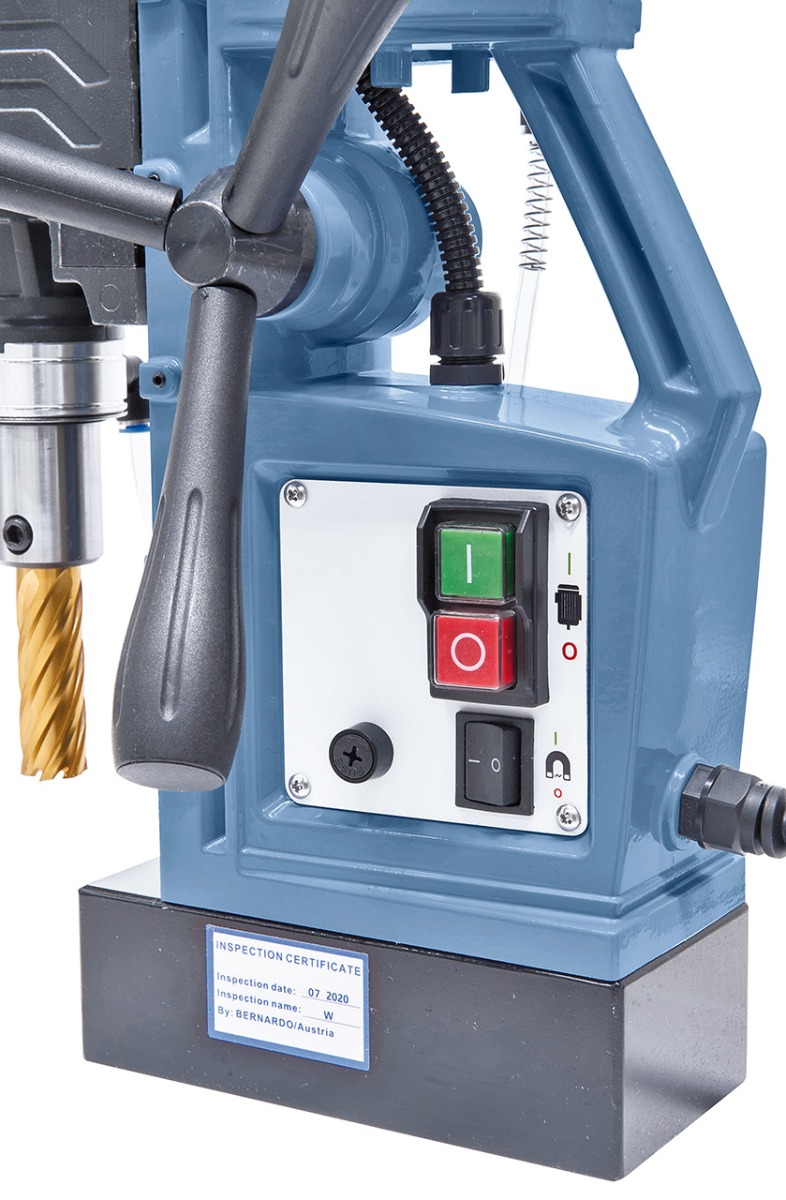

- Ergonomically arranged control elements allow practical single hand operation
- Standard safety belt for vertical or over head operation
- Tool holder designed for core drills with 19 mm weldon shaft
- High-quality component ensure long life span
- Solid drill guide ensures optimal results
Technical details Magnetic core drilling machine Bernardo MD 3550 E
|
Core drill max. Ø
|
35 mm
|
|
Core drill max. drill depth
| 50 mm |
|
Twist drill max. Ø
| 13 mm |
|
Travel of drill head max.
| 170 mm |
|
Idle speed
| 810 rpm |
|
Arbor weldon shank
| 19 mm |
| Distance weldon shank / base max.
|
145 mm
|
|
Magnetic adhesion
| 16000 N |
|

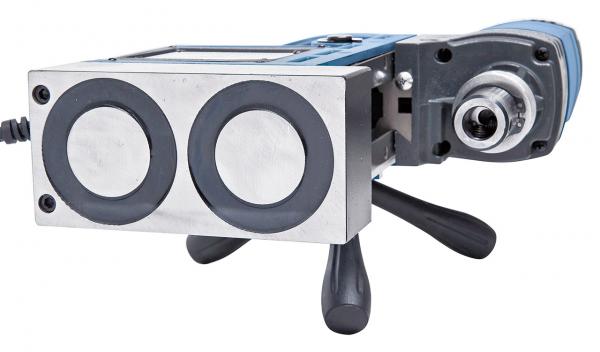

Dimension magnetic base (L x W x H)
| 165 x 80 x 50 mm |
|
Motor power
| 1600 W |
|
Voltage
| 230 V |
|
Machine dimension (W x D x H)
| 170 x 280 x 400 mm |
|
Weight approx.
| 11 kg |
