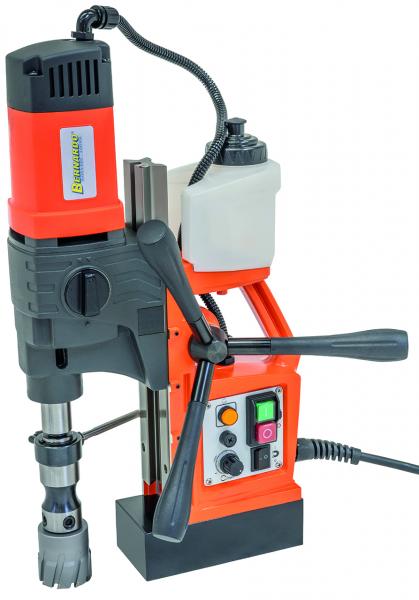

Magnetic core drill Bernardo TPC 2000 S
NEW
Scope of delivery Magnetic core drill Bernardo TPC 2000 S
- Plastic box
- Coolant reservoir
- Level gauge
- Tool holder with automatic internal cooling MK 2 / 19 mm Weldon shank
- Safety harness
- Operating instructions
- Operating tool
Features Magnetic core drill Bernardo TPC 2000 S
- Powerful electromagnet ensures maximum magnetic holding force
- High-torque drive motor with soft start and overload protection
- Fitted as standard with an MK 2 taper for holding various tools (twist drills, countersinks, reamers, threading chucks, hole saws, etc.)

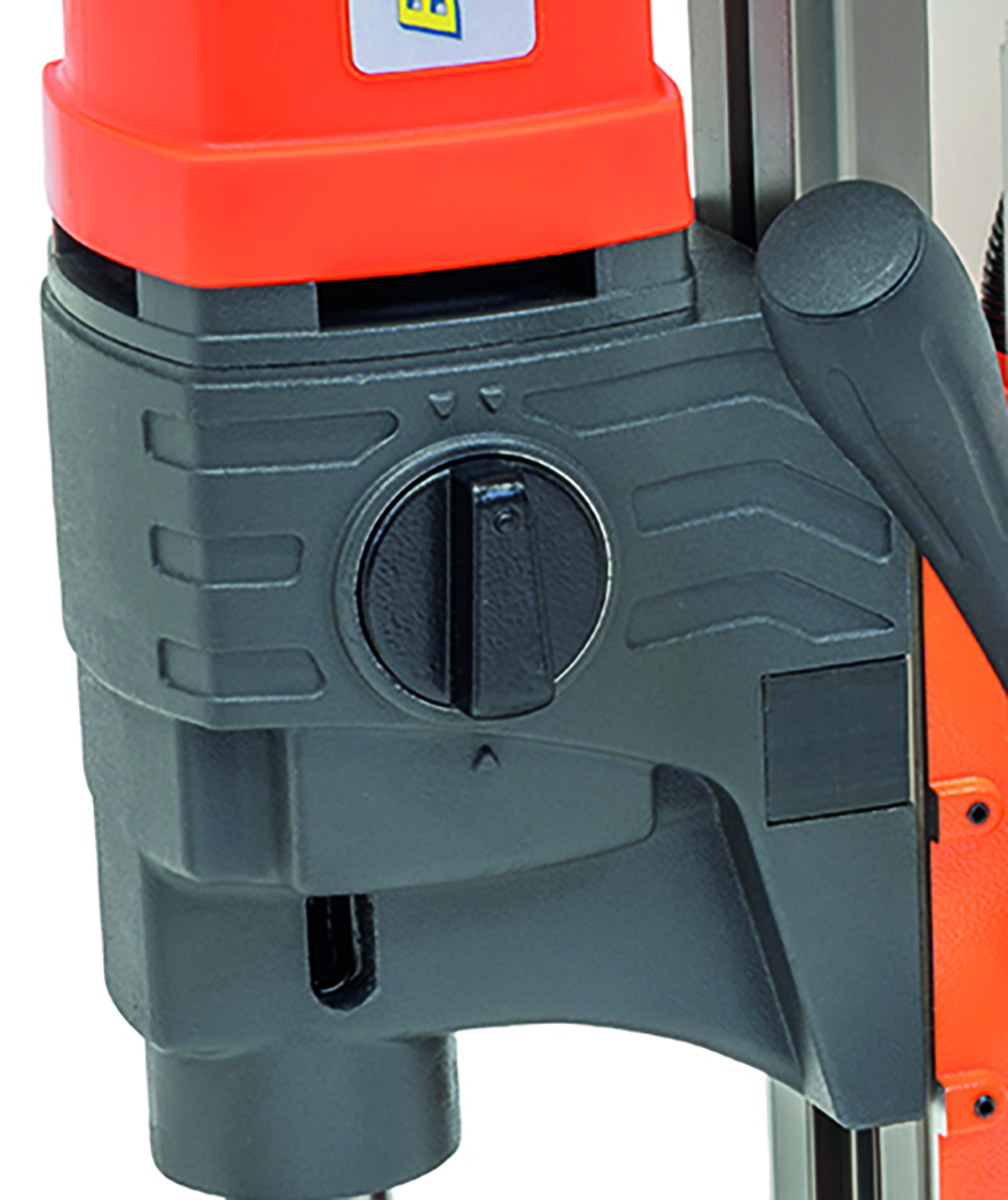

- Variable speed control for optimum adjustment of cutting speed during core drilling, thread cutting, countersinking and reaming
- Automatic internal lubrication; the coolant is directed straight to the tip of the core drill
Technical details Magnetic core drill Bernardo TPC 2000 S
| Core drill max. Ø | 50 mm |
| Core drill max. drilling depth | 35 mm |
| Twist drill max. Ø | 22 mm |

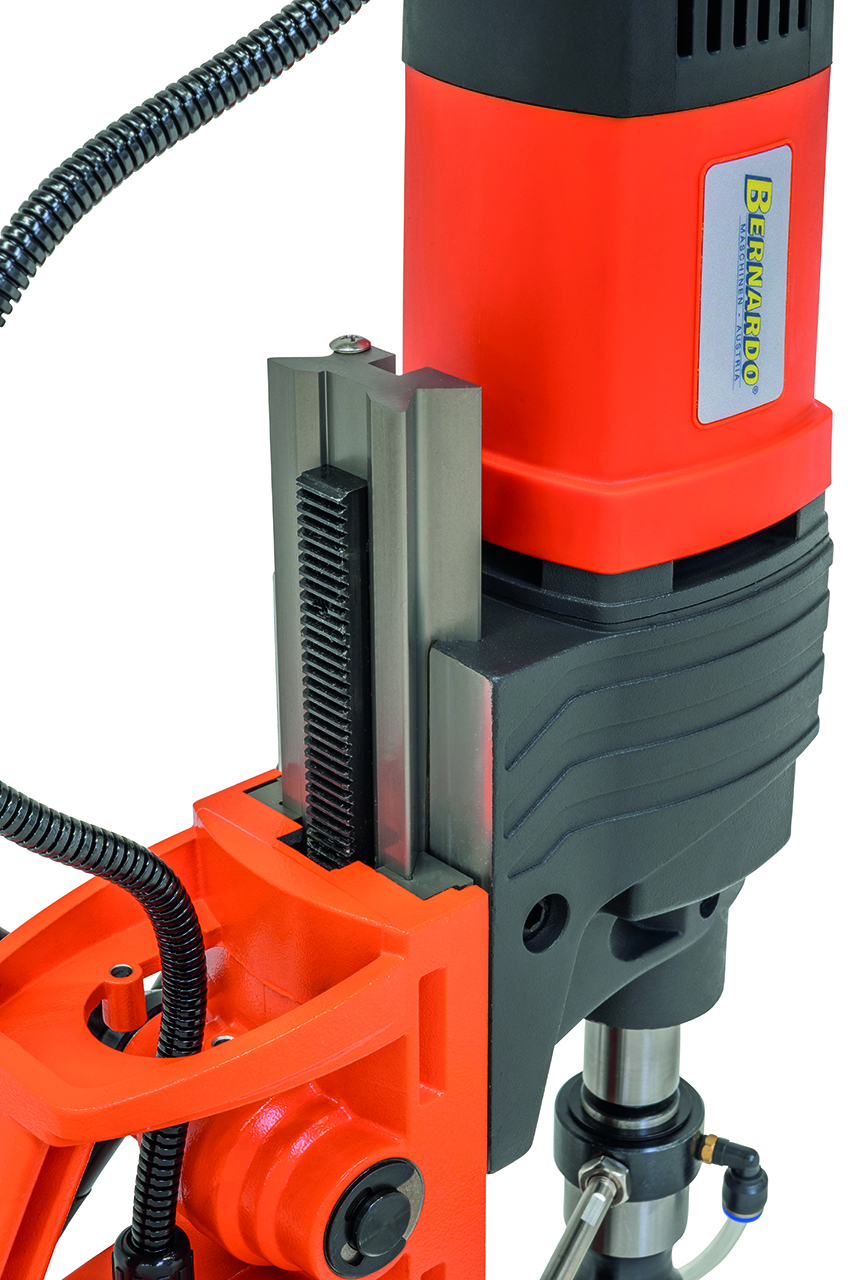

| Max. drilling head travel | 160 mm |
| Thread cutting max. | M 20 |
| No-load speed, variable | 100 - 320 / 320 - 560 rpm |
| Spindle taper | MK 2 |
| Weldon shank holder | 19 mm |
| Distance spindle / base plate max.* | 180 mm |
| Distance Weldon holder / base plate max.* | 80 mm |
| Magnetic holding force | 14500 N |

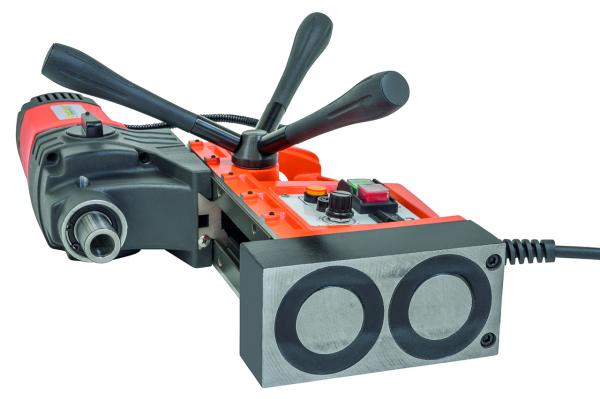

| Magnetic base dimensions (L x W x H) | 165 x 80 x 50 mm |
| Motor power | 1700 W |
| Voltage | 230 V |
| Machine dimensions (W x D x H) | 220 x 330 x 570 mm |
| Weight approx. | 14 kg |
* Extendable up to 60 mm
