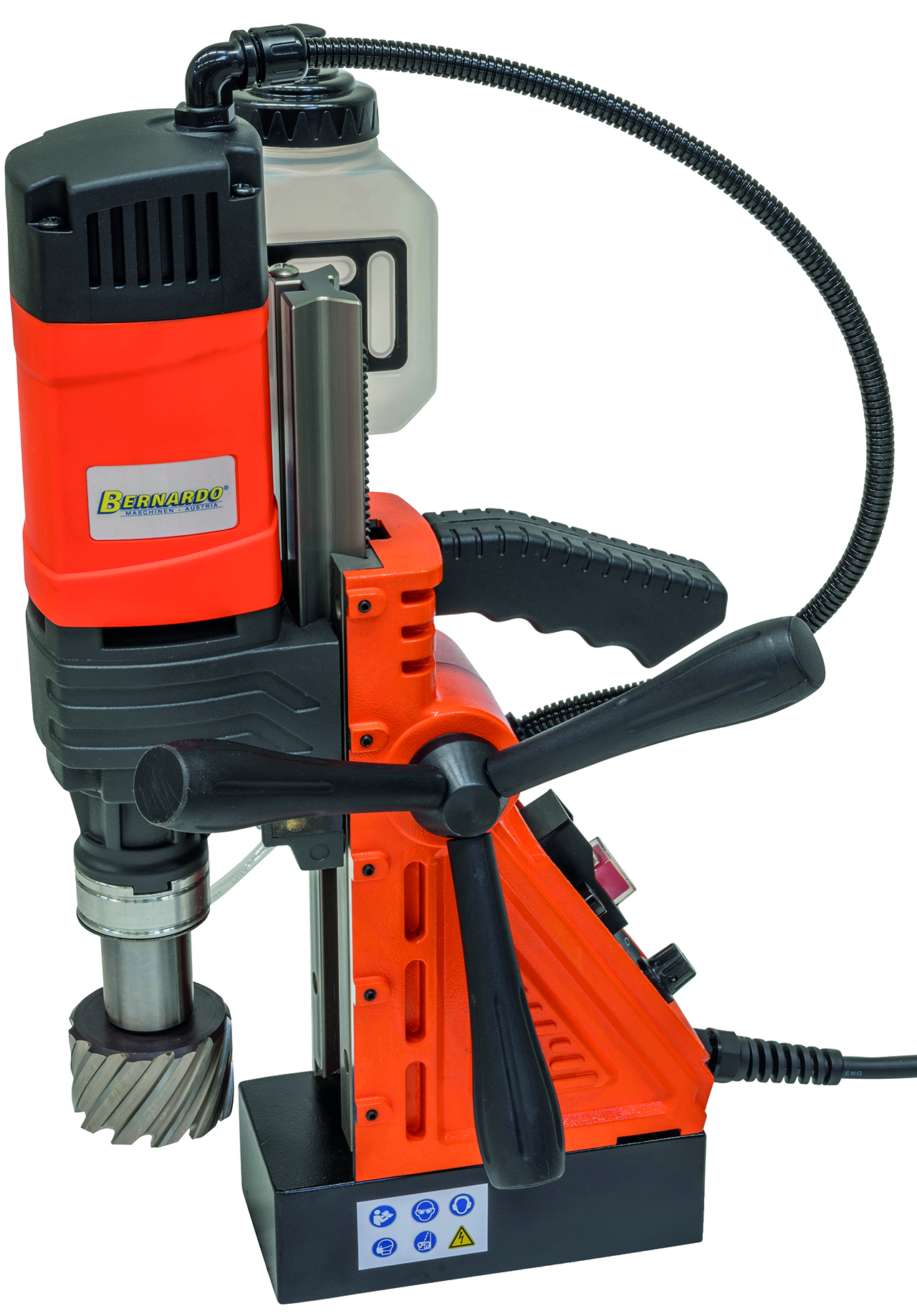

Magnetic core drill Bernardo MD 5050 V-eco
NEW

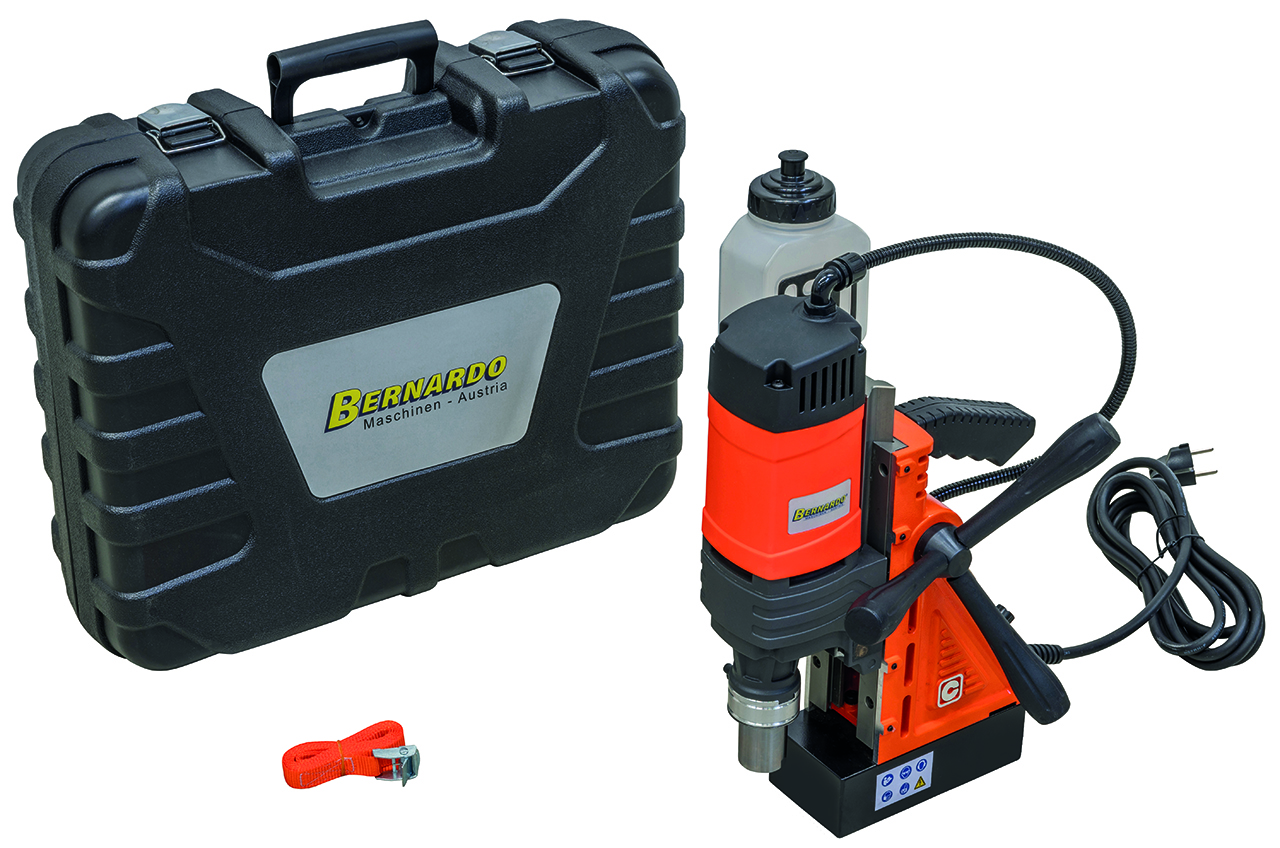

Scope of delivery Magnetic core drill Bernardo MD 5050 V-eco
- Plastic box
- Coolant reservoir
- Tool holder with automatic internal cooling
- Safety belt
- Operating instructions
- Operating tool
Features Magnetic core drill Bernardo MD 5050 V-eco
The MD 5050 V-eco is a highly versatile machine. Thanks to its low weight, this model is suitable for both mobile use on site and for vertical or overhead work.
- Sturdy drill guide ensures optimal results
- Long service life thanks to high-quality components• The tool holder is designed for core drills with a 19 mm Weldon shank
- Fitted as standard with a safety strap for vertical or overhead applications
- High magnetic holding force for safe working
- Ideal for steel construction, vehicle manufacturing, mechanical engineering, etc.
- Infinitely adjustable height adjustment of the drill head,
- ideal when using long drilling tools
Technical details Magnetic core drill Bernardo MD 5050 V-eco
| Core drill max. Ø | 50 mm |
| Core drill max. drilling depth | 50 mm |
| Twist drill max. Ø | 16 mm |
| Max. drilling head travel | 170 mm |
| No-load speed | 100 - 780 rpm |
| Weldon shank holder | 19 mm |
| Distance Weldon holder / base plate max.* | 145 mm |
| Magnetic holding force | 16500 N |
| Magnetic base dimensions (L x W x H) | 165 x 80 x 50 mm |
| Motor power | 1650 W |
| Voltage | 230 V |
| Machine dimensions (W x D x H) | 280 x 320 x 500 mm |
| Weight approx. | 12 kg |
* Extendable up to 110 mm
