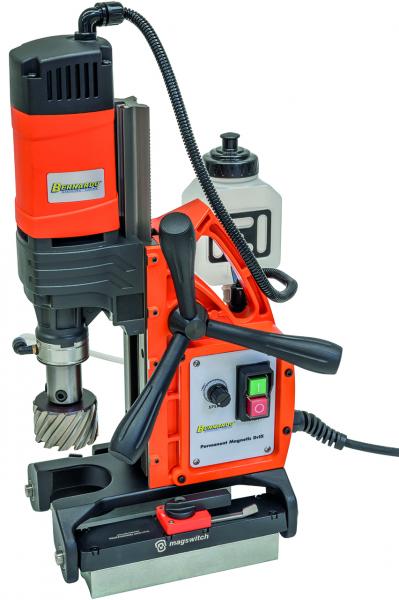

Magnetic core drill Bernardo MD 5050 P
NEW
Scope of delivery Magnetic core drill Bernardo MD 5050 P
- Metal box

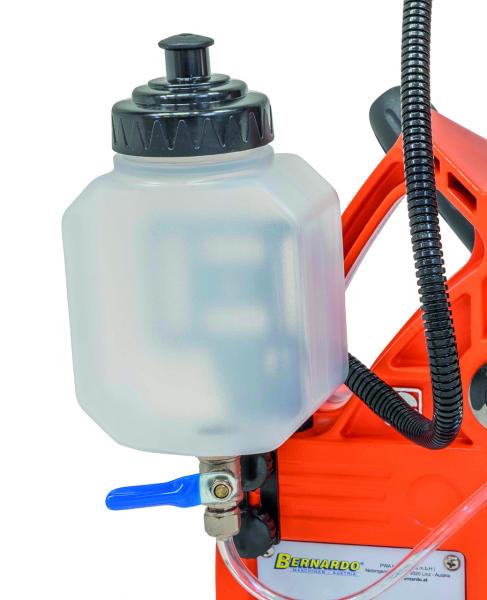

- Coolant reservoir
- Tool holder with automatic internal cooling
- Safety belt
- Operating instructions
- Operating tool
Features Magnetic core drill Bernardo MD 5050 P
- Variable speed control for optimum adjustment of the cutting speed during core drilling, thread cutting, countersinking and reaming
- Automatic internal lubrication, with coolant directed straight to the tip of the core drill
- Two flexible, powerful magnets provide a secure hold, particularly on materials such as shaped tubes.
- Ergonomic design with a practical handle, ideal for steel construction, vehicle manufacturing, mechanical engineering, etc.
Technical details Magnetic core drill Bernardo MD 5050 P
| Core drill max. Ø | 50 mm |
| Core drill max. drilling depth | 50 mm |
| Twist drill max. Ø | 16 mm |
| Max. drilling head travel | 160 mm |
| No-load speed, variable | 100 - 780 rpm |
| Weldon shank holder | 19 mm |
| Distance Weldon holder / base plate max.* | 165 mm |
| Magnetic holding force | 16500 N |
| Magnetic base dimensions (L x W x H) (2 pcs.) | 85 x 40 x 50 mm |
| Motor power | 1700 W |
| Voltage | 230 V |
| Machine dimensions (W x D x H) | 250 x 290 x 530 mm |
| Weight approx. | 12.5 kg |
* Extendable up to 110 mm
