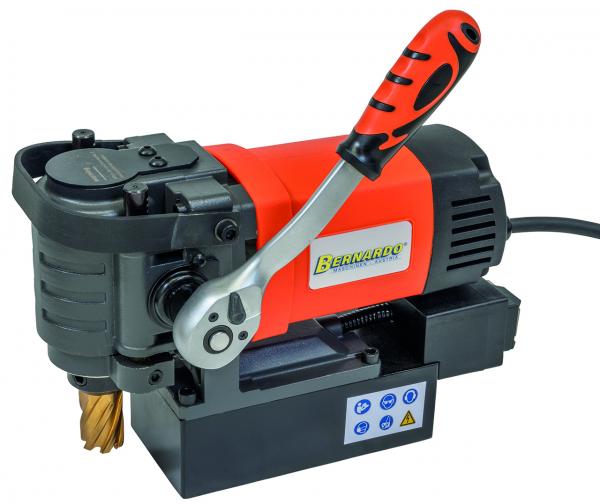

Magnetic core drill Bernardo MD 3845 L
NEW
Scope of delivery Magnetic core drill Bernardo MD 3845 L

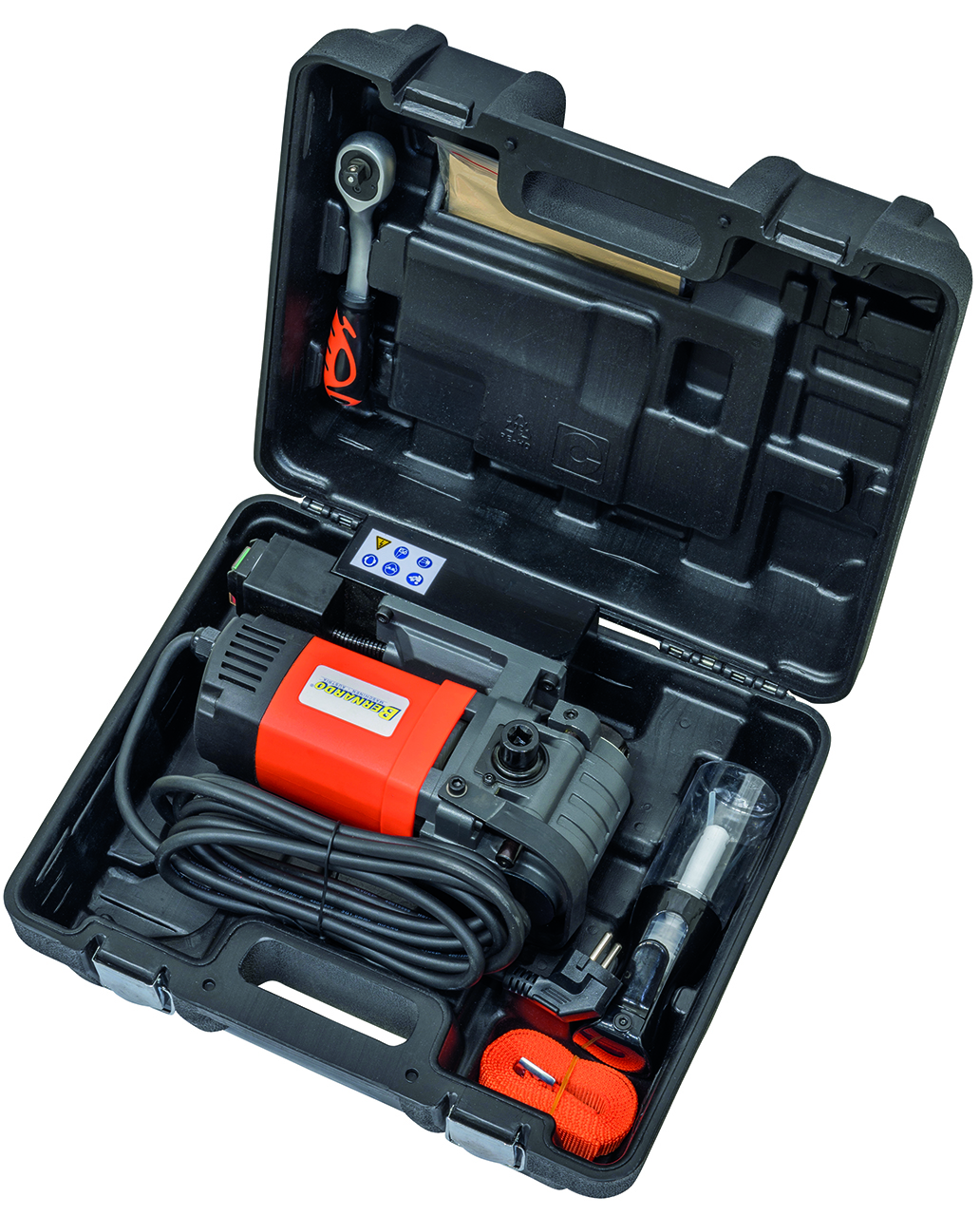

- Plastic box
- Coolant container
- Reversible ratchet

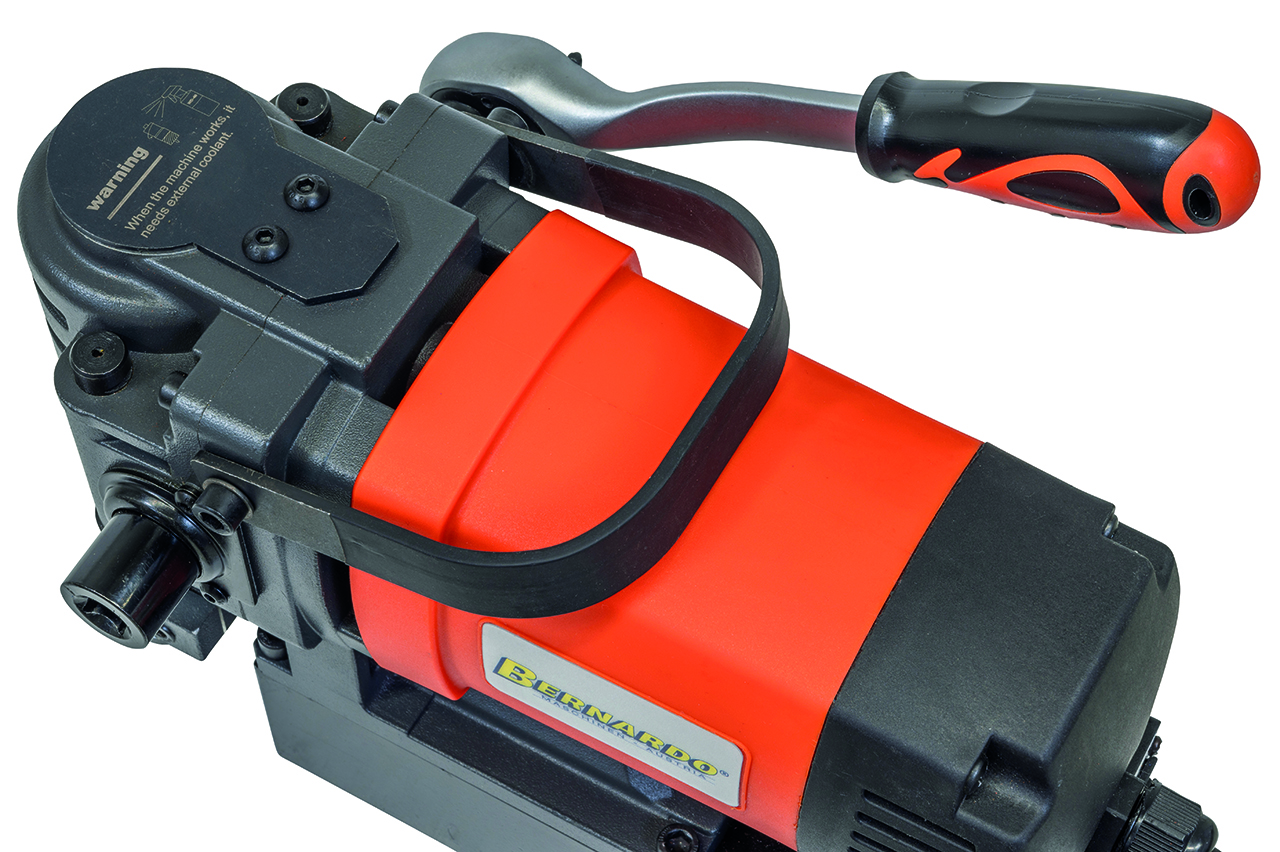

- Carrying handle
- Safety strap
- Operating instructions
- Tool
Features Magnetic core drill Bernardo MD 3845 L
The MD 3845 L model stands out for its compact design, which means that, compared to the height of conventional magnetic core drills, it can be used to great effect even in confined spaces.
- Compact design, making it ideal for use in confined spaces
- The spur gear is designed for continuous use
- The ratchet can be mounted on either the left or right side of the machine
- Ideal for steel construction, vehicle manufacturing, mechanical engineering, etc.
- Compact design, making it ideal for mobile use
- High magnetic holding force for safe working

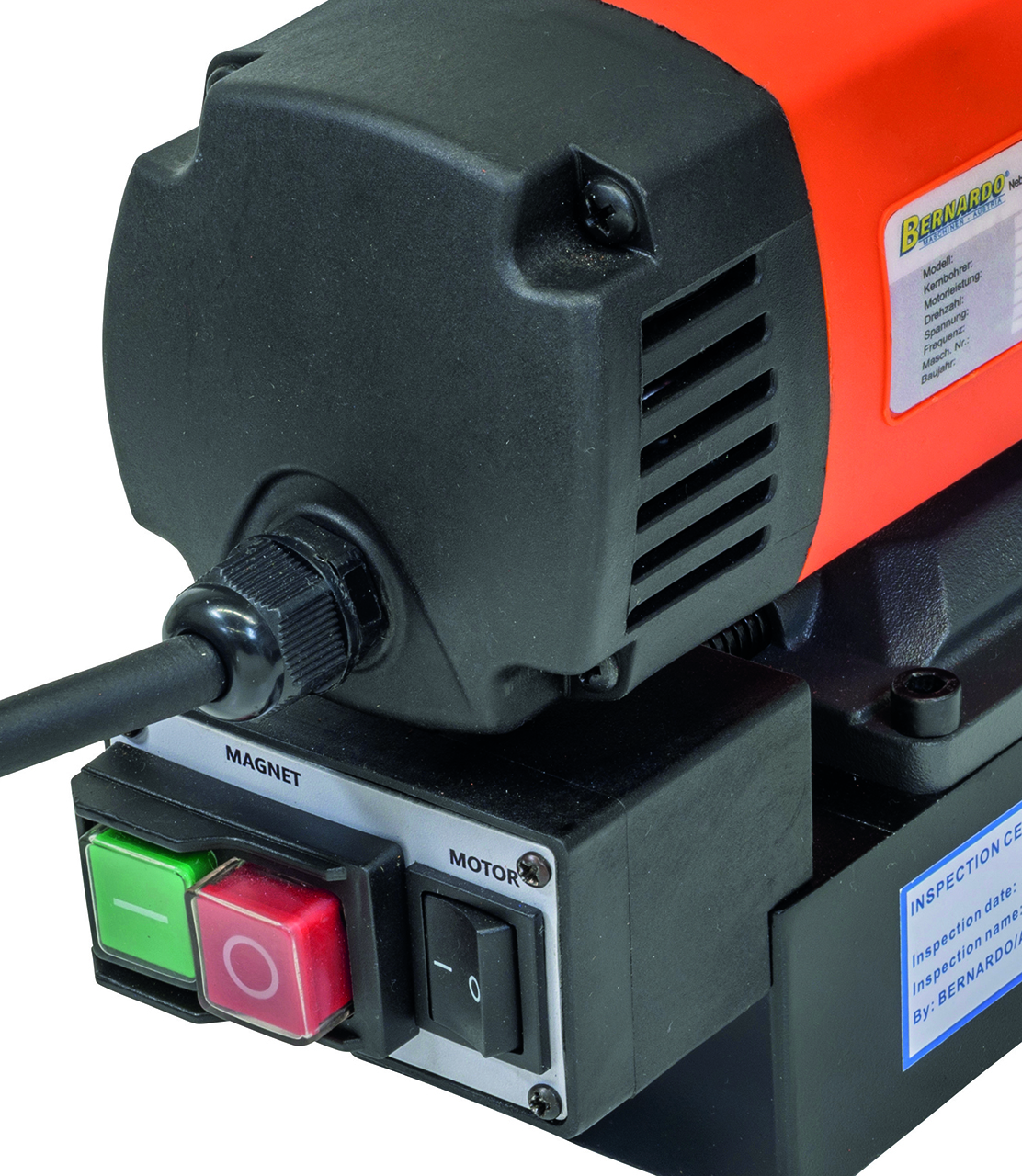

- Ergonomic one-handed operation thanks to clearly arranged controls
- Supplied as standard with a safety strap for vertical or overhead applications
Technical details Magnetic core drill Bernardo MD 3845 L
| Core drill max. Ø | 38 mm |
| Core drill max. drilling depth | 45 mm |
| Max. drilling head travel | 50 mm |
| No-load speed | 850 rpm |
| Weldon shank holder | 19 mm |
| Distance Weldon holder / base plate max. | 60 mm |
| Magnetic holding force | 14500 N |

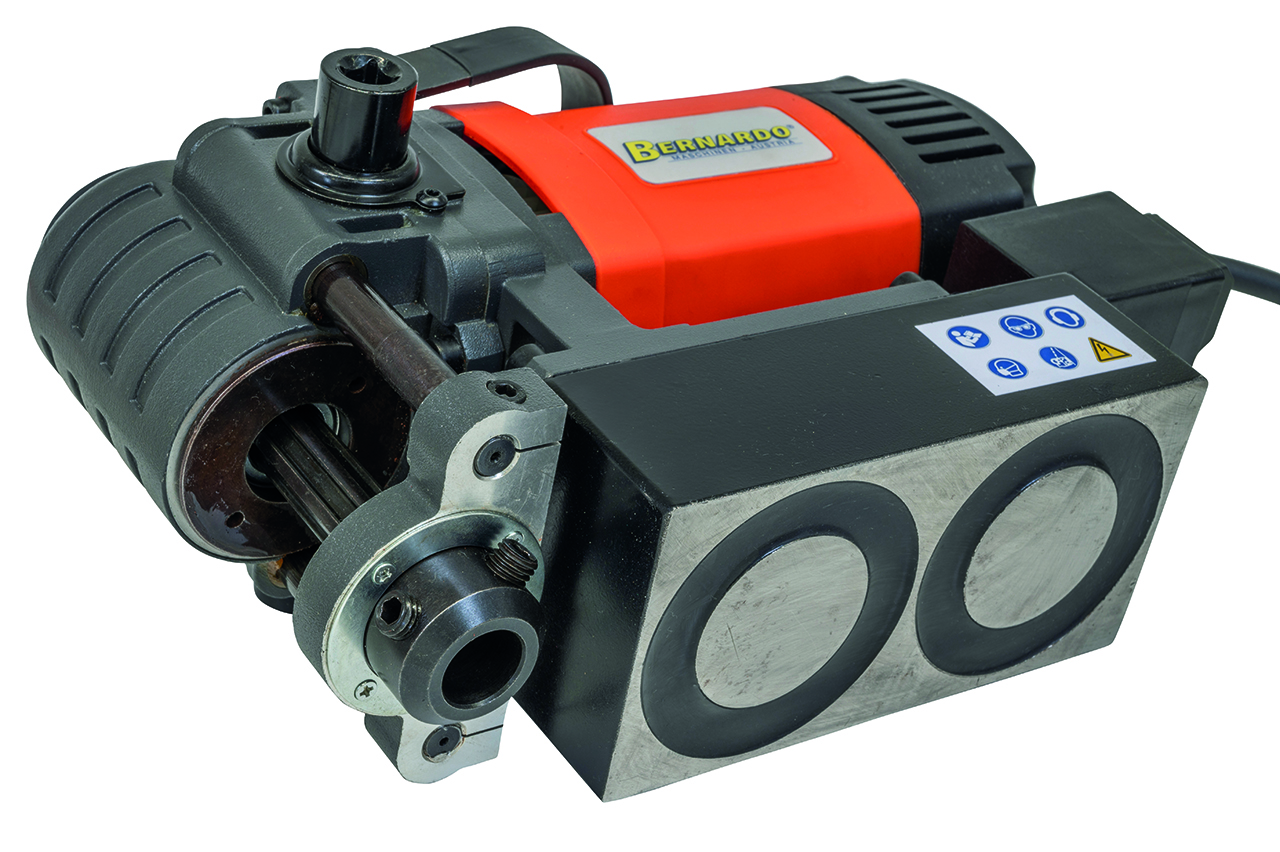

| Magnetic base dimensions (L x W x H) | 156 x 80 x 50 mm |
| Motor power | 1650 W |
| Voltage | 230 V |
| Machine dimensions (W x D x H) | 150 x 280 x 250 mm |
| Weight approx. | 10 kg |
