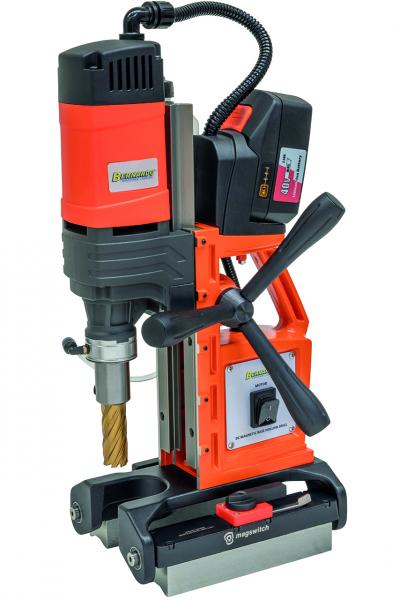

Magnetic core drill Bernardo MD 3550 PA
NEW

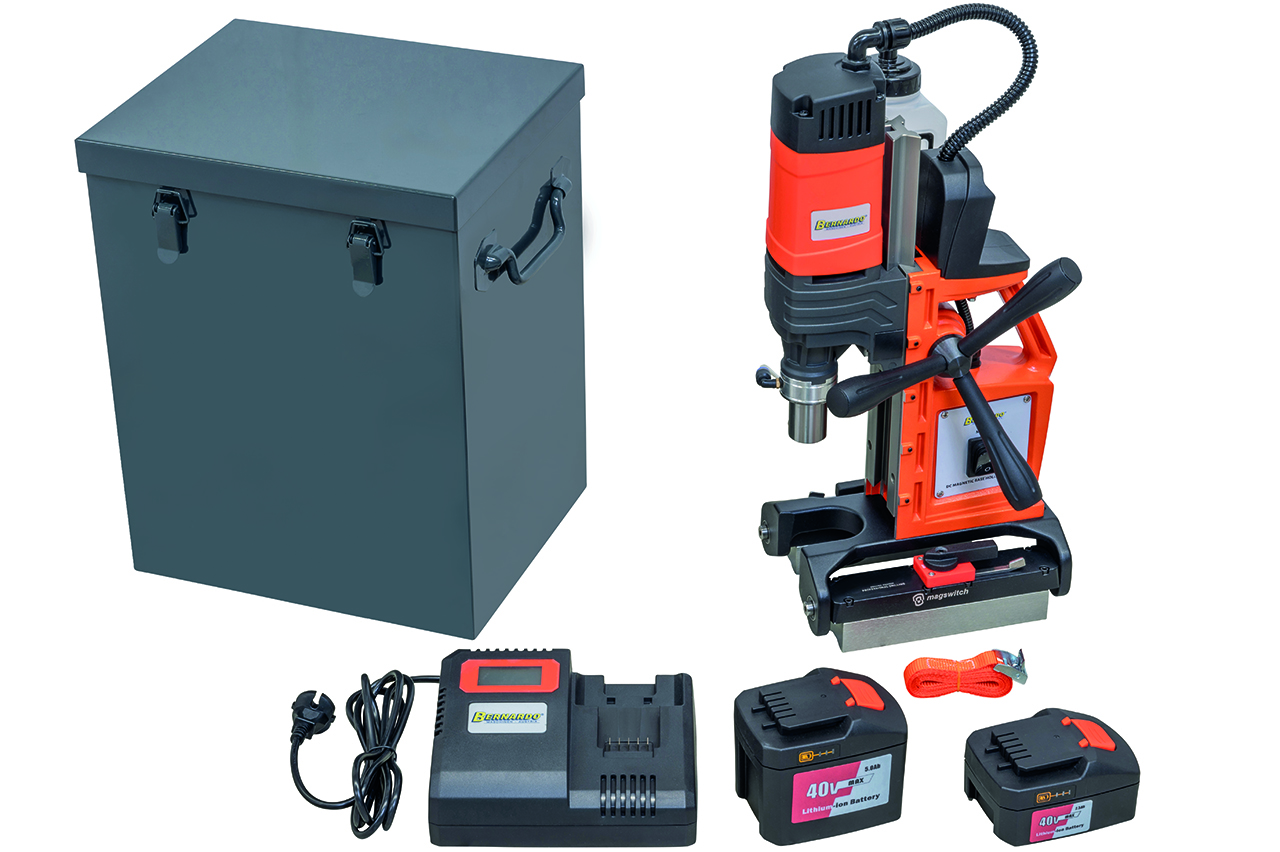

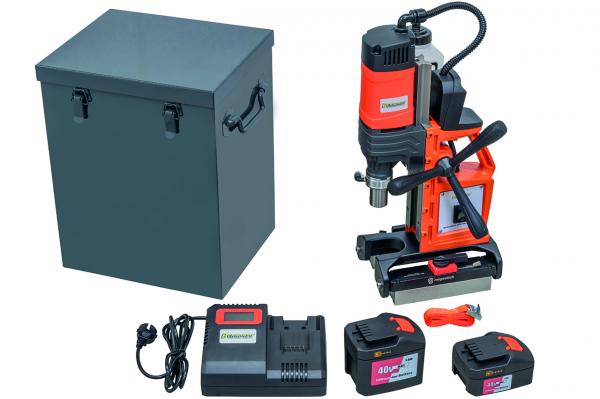

Scope of delivery Magnetic core drill Bernardo MD 3550 PA
- Safety harness
- Metal box
- Coolant reservoir
- Tool holder with automatic internal cooling

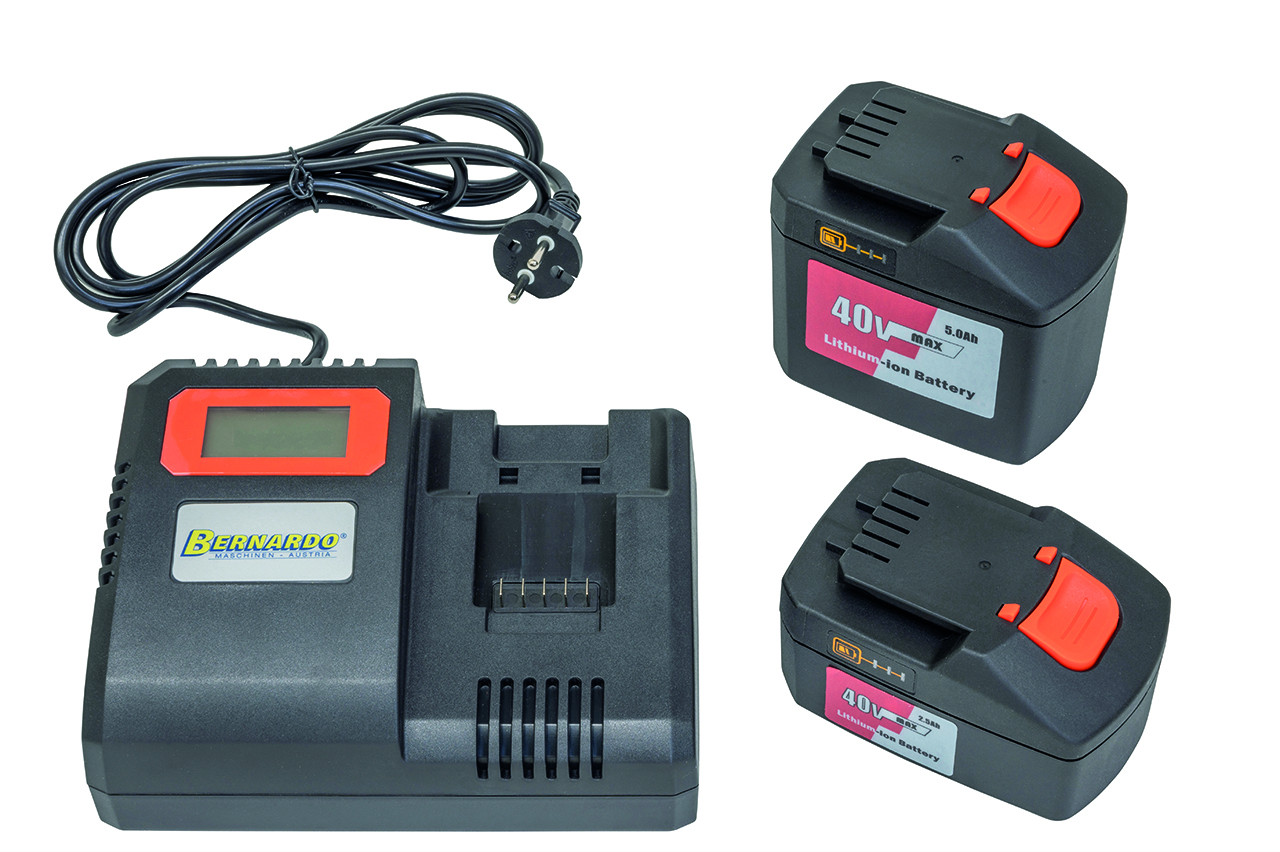

- 2 high-performance batteries (36 V) including charger
- Operating instructions
- Operating tool
Features Magnetic core drill Bernardo MD 3550 PA
- Cordless core drill, ideal for use in locations without a direct power supply

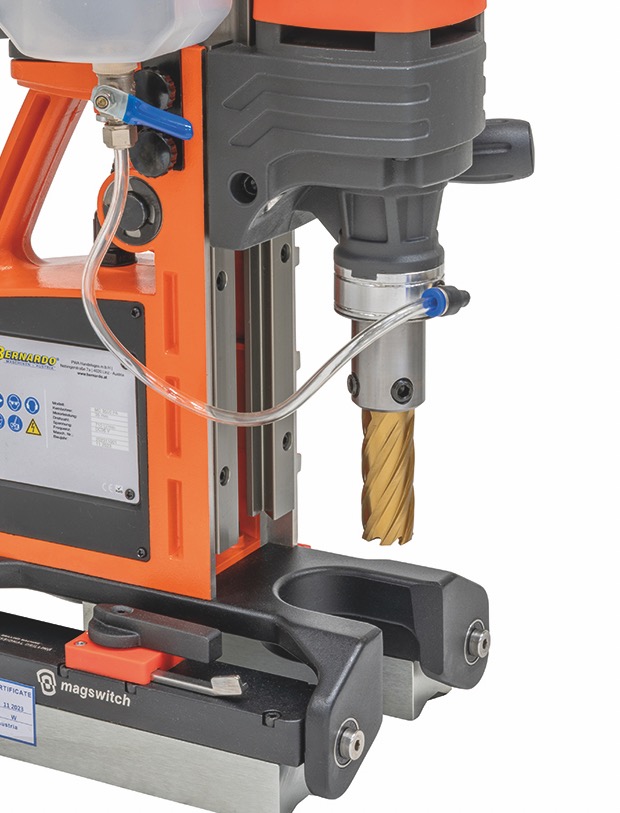

- Automatic internal lubrication; the coolant is directed straight to the tip of the core drill bit
- Durable, high-quality brushless motor with excellent wear resistance
- Fitted as standard with a Weldon chuck for various tools (twist drills, countersinks, reamers, etc.)
- Ergonomic design for maximum flexibility and productivity
- Two flexible, powerful magnets provide a secure hold, particularly on materials such as shaped tubes.
Technical details Magnetic core drill Bernardo MD 3550 PA
| Core drill max. Ø | 35 mm |
| Core drill max. drilling depth | 50 mm |
| Twist drill max. Ø | 16 mm |
| Max. drilling head travel | 160 mm |
| No-load speed | 100 - 960 rpm |
| Weldon shank holder | 19 mm |
| Distance Weldon holder / base plate max. | 180 mm |
| Magnetic base dimensions (L x W x H) | 85 x 40 x 50 mm (2 pcs.) |
| Battery capacity | 5000 mAh |
| Battery voltage | 40 V |
| Machine dimensions (W x D x H) | 240 x 270 x 550 mm |
| Weight approx. | 11 kg |
