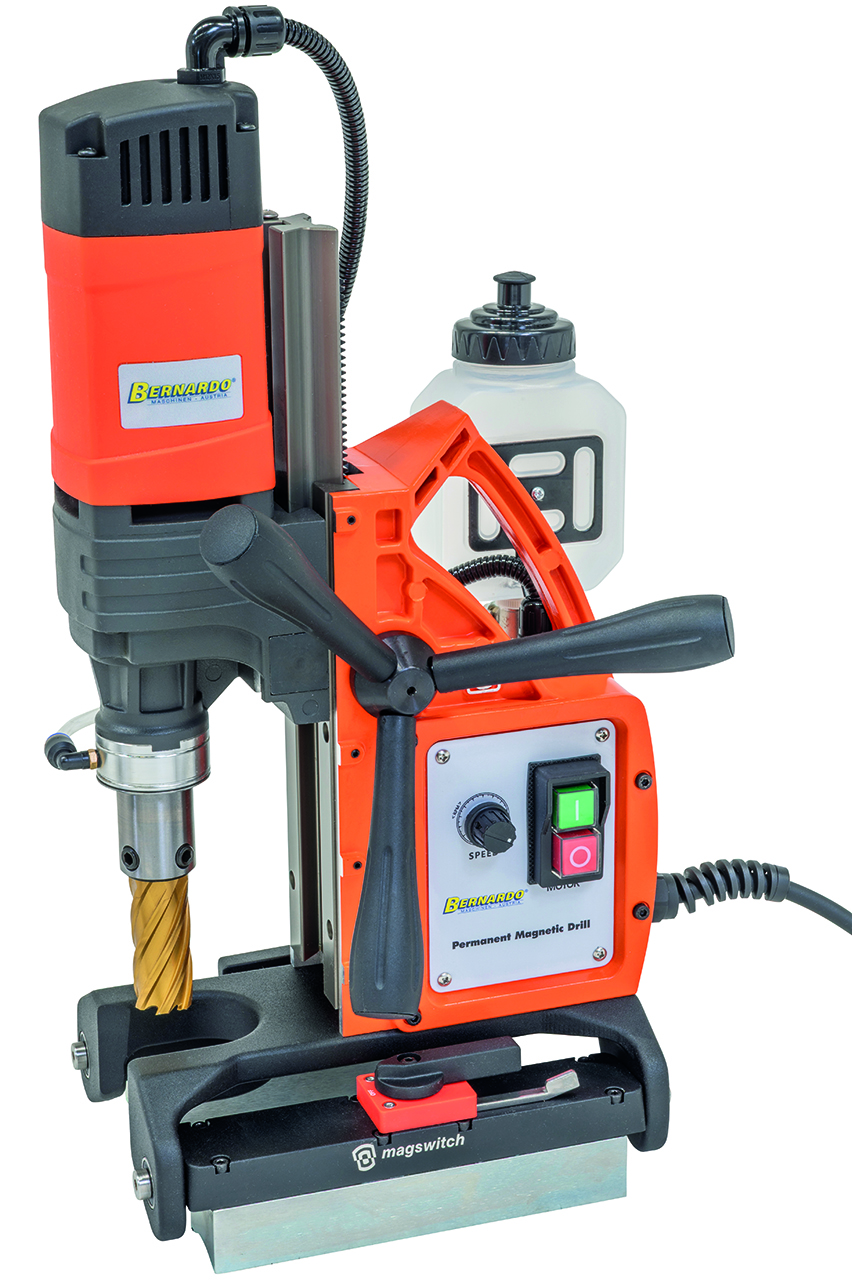

Magnetic core drill Bernardo MD 3550 P
NEW
Scope of delivery Magnetic core drill Bernardo MD 3550 P
- Metal box
- Coolant reservoir
- Level gauge
- Tool holder with automatic
- internal cooling MK 2 / Weldon shank 19 mm
- Safety harness
- Operating instructions
- Operating tool
Features Magnetic core drill Bernardo MD 3550 P
- Ideal for steel construction, vehicle manufacturing, mechanical engineering, etc.
- Ergonomic design with a practical handle

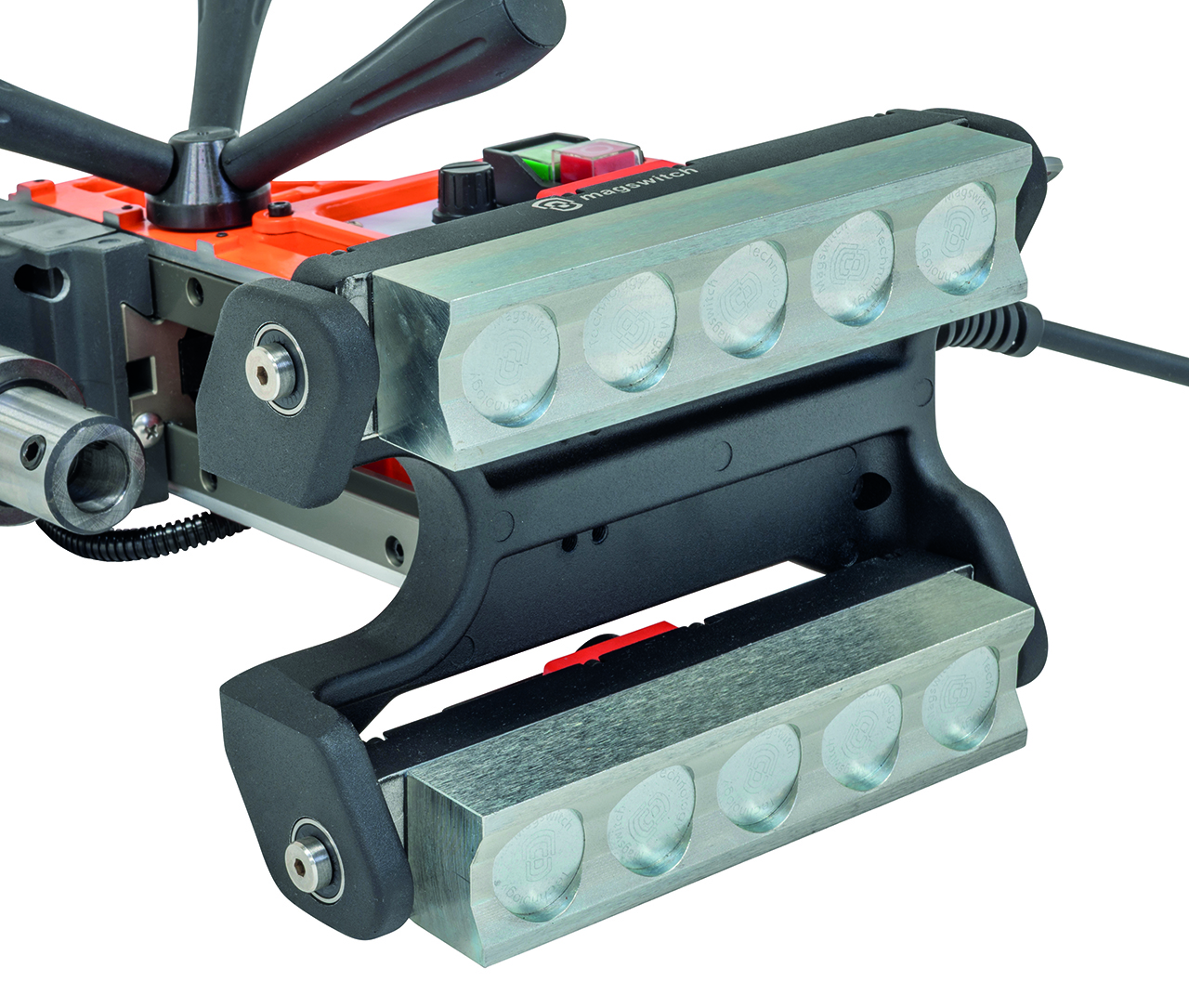

- Two flexible, powerful magnets provide a secure hold, particularly on materials such as shaped tubes
- Automatic internal lubrication; the coolant is directed straight to the tip of the core drill
- Variable speed control for optimum adjustment of the cutting speed during core drilling, thread cutting, countersinking and reaming
Technical details Magnetic core drill Bernardo MD 3550 P
| Core drill max. Ø | 35 mm |
| Core drill max. drilling depth | 50 mm |
| Twist drill max. Ø | 16 mm |
| Max. drilling head travel | 150 mm |
| No-load speed, variable | 100 - 830 rpm |
| Weldon shank holder | 19 mm |
| Distance Weldon holder / base plate max.* | 160 mm |
| Magnetic holding force | 16000 N |
| Magnetic base dimensions (L x W x H) (2 pcs.) | 85 x 40 x 50 mm |
| Motor power | 1600 W |
| Voltage | 230 V |
| Machine dimensions (W x D x H) | 250 x 290 x 520 mm |
| Weight approx. | 12.5 kg |
* Extendable up to 110 mm
