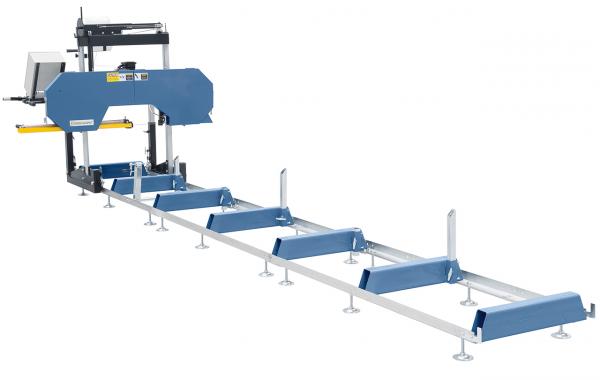

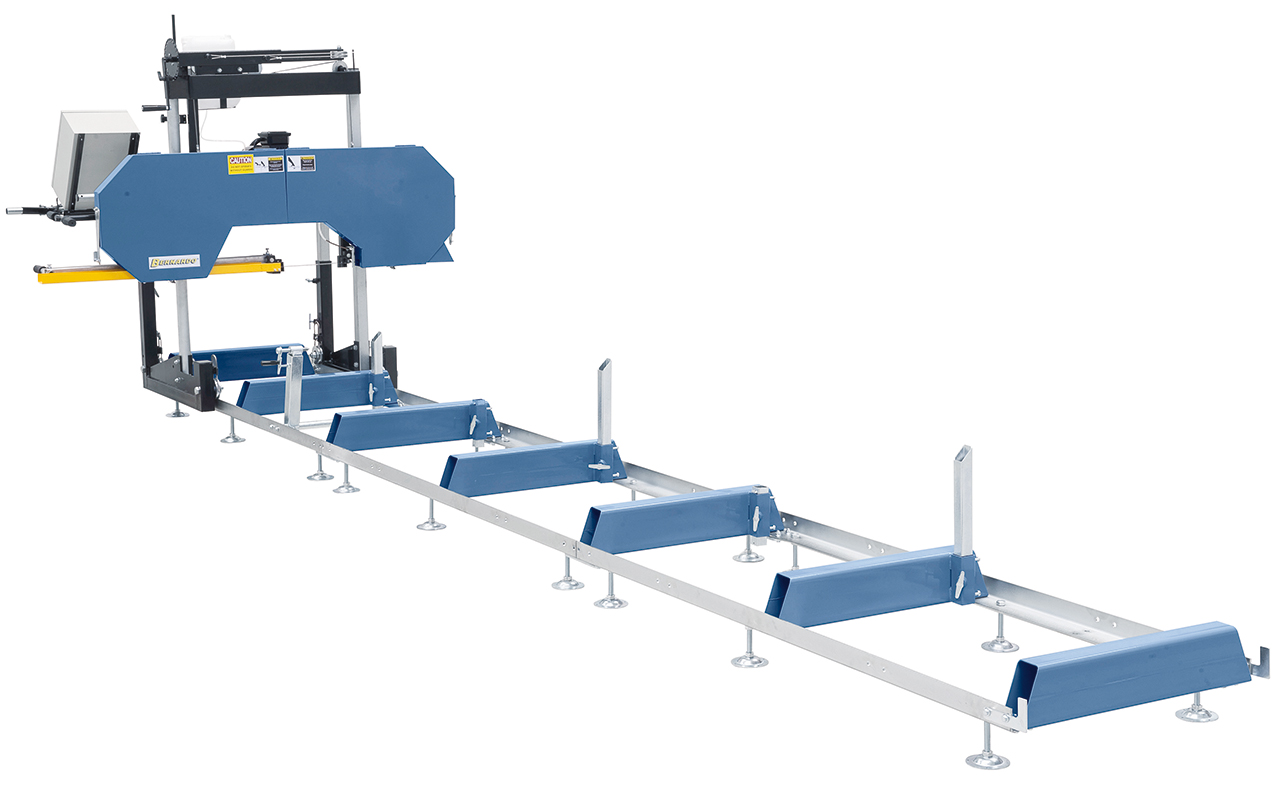

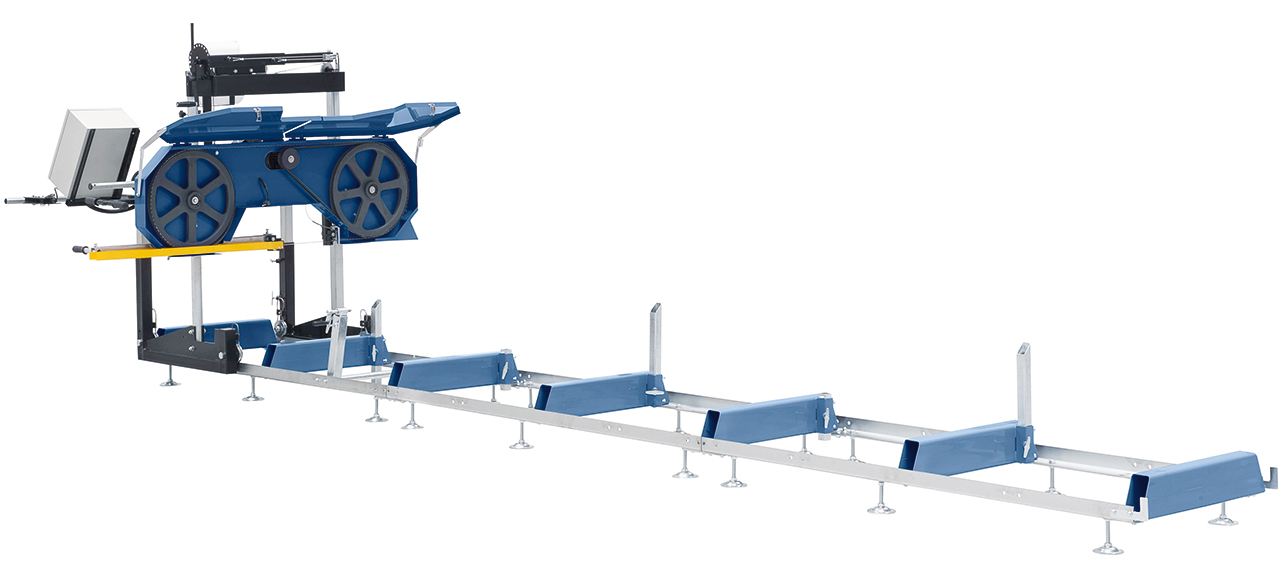

The BBS series of log bandsaws are available with either electronic drive or gasoline engine. The electric version is mainly used as a stationary machine; the gasoline drive model option is perfectly suitable for transport between sites. The brilliant price to benefit ratio makes this model perfect for agricultural purposes, forestry, carpentry etc.
Scope of delivery Log bandsaws Bernardo BBS 650 E
1 m
2 pcs. log clamping device Coolant tank Features Log bandsaws Bernardo BBS 650 E

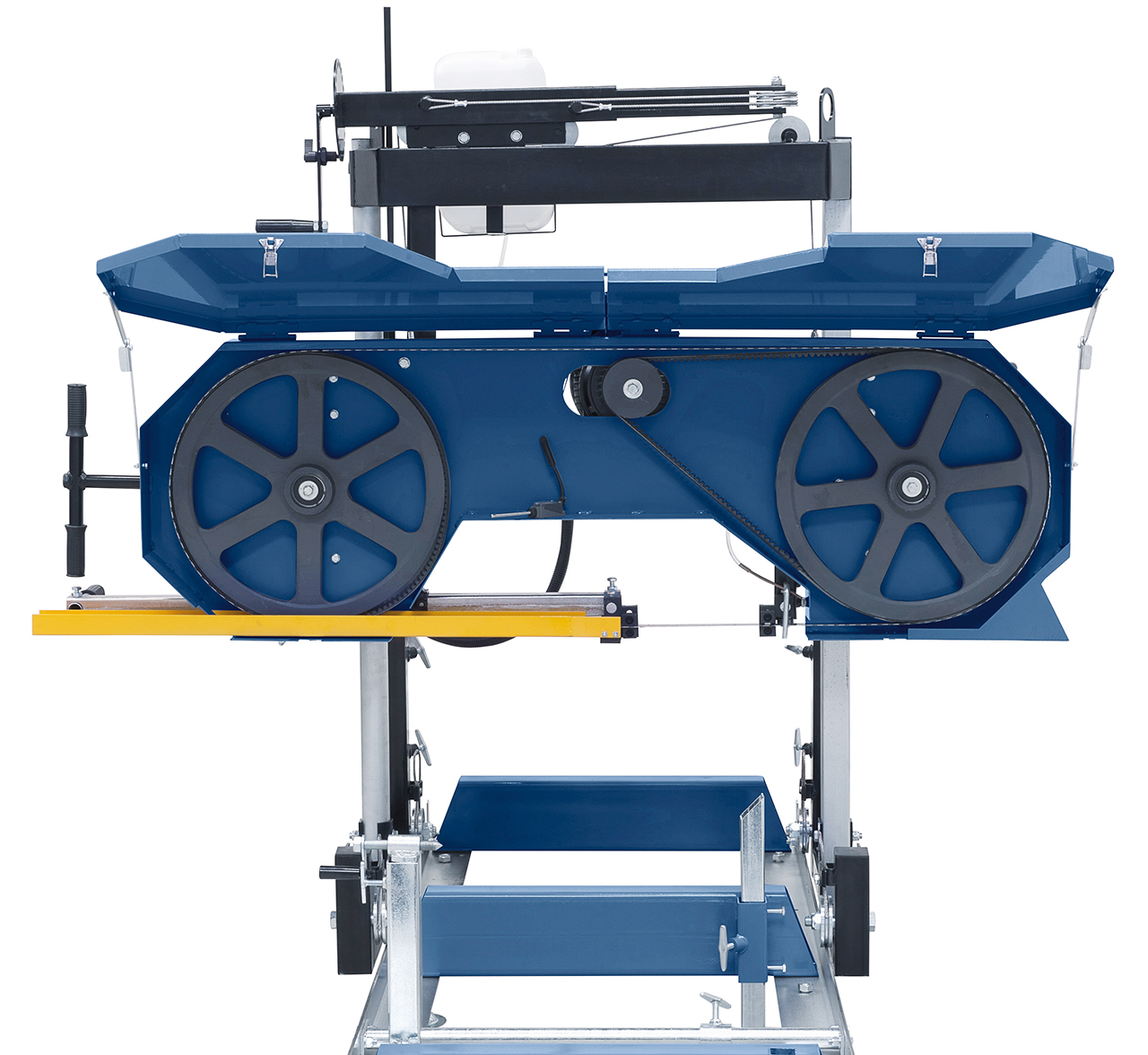

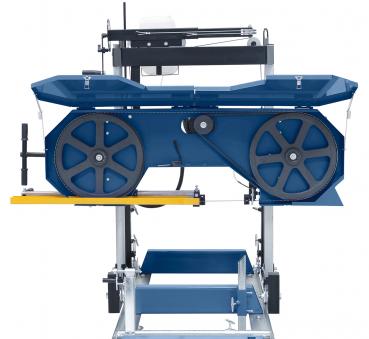

- Dynamically balanced, grey cast drive wheels allow for a smooth run
- Suitable for processing logs into boards, planks and beams
- Bed extensions are optionally available for various cutting lengths
- Suitable for cutting of soft as well as hard timber logs

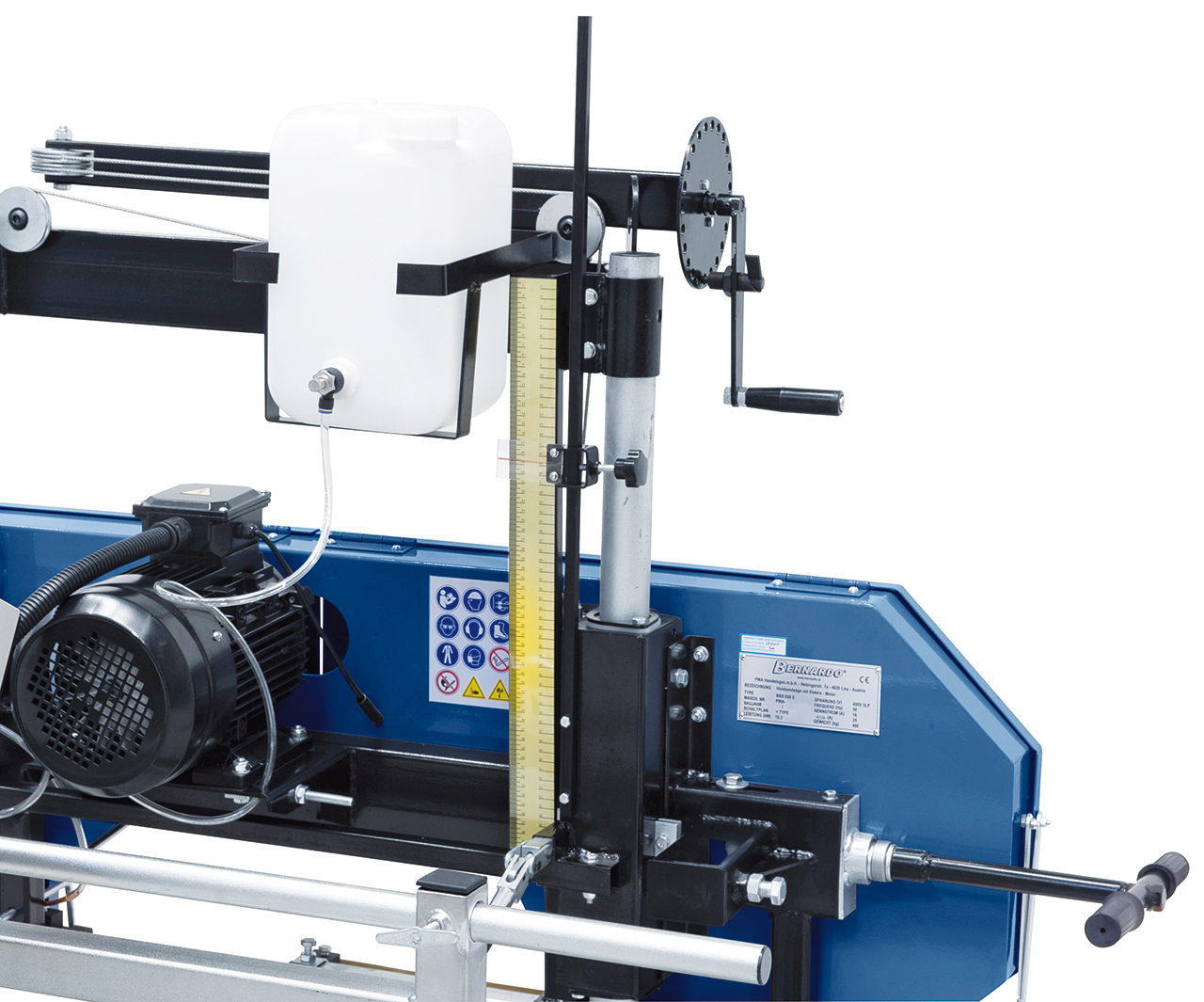

- Manual adjustment of feed and height of saw unit

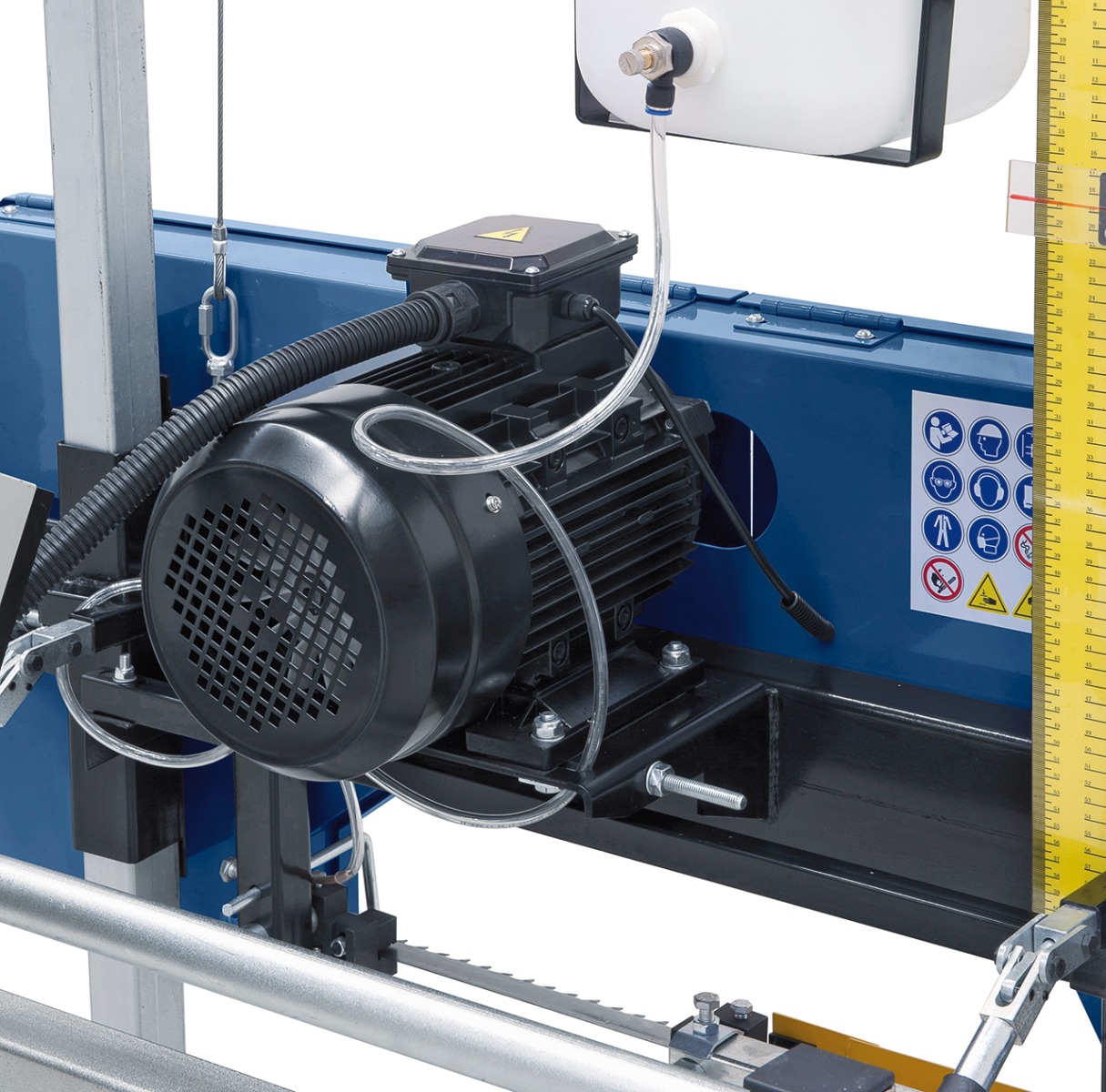

- Comes complete with coolant container and dosage valve for optimal lubrication and cooling of bandsaw blade
- Adjustable fences allow for easy clamping of timber logs

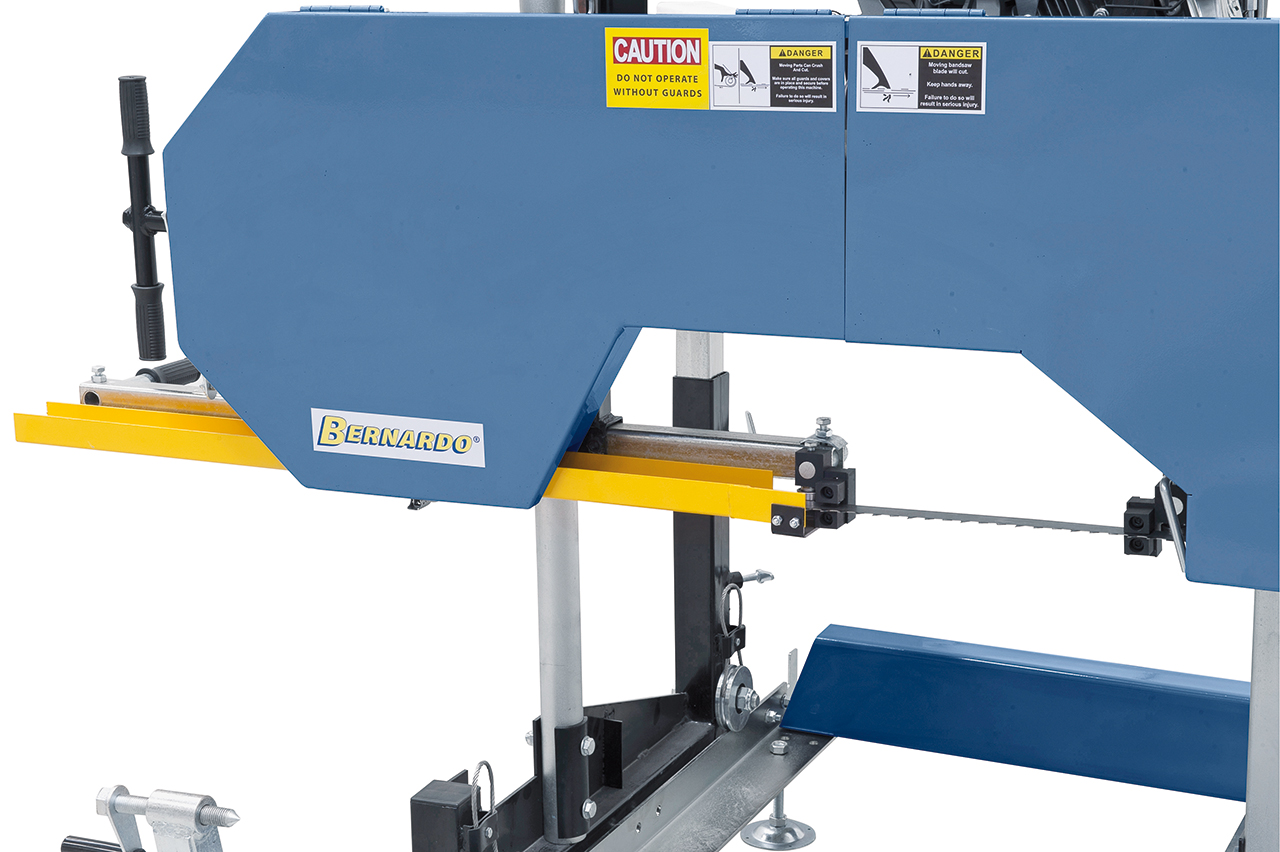

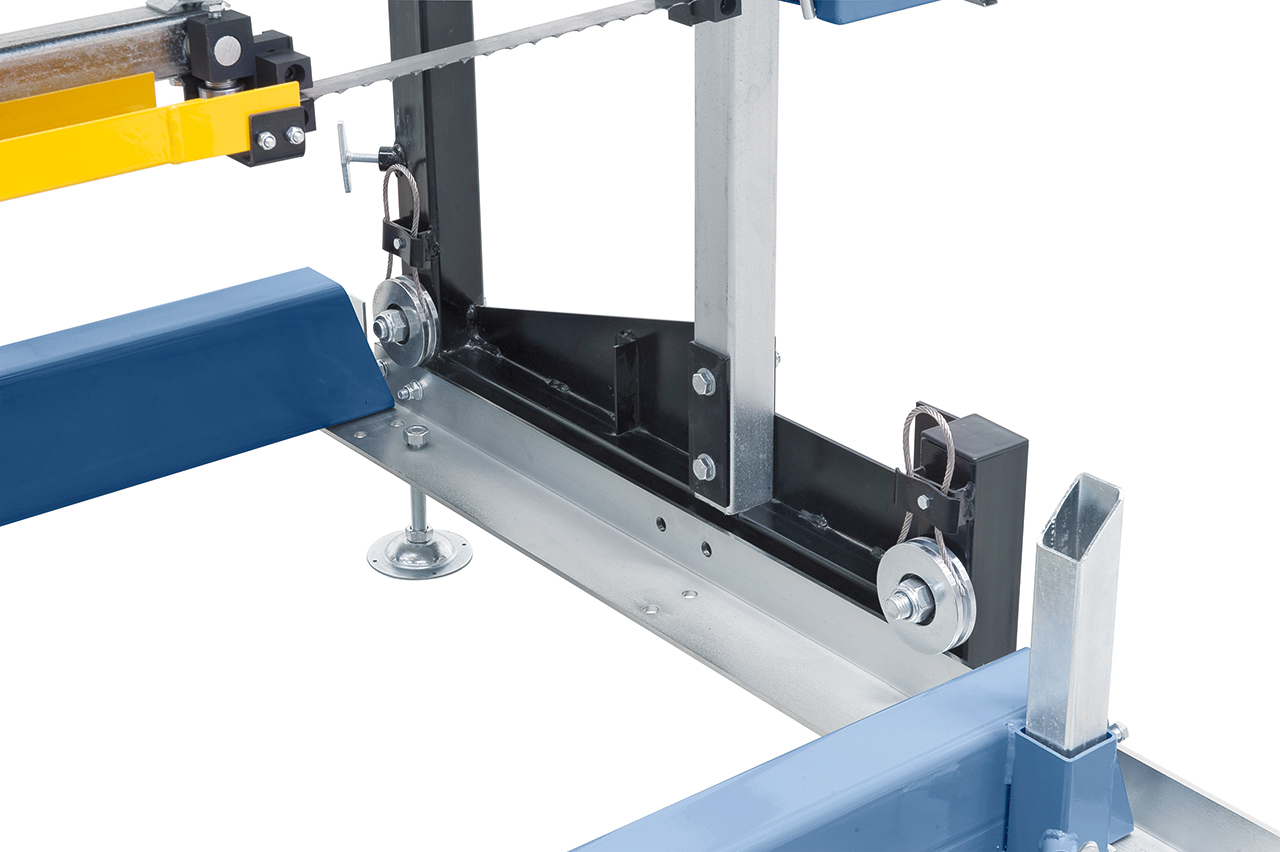

- Saw unit is fixed and guided from both sides
Technical details Log bandsaws Bernardo BBS 650 E
| Max. log diameter | 660 mm |
| Max. board width | 520 mm |
| Max. cutting height | 470 mm |
| Min. cutting height | 45 mm |
| Max. cutting depth | 180 mm |
| Cutting length basic version | 5100 mm |
| Extension (Option) | 1950 mm |
| Max. cutting length | unlimited |
| Min. cutting length | 1000 mm |
| Feed | manual |
| Diameter of flywheel | 480 mm |
| Width of flywheel | 22 mm |
| Bandsaw blade | 3650 x 34 x 1,1 mm |
| Bandsaw blade speed | 1200 m/min |

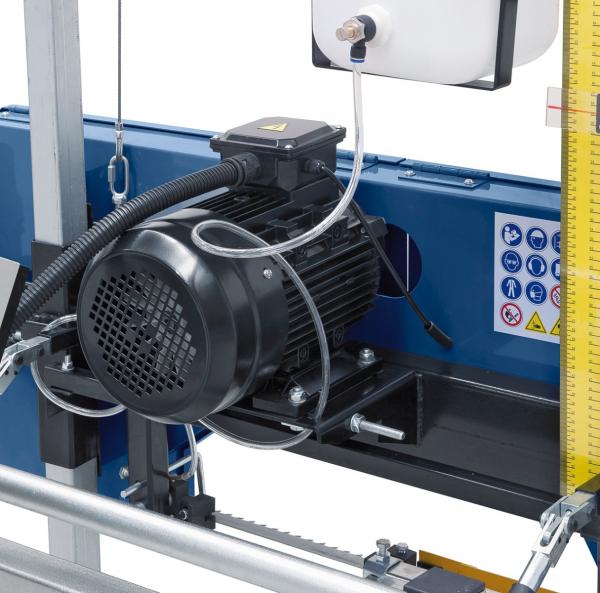

| Motor power | 7,5 kW (10 HP) |
| Voltage | 400 V |
| Machine dimension (W x H x L – basic version) | 1800 x 1700 x 6505 mm |
| Weight approx. | 380 kg |
| Weight of extension | 55 kg |
