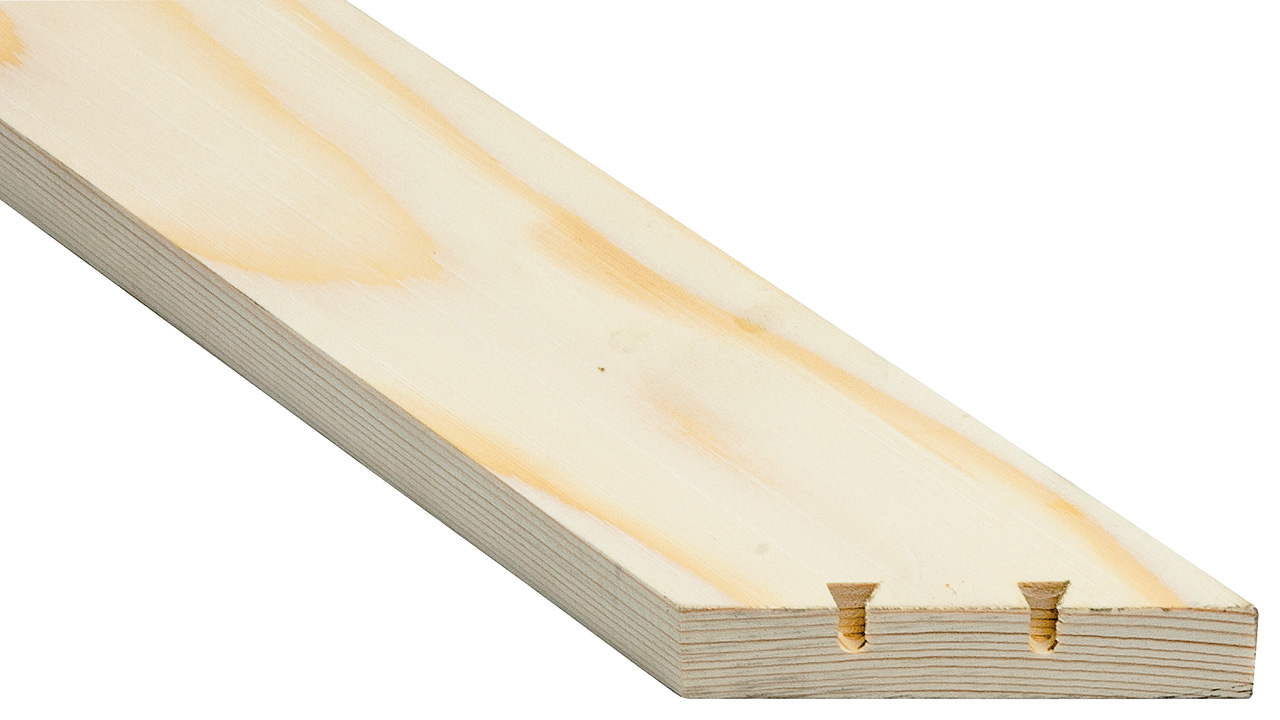

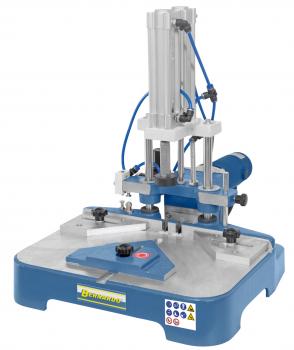

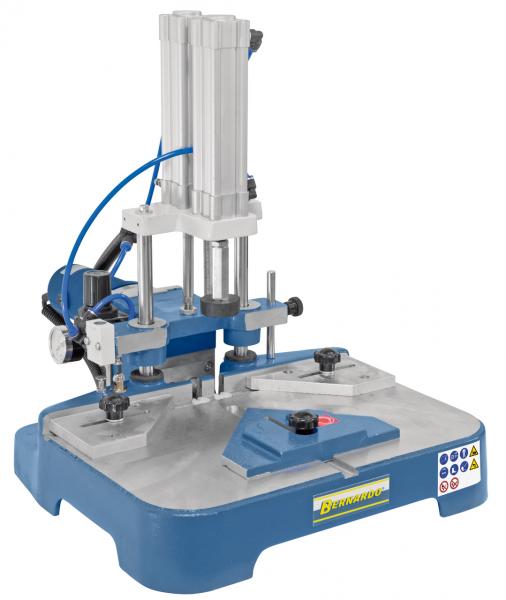

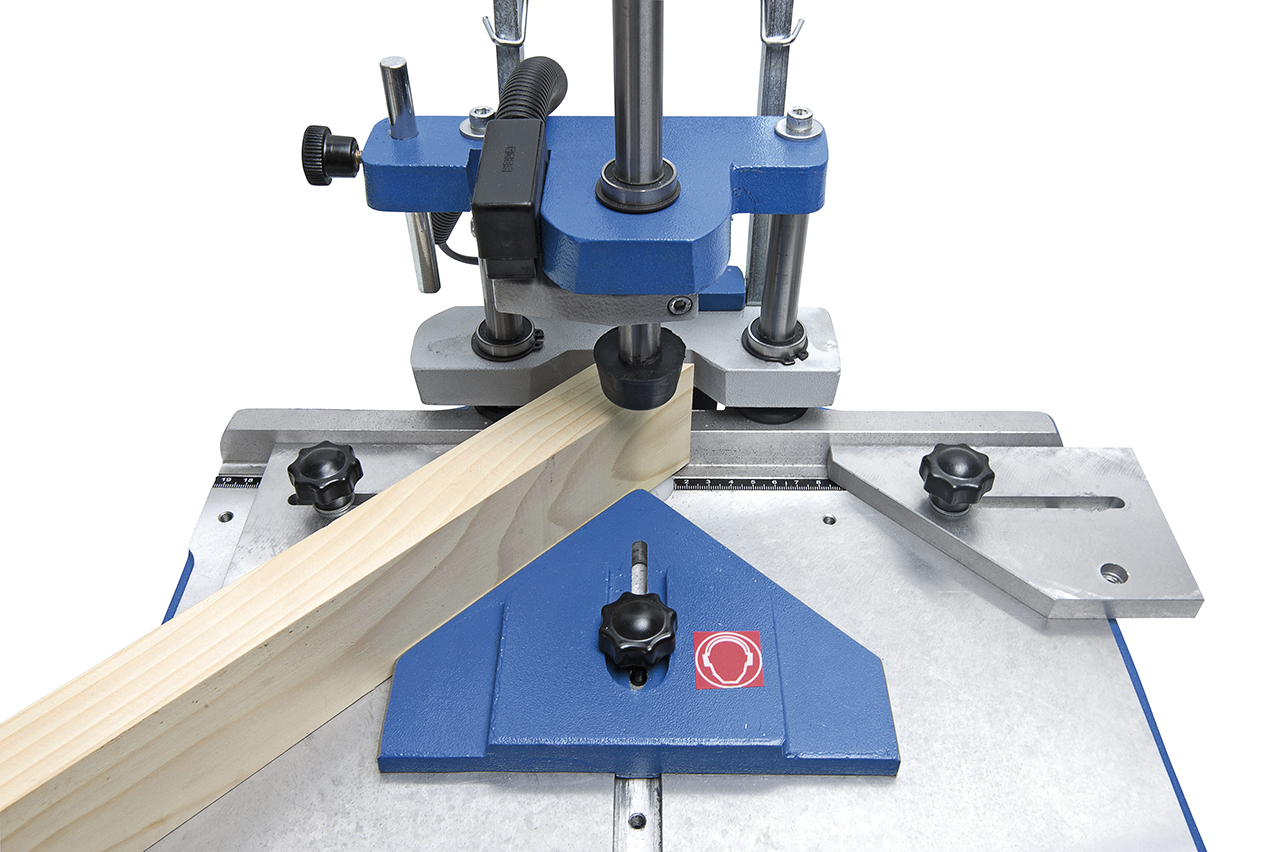

The KNF 2 P twin keyway milling machines is suitable for connecting wider frame parts, such as hand railings, segmental arches, arched windows, corner benches etc. Two keyway segments are produced in one go. This model additionally features a pneumatic downholder controlled by a foot pedal.
Scope of delivery Keyway milling machine Bernardo KNF 2 P

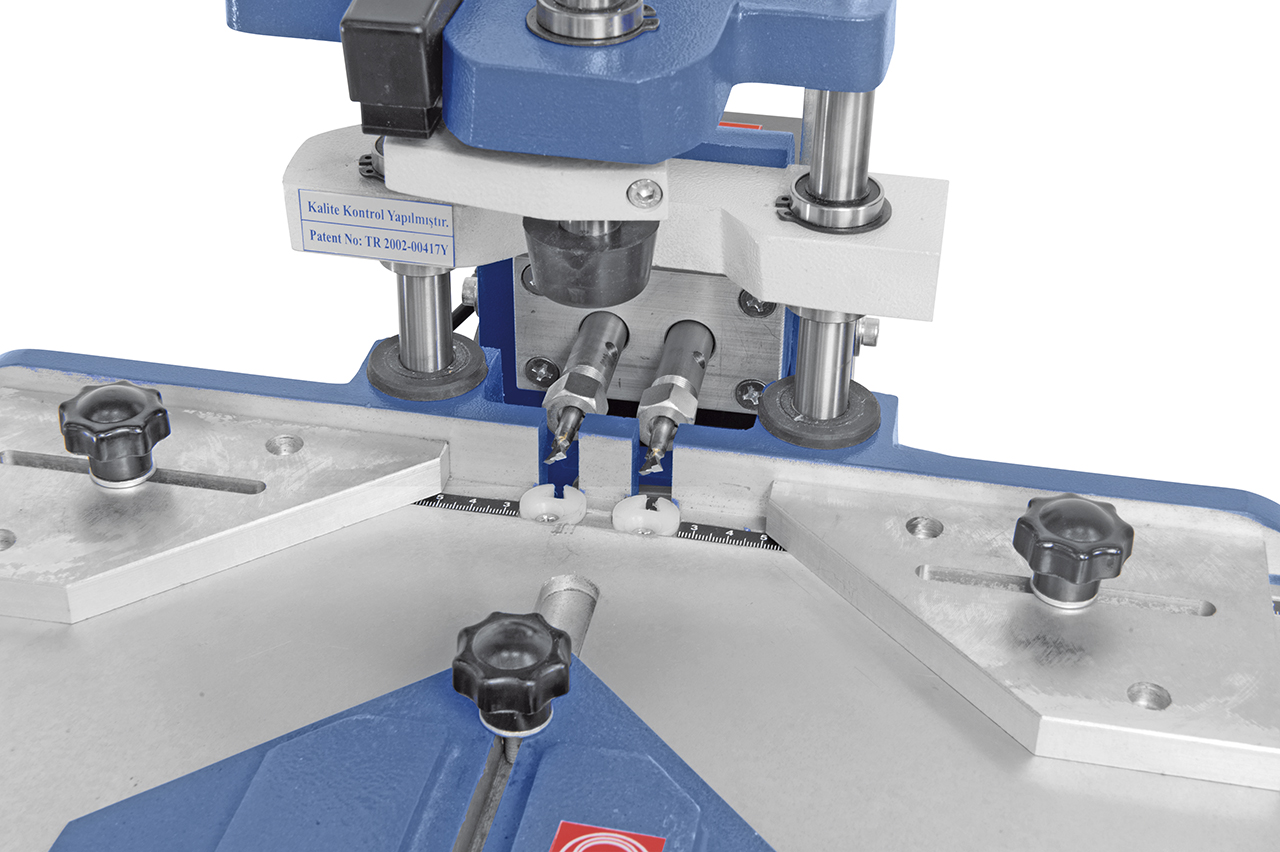

- 2 pcs. milling cutter for key size W-2
- Mitre fence 45°
- 2 sidewise fence
- Pneumatic downholder

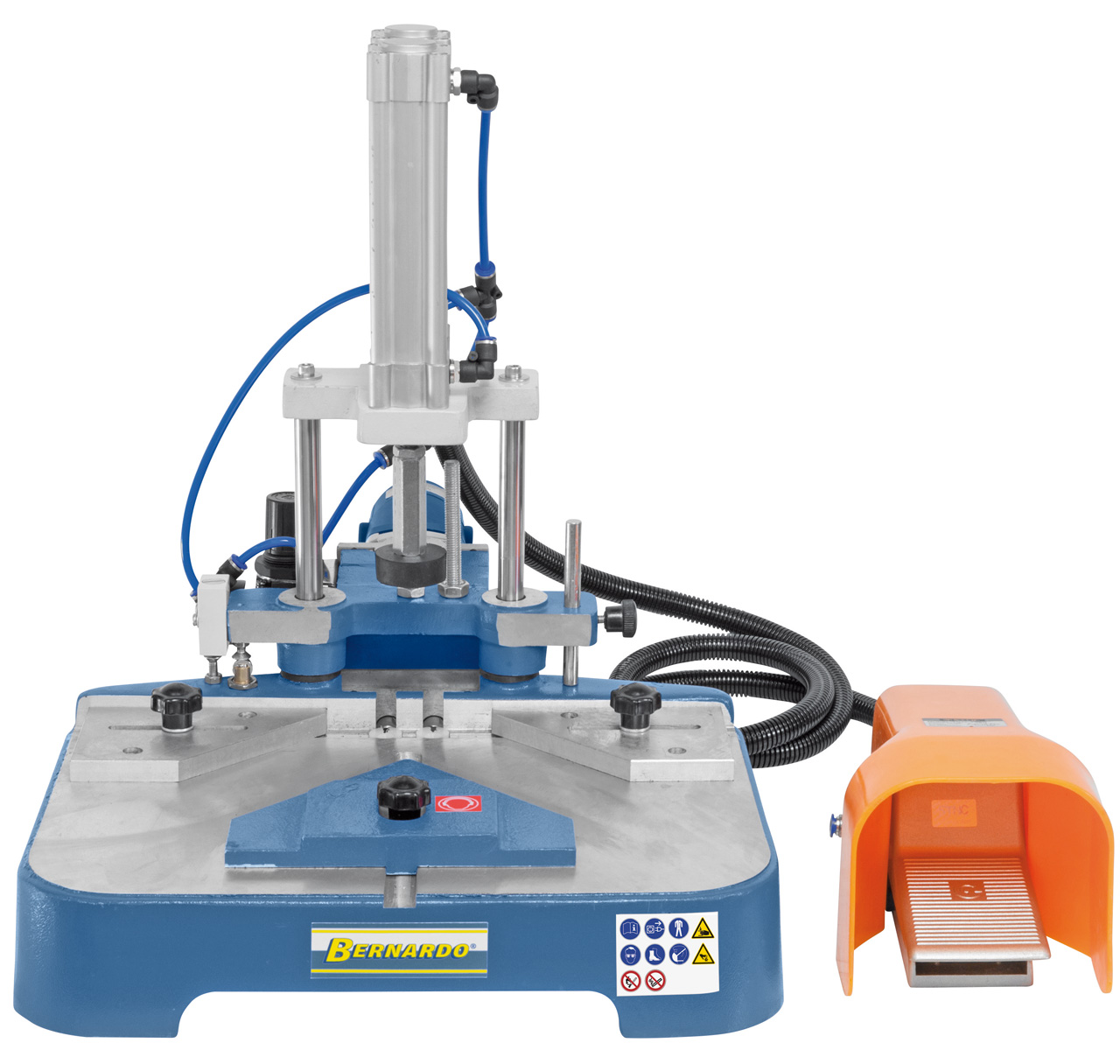

- Foot pedal
Features Keyway milling machine Bernardo KNF 2 P

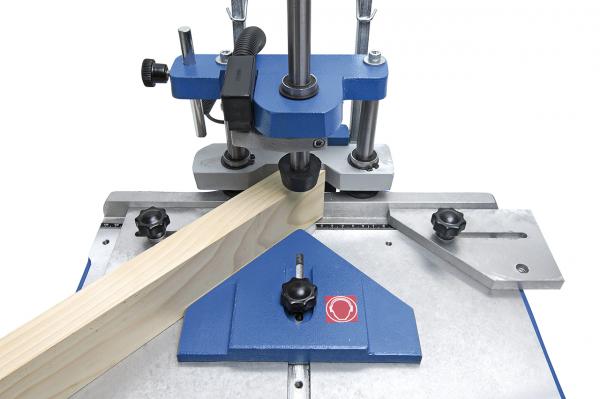

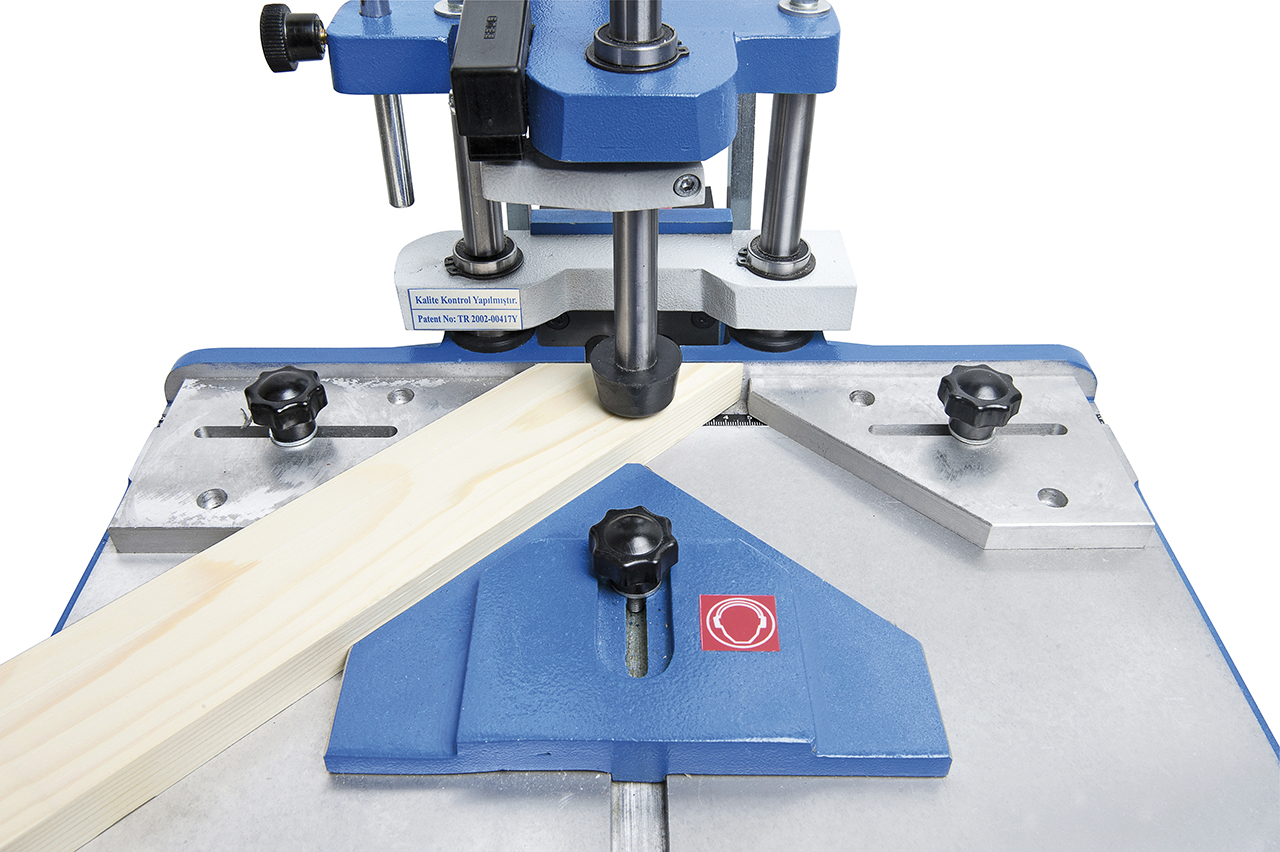

- Equipped with adjustable fences to allow for convenient positioning of workpiece
- Cost efficient production of frame connections of various kinds, eg. drawers, picture frames, door cladding, wreath frames, segmental arches, window frames and many more
- Quick and low cost connections are particularly economical for production of small to medium sized series
- Shape and force ensure strong connections - no adhesives required
- Depending on type of application and material, there are different key sizes and lengths available
- Operating mode: lowering lever secures workpiece into places, milling cutters lower to the set depth. Lifting the lever releases workpiece - motor switches off automatically
Technical details Keyway milling machine Bernardo KNF 2 P
| Mill holder Ø | 6 mm |
| Milling depth | 0 - 55 mm |
| Table size | 390 x 220 mm |
| Control | pneumatic |
| Workpiece clamping | pneumatic |
| Spindle distance | 28 mm |
| Needed air pressure | 6 - 8 bar |
| Fence length | 390 mm |
| Width of profile max. | 185 mm |
| Clearance max. | 100 mm |
| Speed | 32000 rpm |
| Motor power | 0,85 kW |
| Voltage | 230 V |
| Machine dimension (W x D x H) | 400 x 620 x 480 mm |
| Weight approx. | 14 kg |
