Product No.:
21-5009
2-4 days 2-4 days (abroad may vary)
  • Optimal price-performance ratio
  • Top quality
  • Reliable service
  • Fast delivery

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

916,84 EUR

incl. 19% tax excl. Shipping costs

Ask about product
Description

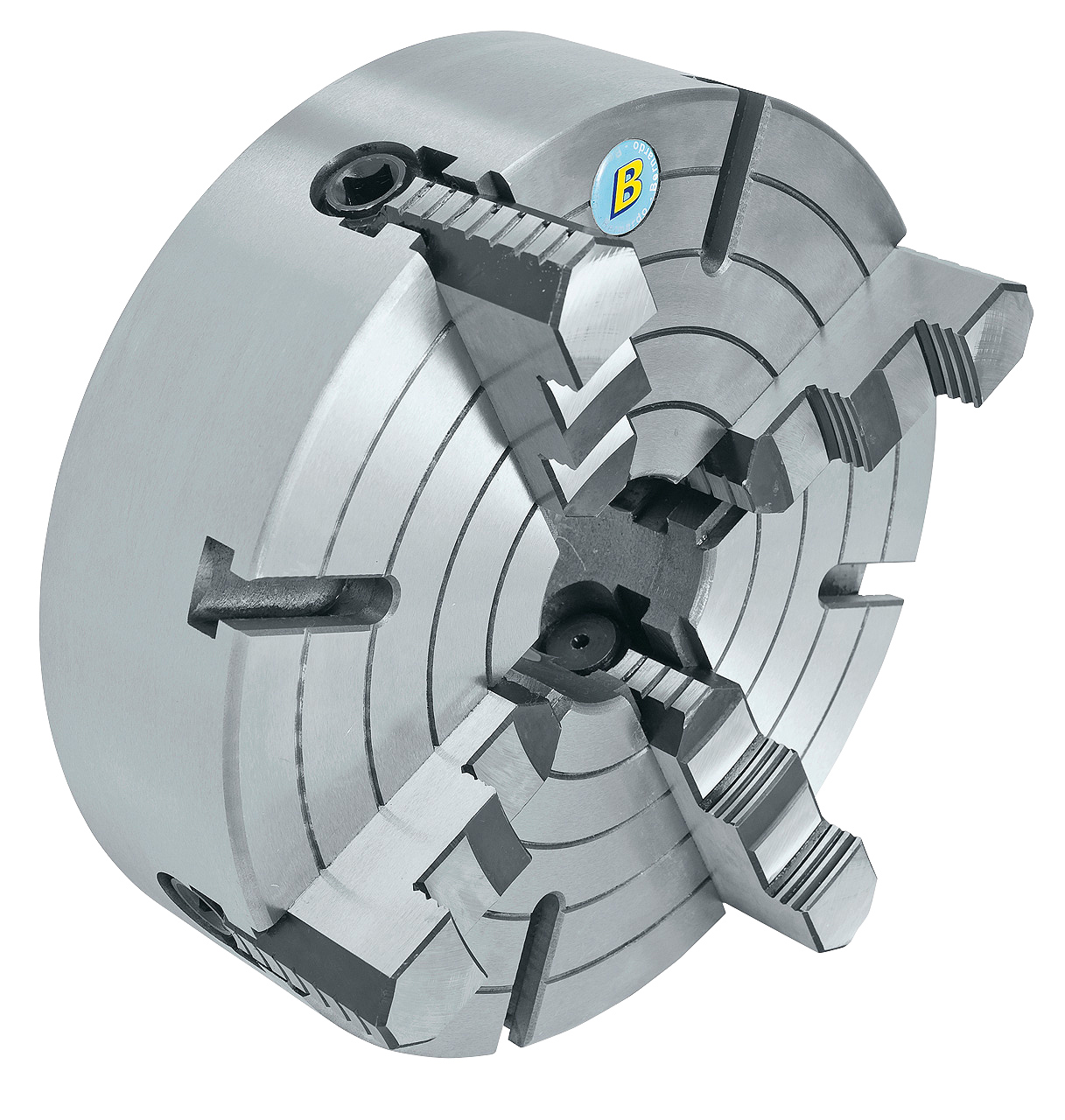

Features Independent chucks Bernardo Independent chuck K72 - 500

Execution:

  • 4-jaw independent chuck made out of cast iron
  • With centre mount according to DIN 6350
  • Four separate adjustable jaws
  • From a diameter of 160 mm the independent chuck is with front-mounting
  • Including milled T-slots from a diameter of 300 mm
  • Inclusive one set hard outside solid jaws



Application:

  • Useable for clamping of asymmetric and rectangular shaped workpieces on turning lathes

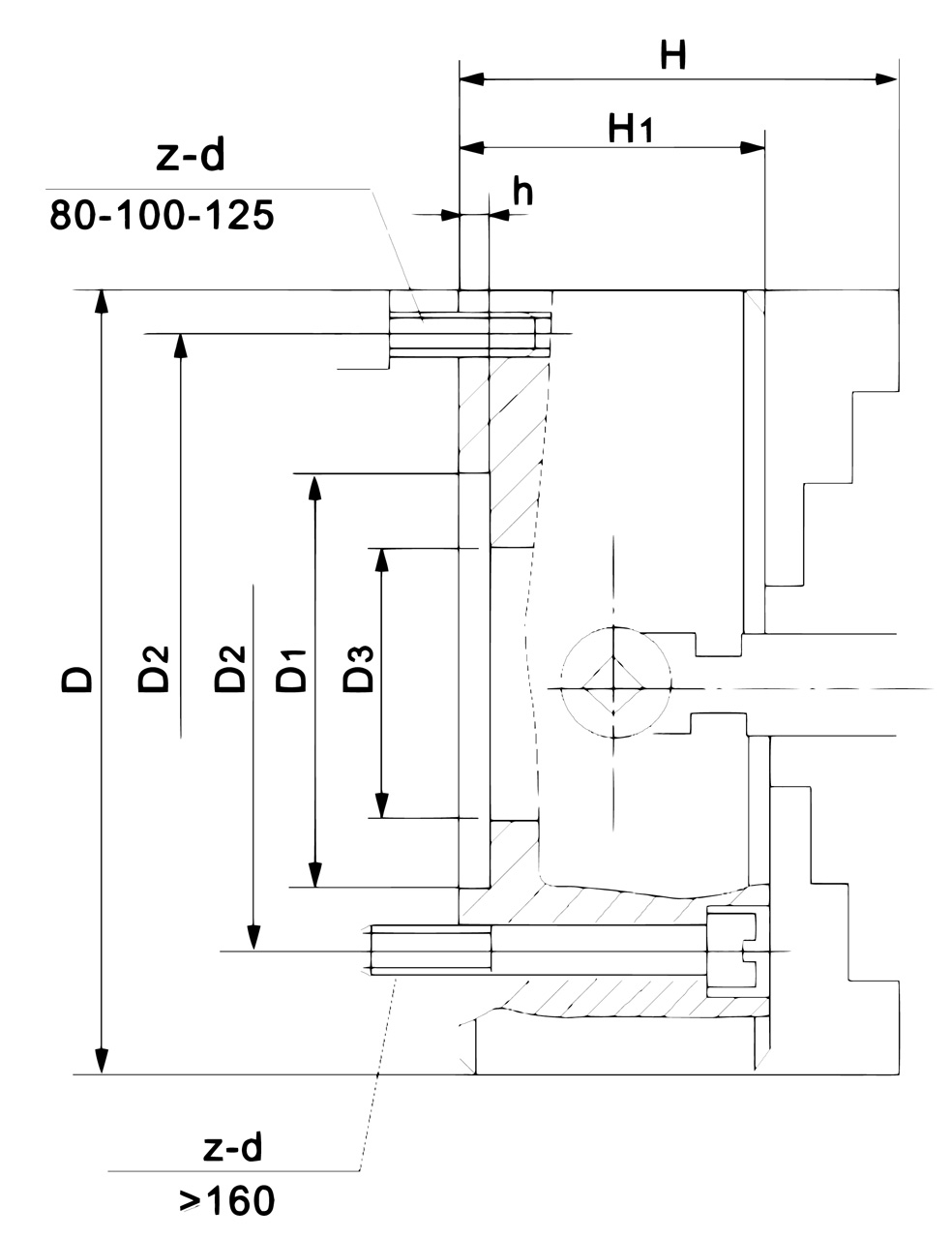

Technical details Independent chucks Bernardo Independent chuck K72 - 500

D - chuck size

500

D1

200 mm

D2

236 mm

D3

160 mm

H

161 mm

H1

106 mm

h

8 mm

Mounting bolts

4 x M20

Max. speed

400 rpm

Weight approx.

90 kg
