Independent chucks Bernardo Independent chuck K72-320/D8

Product No.:
21-5066
2-4 days 2-4 days (abroad may vary)
  • Optimal price-performance ratio
  • Top quality
  • Reliable service
  • Fast delivery

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

573,16 EUR

incl. 19% tax excl. Shipping costs

Ask about product
Description

Features Independent chucks Bernardo Independent chuck K72-320/D8

Execution:

  • 4-jaw independent chuck made out of cast iron
  • With Camlock- direct mount according to DIN 55029
  • Four separate adjustable jaws
  • Including milled T-slots from a diameter of 300 mm
  • Inclusive one set hard outside solid jaws



Application:

  • Useable for clamping of asymmetric and rectangular shaped workpieces on turning lathes

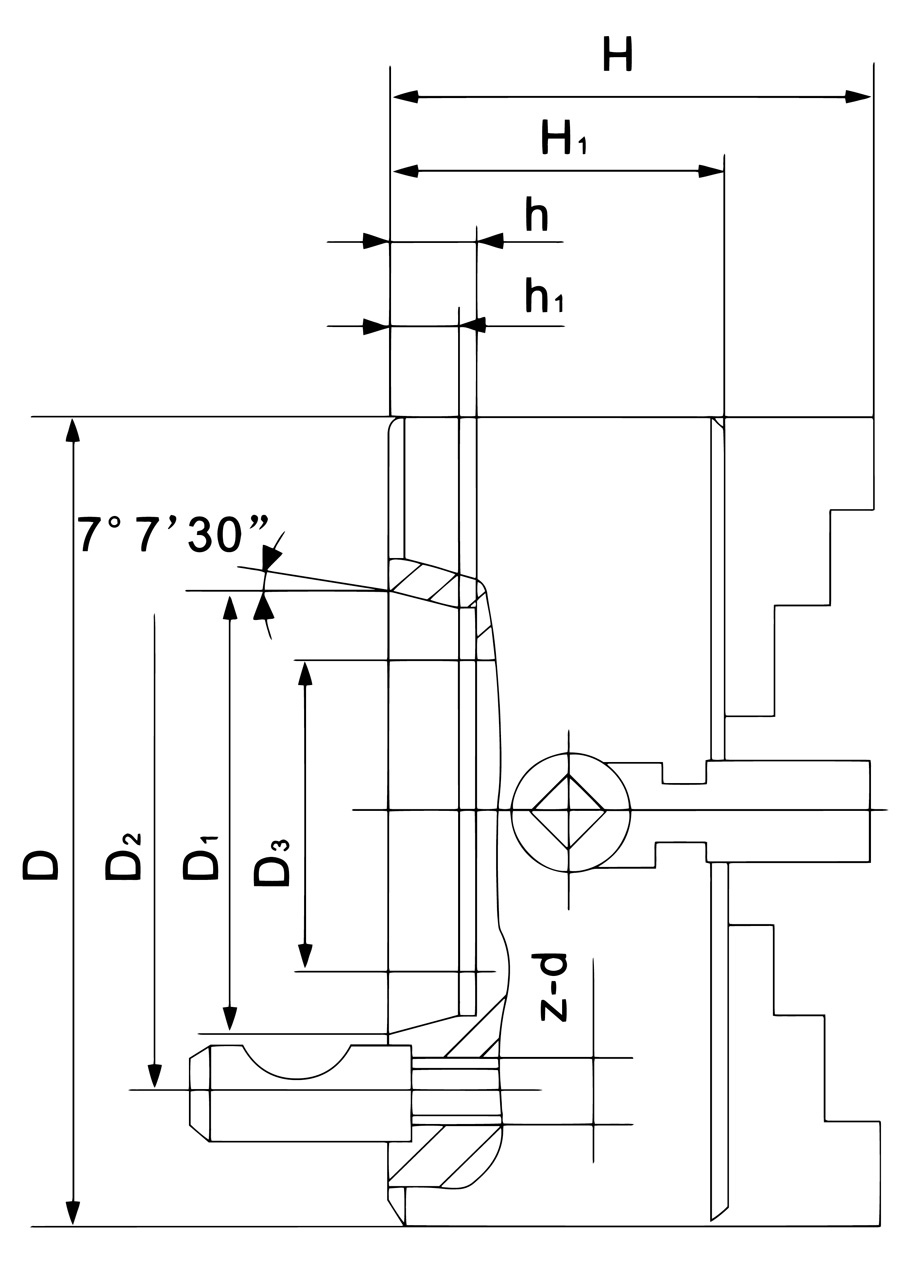

Technical details Independent chucks Bernardo Independent chuck K72-320/D8

Chuck size

320/D8

D - diameter

320 mm

Taper

8

D1 (max.)

139,72 mm

D2

171,4 mm

D3

95 mm

H1

90 mm

Max. speed

400 rpm

Weight approx.

38 kg
