Name: Hydraulic workshop presses with moveable cylinder Bernardo HWP 100-1500
SKU: 06-1765XL
Price: 11248.48 EUR
Availability: InStock

Main page » Sheet » Bernardo workshop press » Hydraulic workshop presses with moveable cylinder Bernardo HWP 100-1500

Preview: Hydraulic workshop presses with moveable cylinder Bernardo HWP 100-1500

Hydraulic workshop presses with moveable cylinder Bernardo HWP 100-1500

Mobile Preview: Hydraulic workshop presses with moveable cylinder Bernardo HWP 100-1500

Description

Description

Scope of delivery Hydraulic workshop presses with moveable cylinder Bernardo HWP 100-1500

Pressure gauge

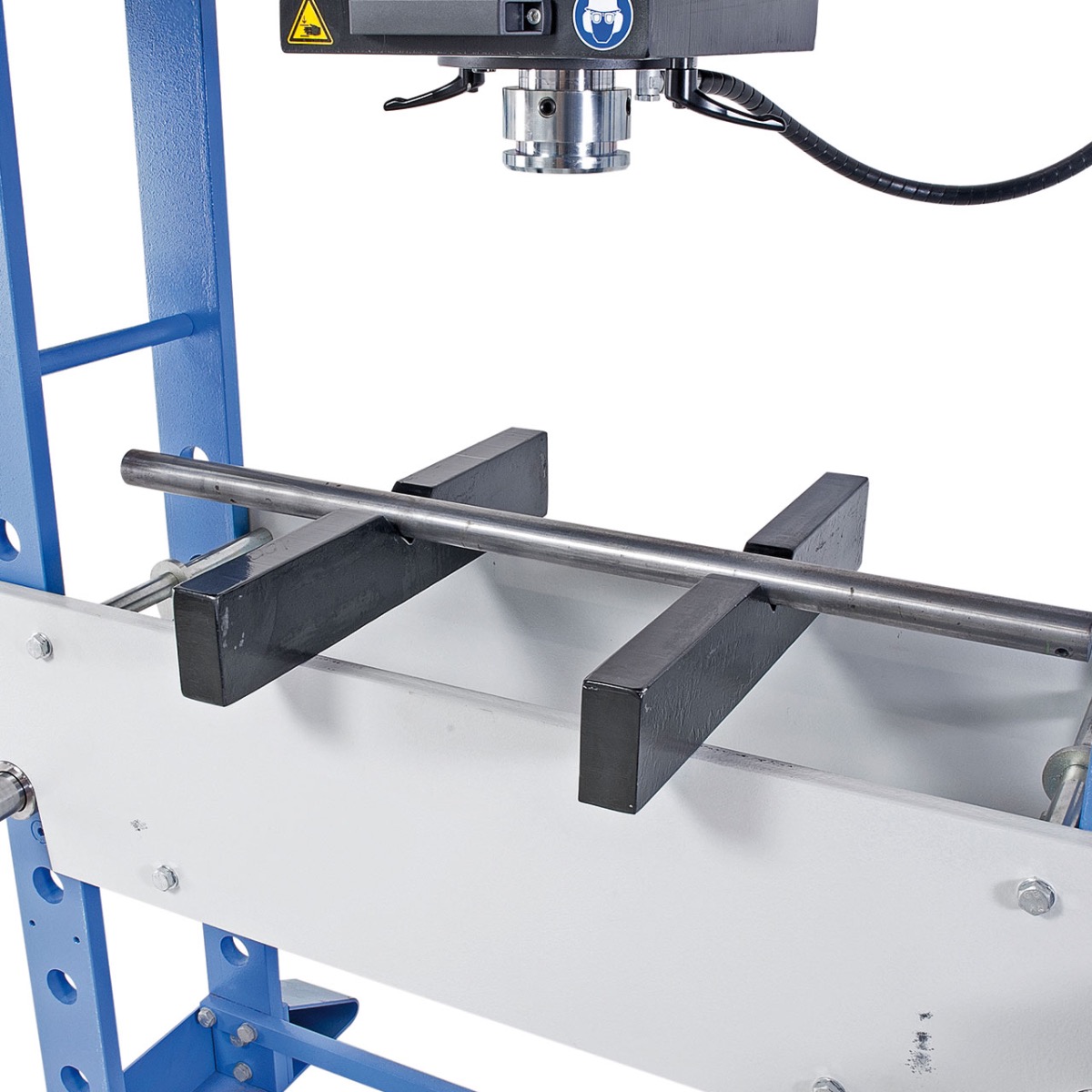

Height adjustable work table
Overload valve
Moveable cylinder

Features Hydraulic workshop presses with moveable cylinder Bernardo HWP 100-1500

Ideal for assembly and straightening work, but also ideal for setting up tools, during load tests and for workpiece checks

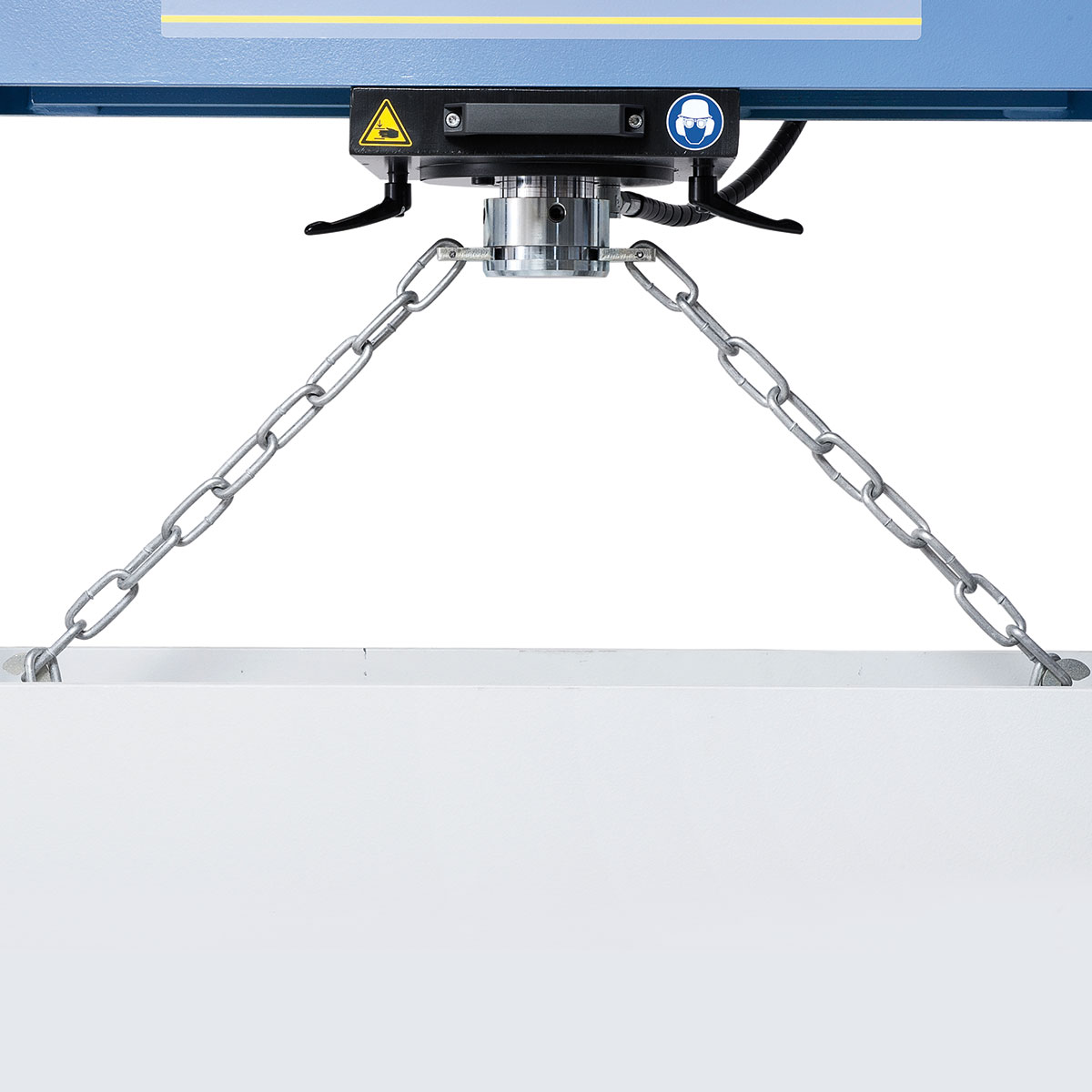

Table height adjustment by means of chain and working cylinder

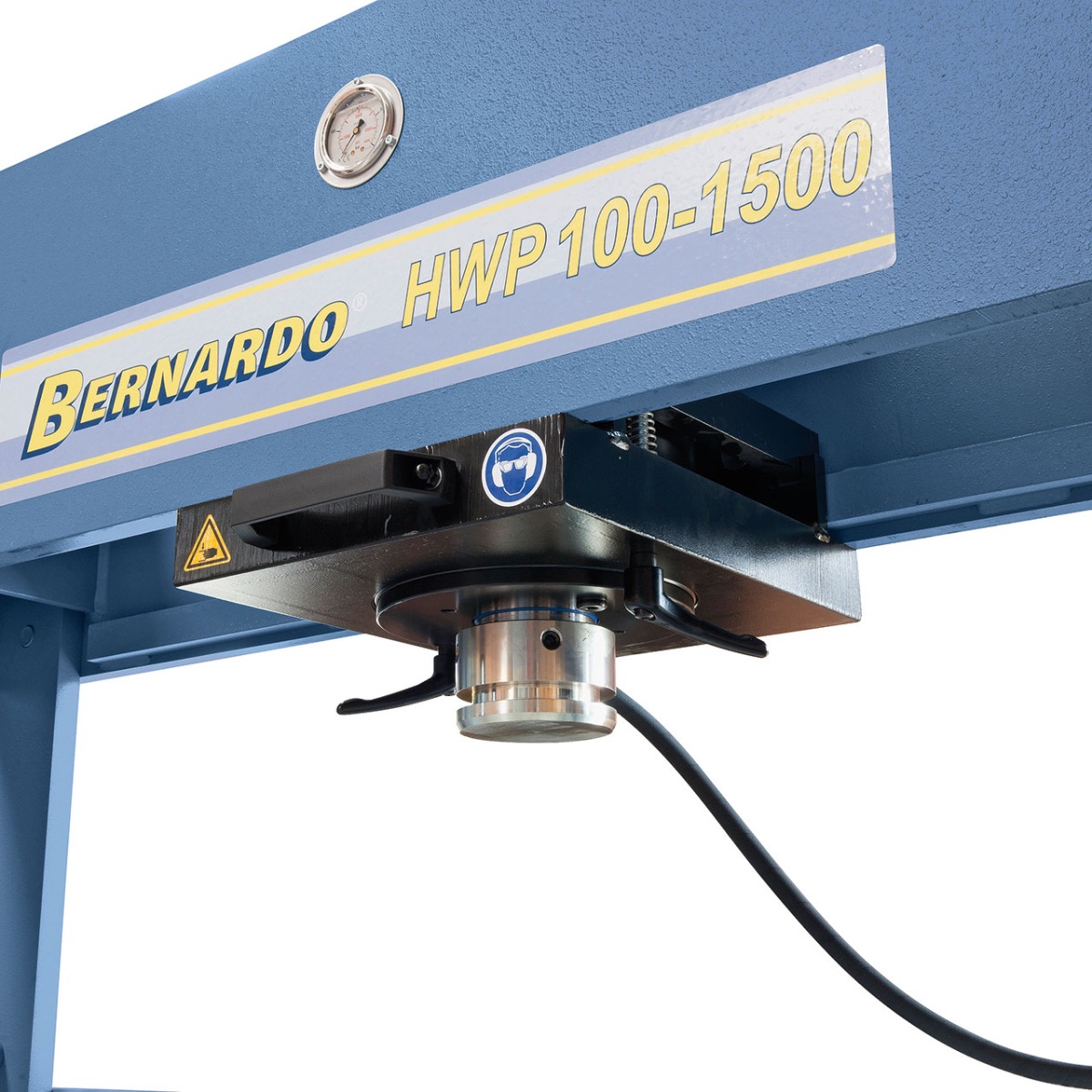

Equipped as standard with a laterally movable cylinder

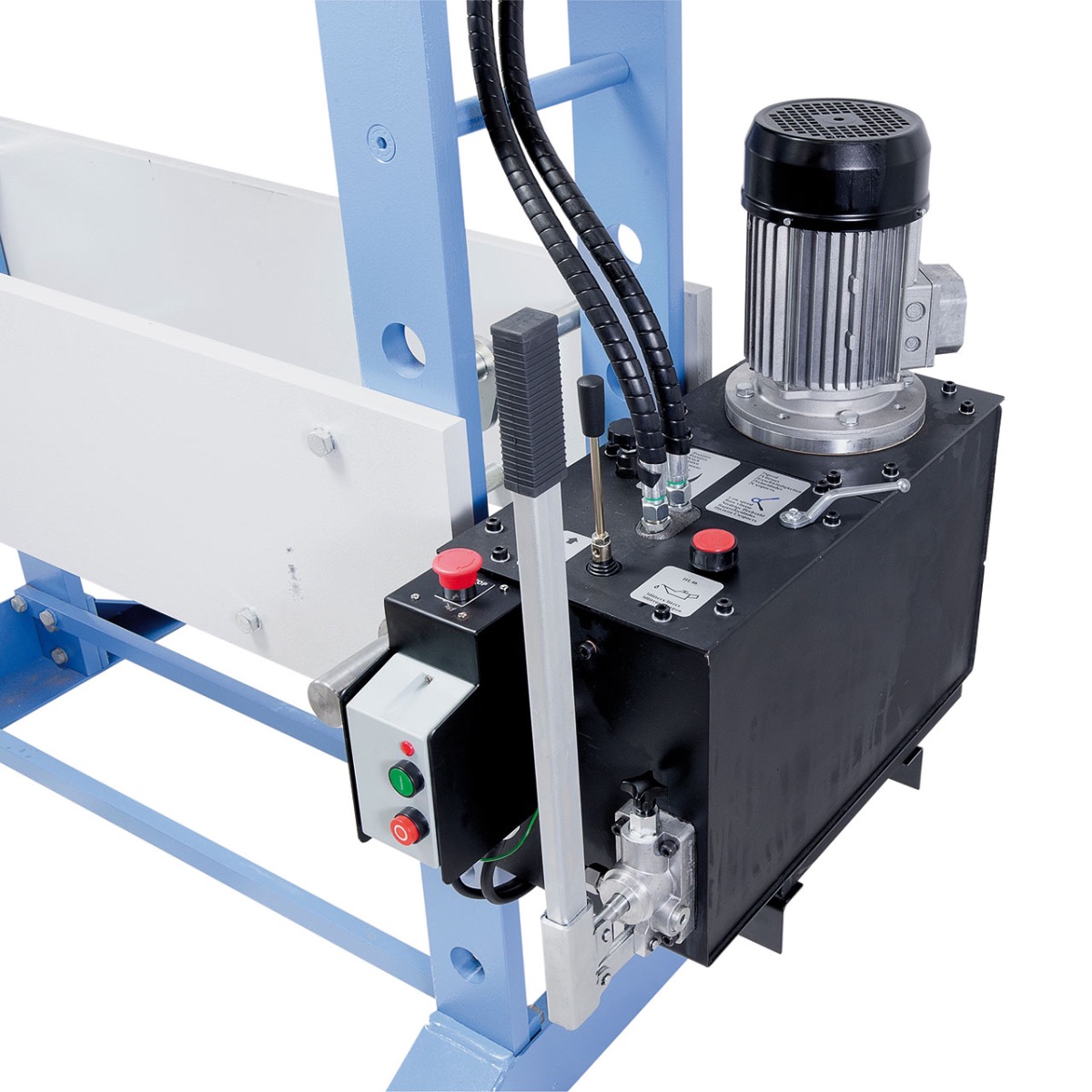

Piston feed either trough hand lever or sensitive hydraulic pump
Fast forward and return speeds for efficient work
Powerful workshop presses for craft and repair shops
Piston can be stopped in any position

Technical details Hydraulic workshop presses with moveable cylinder Bernardo HWP 100-1500

Pressure force	100 to
Passage between stand	1500 mm
Piston stroke	380 mm
Piston diameter	90 mm
Max. pressure	258 bar
Table width	425 mm
Max. working height	890 mm
Forward speed	7,5 mm/sec.
Working speed	2,47 mm/sec.
Return speed	9,06 mm/sec.
Motor power	2,2 kW
Width	2065 mm
Depth	865 mm
Height	2180 mm
Weight approx.	1145 kg
