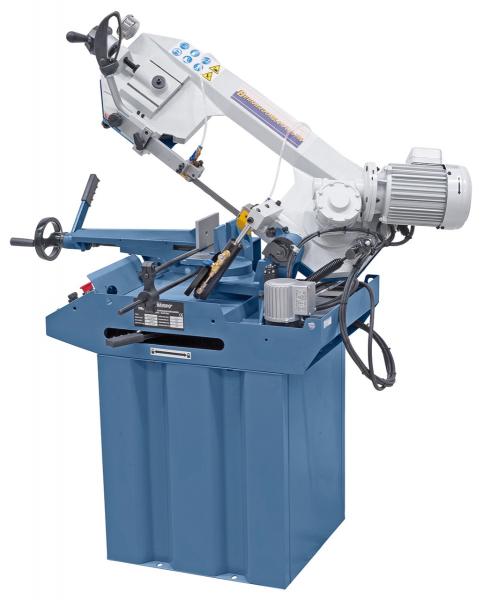

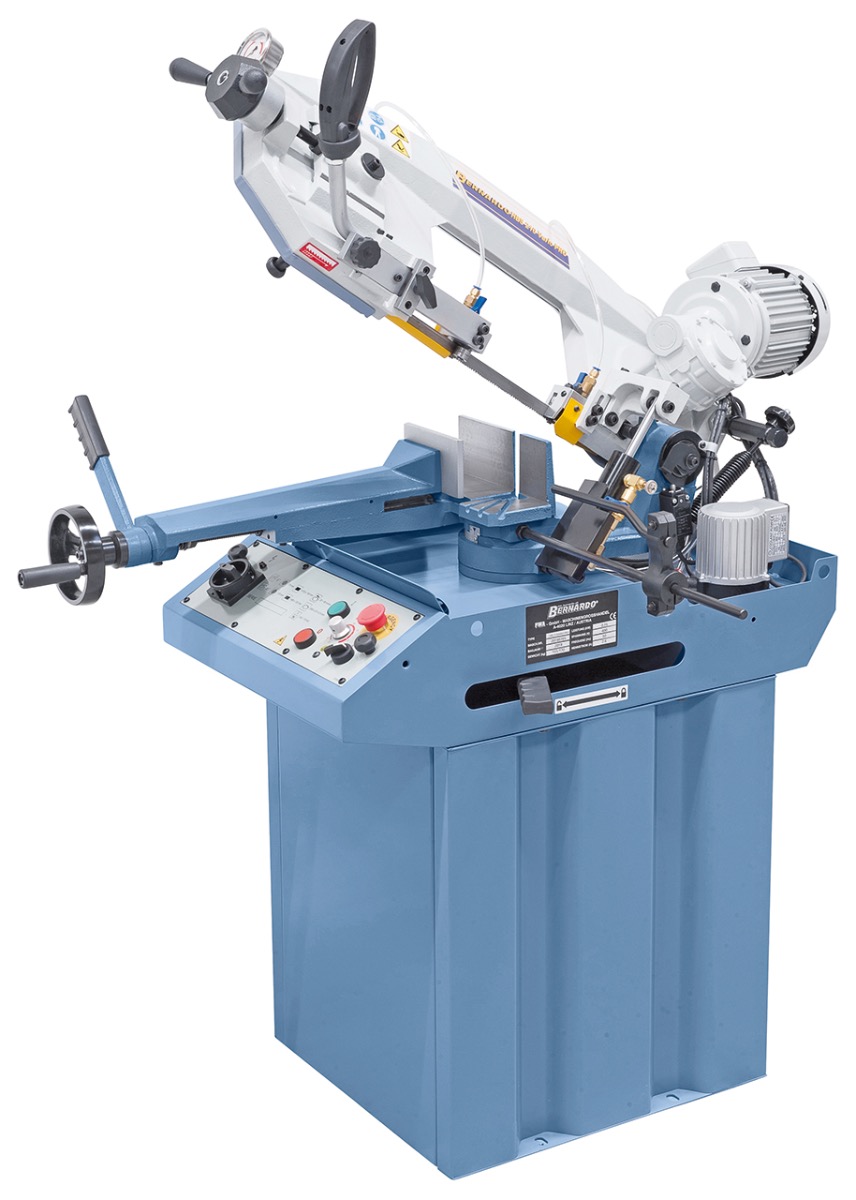

The HBS 210 Vario PRO is fully equipped with variable cutting speed, allowing ideal adjustment to various materials. The application area is predominantly targeted at the professional user.
Scope of delivery Horizontal bandsaws Bernardo HBS 210 Vario PRO - 400 V
- Bandsaw blade
- Material fence
- Stand
- Manometer for blade tension
- Vice with quick adjustment
- Coolant device
- Hydraulic cylinder
- Motor protective switch
- Automatic shut-down
Features Horizontal bandsaws Bernardo HBS 210 Vario PRO - 400 V
- Optimal adjustment of the blade tension via a manometer

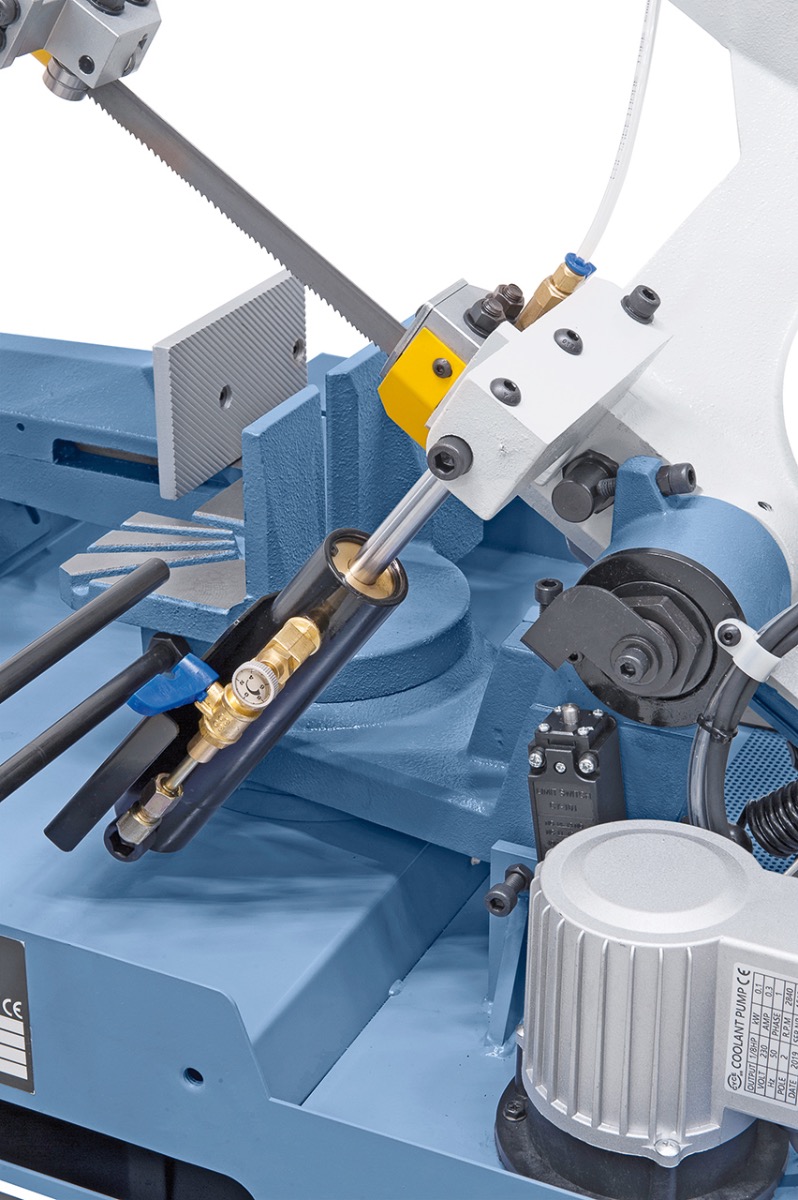

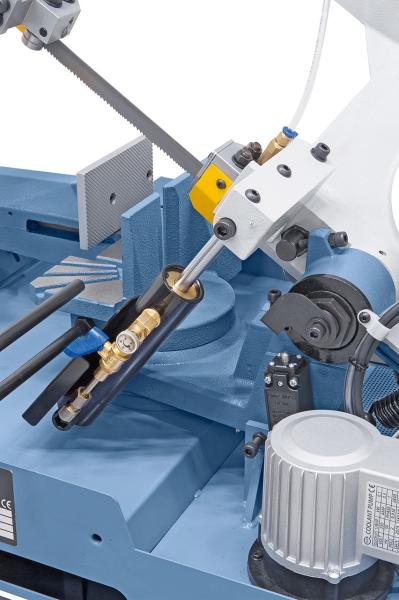

- Stepless adjustable lowering via hydraulic cylinder with adjustable valve

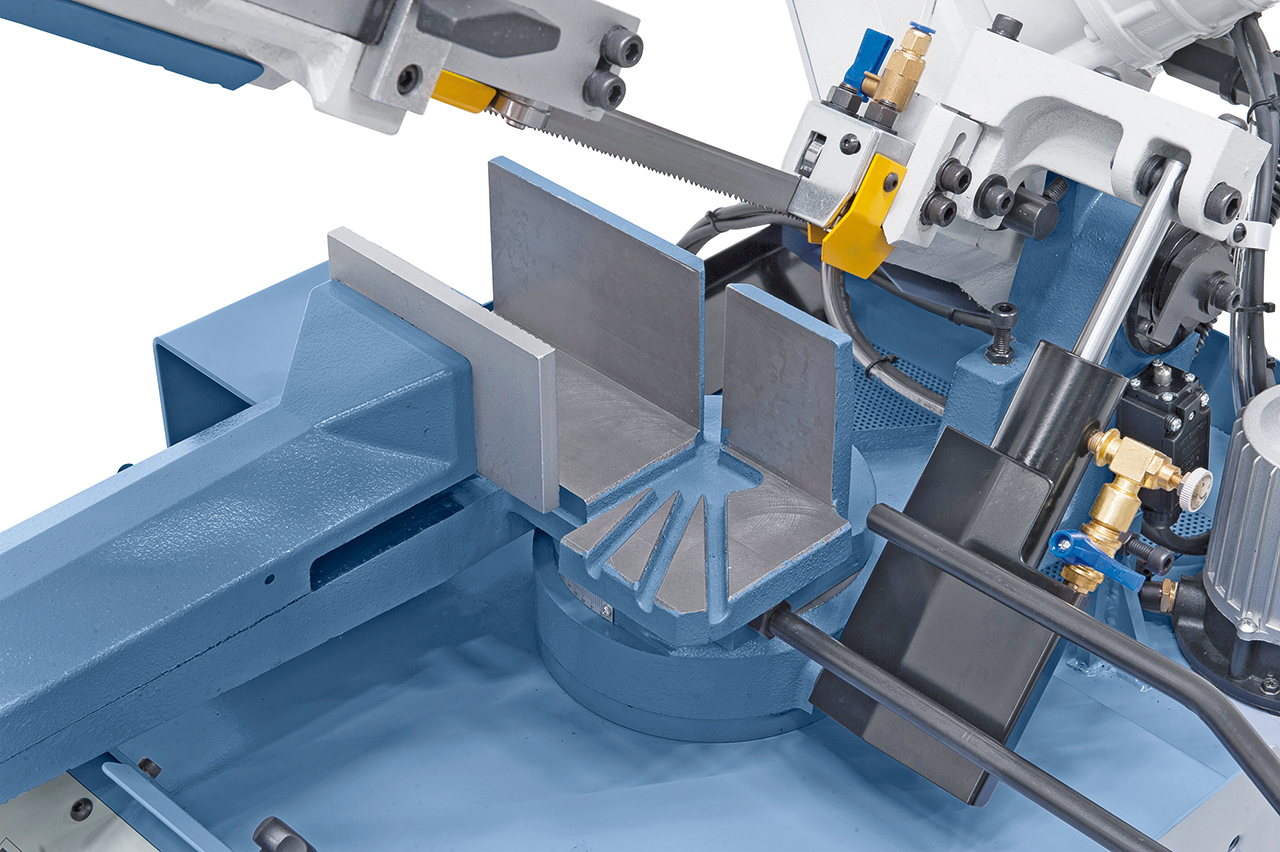

- Robust cast iron vice with quick adjustment and material fence
- Stepless cutting speed for optimal adjustment to the workpiece
- For cutting of hollow profile and full rivet material, stainless steel, tool steel, ...

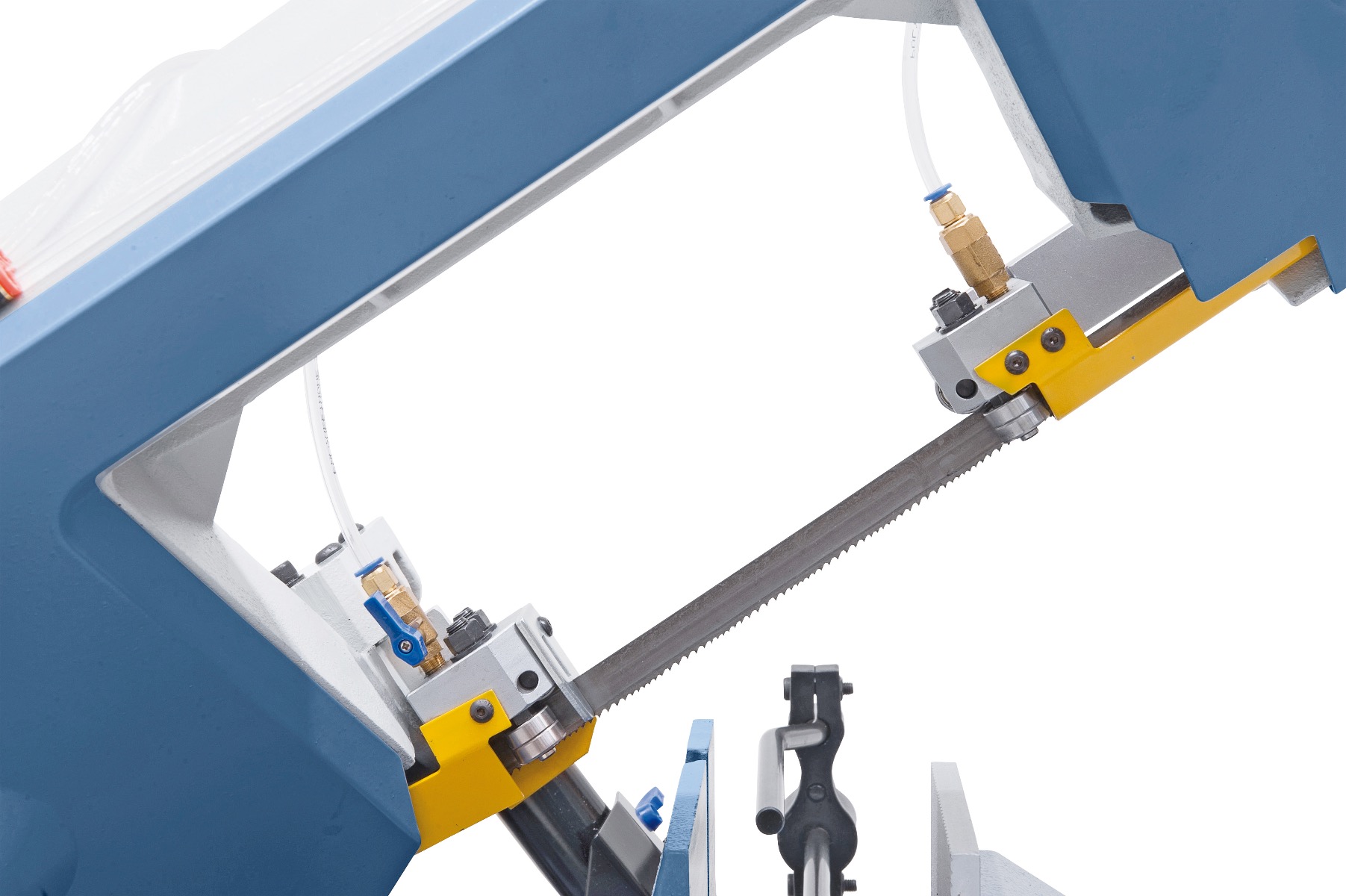

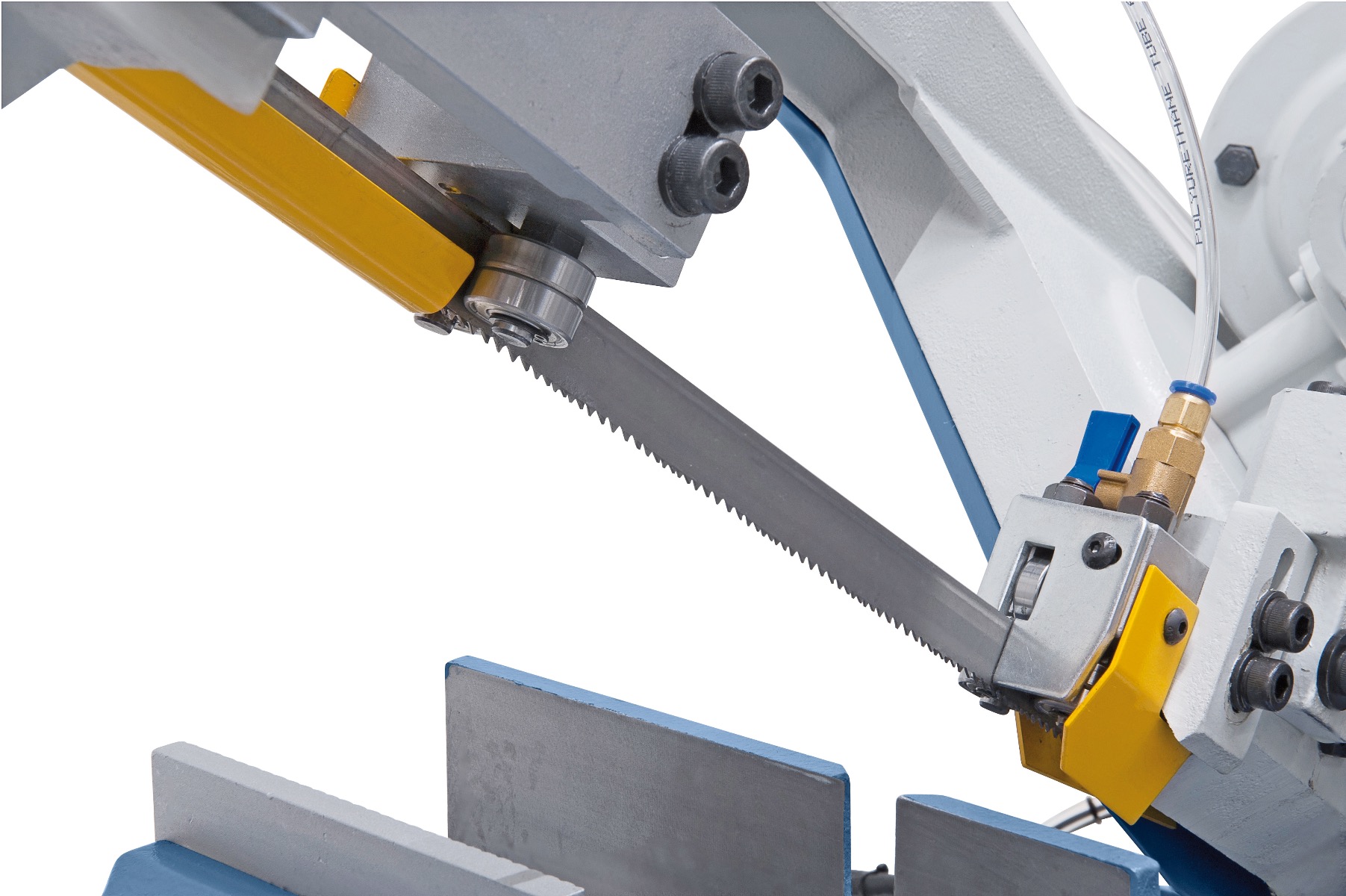

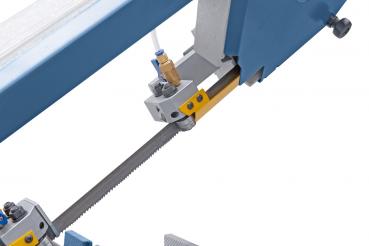

- Bandsaw blade guiding features double ball bearings for optimal blade run
- Stable saw frame, thereby smooth and vibration-free run
- Automatic shut-down at cutting end
Technical details Horizontal bandsaws Bernardo HBS 210 Vario PRO - 400 V
| Cutting capacity round / square 90° | 170 mm / 150 x 150 mm |
| Cutting capacity flat 90° | 150 x 190 mm |
| Cutting capacity round / square 45° | 125 mm / 95 x 95 mm |
| Cutting capacity flat 45° | 95 x 120 mm |
| Working height | 870 mm |
| Bandsaw blade dimension | 2080 x 20 x 0,9 mm |
| Cutting speed, stepless | 20 - 90 m/min |
| Coolant pump | 100 W |
| Motor power output S1 100% | 0,75 kW |
| Voltage | 400 V |
| Machine dimension (L x D x H) | 1120 x 810 x 1310 mm |
| Weight approx. | 145 kg |
