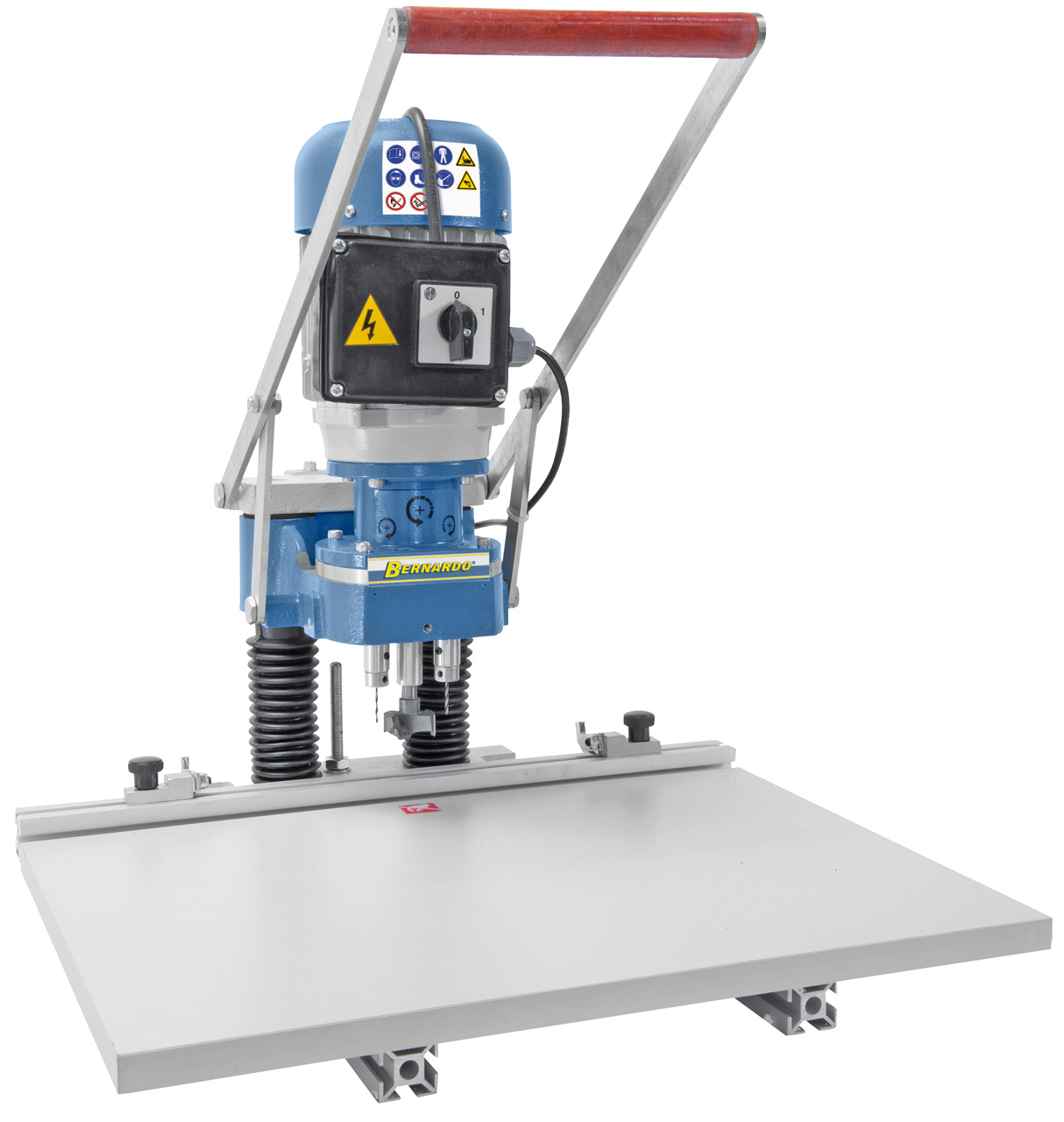

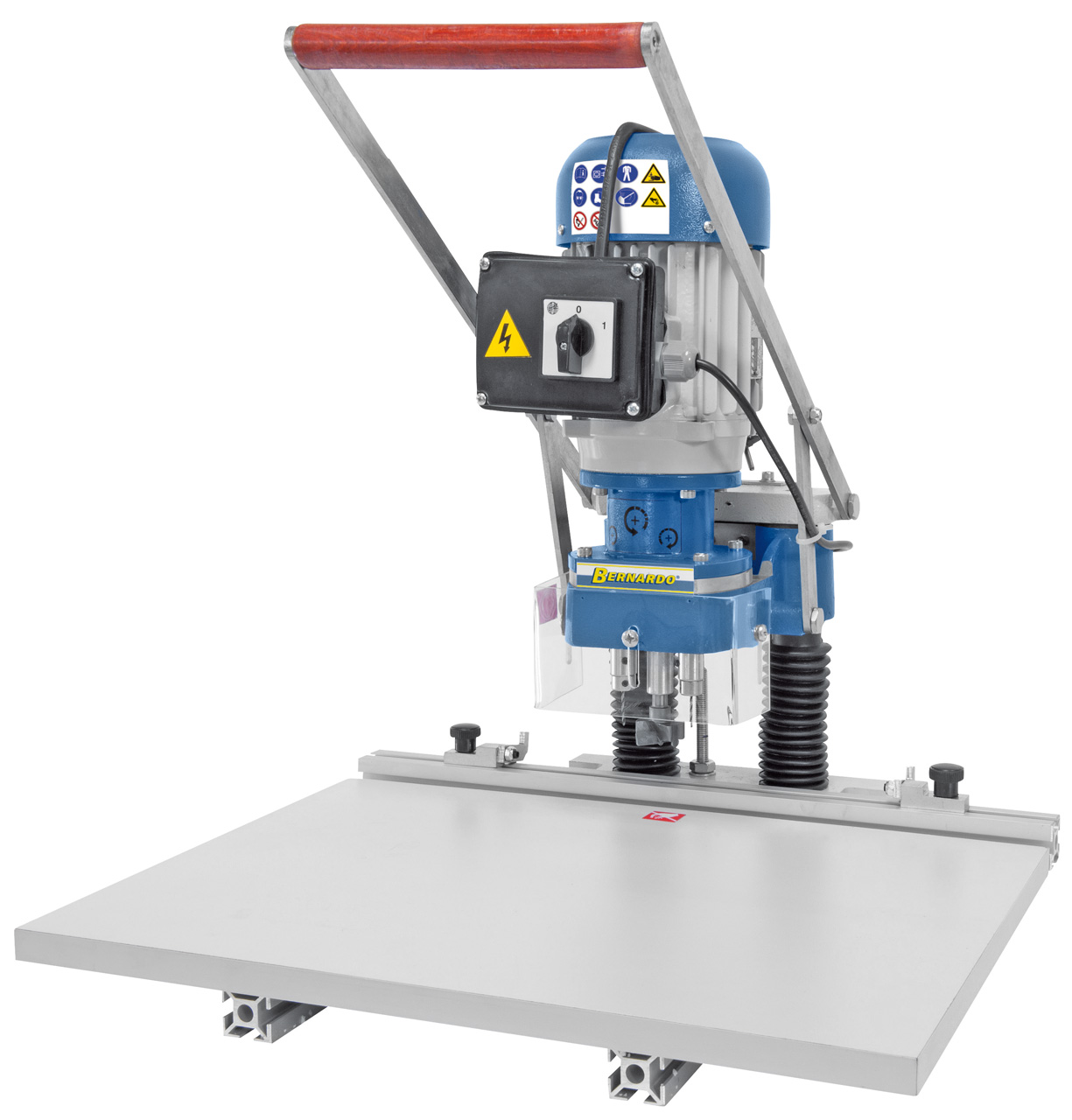

The BBM 35 M hinge drill is equipped with a manual drill feed. This model is suitable for the hinge systems of Blum or Grass, making this drill an ideal device for small businesses and craftsmen.
Scope of delivery Hinge drilling machine Bernardo BBM 35 M - Grass
Hinge drilling machine Bernardo BBM 35 M - Grass
Features Hinge drilling machine Bernardo BBM 35 M - Grass
- Comes complete with adjustable end stop depth of hole
- Compact construction, suitable for transport between sites
- Extremely user-friendly, no pressure required
- Powerful motor (0.75 kW) designed for continuous operation

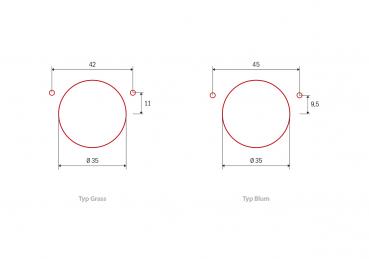

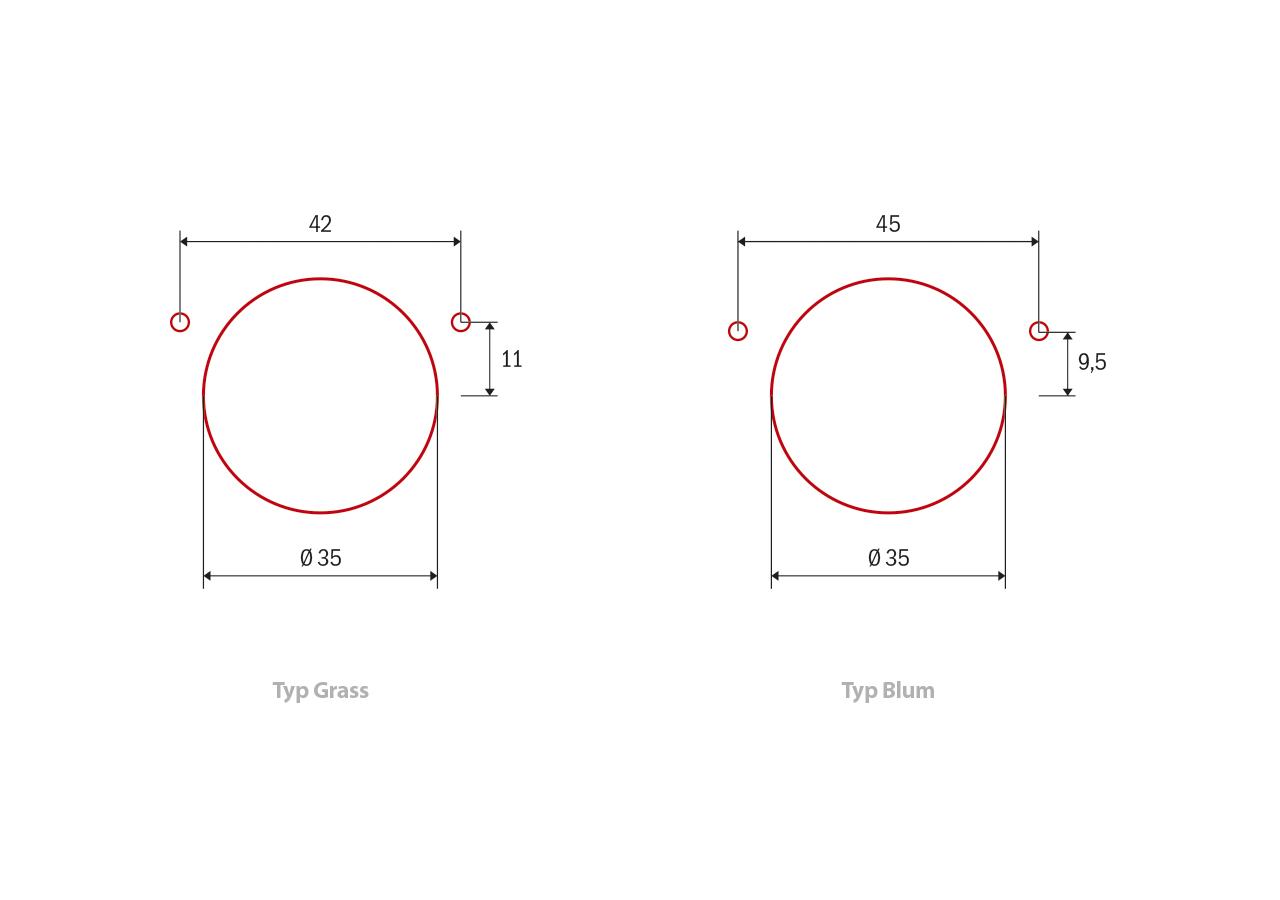

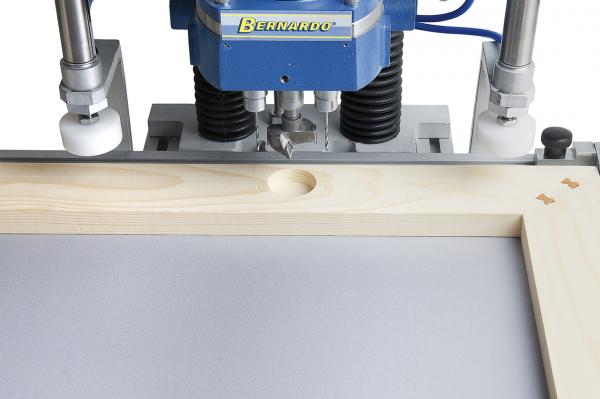

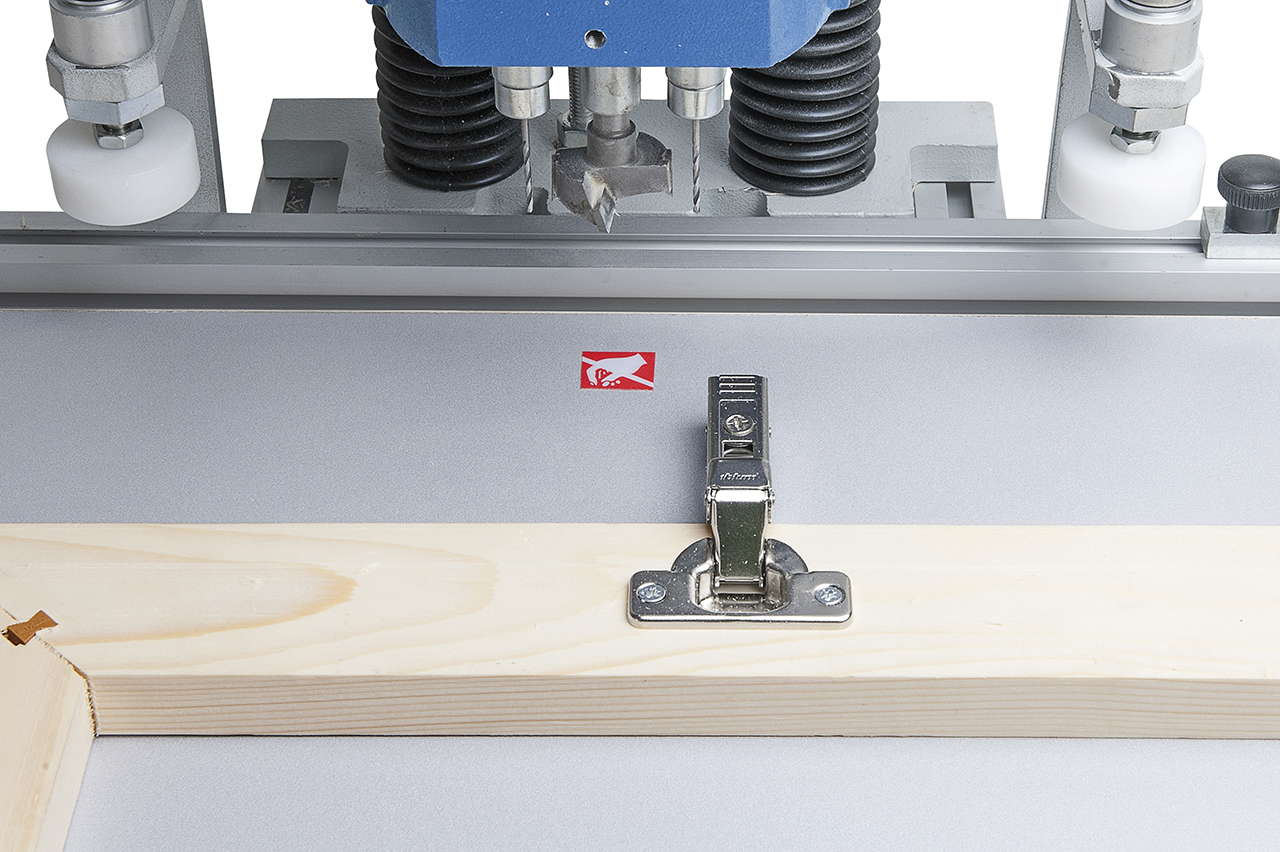

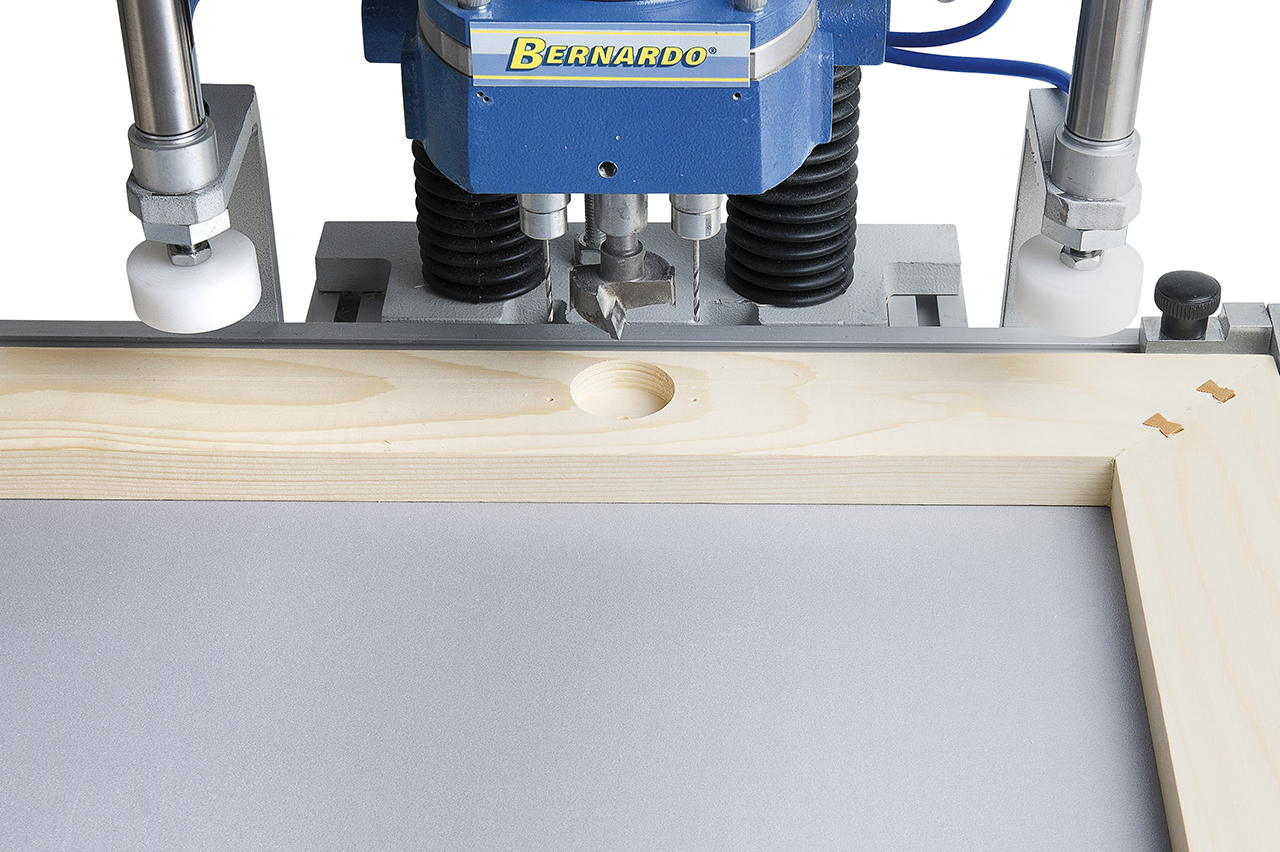

- Excellent for drilling of hinges on furniture – Blum or Grass
Technical details Hinge drilling machine Bernardo BBM 35 M - Grass
| Drill diameter | 35 mm |

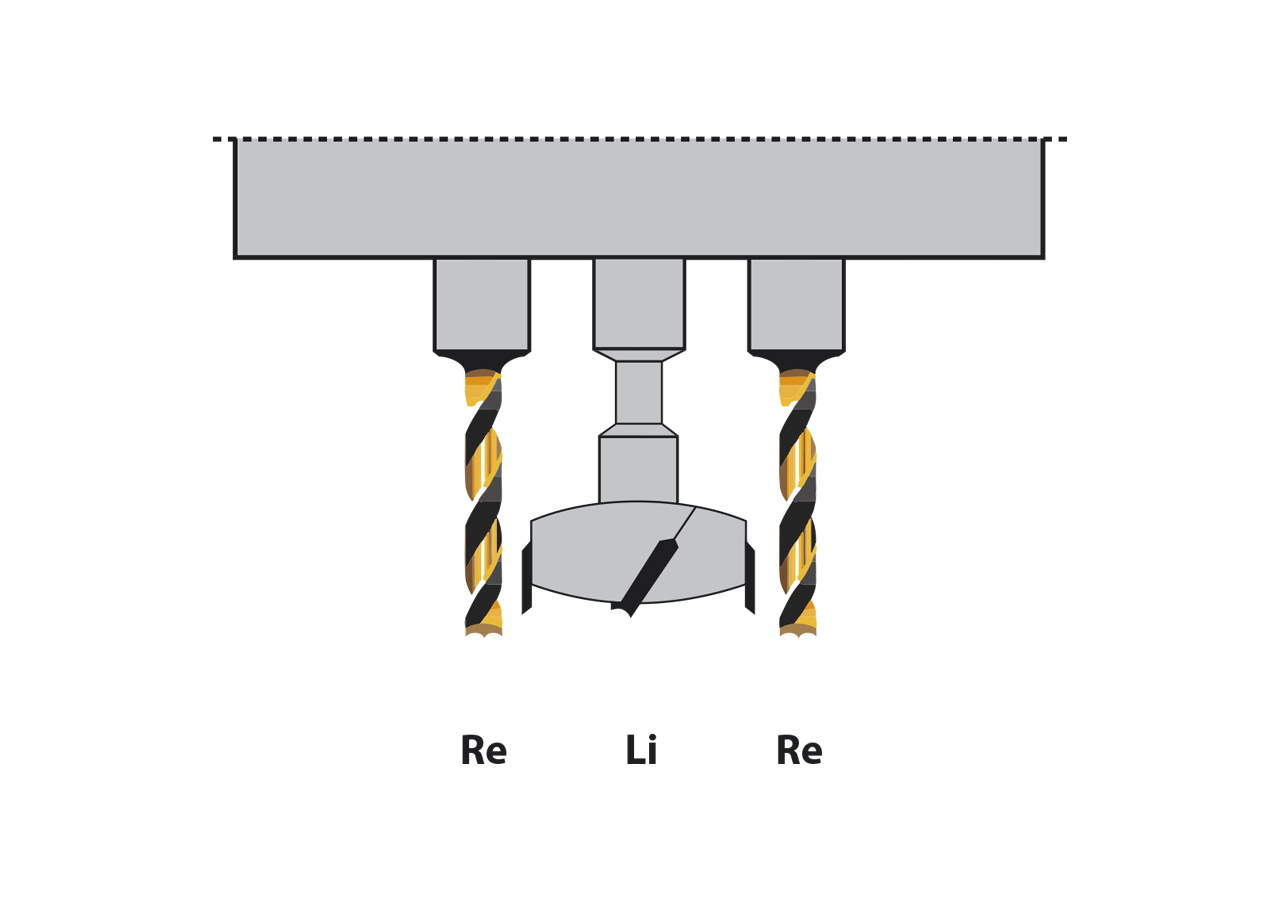

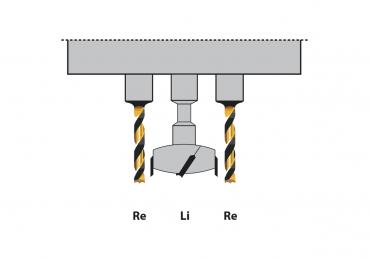

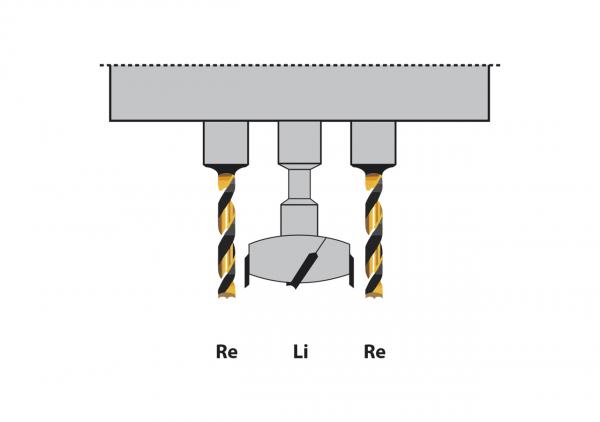

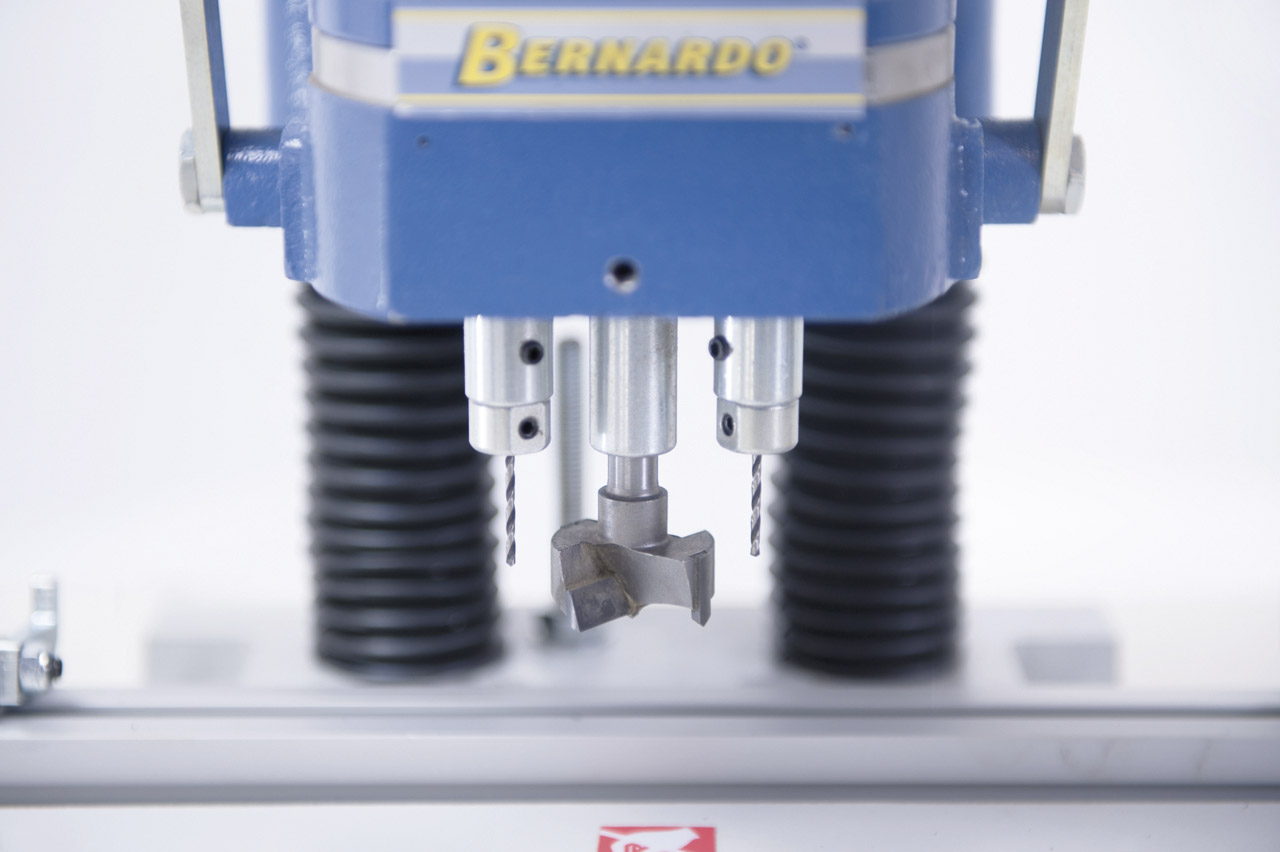

| Quantity of spindles | 3 pcs. |
| Control | manual |
| Workpiece clamping | manual |
| Distance table/spindle max. | 85 mm |
| Distance table/drill max. | 50 mm |
| Table size | 500 x 350 mm |
| Table movable | 105 mm |
| Fence length (incl. extension) | 500 mm |
| Speed | 3000 rpm |
| Motor power | 0,75 kW |
| Voltage | 230 V |
| Machine dimension (W x D x H) | 500 x 500 x 520 mm |
| Weight approx. | 19 kg |
