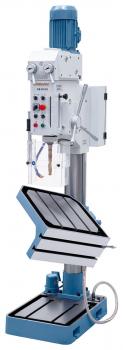

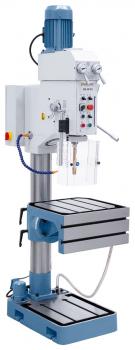

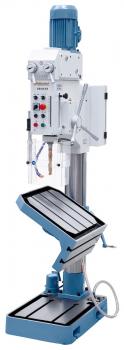

Gearhead bench and column drilling machine Bernardo GB 40 SN

The gear head drilling machine is solidly constructed and powerful, making this model ideal for repair shops as well as industrial production. Increased range of applications by the serially angle table featuring additional clamping possibilities.

Scope of delivery Gearhead bench and column drilling machine Bernardo GB 40 SN

• Keyless drill chuck 1 - 16 mm / B 16
• Drill chuck arbor MT 4 / B 16
• Morse taper drill sleeve MT 4 / 3
• Coolant device
• Electromagnetic spindle feed
• Thread cutting device
• Initial filling with Shell Tellus 46
• LED machine light
• Automatic tool release device
• Height adjustable protective cover

Features Gearhead bench and column drilling machine Bernardo GB 40 SN

• Comes complete with automatic spindle feed, tapping device and work lamp
• Hardened gears with a smooth finish ensure a smooth run
• High-quality base with T-slots allows clamping of overly long workpieces
• Worktable swivels horizontally around column, 90 tiltable left and right
• Right and left spindle rotation allows thread-cutting
• Lever on gear box allows for speed settings
• High concentricity ≤ 0,02 mm, measured at spindle
• Protective cover with limit switch for increased security

Technical details Gearhead bench and column drilling machine Bernardo GB 40 SN
