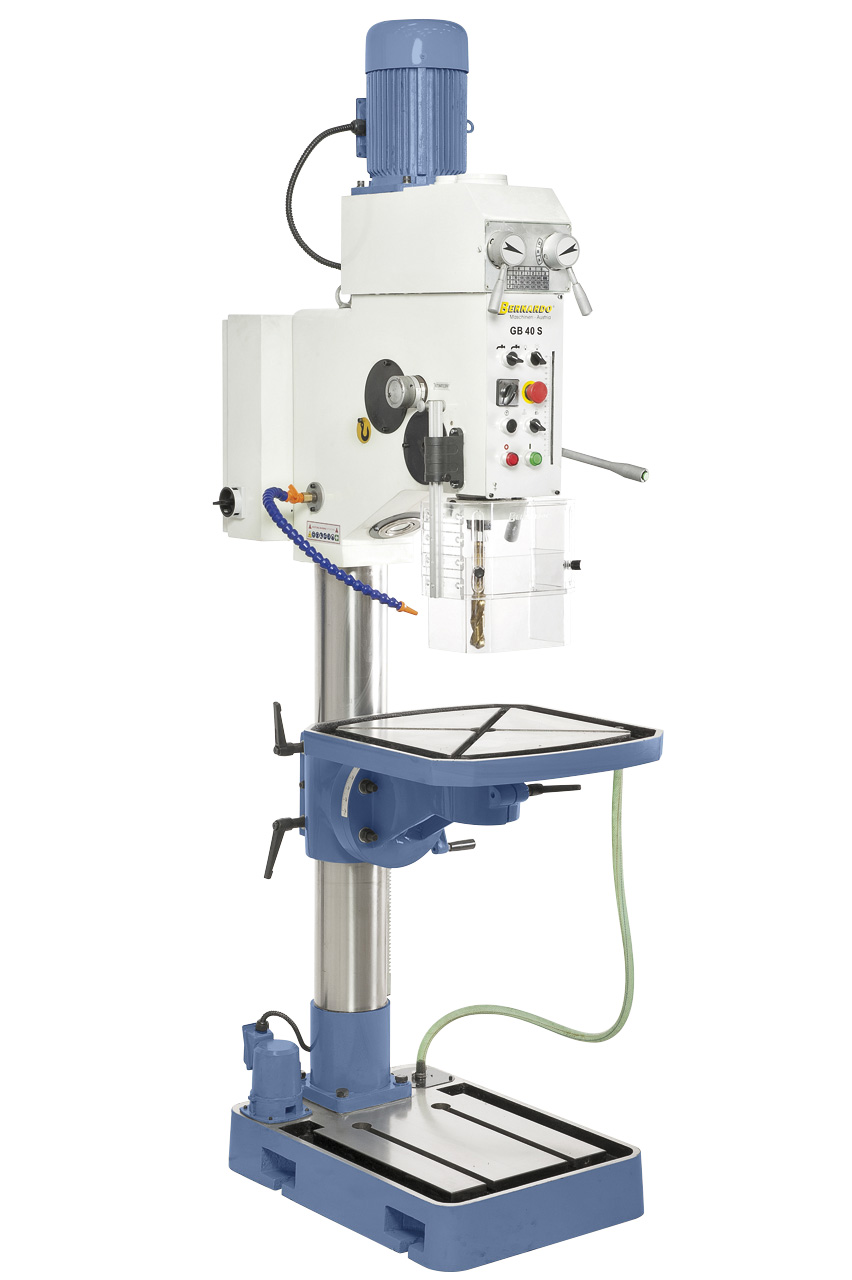

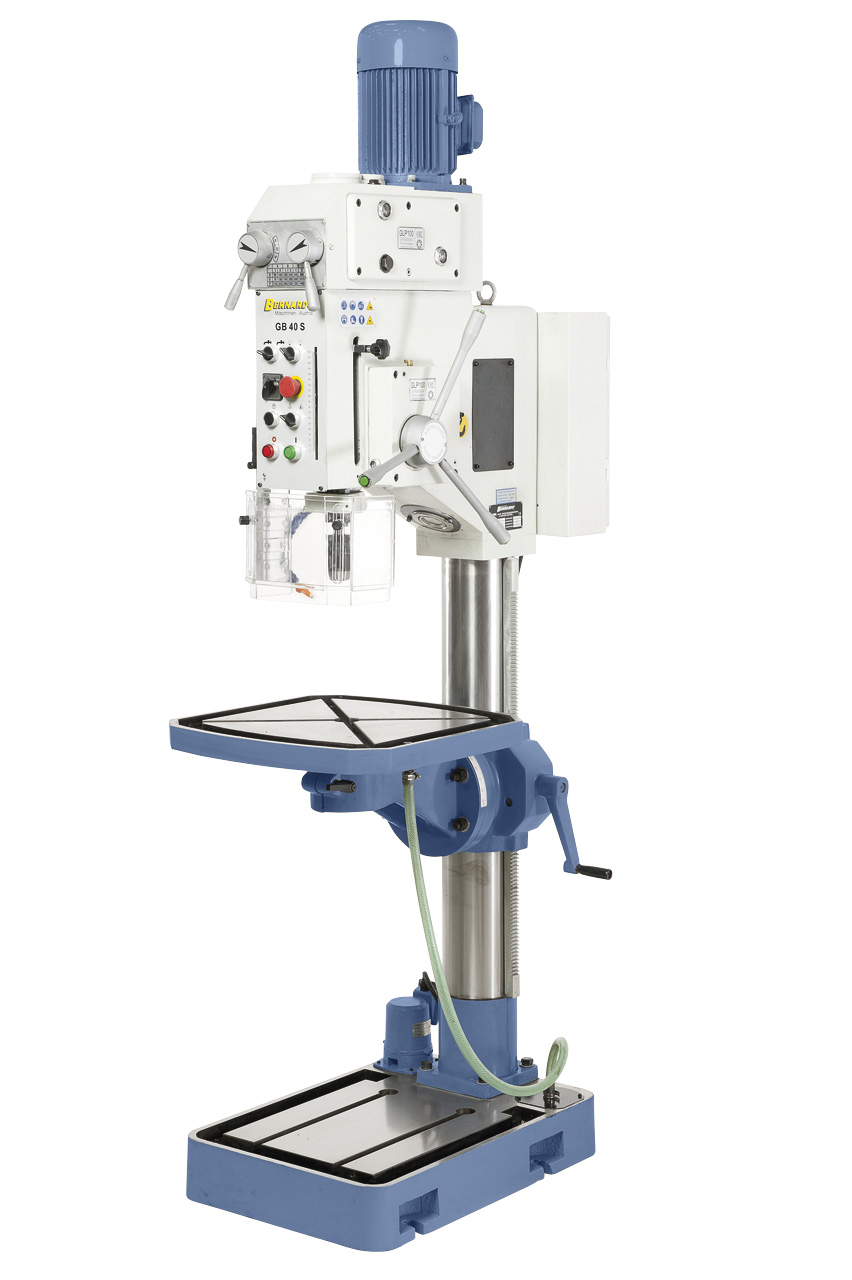

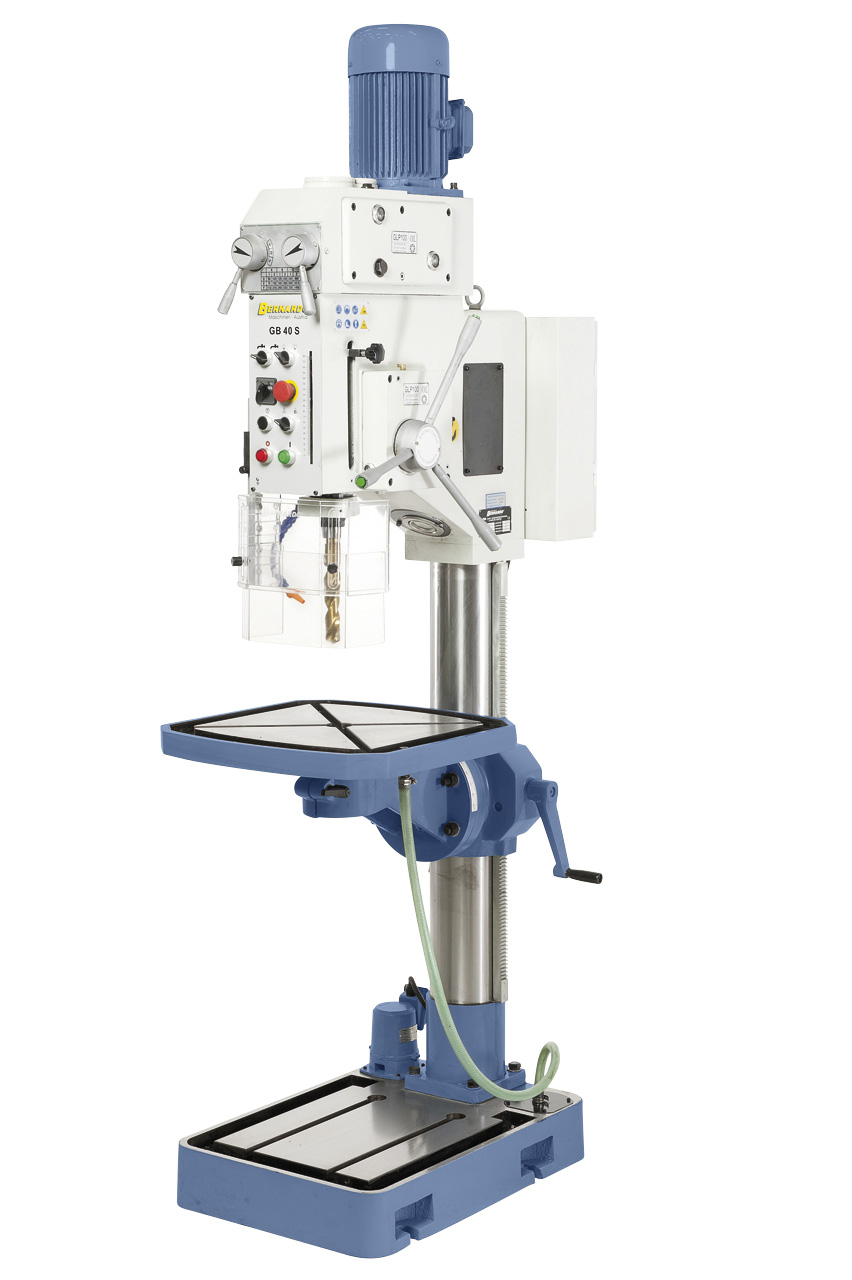

Gearhead bench and column drilling machine Bernardo GB 40 S

The GB 40 S solid gearhead drilling machine is suitable for a large variety of applications, such as tapping, countersinking etc. Most commonly this model is used in repair shops or in production of small parts or low volume productions.

Scope of delivery Gearhead bench and column drilling machine Bernardo GB 40 S

• Keyless drill chuck 1 - 13 mm / B 16
• Drill chuck arbor MT 4 / B 16
• Coolant device
• Electromagnetic spindle feed
• Thread cutting device
• Initial filling with Shell Tellus 46
• LED machine light
• Automatic tool release device
• Height adjustable protective cover

Features Gearhead bench and column drilling machine Bernardo GB 40 S

• Gears operating in oil ensure smooth machine run
• Comes complete with automatic spindle feed, tapping device and work lamp

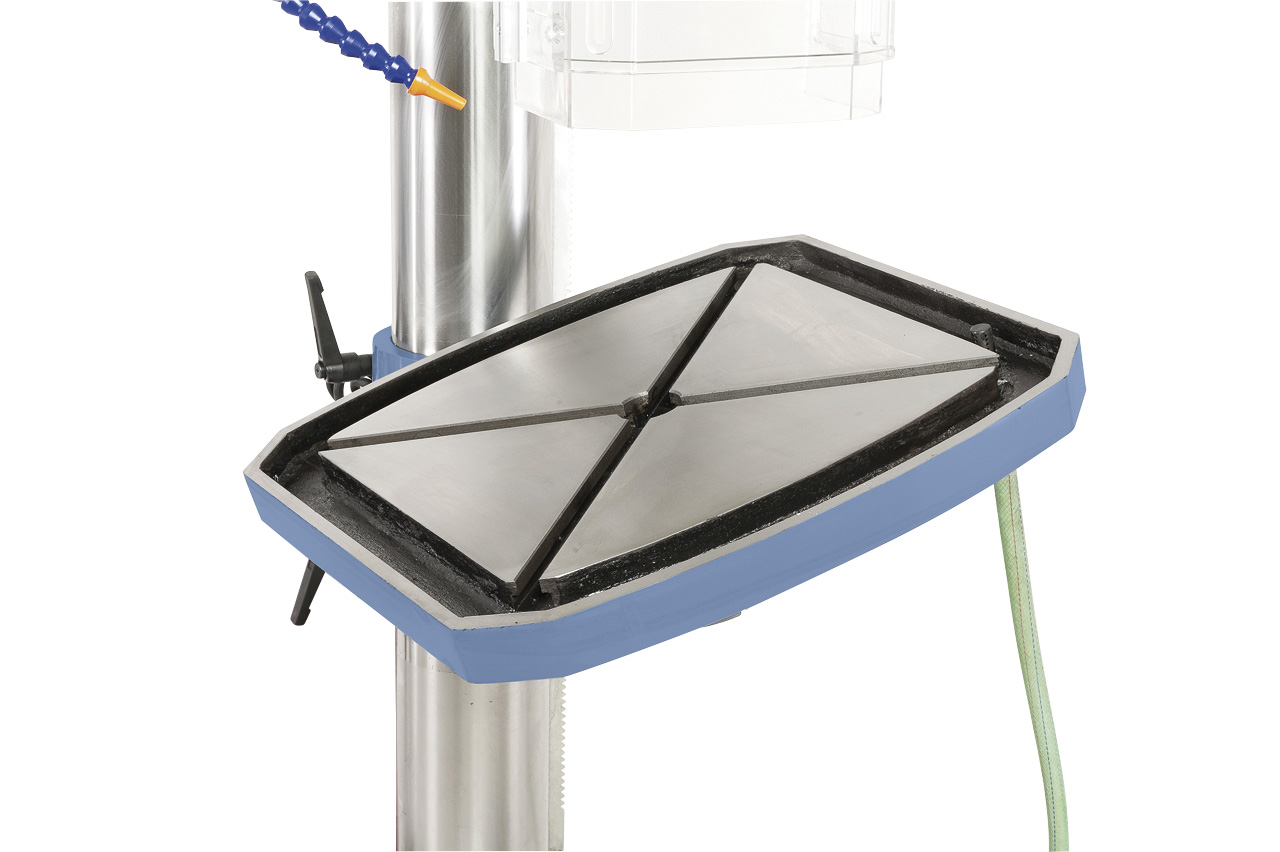

• Solid work table turns 360° and features diagonal T-slots and coolant groove

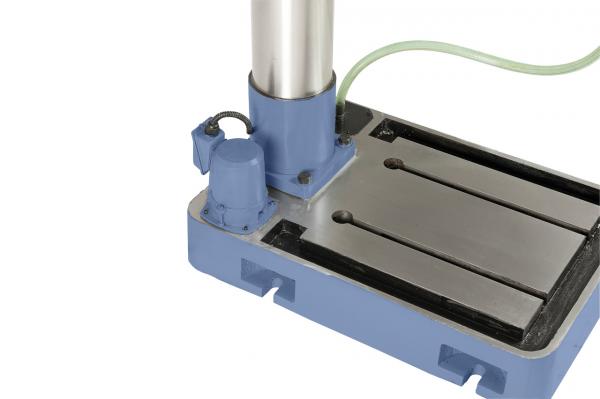

• Includes integrated coolant pump in machine base
• Lever on gear box allows for speed settings
• Powerful motor even at continuous operation
• Height adjustable protective cover according to CE standards guarantees high safety
• Adjustable drill depth stop with scale
• 18 gear steps come standard

Technical details Gearhead bench and column drilling machine Bernardo GB 40 S
