The GB 40 HS drilling machine comes with a wide range of standard accessories making it great value for money. The machine is widely used among mechanics and machine construction.
Scope of delivery Gearhead bench and column drilling machine Bernardo GB 40 HS

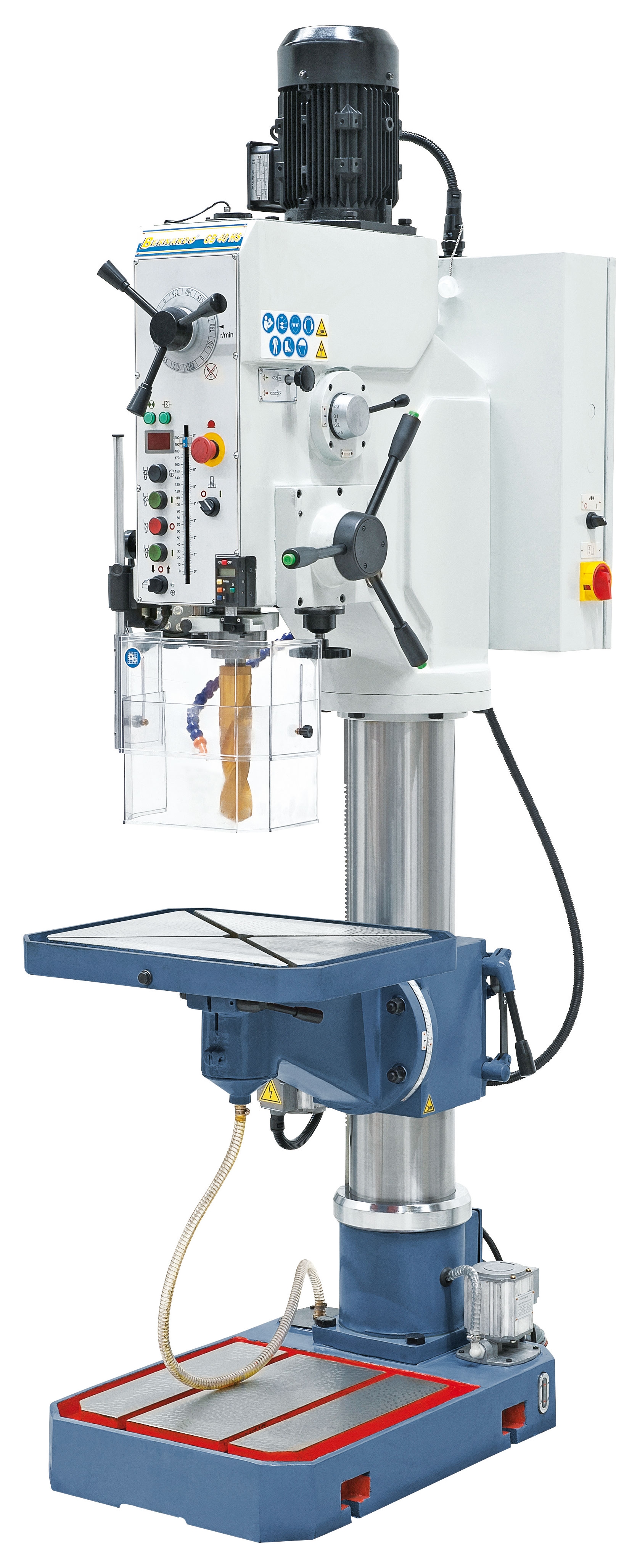

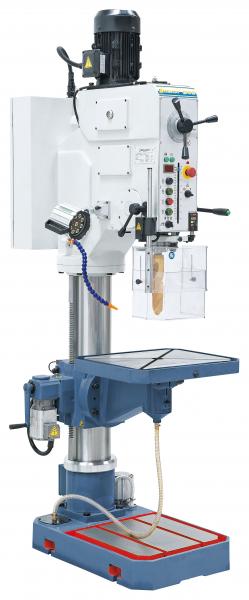

Gearhead bench and column drilling machine Bernardo GB 40 HS
Features Gearhead bench and column drilling machine Bernardo GB 40 HS

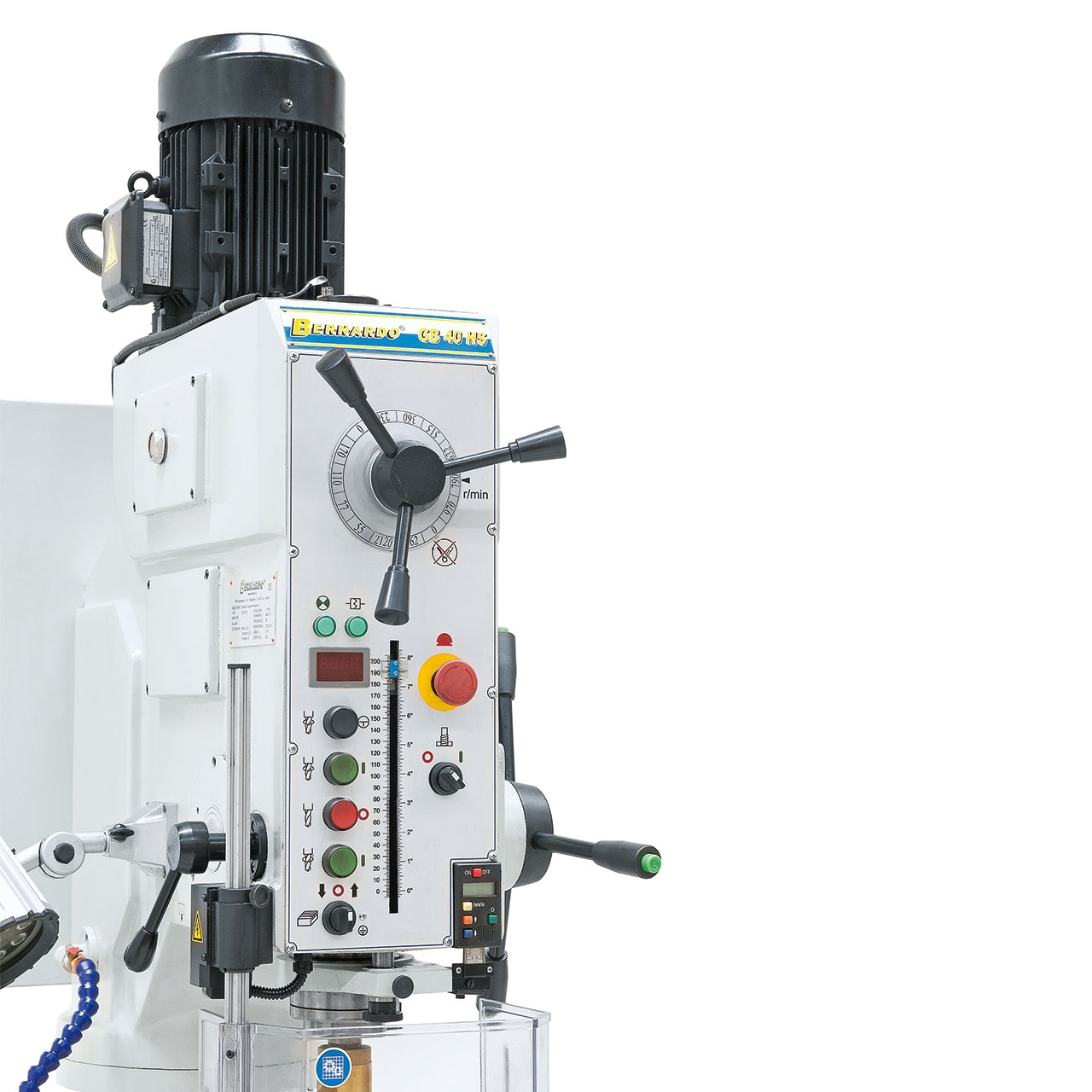

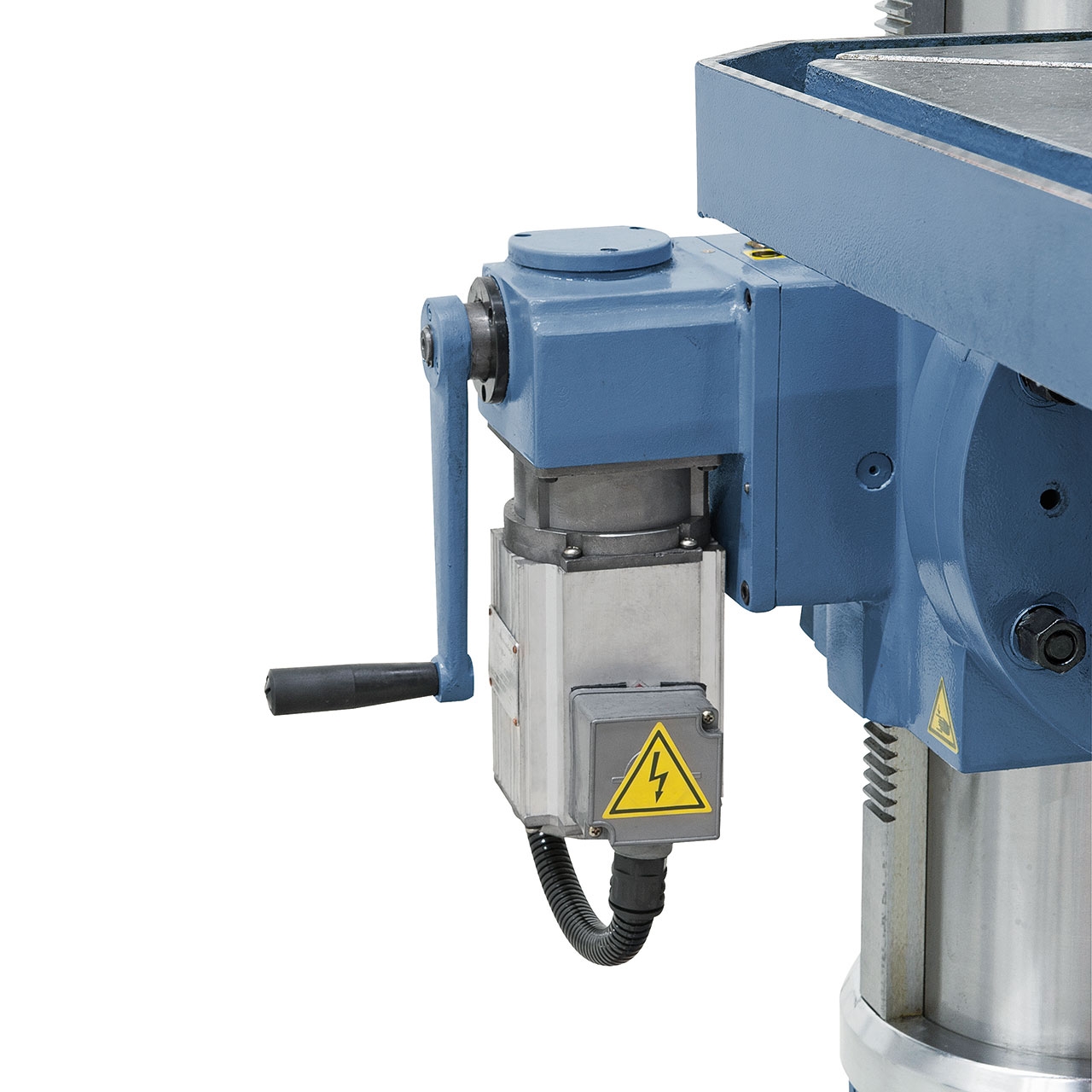

- Includes motorized table stroke and digital displays for drill depth and speed

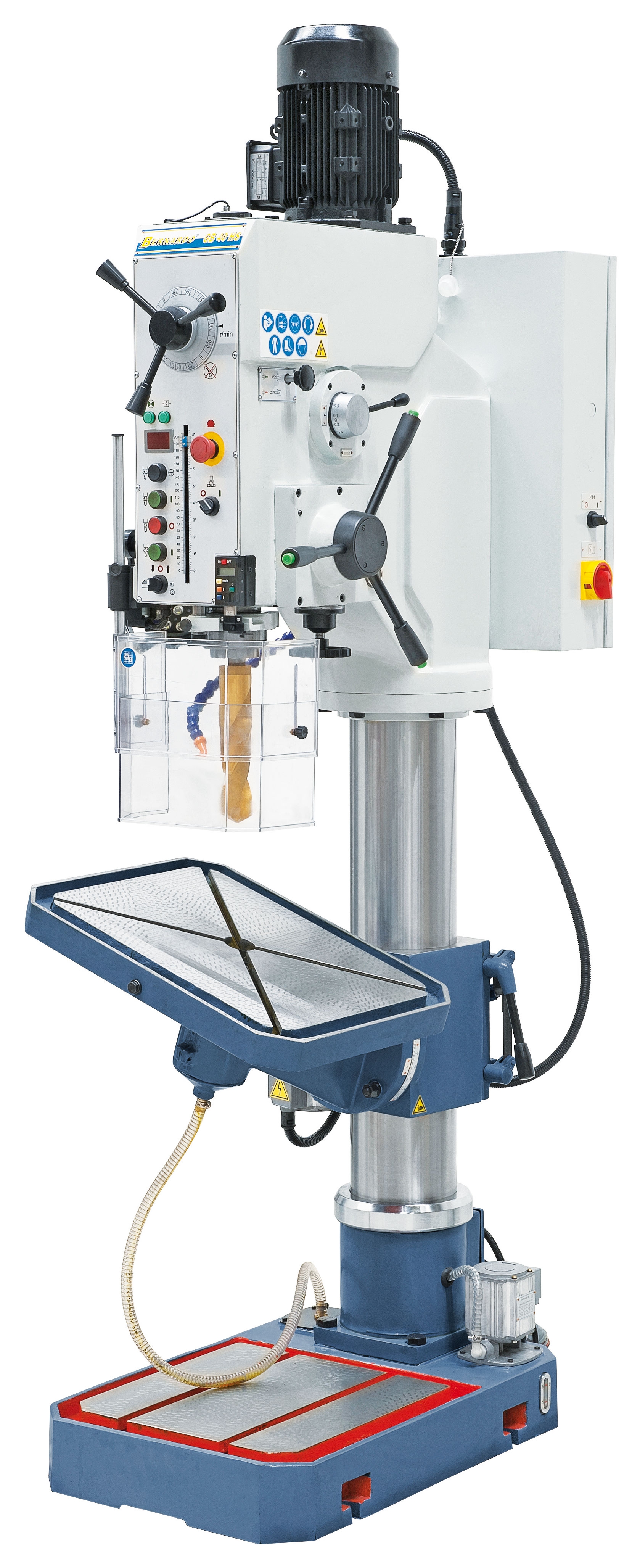

- Hand-polished, grey cast-iron table, tiltable from -45° to +45°

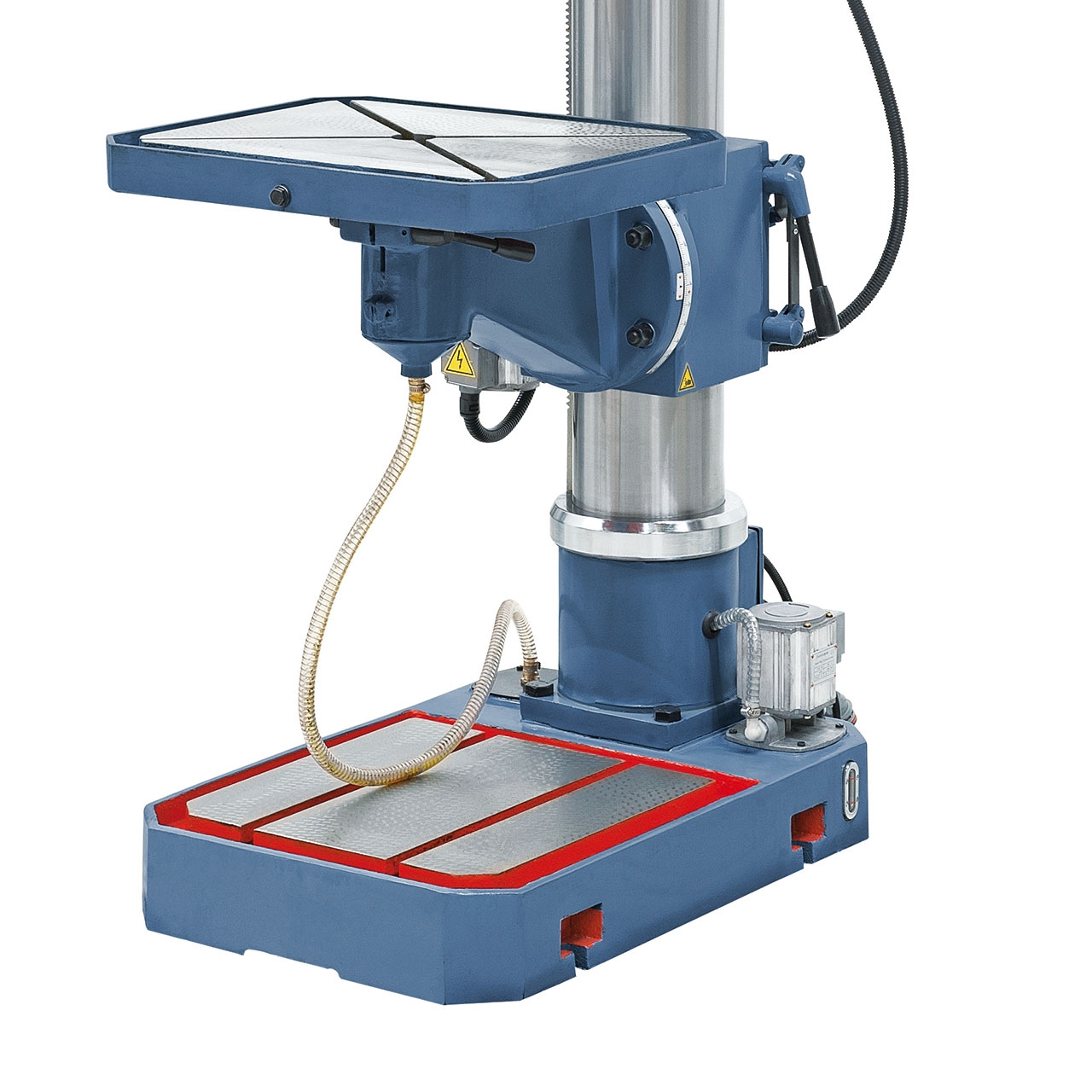

- T-slots in base allow mounting of oversized workpieces
- Automatic tool release device allows quick change of drilling tools
- Electromechanic feed, adjustable from 0,1 to 0,4 mm/rev.

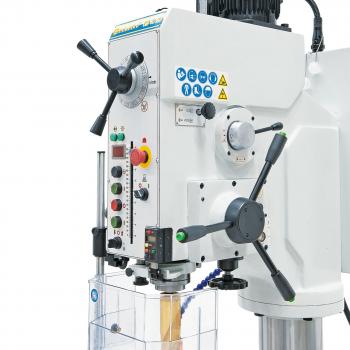

- Gear shift located on front of machine allows quick speed change
- Adjustable drill depth stop includes scale for easy readout
- Protective cover with limit switch for increased security
- Excellent illumination at working by LED machine light
Technical details Gearhead bench and column drilling machine Bernardo GB 40 HS
| Drilling capacity in steel | 40 mm |
| Drilling capacity in cast iron | 45 mm |
| Thread cutting max. | M32 |
| Drill chuck | 1 - 13 mm / B 16 |
| Morse taper | MT 4 |
| Spindle speeds / Steps | 55 - 2120 rpm / 12 |
| Feed range | 0,1 / 0,2 / 0,3 / 0,4 mm/rev. |
| Distance spindle to column | 355 mm |
| Distance spindle to table max. | 580 mm |
| Distance spindle to base | 1185 mm |
| Spindle stroke | 200 mm |
| Column diameter | 180 mm |
| Table size / T-slot size | 580 x 460 mm / 14 mm |
| Motor power | 2,2 kW |
| Machine dimension (W x D x H) | 700 x 950 x 2280 mm |
| Weight approx. | 563 kg |
