Gearhead bench and column drilling machine Bernardo GB 35 THS

The GB 35 THS gear head drilling machine is serially equipped with a motorized table stroke to reduce down-time. The digital readout of drill depth and speed as well as the electro magnetic spindle feed round off the standard features.

Scope of delivery Gearhead bench and column drilling machine Bernardo GB 35 THS

• Drill chuck 1 - 13 mm / B 16
• Drill chuck arbor MT 4 / B 16
• Morse taper drill sleeve MT 4 / 3, MT 4 / 2, MT
  • 3 / 1
  • Motoric table stroke
  • Electromagnetic spindle feed
  • Initial filling with Shell Tellus 46
  • Automatic tool release device
  • Thread cutting device
  • Digital readout of speeds
  • LED working light
  • Coolant pump
  • Digital readout of drill depth
  • Height adjustable protective cover

  Features Gearhead bench and column drilling machine Bernardo GB 35 THS

  • Serially equipped with motorized table height adjustment
  • Automatic tool release device and thread cutting device come standard
  • Lever on gear head allows quick and easy speed change
  • Digital readout of speed and drill depth come standard
  • Treated machine base (430 x 440 mm) with integrated coolant pump

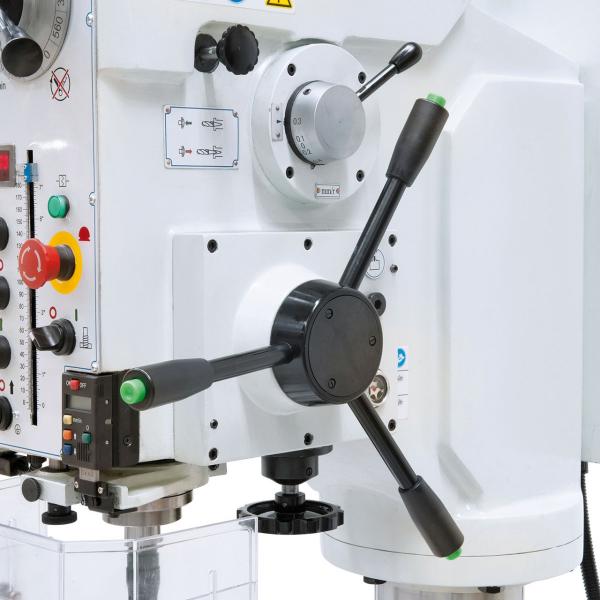

  • Electromagnetic spindle feed for precise work
  • Quality bearings guarantees high concentricity
  • Solid, hand-polished, grey cast iron table with tilt- and turnable support

  Technical details Gearhead bench and column drilling machine Bernardo GB 35 THS

  Drilling capacity in steel	35 mm
  Drilling capacity in cast iron	40 mm
  Thread cutting max.	M24
  Drill chuck	1 - 13 mm / B 16
  Morse taper	MT 4
  Spindle speeds	(12) 43 - 2355 rpm
  Feed range	0,1 / 0,2 / 0,3 / 0,4 mm/rev.
  Distance spindle to column	340 mm
  Distance spindle to table max.	580 mm
  Distance spindle to base	1185 mm
  Spindle stroke	200 mm
  Column diameter	160 mm
  Table size / T-slot size	540 x 440 mm / 14 mm
  Working surface of base	430 x 440 mm
  Motor power	1,3 / 1,8 kW
  Machine dimension (W x D x H)	660 x 900 x 2240 mm
  Weight approx.	553 kg
