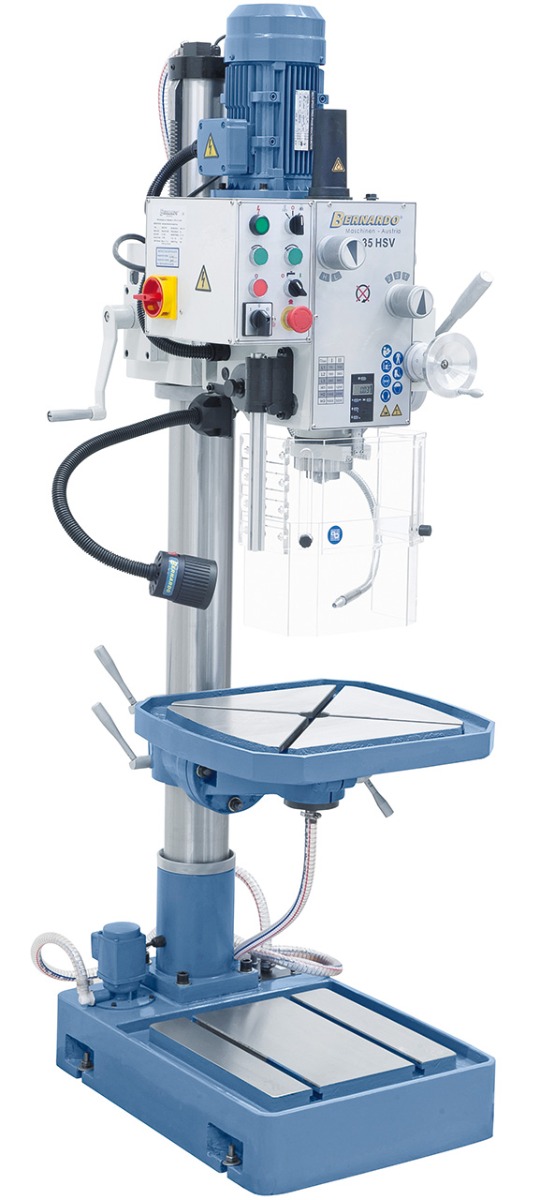

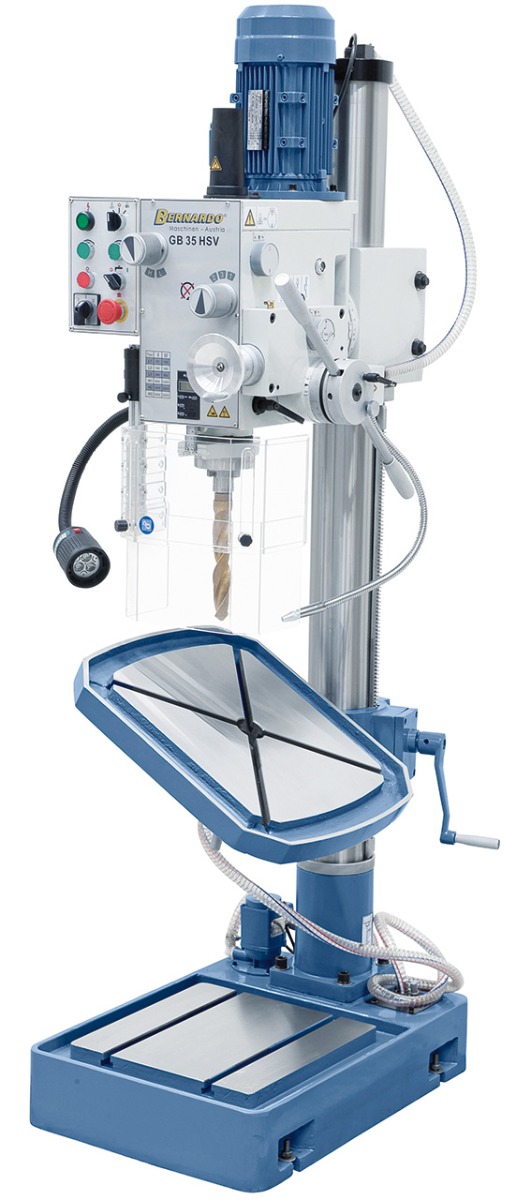

Gearhead bench and column drilling machine Bernardo GB 35 HSV with coolant device

The model GB 35 HSV feature a high speed range (75 - 3200 rpm) as well as a large range of standard accessories ( for instance automatic spindle feed, tiltable drill table, coolant device, LED working light etc.), making this machine ideal for mechanics, repair shops and and for training purposes.

Scope of delivery Gearhead bench and column drilling machine Bernardo GB 35 HSV with coolant device

• Keyless drill chuck 1 - 16 mm / B 16
• Drill chuck arbor MT 4 / B 16

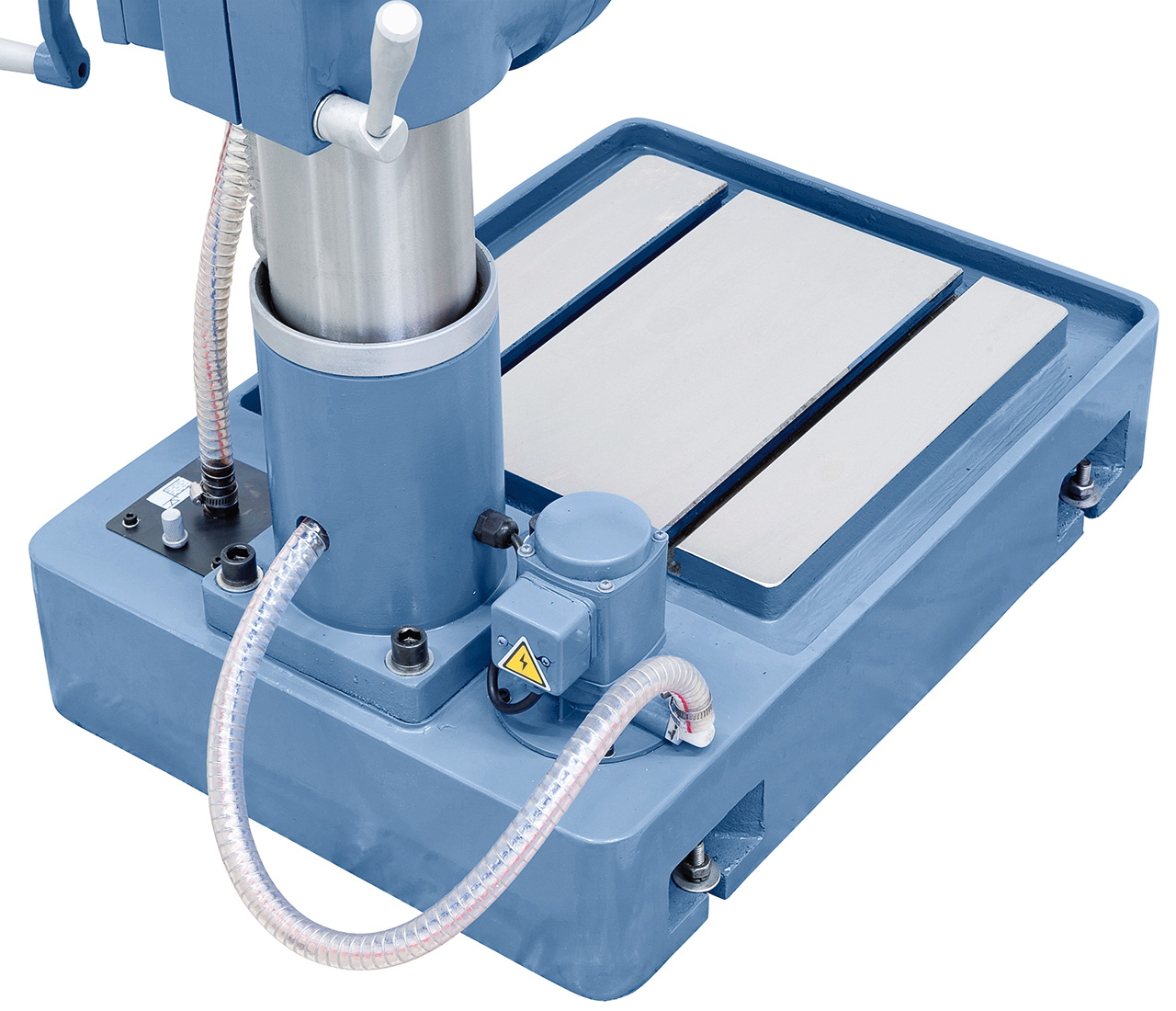

• Coolant device
• Morse taper drill sleeve MT 4 / 3
• Automatic spindle feed
• Height adjustable protective cover
• Digital drill depth indication
• Thread cutting device
• LED-machine light
• Tools

Features Gearhead bench and column drilling machine Bernardo GB 35 HSV with coolant device

• Powerful 2-step motor, speed range 75 - 3200 rpm
• Solid, polished steel column suitable for heavy workload

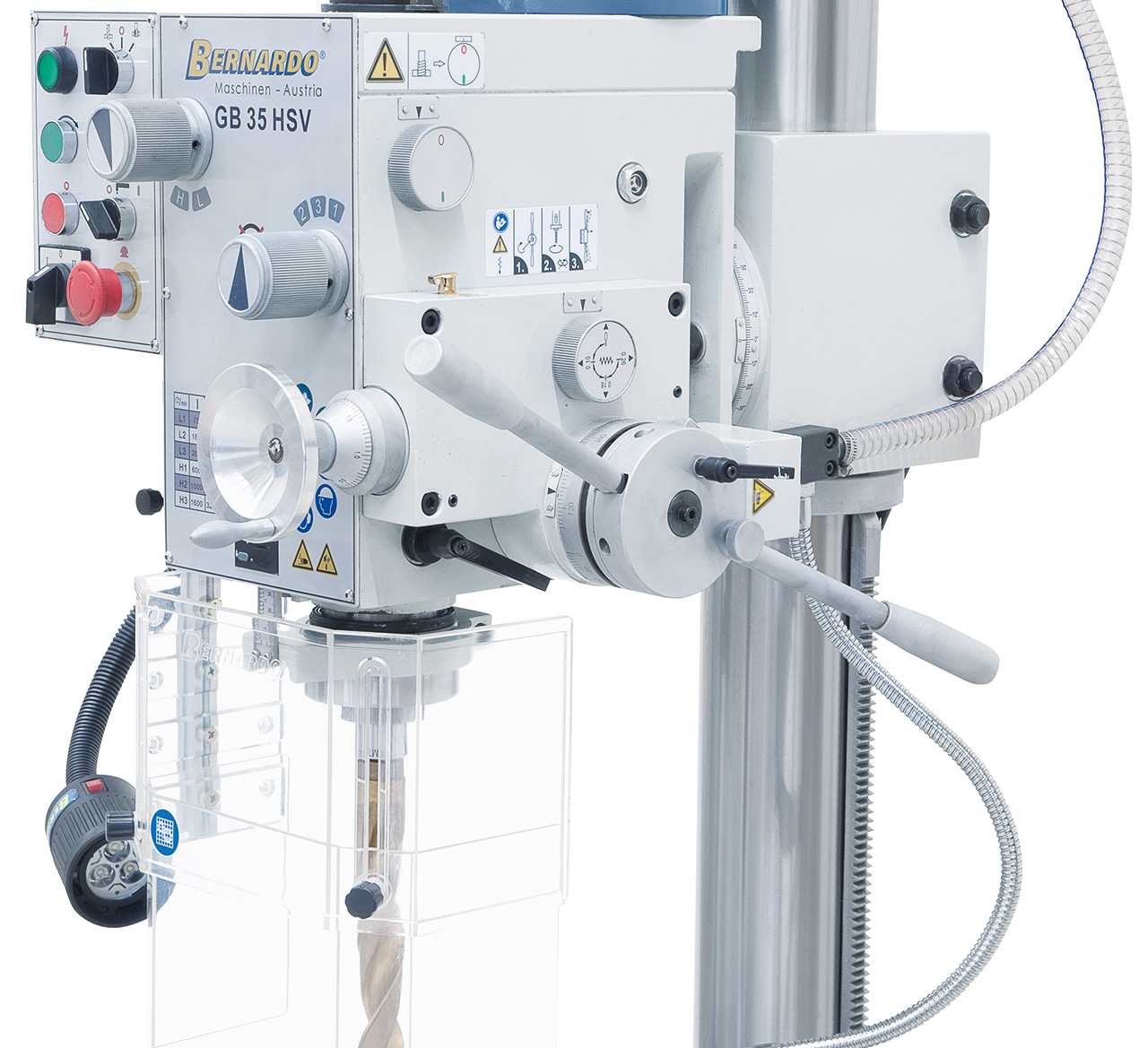

• Digital display for spindle stroke and LED-lamp comes standard
• Serially equipped with automatic spindle feed and thread cutting device
• Lever allows quick and easy speed change

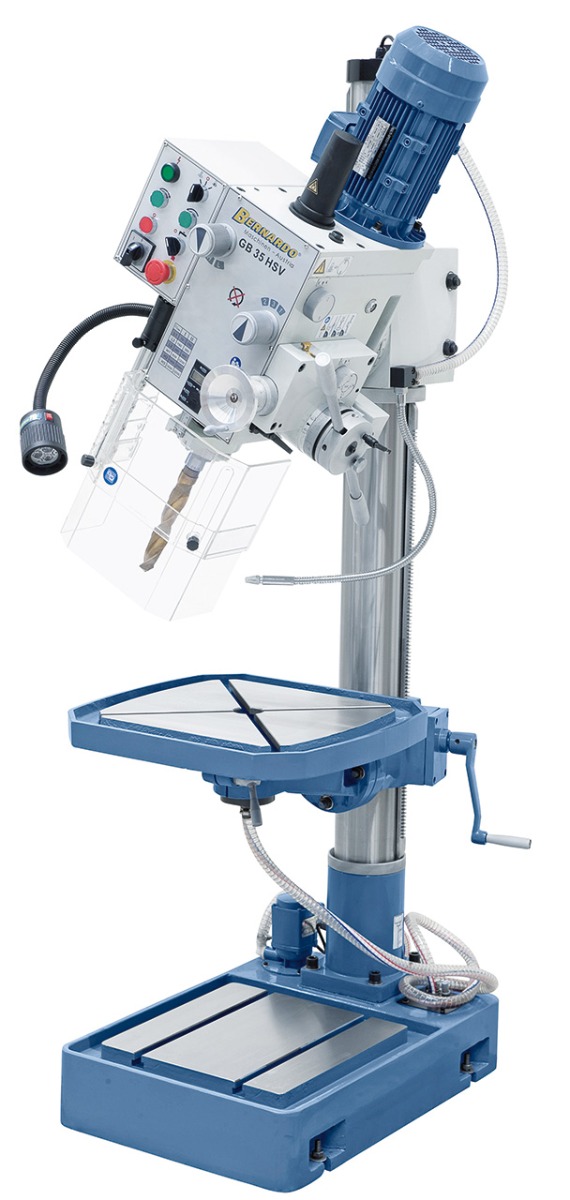

• Gear head is height adjustable, tilts 180˚ and rotates 360˚
• Polished gear wheels, in oil bath, guarantees smooth running
• Clutch allows change from manual to fine feed
• High-quality ball bearings allow for high concentricity
• Height adjustable protective cover with micro switch for increased safety

Technical details Gearhead bench and column drilling machine Bernardo GB 35 HSV with coolant device
