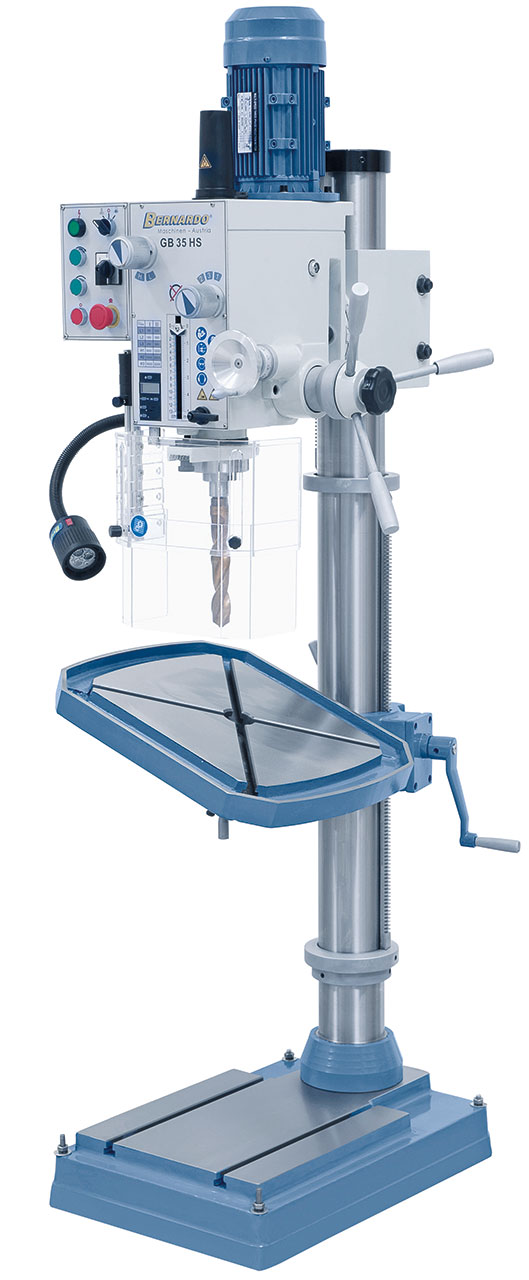

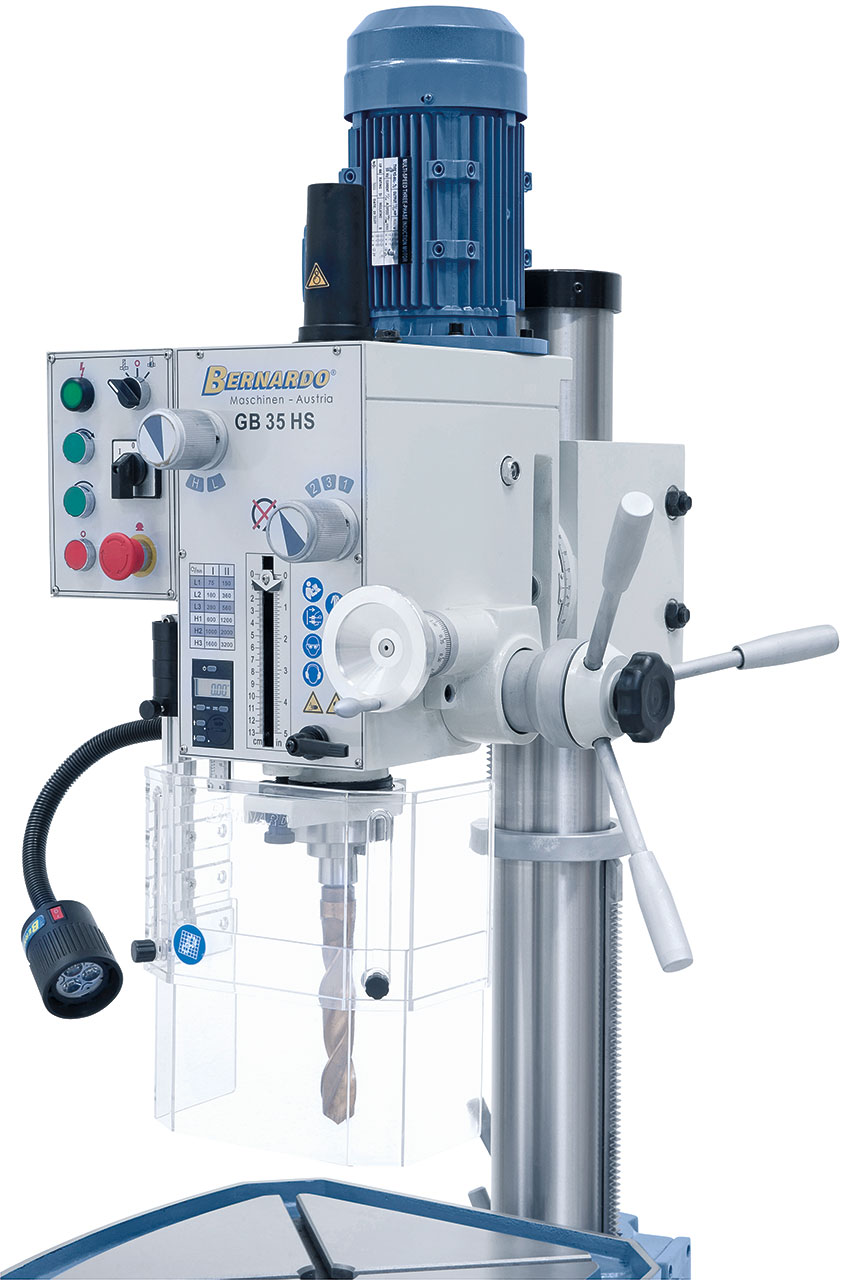

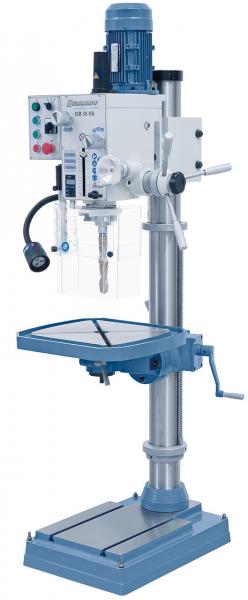

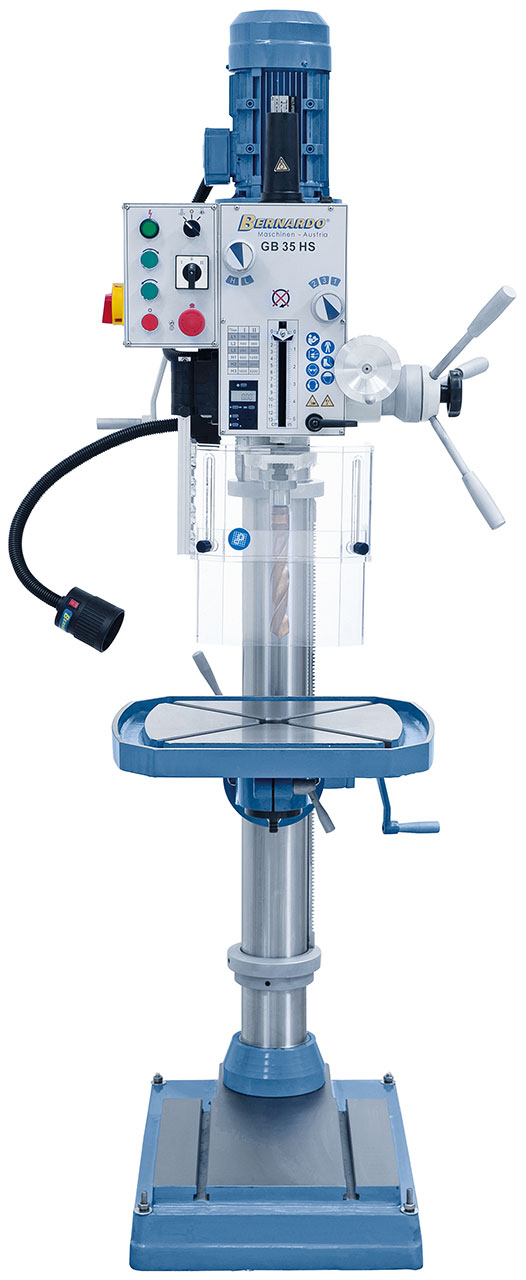

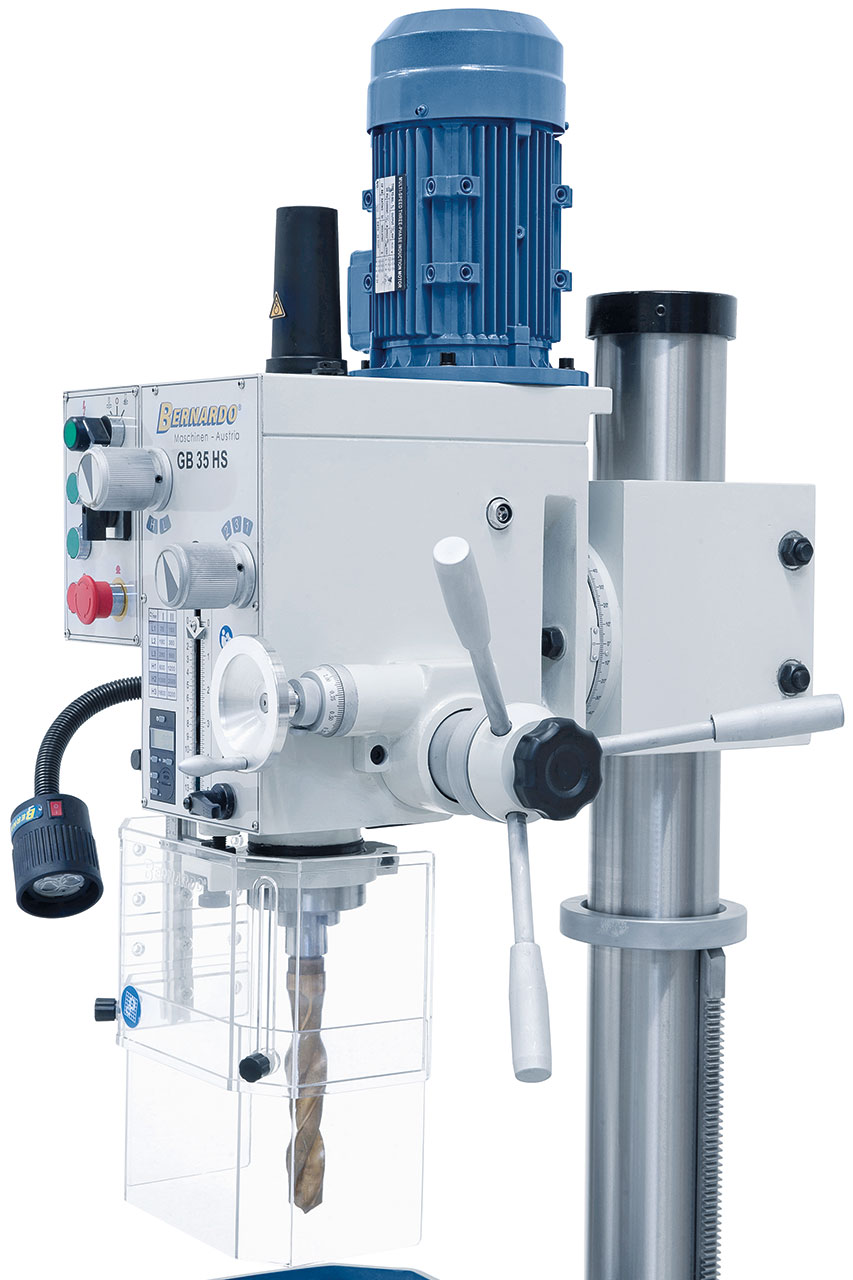

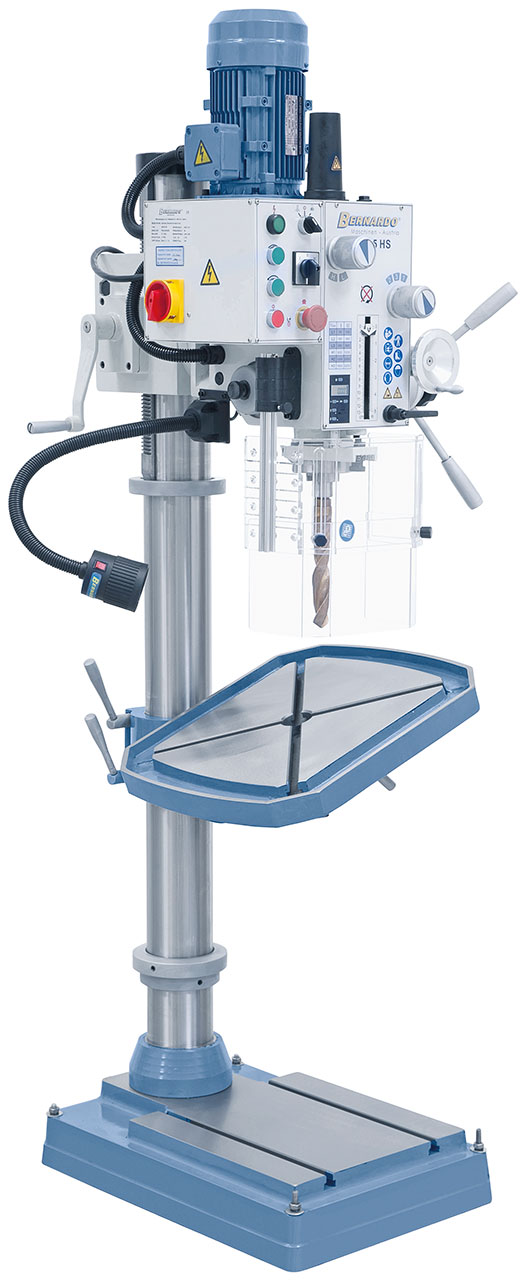

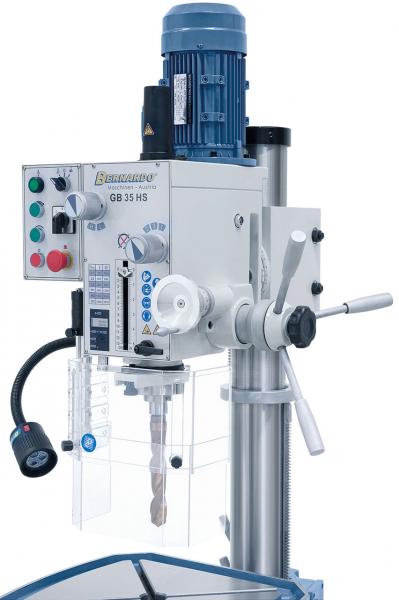

The GB 35 HS gearhead drilling machine features a robust and vibration-free construction. The tiltable, rotatable gear head makes these models ideal for general applications.
Scope of delivery Gearhead bench and column drilling machine Bernardo GB 35 HS
- Keyless drill chuck 1 - 16 mm / B 16
- Drill chuck arbor MT 4 / B 16
- Morse taper drill sleeve MT 4 / 3
- Height adjustable protective cover
- Digital drill depth indication
- Thread cutting device
- LED machine light
- Tools
Features Gearhead bench and column drilling machine Bernardo GB 35 HS
- 2-speed motor with 12 adjustable speeds, speed range 75 - 3200 rpm
- Serially equipped with keyless drill chuck 1 - 16 mm / B 16
- Large drill table features T-slots and coolant grooves
- Machine base designed to mount oversized workpieces
- Lever allows quick and easy speed change

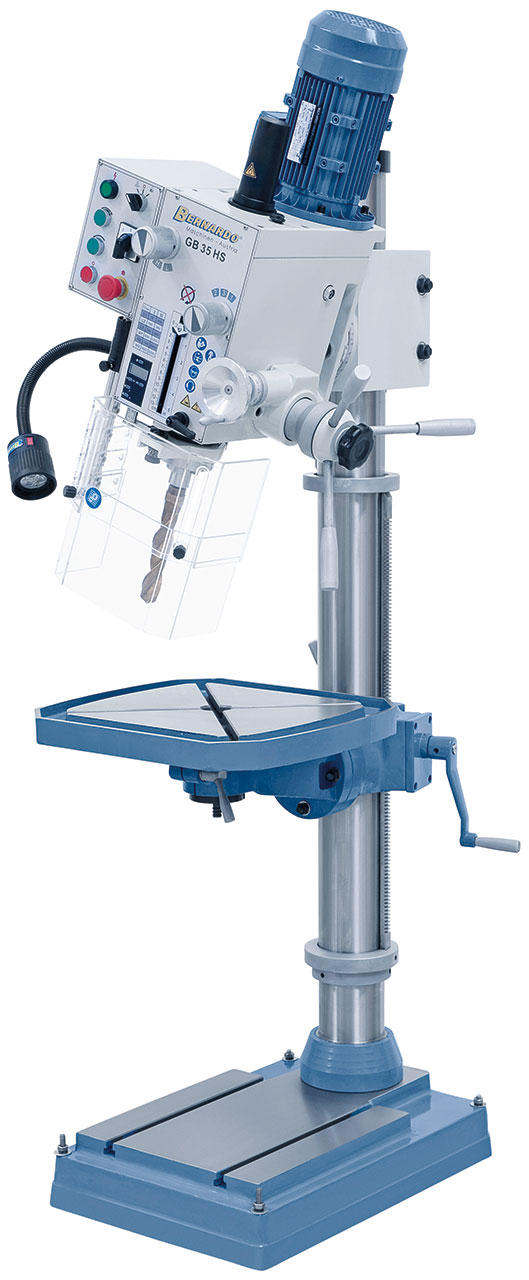

- Gear head is height adjustable, tilts 180˚ and rotates 360˚
- Polished gear wheels, in oil bath, guarantees smooth running
- Clutch allows change from manual to fine feed
- Right and left turning for thread cutting
- Digital display for spindle feed included
Technical details Gearhead bench and column drilling machine Bernardo GB 35 HS
| Drilling capacity max. | 32 mm |
| Drill chuck | 1 - 16 mm / B 16 |
| Morse taper | MT 4 |
| Spindle speeds | (12) 75 - 3200 rpm |
| Distance spindle to column | 295 mm |
| Distance spindle to table max. | 775 mm |
| Distance spindle to base | 1185 mm |
| Spindle stroke | 125 mm |
| Column diameter | 115 mm |
| Table size | 500 x 455 mm |
| T-slot size | 14 mm |
| Working surface of base | 375 x 365 mm |
| Motor power output S1 100% | 1,1 / 1,5 kW (400 V) |
| Motor power input S6 40% | 1,5 / 2,2 kW (400 V) |
| Machine dimension (W x D x H) | 630 x 700 x 2050 mm |
| Weight approx. | 335 kg |
