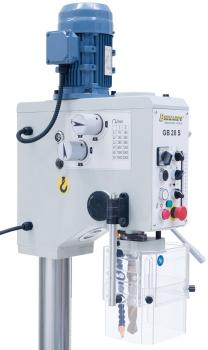

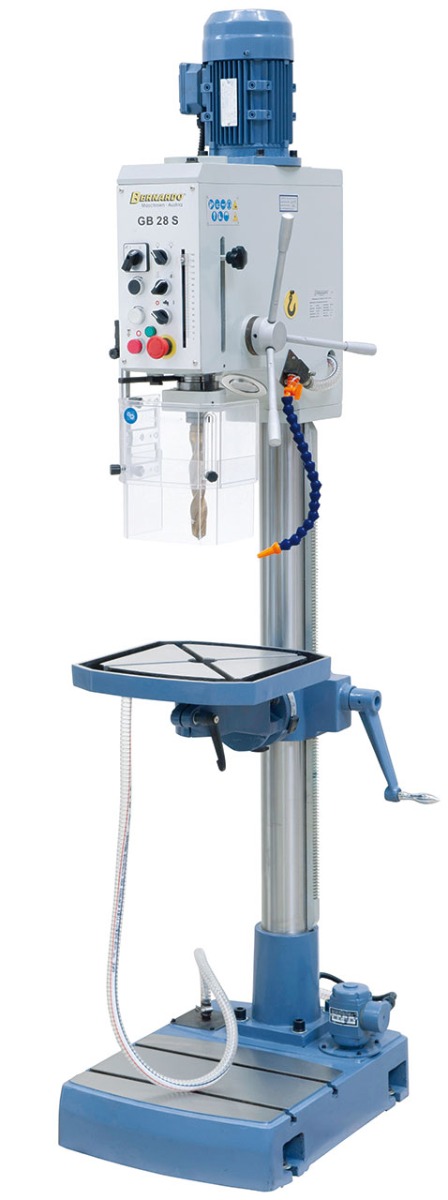

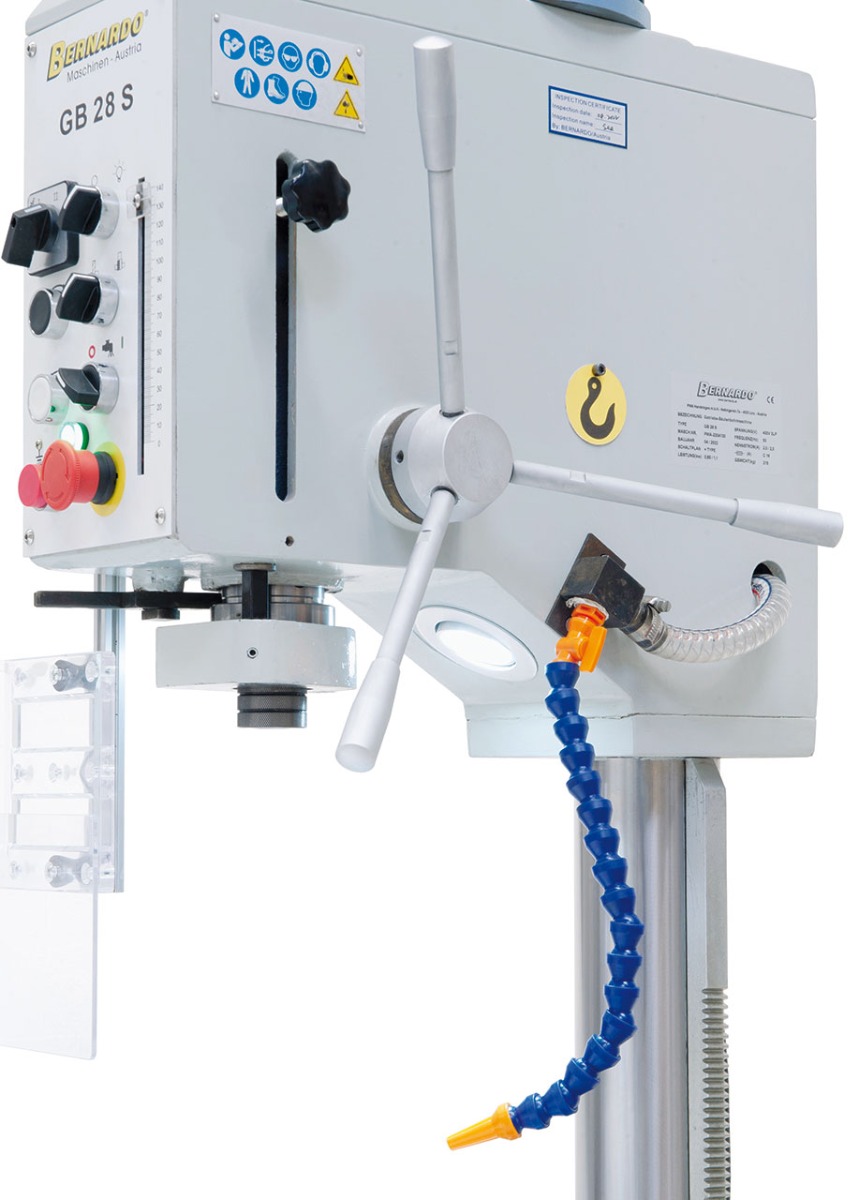

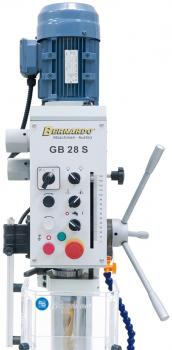

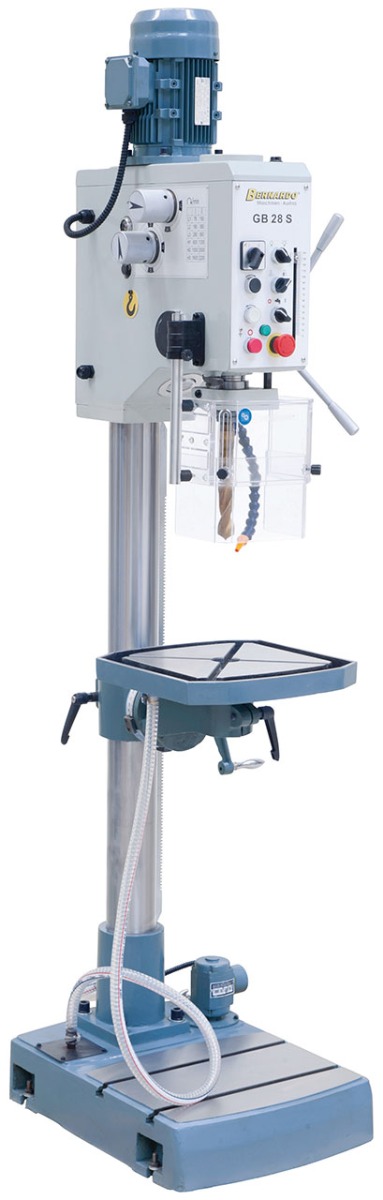

Gearhead bench and column drilling machine Bernardo GB 28 S incl. coolant device

The GB 28 S is a powerful gearhead-column drilling machine which excels in robust and vibration-free construction. This model is predominantly used in repair shops, mechanical workshops and for training purposes.

Scope of delivery Gearhead bench and column drilling machine Bernardo GB 28 S incl. coolant device

• Drill chuck 1 - 13 mm / B 16
• Drill chuck arbor MT 3 / B 16
• Morse taper drill sleeve MT 3 / 2
• Coolant device
• Automatic tool release device
• Thread cutting device
• Left and right turning
• Height adjustable protective cover
• LED machine light

Features Gearhead bench and column drilling machine Bernardo GB 28 S incl. coolant device

• Powerful 2-step drive motor allows for 12 different speed setting
• Rotation switch for right and left turning for thread cutting

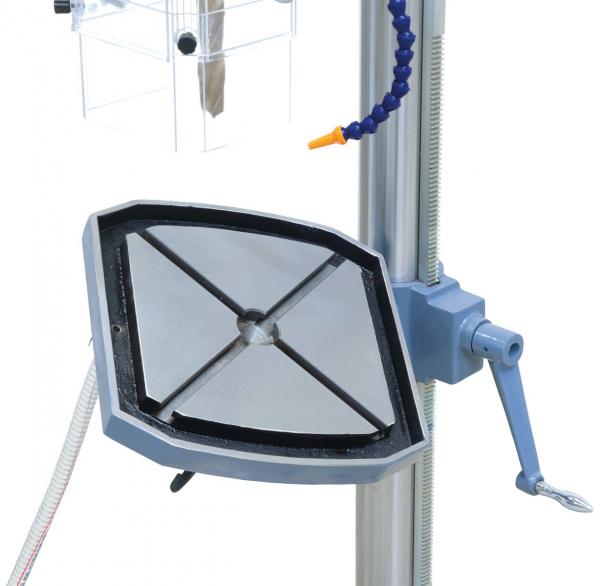

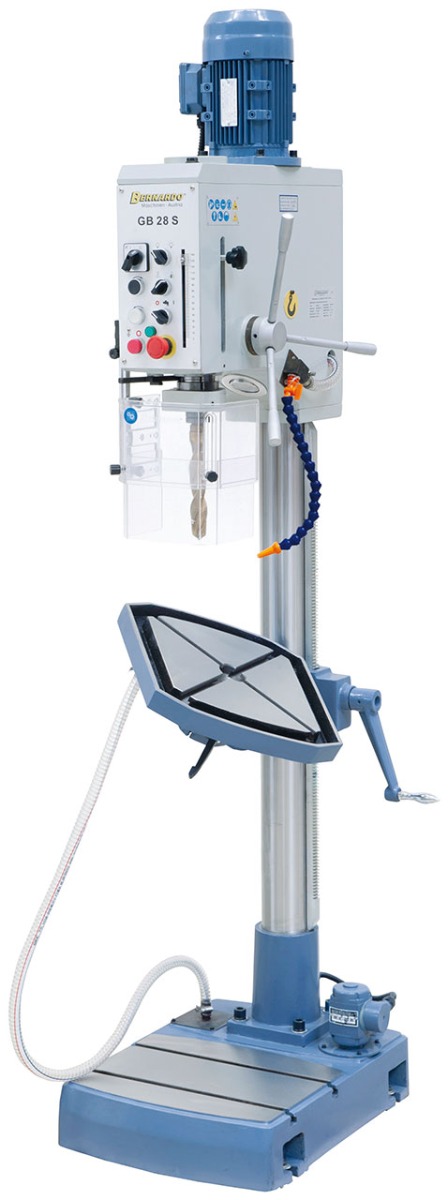

• Solid work table (360° turnable), tiltable from -45° to +45°
• Treated machine base for clamping of extraordinary oversize workpieces
• High-quality ball bearings allow for high concentricity
• Automatic tool release device allows easy tool change
• Adjustable drill depth stop, drill depth can be read on scale
• Solid, polished steel column suitable for heavy workload
• Polished gear wheels ensure smooth run
• Height adjustable protective cover with micro switch for increased safety

Technical details Gearhead bench and column drilling machine Bernardo GB 28 S incl. coolant device
