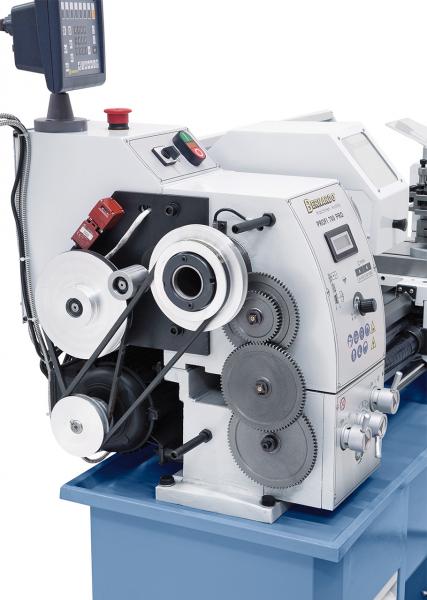

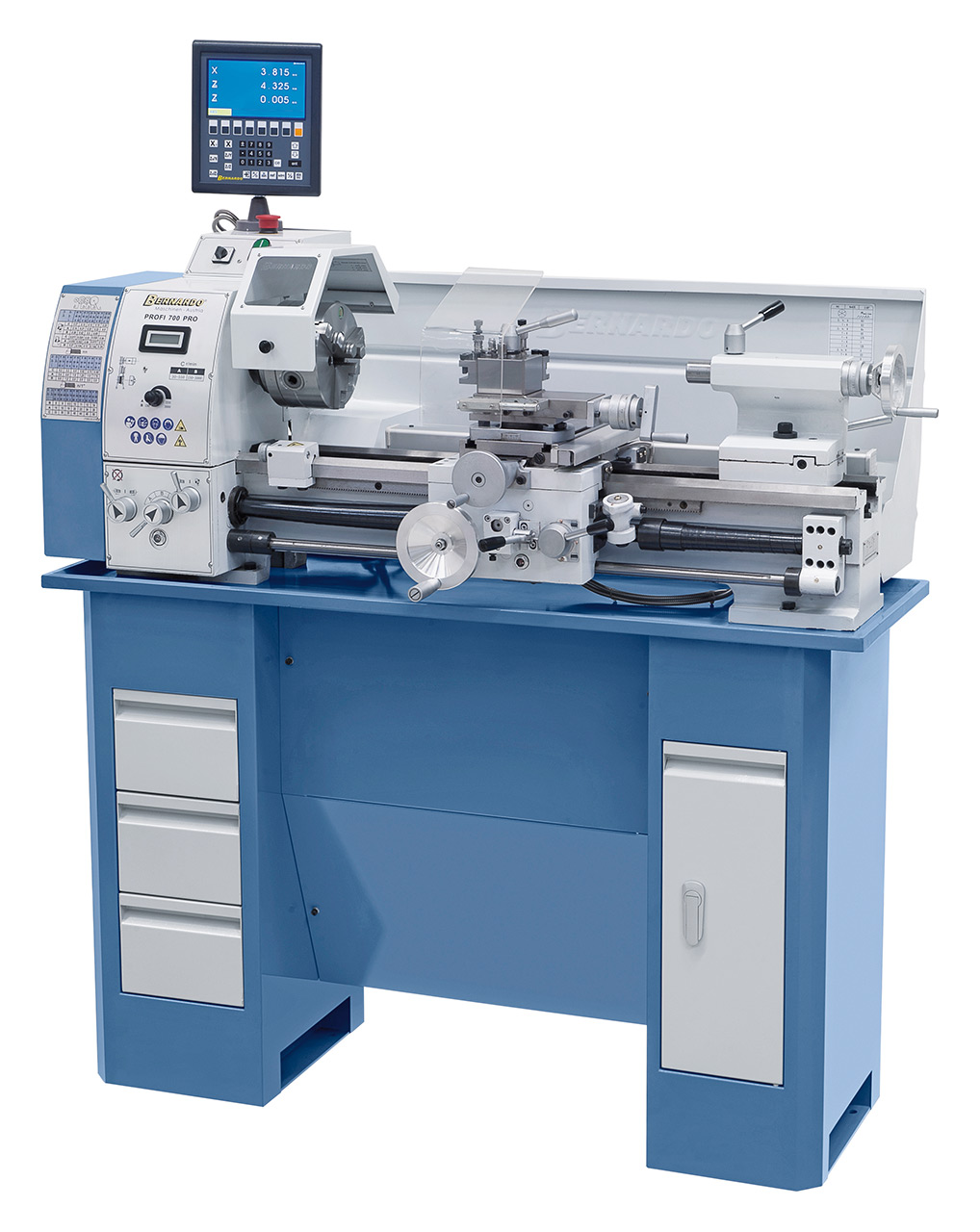

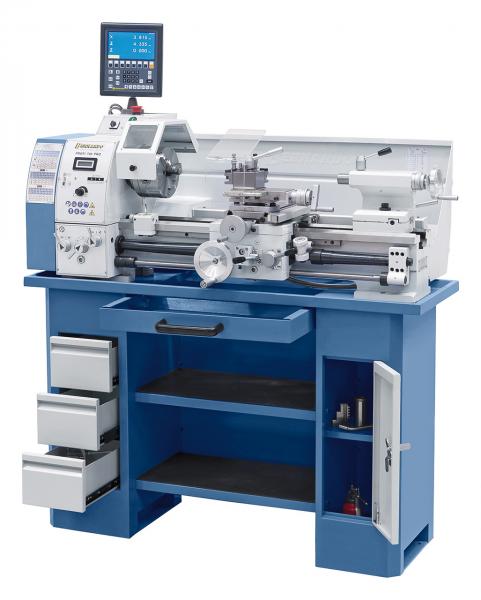

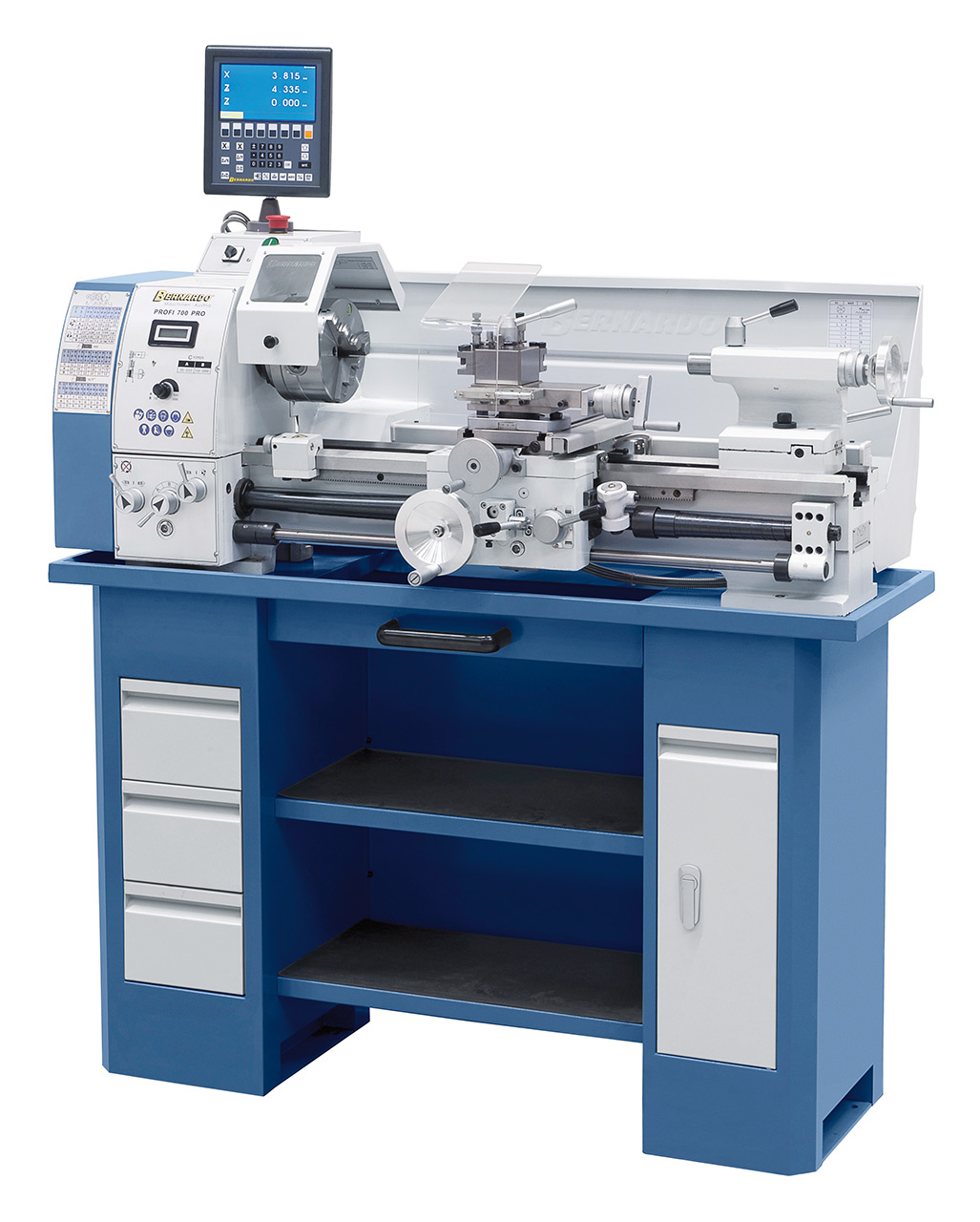

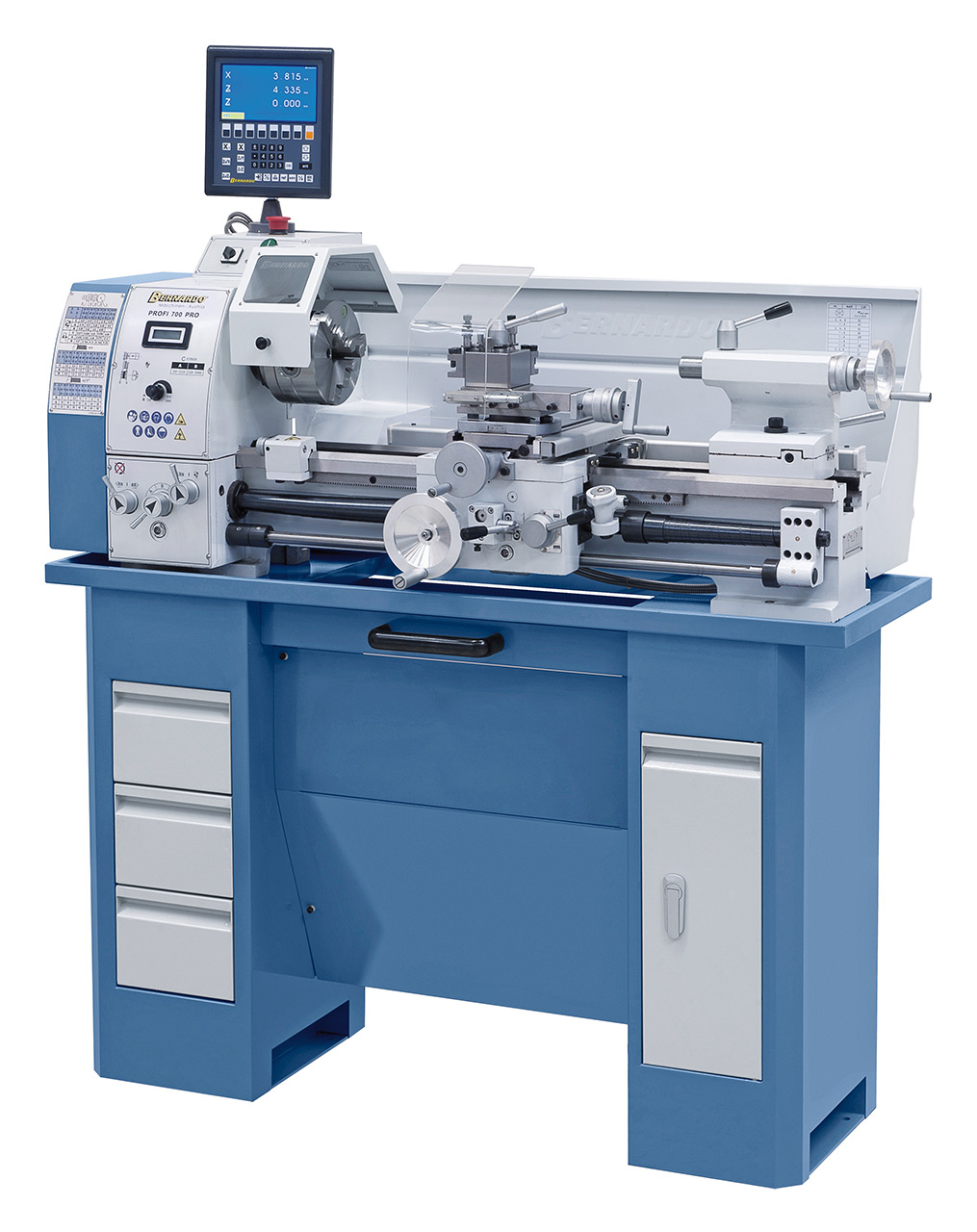

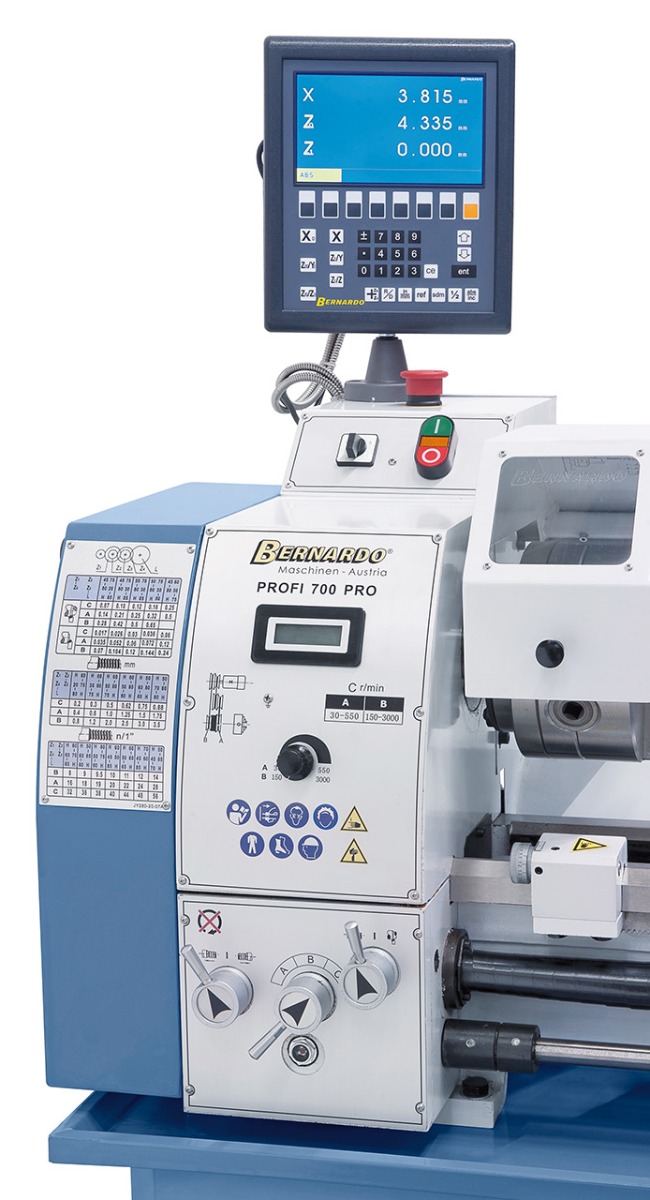

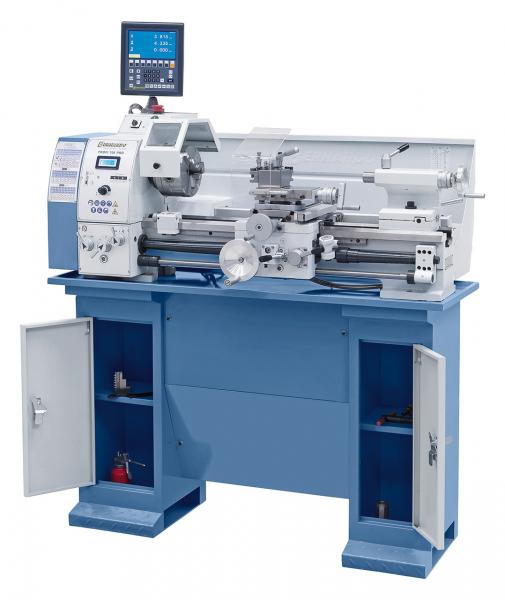

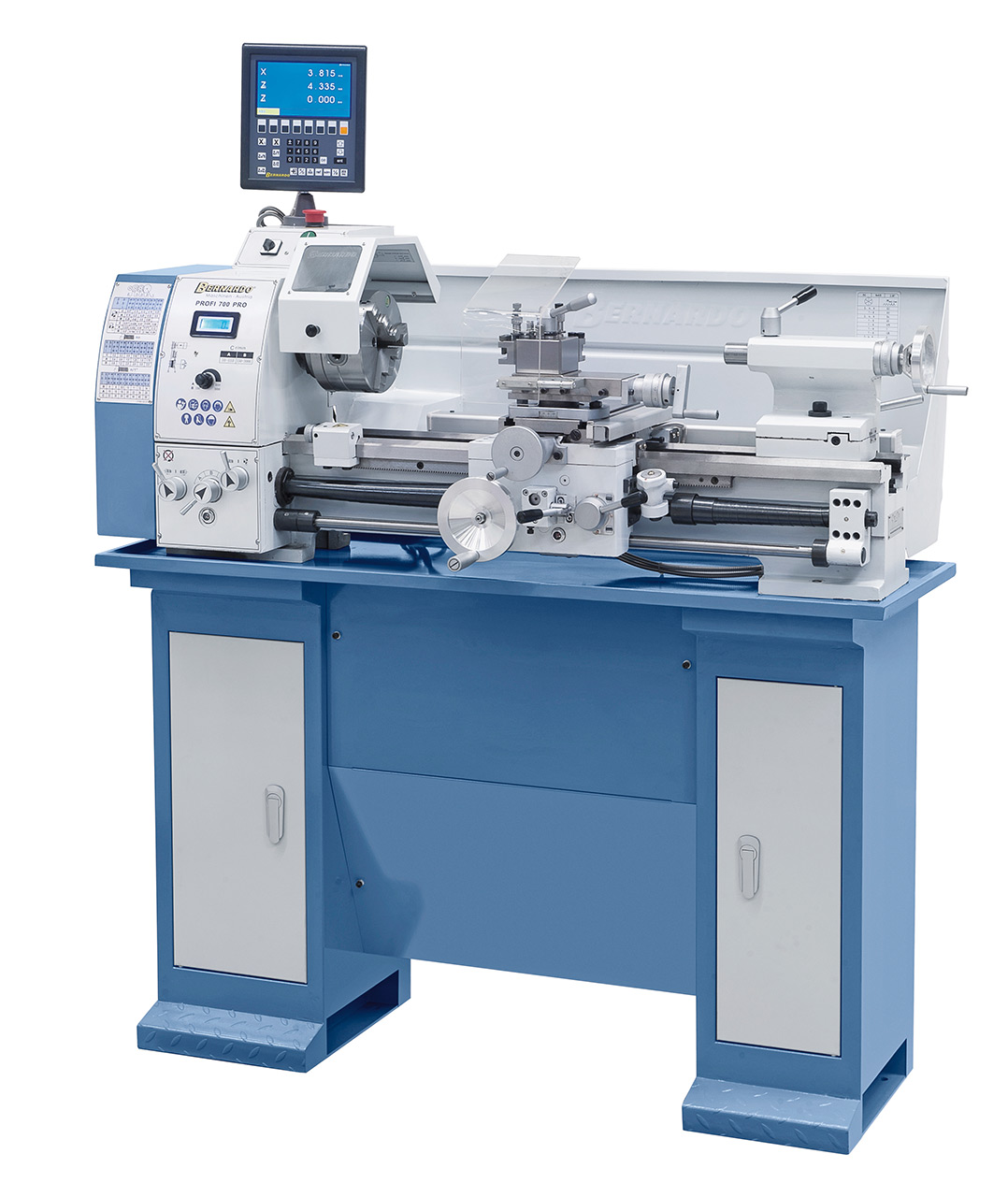

Gear-head gap bed lathes Bernardo Profi 700 Pro - 400 V with 2-axis digital readout

The Profi 700 Pro turning lathe feature a high speed range up to 3000 rpm as well as a large range of standard accessories (for instance DC-motor with frequency inverter, main spindle bearing in P5-quality, micrometric longitudinal fence for repetitive work, safety clutch etc.) making these models ideal for users with high expectations. For reducing the non-productive time, this model is also equipped with a 2-axis digital readout.

Scope of delivery Gear-head gap bed lathes Bernardo Profi 700 Pro - 400 V with 2-axis digital readout

• 3-jaw steel chuck PO3-160 mm
• Flange 160 mm
• Dead centers
• Change gears
• Quick change tool post size 20-2 with 2 straight inserts
• Safety clutch
• Micrometer longitudinal fence
• Cross slide with top support
• Frequency inverter
• Digital speed indication
• Thread dial
• Chuck guard
• Splash guard
• Leadscrew cover
• Tools

Features Gear-head gap bed lathes Bernardo Profi 700 Pro - 400 V with 2-axis digital readout

• Precision 3-jaw steel chuck for speed up to 3000 rpm comes standard
• Serially with Delta frequency inverter for high torque in low speed range and nearly constant speed at heavy workloads
• Main spindle bearing with adjustable taper roller bearing in P5-quality
• Tailstock spindle and handwheel come with adjustable scale (0.02 mm)
• Optionally available milling attachment increases range of applications
• High concentricity of the hardened spindle nose ≤ 0,009 mm
• Solid machine bed with inductive hardened and polished guideways
• Top support can be adjusted in x-axis
• Stepless speed adjustment as part of standard accessories, set speed can be read on digital display

Technical details Gear-head gap bed lathes Bernardo Profi 700 Pro - 400 V with 2-axis digital readout

* without stand
