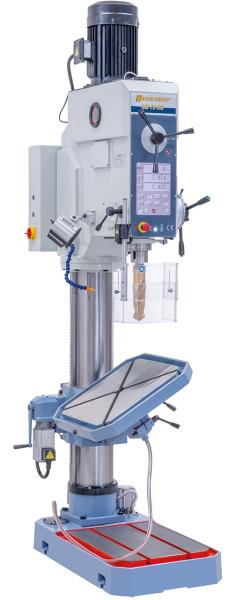

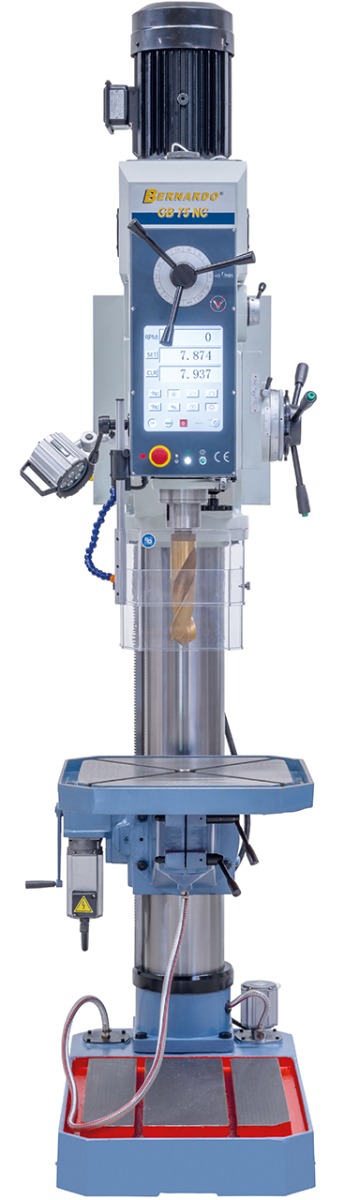

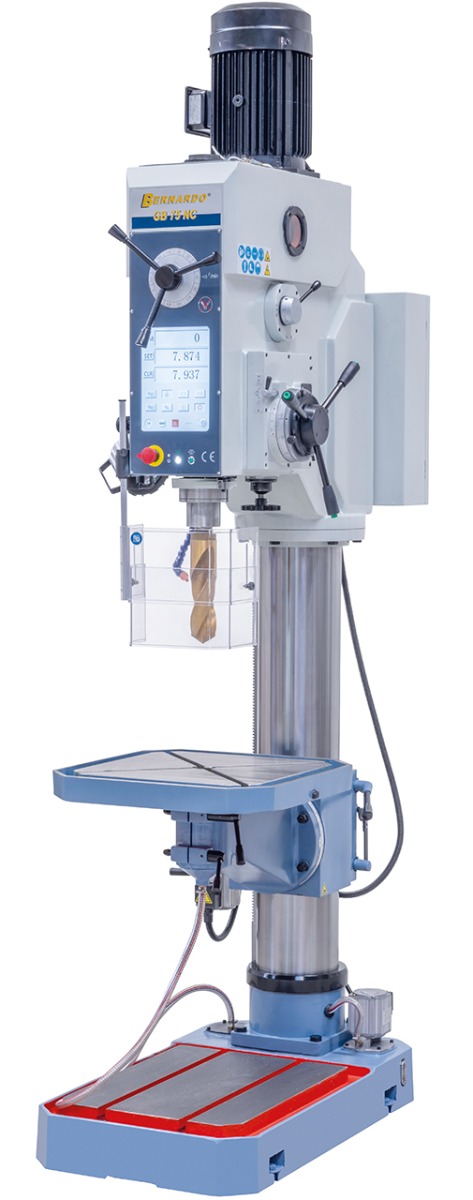

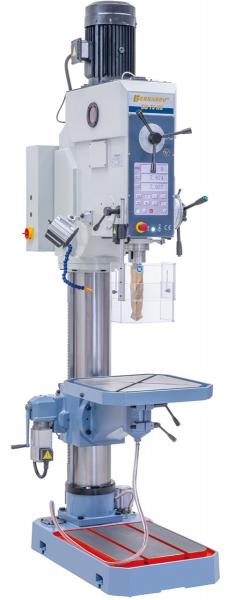

Gear box column drilling machine Bernardo GB 75 NC

Scope of delivery Gear column drilling machine Bernardo GB 75 NC

• Quick-action drill chuck 3 - 16 mm / B 18
• Drill chuck arbour MK 5 / B 18
• Reducing sleeve MK 5 / 4, MK 4 / 3, MK 4 / 2, MK 3 / 1
• Motorised table stroke
• Coolant device
• Touch screen
• Electromagnetic spindle feed
• Thread cutting device
• Initial filling with Shell Tellus 46
• LED machine light
• Digital speed display
• Digital drilling depth display
• Height-adjustable protective cover

Special features of the Bernardo GB 75 NC geared pillar drilling machine

The GB 75 NC geared pillar drilling machine impresses with its high drilling capacity of 70 mm, solid construction and extensive basic equipment. This makes this model ideal for use in industrial manufacturing and series production.

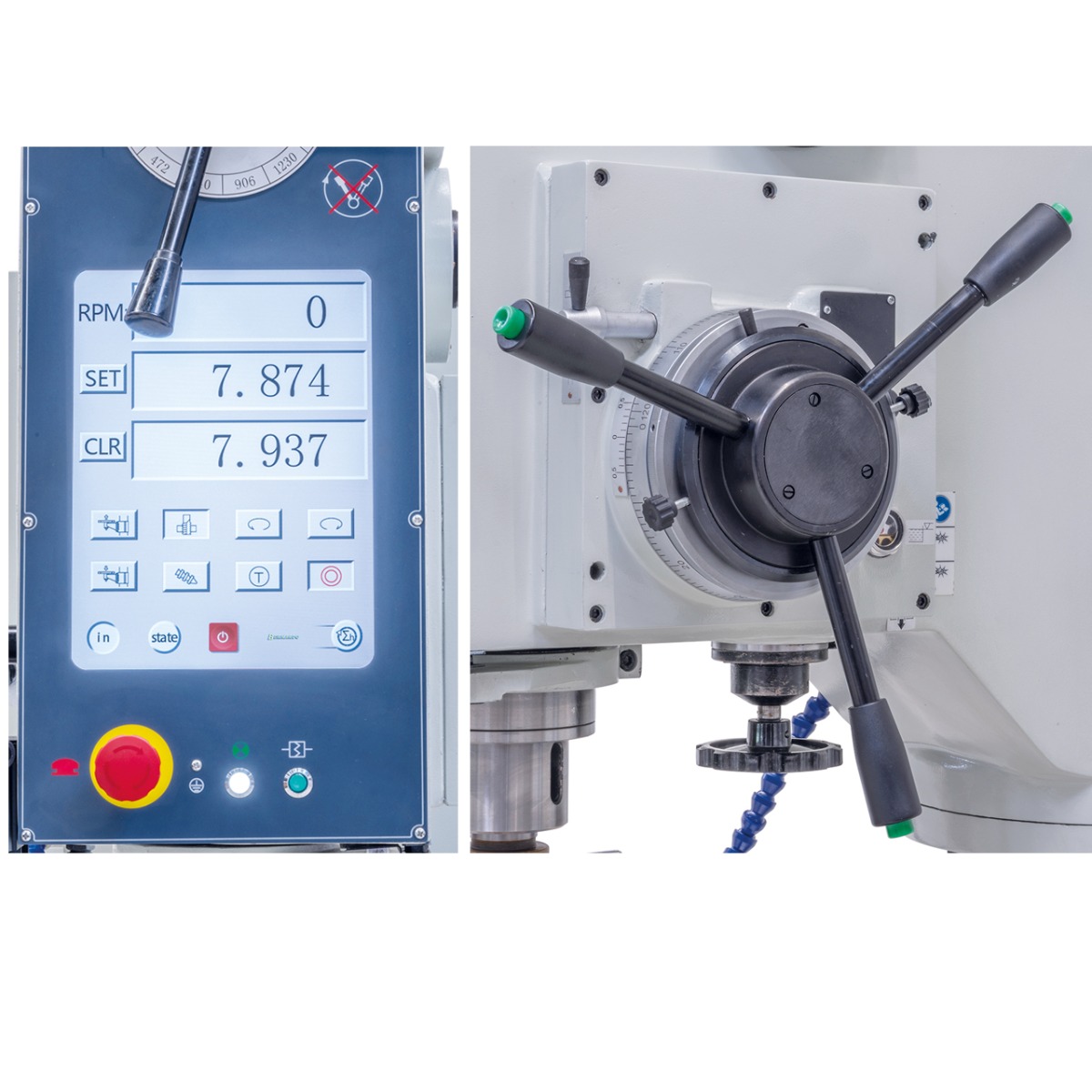

• All settings are made directly on the large touchscreen display
• Equipped with motorised table height adjustment as standard
• 4 automatic drilling feeds switchable via electromagnetic clutch
• Hand-scraped drilling table made of solid grey cast iron, swivelling from -45° to + 45°
• Ground base plate with T-slots for clamping particularly high workpieces
• Guaranteed concentricity ≤ 0.02 mm, measured in the quill
• Smooth running due to ground gears running in an oil bath
• Sturdy and ground steel column, designed for high loads
• Powerful drive motor designed for prolonged use

Technical details geared pillar drilling machine Bernardo GB 75 NC
