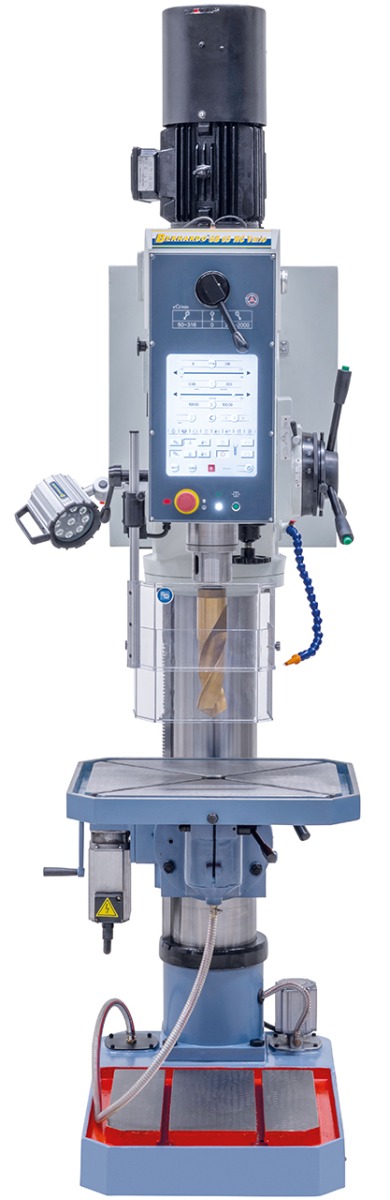

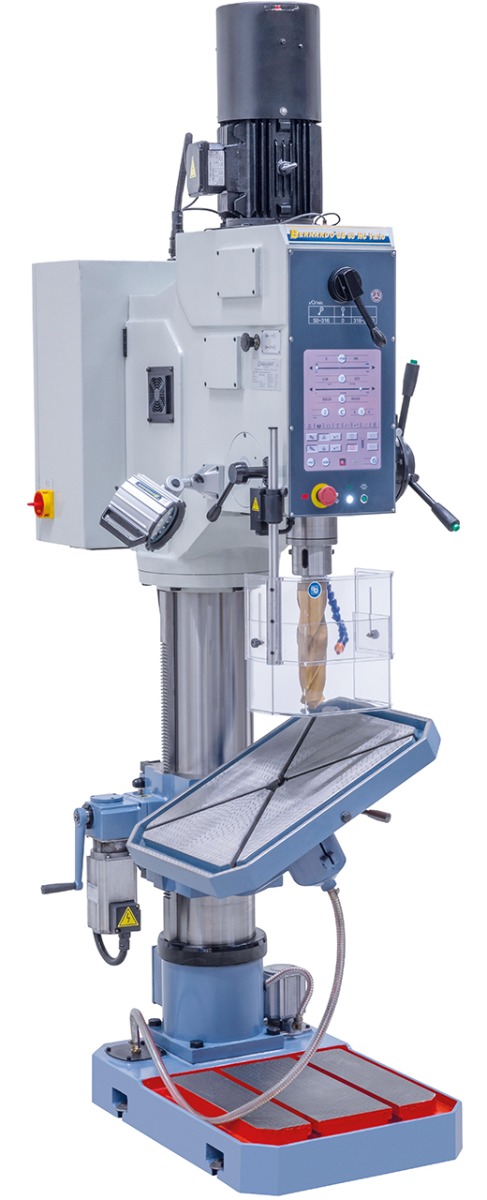

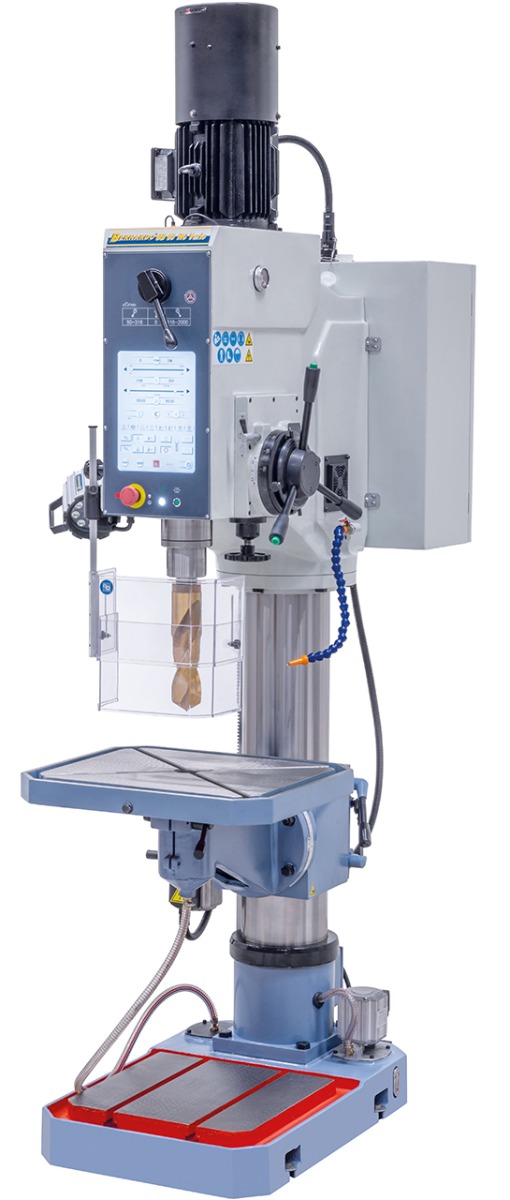

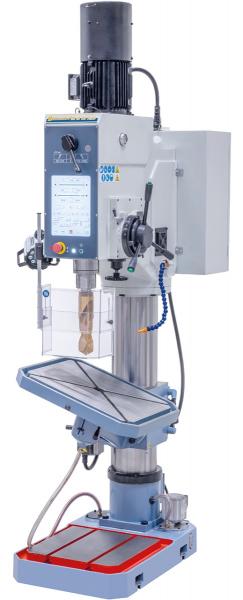

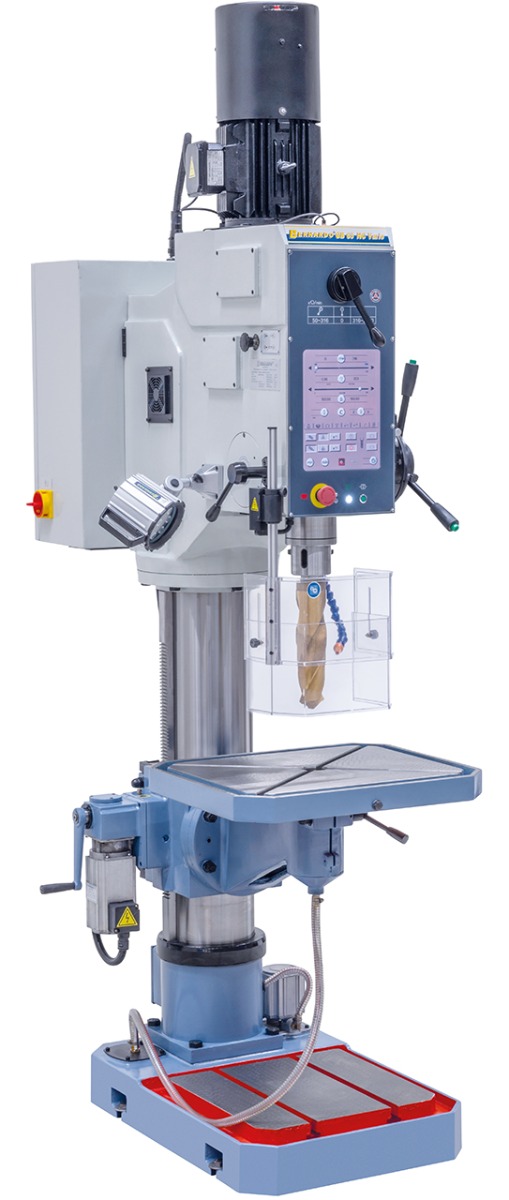

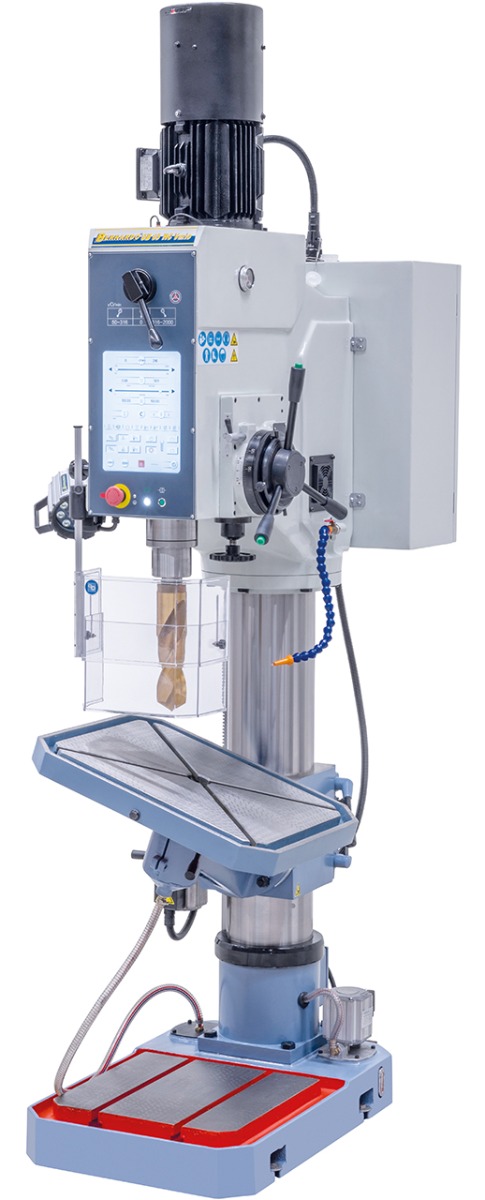

Gear box column drilling machine Bernardo GB 65 NC Vario

Scope of delivery Gear column drilling machine Bernardo GB 65 NC Vario

• Quick-action drill chuck 3 - 16 mm / B 18
• Drill chuck arbour MK 5 / B 18
• Reducing sleeve MK 5 / 4, MK 4 / 3, MK 4 / 2, MK 3 / 1
• Motorised table stroke
• Coolant device
• Touchscreen with Bohrtronic control
• Automatic mould ejector
• Electromagnetic spindle feed
• Thread cutting device
• Initial filling with Shell Tellus 46
• LED machine light
• Digital speed display
• Digital drilling depth display
• Height-adjustable protective cover

Special features of the Bernardo GB 65 NC Vario geared pillar drilling machine

The GB 65 NC Vario geared pillar drill is equipped with infinitely variable speed control as standard, allowing the cutting speed to be optimally adapted to the workpiece. Thanks to its heavy, solid construction, it is particularly suitable for use by professional users or in mechanical engineering or workshops.


• The standard Bohrtronic control system calculates the ideal speed or feed rate for drilling and tapping after entering the tool diameter and material (cast iron / steel)
• All settings are made directly on the large touchscreen display
• Equipped with motorised table height adjustment as standard
• The spindle sleeve is fed via a high-quality servomotor

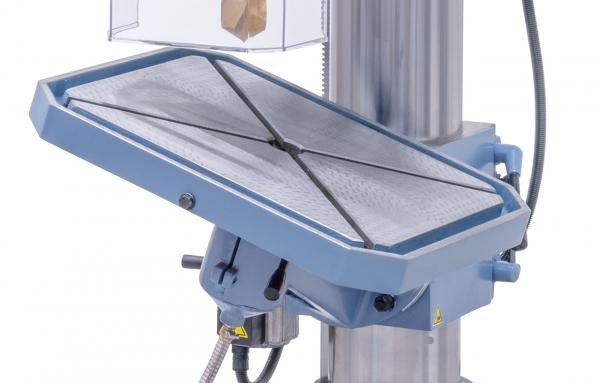

• Hand-scraped drilling table made of solid grey cast iron, swivelling from -45° to + 45°
• Ground base plate with T-slots for clamping particularly high workpieces
• Guaranteed concentricity ≤ 0.02 mm, measured in the sleeve
• Sturdy and ground steel column, designed for high loads

Technical details geared pillar drilling machine Bernardo GB 65 NC Vario
