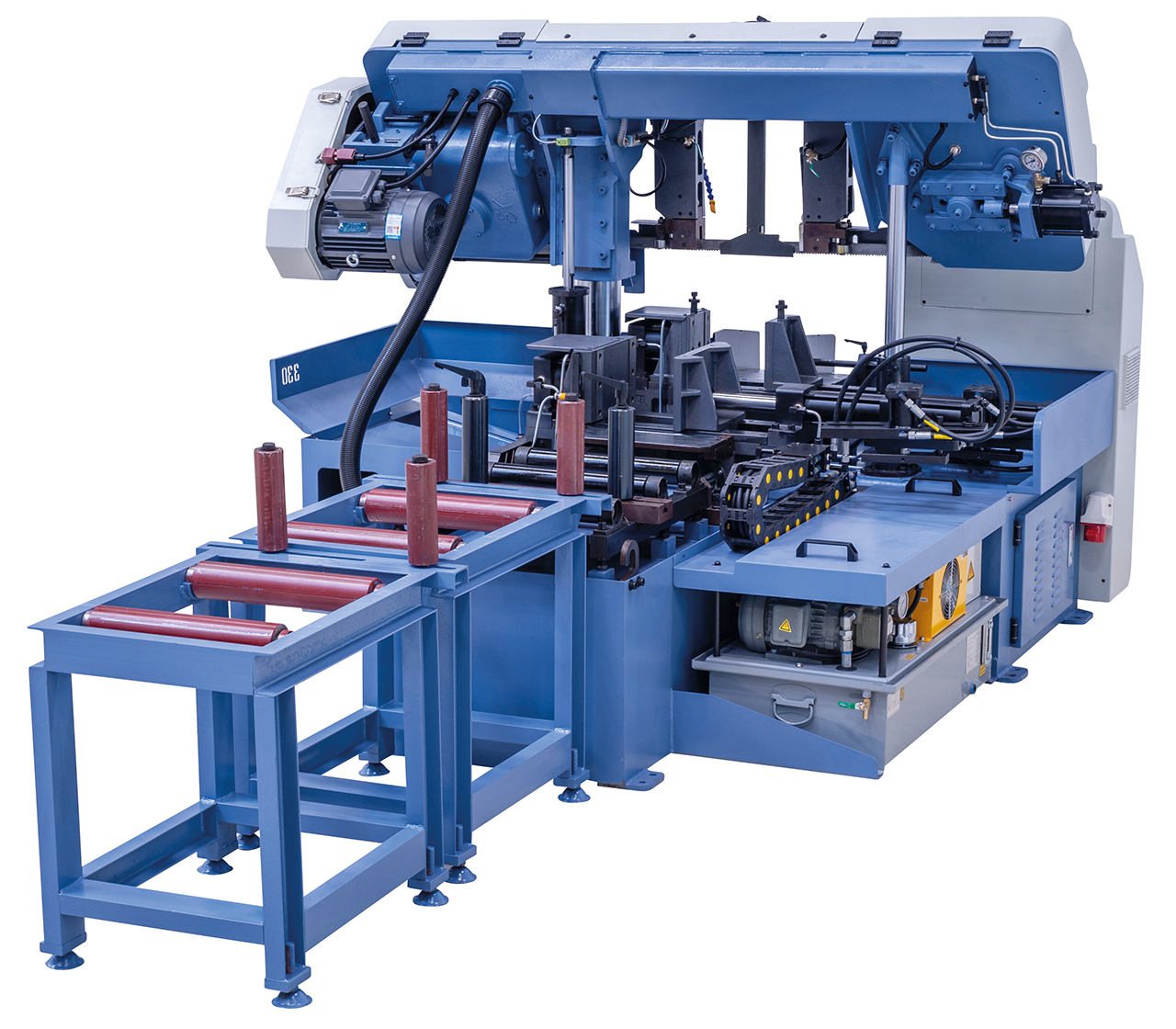

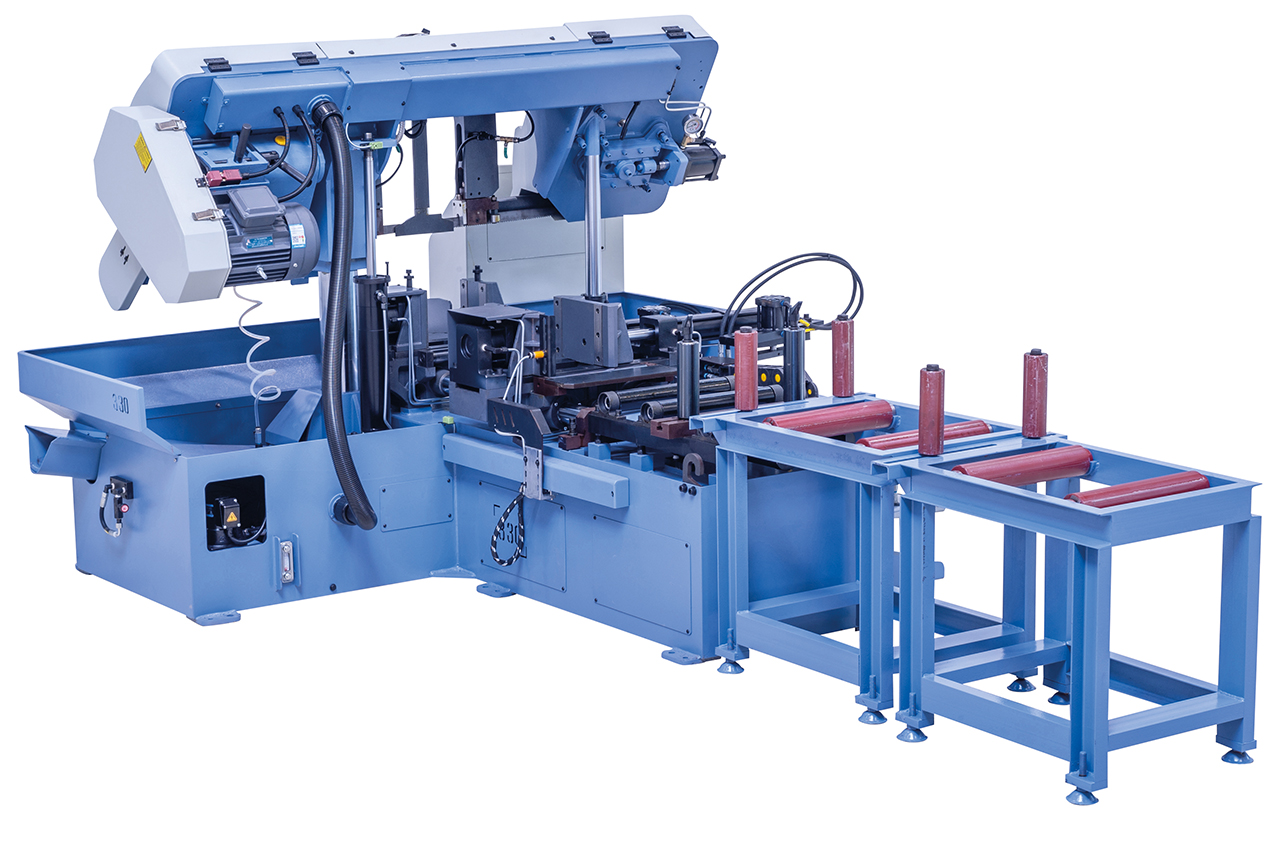

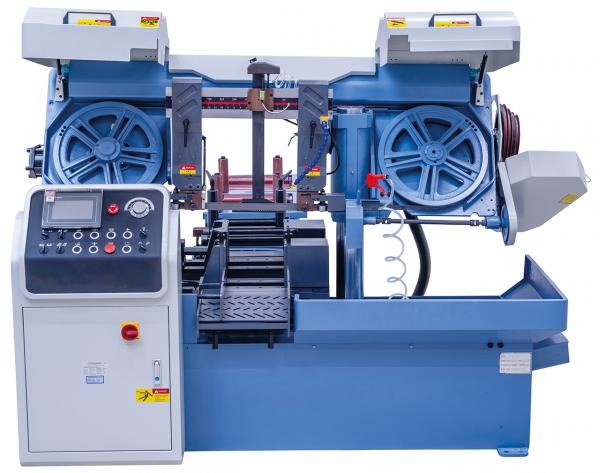

Fully automatic metal bandsaw Bernardo BSM 530 NC Pro

The BSM model is a fully automatic metal band saw with the main advantage that the saw frame is fed in via a precision-ground double-column guide. This makes this machine ideal for processing blocks made of solid material. In addition, this model is equipped with a hydraulic top clamping device for cutting bundles of material.

Scope of delivery Fully automatic metal bandsaws Bernardo BSM 530 NC Pro

• Bandsaw blade
• Hydraulic clamping vice
• Manometer for blade tension
• Hydraulic blade tensioning
• Hydraulic workpiece feed
• Chip conveyor
• Coolant device
• Hydraulic cylinder
• Working light
• Frequency inverter Delta
• Motor protective switch
• Automatic shut-down
• Regulation of cutting pressure
• PLC-control Delta
• Automatic blade break control
• Hydraulic top clamping
• Roller table

Features Fully automatic metal bandsaws Bernardo BSM 530 NC Pro

• Fully automated model, including automatic lifting of saw arm
• PLC control with program memory locations for entering the required number of cuts and cutting length, with automatic shutdown at the end of the program
• Cutting of profiles, pipes, full rivet iron and non-ferrous materials
• Adjustable hydraulic cylinder for pressure regulation of the saw frame
• Stepless adjustment of the cutting speed by frequency inverter (NC Pro)
• Automatic blade break control stops the machine if blade break
• Increased stability through precision-ground double-column guide
• Ball bedded bandsaw blade guide with quick adjustment to the workpiece width guarantees optimal results

Technical details Fully automatic metal bandsaws Bernardo BSM 530 NC Pro

* with infeed roller tables
