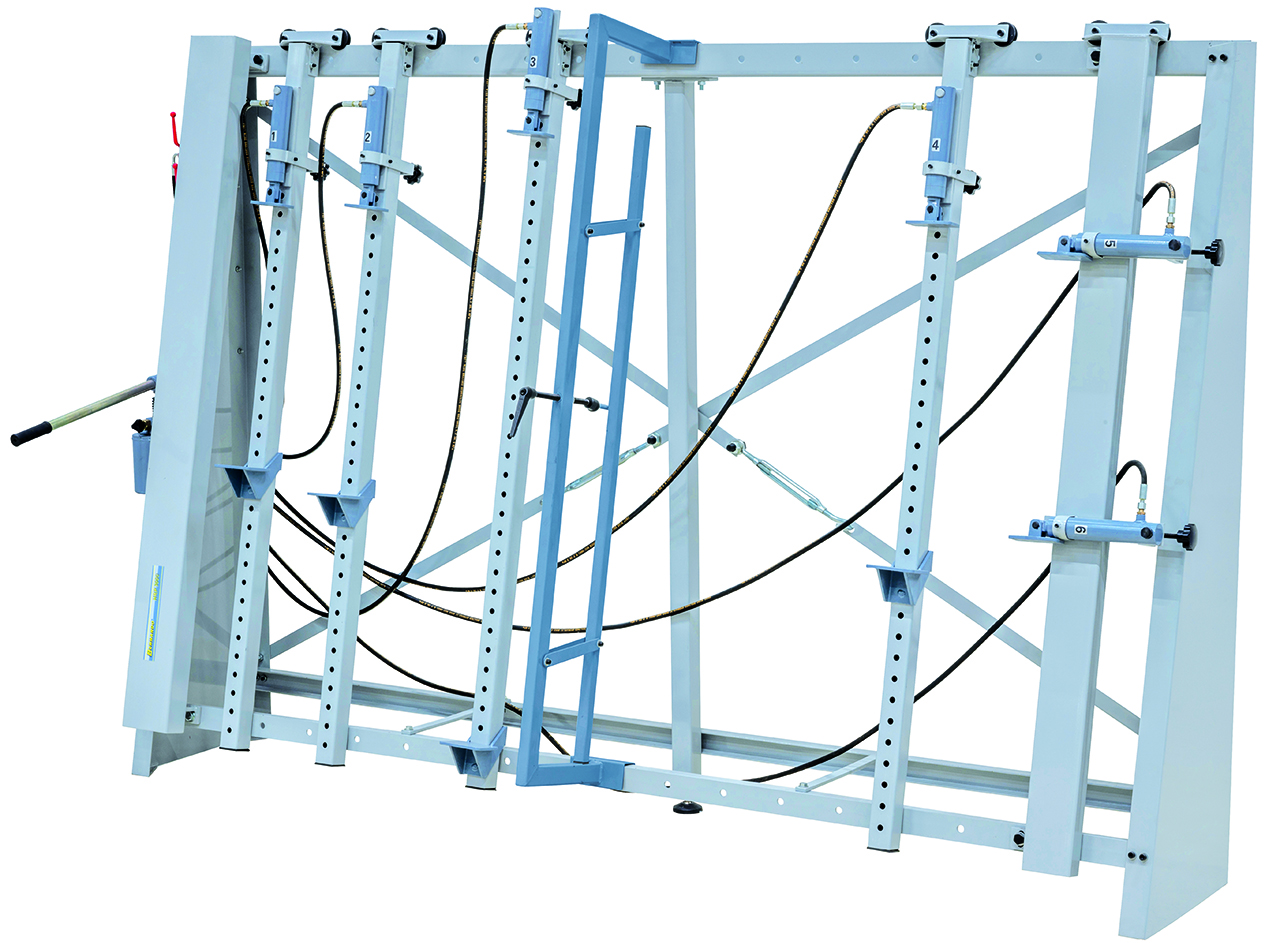

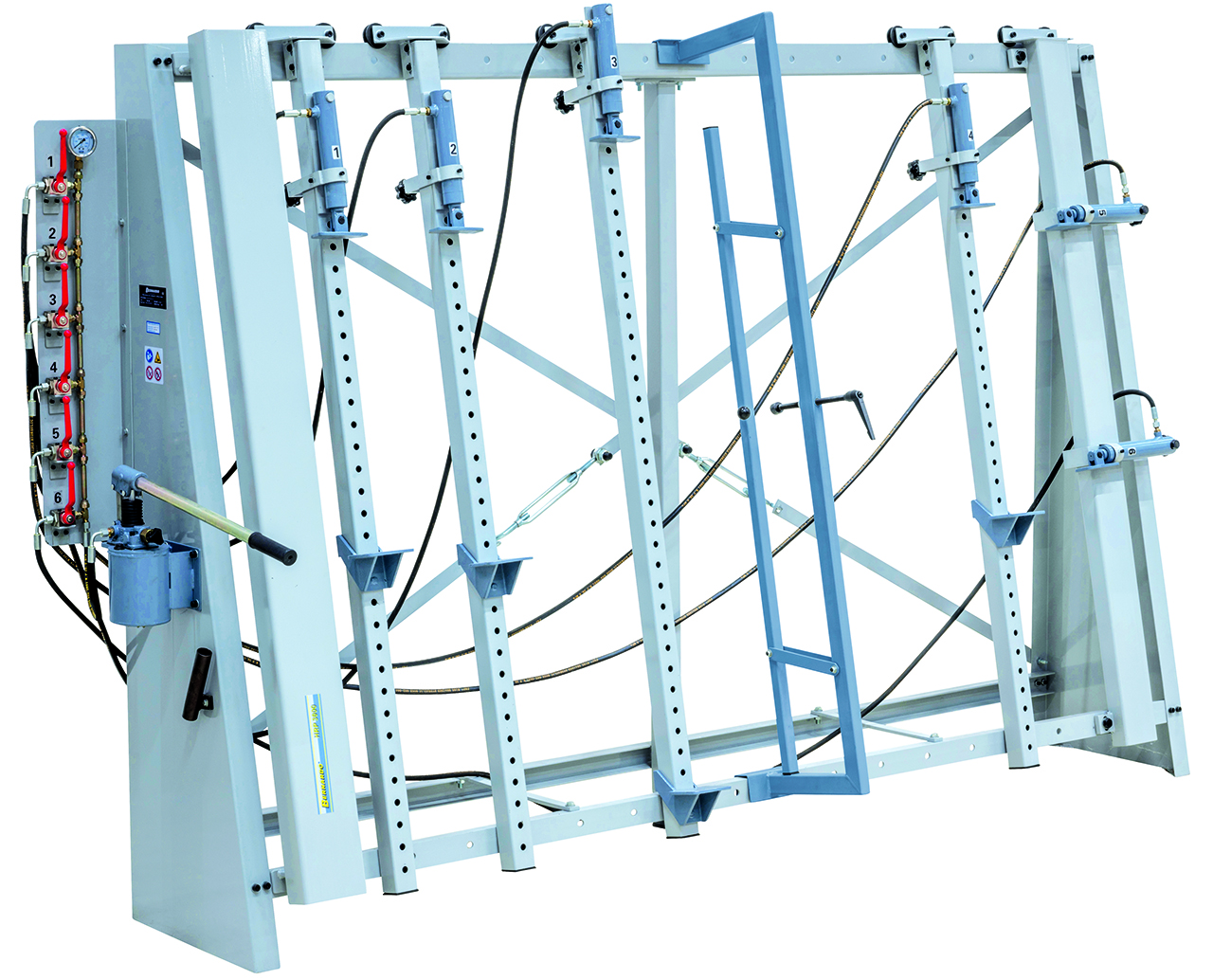

Frame press Bernardo HRP 3000
NEW
Scope of delivery Frame press Bernardo HRP 3000

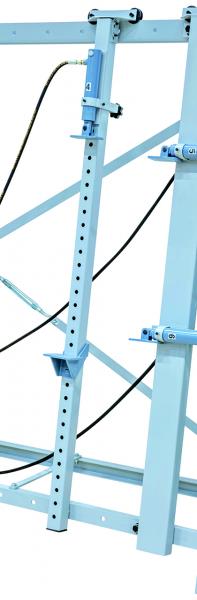

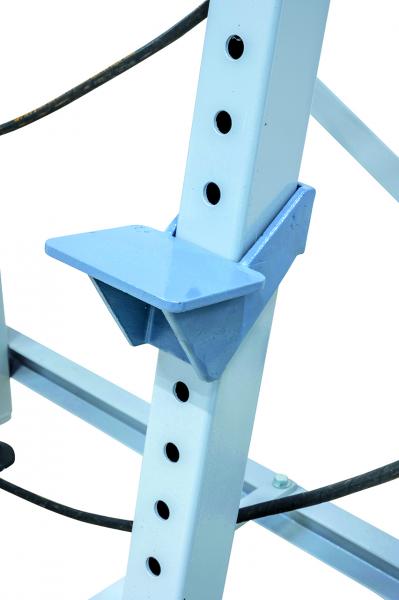

- 4 movable pressure beams, each with a vertical hydraulic cylinder and counter block
- 1 movable pressure beam with two horizontal hydraulic cylinders
- 1 movable, adjustable pressure bracket
Features Frame press Bernardo HRP 3000
Stable and torsion-resistant hydraulic frame press with high-quality pressure cylinders. Whether for furniture or door manufacturing, block or frame gluing, the high pressing pressure of 2000 kg per cylinder and the angle-precise pressing of large-format parts allow all work to be carried out effortlessly.
- Can be used for a wide variety of tasks, such as frame, window and door manufacturing, etc.
- Robust frame press in solid steel construction

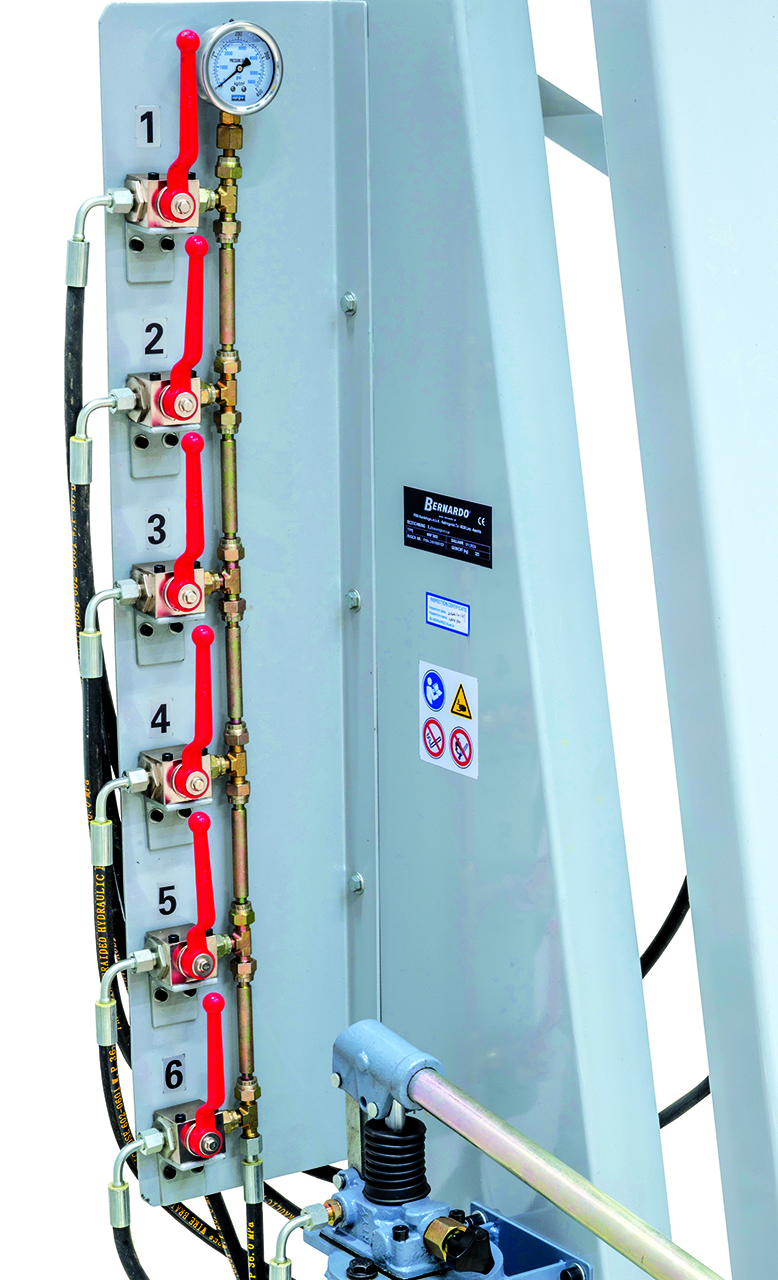

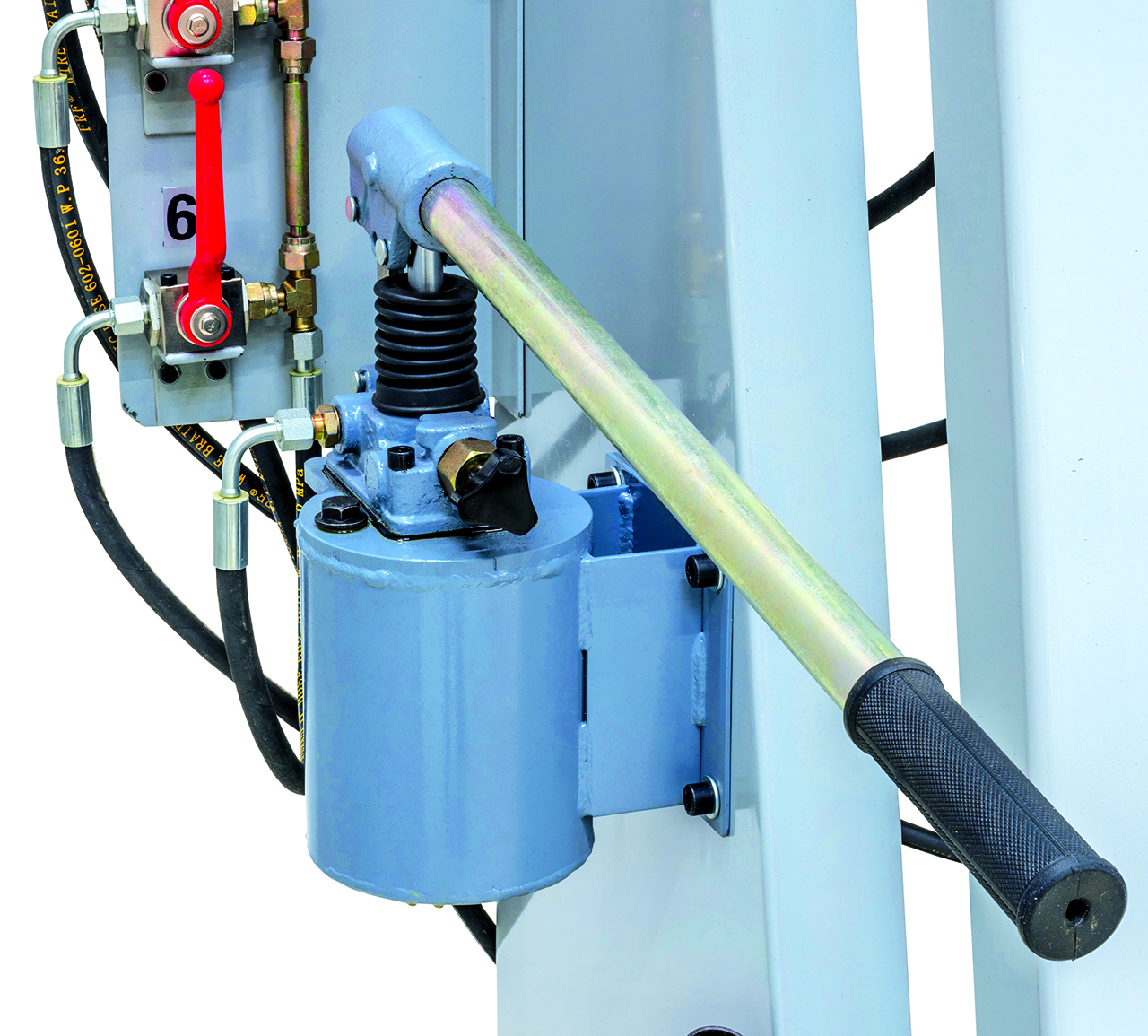

- Central control of the hydraulic cylinders including pressure gauge
- Effective gluing thanks to hydraulic design

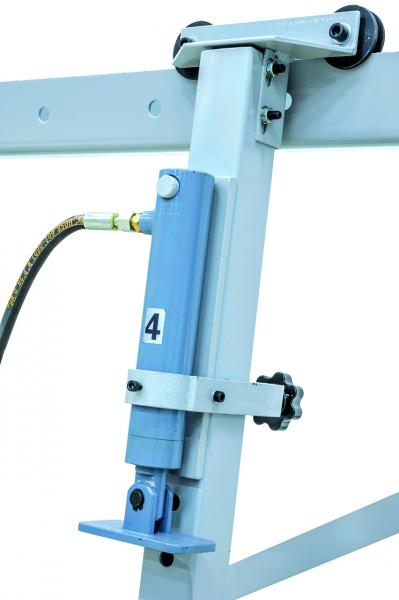

- Pressure cylinder equipped with pendulum plate as standard
Technical details Frame press Bernardo HRP 3000
| Working length | 2400 mm |
| Working height | 1550 mm |
| Cylinder stroke | 95 mm |
| Pressing force | 2000 kg |
| Vertical hole spacing | 50 mm |
| Horizontal hole spacing | 160 mm |
| Total length | 3250 mm |
| Total height | 2070 mm |
| Frame depth | 925 mm |
| Weight approx. | 315 kg |
