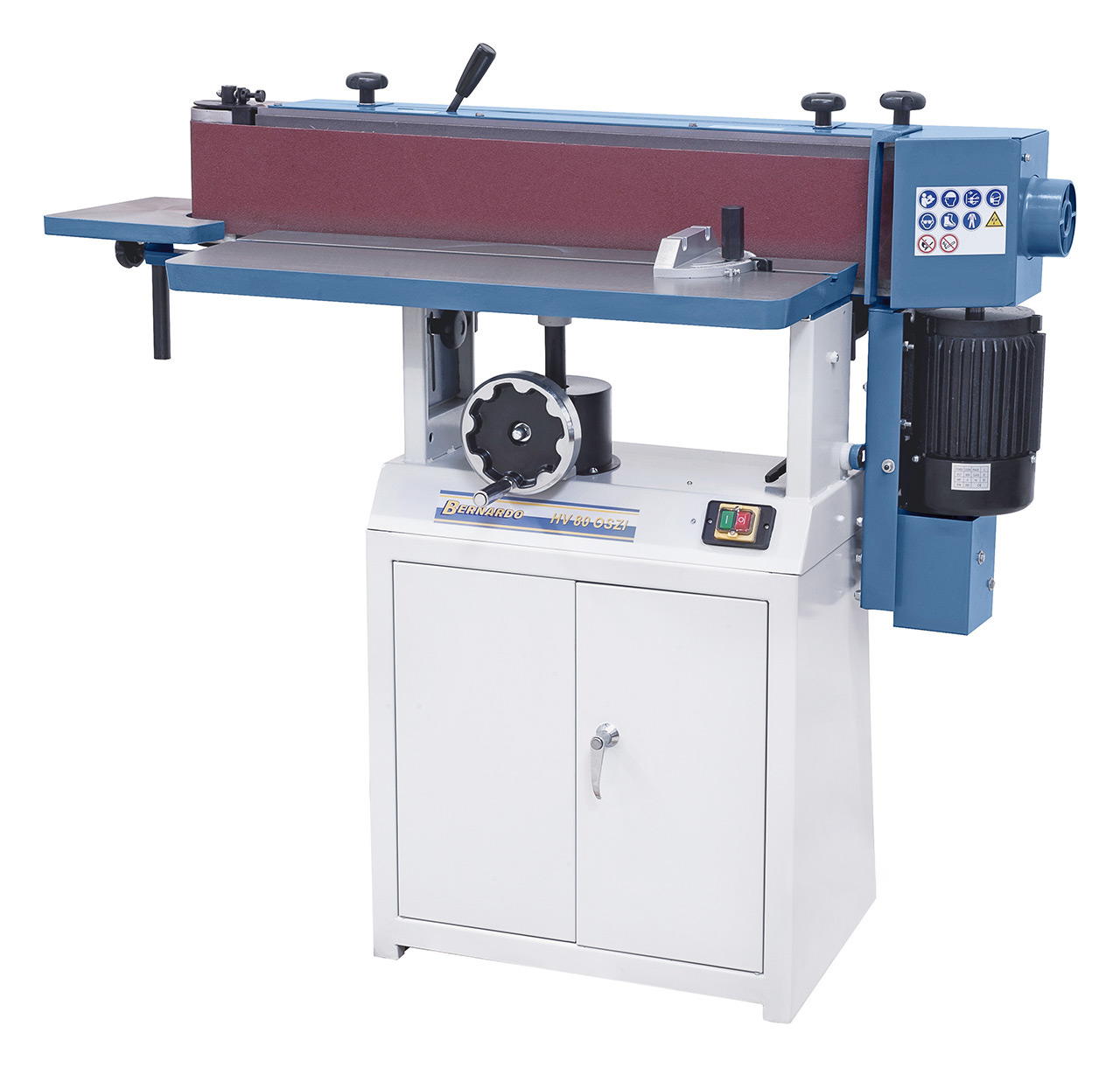

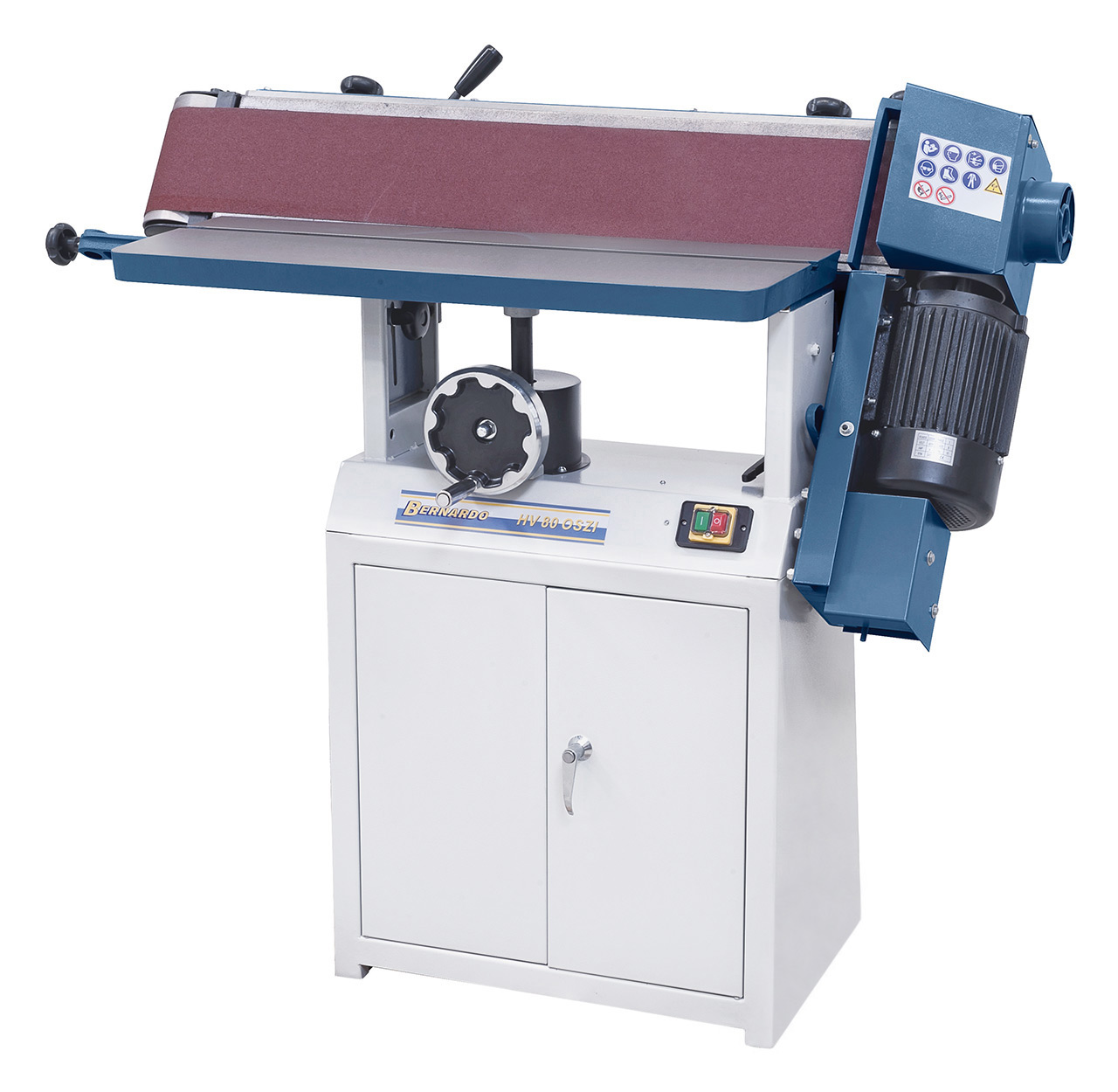

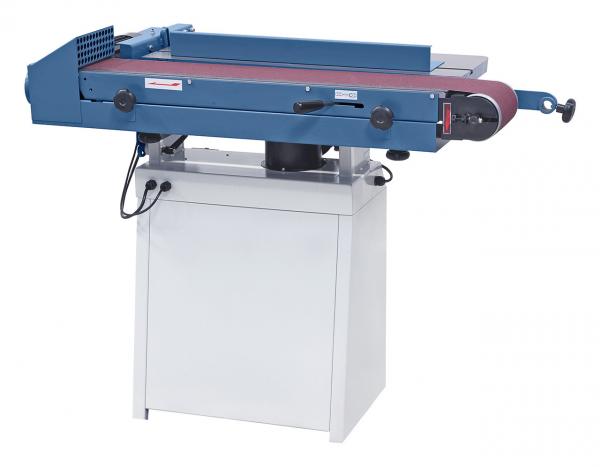

The HV 80 OSZI is a powerful, universal edge sanding machine suitable for sanding of wood, glass, plastics and non-ferrous metals. When using fabric belts, metals can also be sanded. The stepless tilting function in vertical position increases the application area significantly.
Scope of delivery Edge sanding machine Bernardo HV 80 OSZI
- Sanding belt 2510 x 150 mm - grit 100

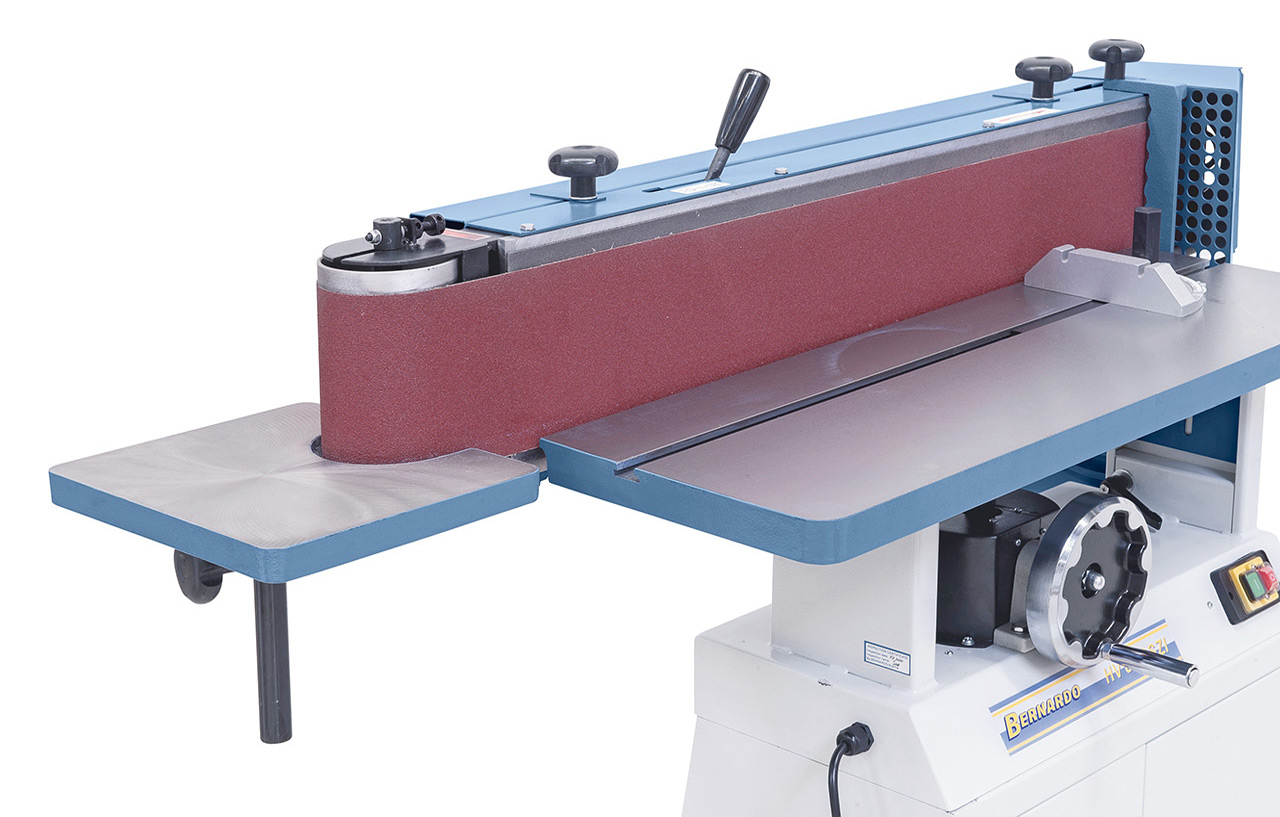

- Supporting table
- Mitre fence
- Sanding belt oscillation
- Stop bar
- Stand (with tool storage)
Features Edge sanding machine Bernardo HV 80 OSZI

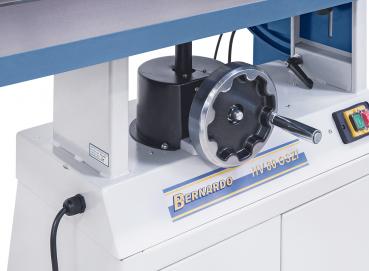

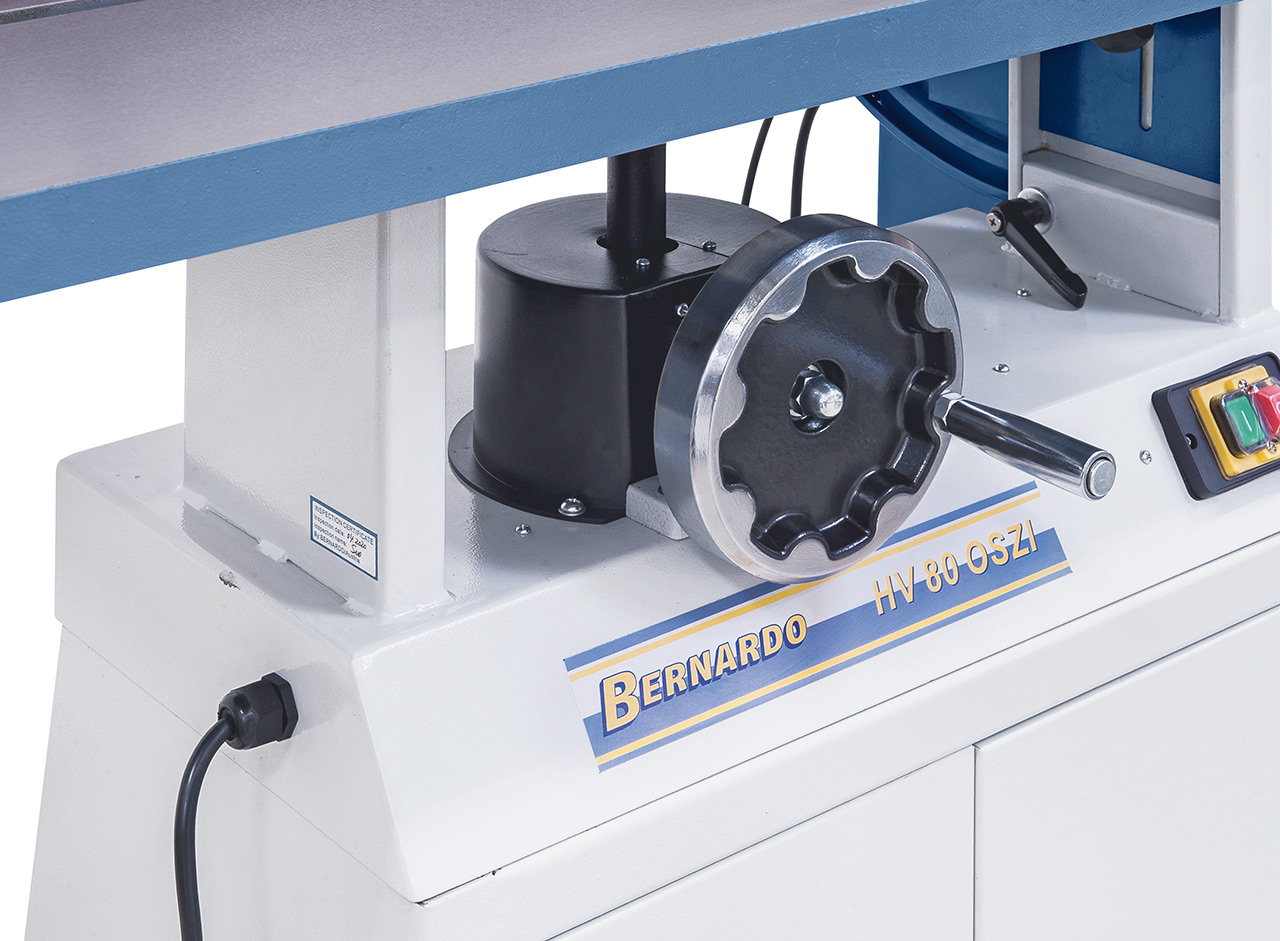

- Height adjustable, grey cast-iron table allows for sanding belt to be used along its entire width

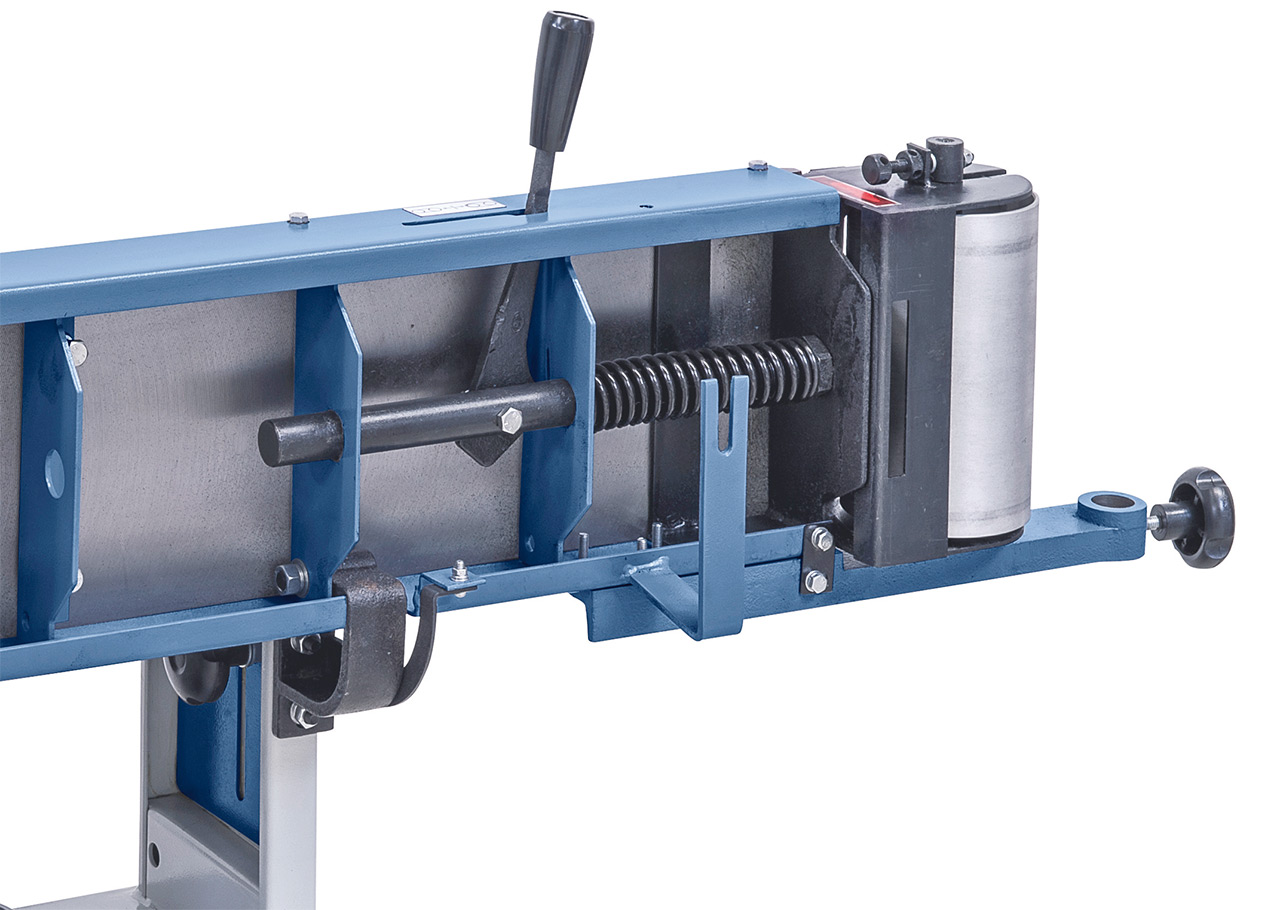

- Spring balanced clamping device guarantees even belt tension
- Oscillation ensures optimal use of the sanding belt

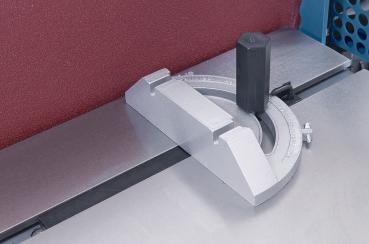

- Complete with mitre fence, adjustable from -45º to +45º
- Clamping lever allows for quick and easy sanding belt change
- Tool storage with shelving is part of standard equipment
Technical details Edge sanding machine Bernardo HV 80 OSZI
| Work table | 850 x 300 mm |
| Table height adjustment | 90 mm |
| Belt length | 2510 mm |
| Belt width | 150 mm |
| Sanding table | 950 x 200 mm |
| Sanding unit lockable | 90° / 0° |
| Belt speed | 16 m/sec. |
| Supporting table | 300 x 250 mm |
| Dust extraction outlet | 100 mm |
| Roller diam. | 110 mm |

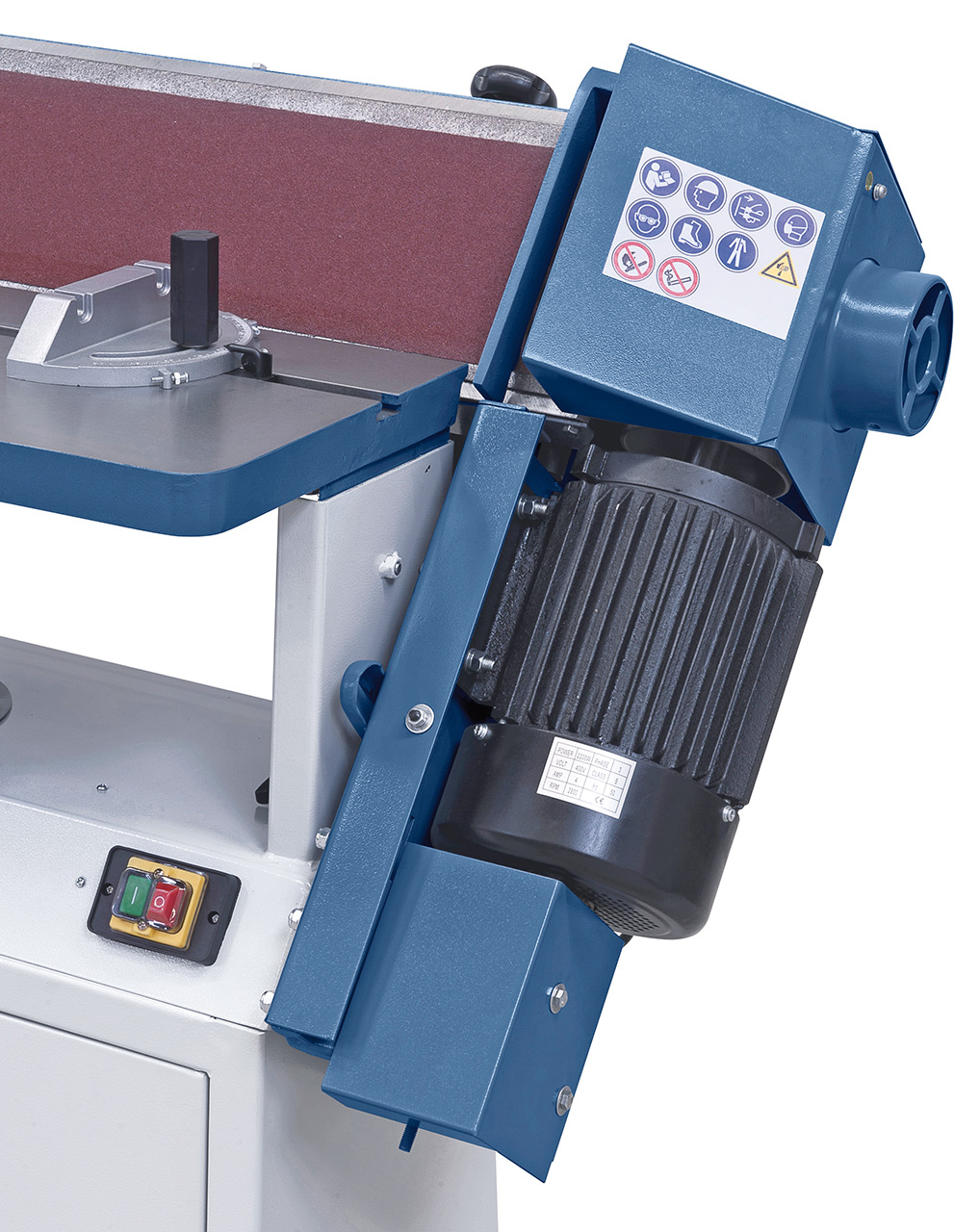

| Motor power output S1 100% | 1,5 kW (2,0 HP) |
| Motor power input S6 40% | 2,1 kW (2,8 HP) |
| Voltage | 400 V |
| Machine dimension (W x D x H) | 1400 x 680 x 1220 mm |
| Weight approx. | 148 kg |
