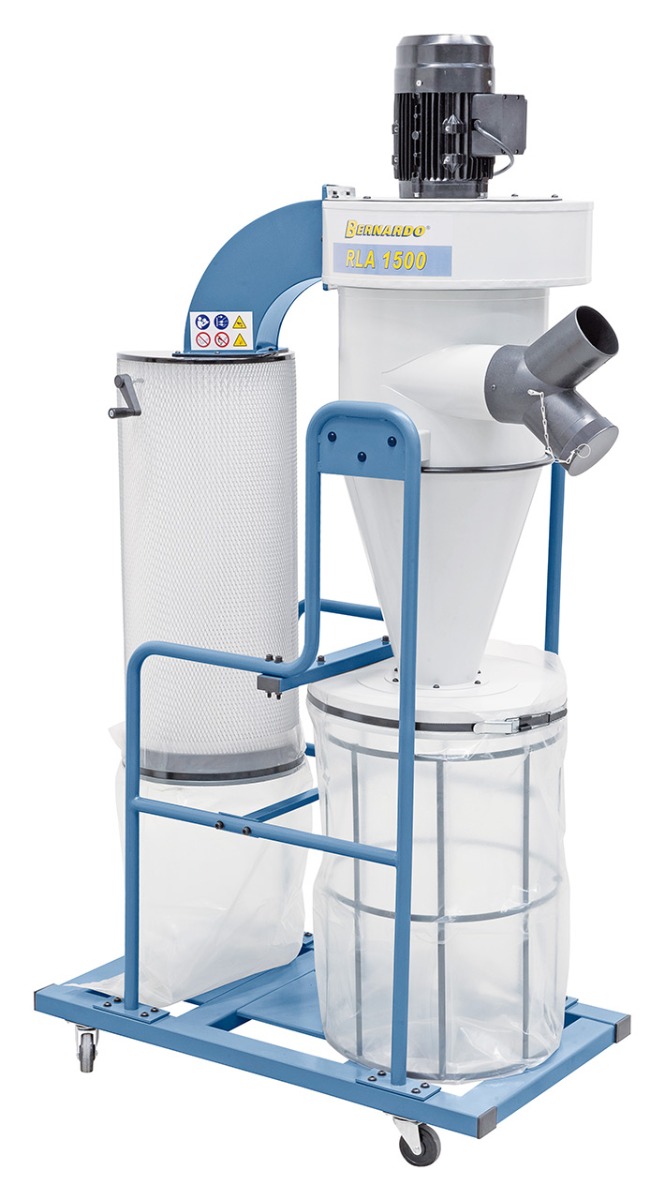

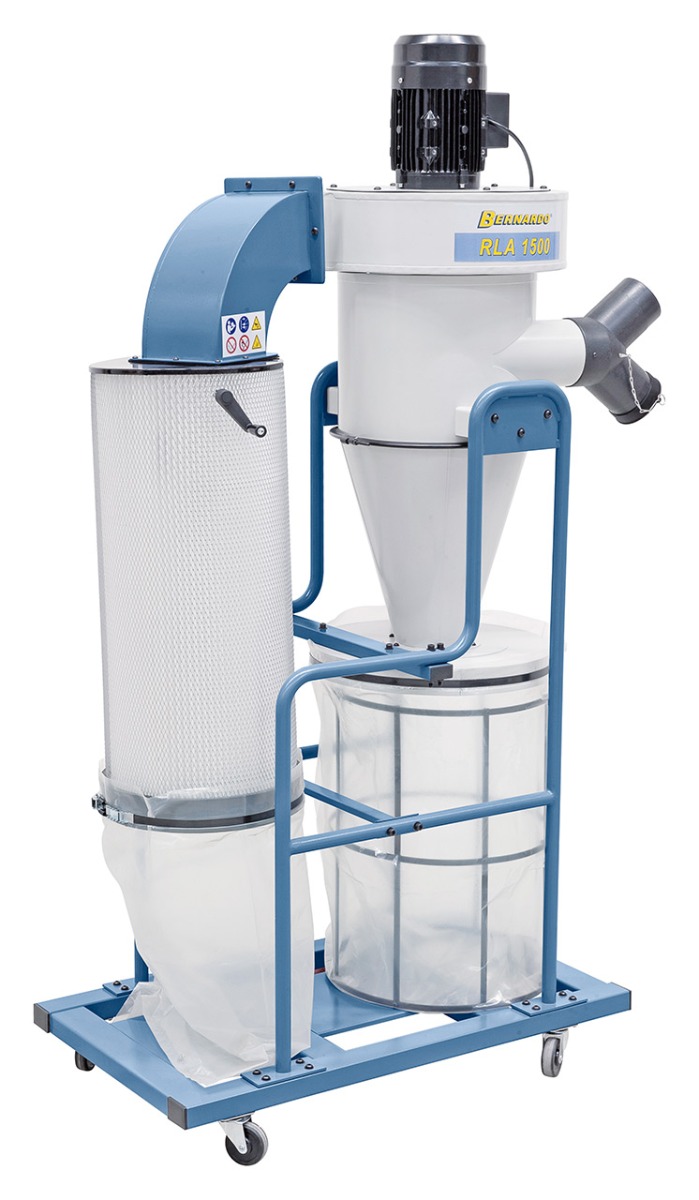

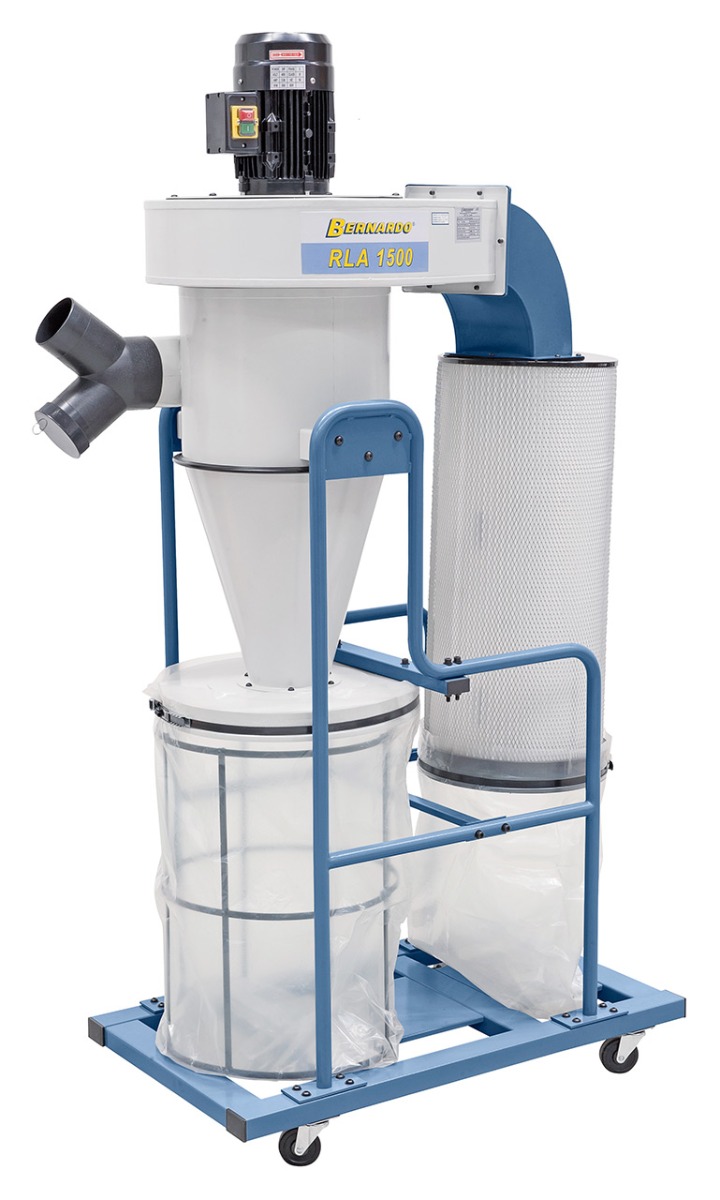

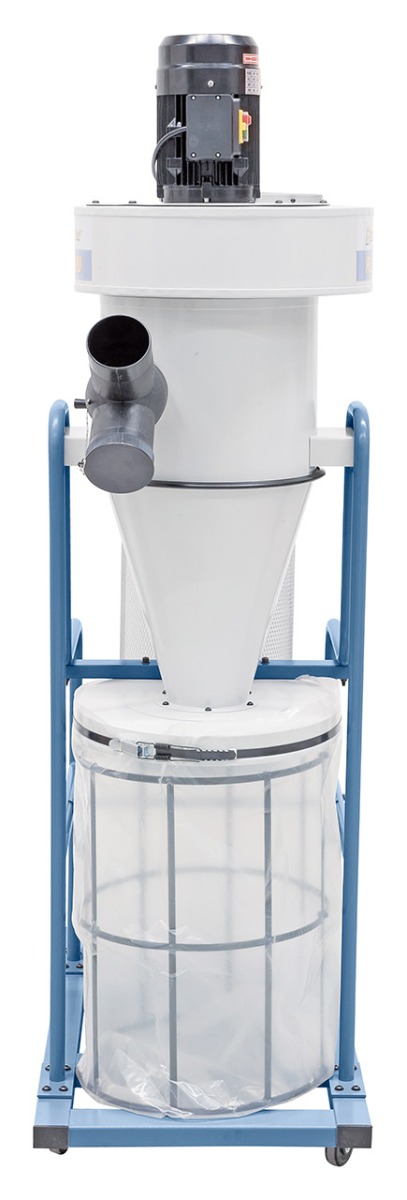

The cyclone-extractor RLA 1500 improve through the double chip filtration (cyclone / cartridge filter) the performance of your wood working machine and keep the workspace free from chips and sawdust. Additionally, this model can also be used for suction of plastics, lint, etc.
Scope of delivery Dust collectors Bernardo RLA 1500 / 400 V
- Waste bag
- Dust bag
- Cartridge filter
- Carriage
Features Dust collectors Bernardo RLA 1500 / 400 V
- Solid steel sheet construction reduces static charge contrary to plastic housings

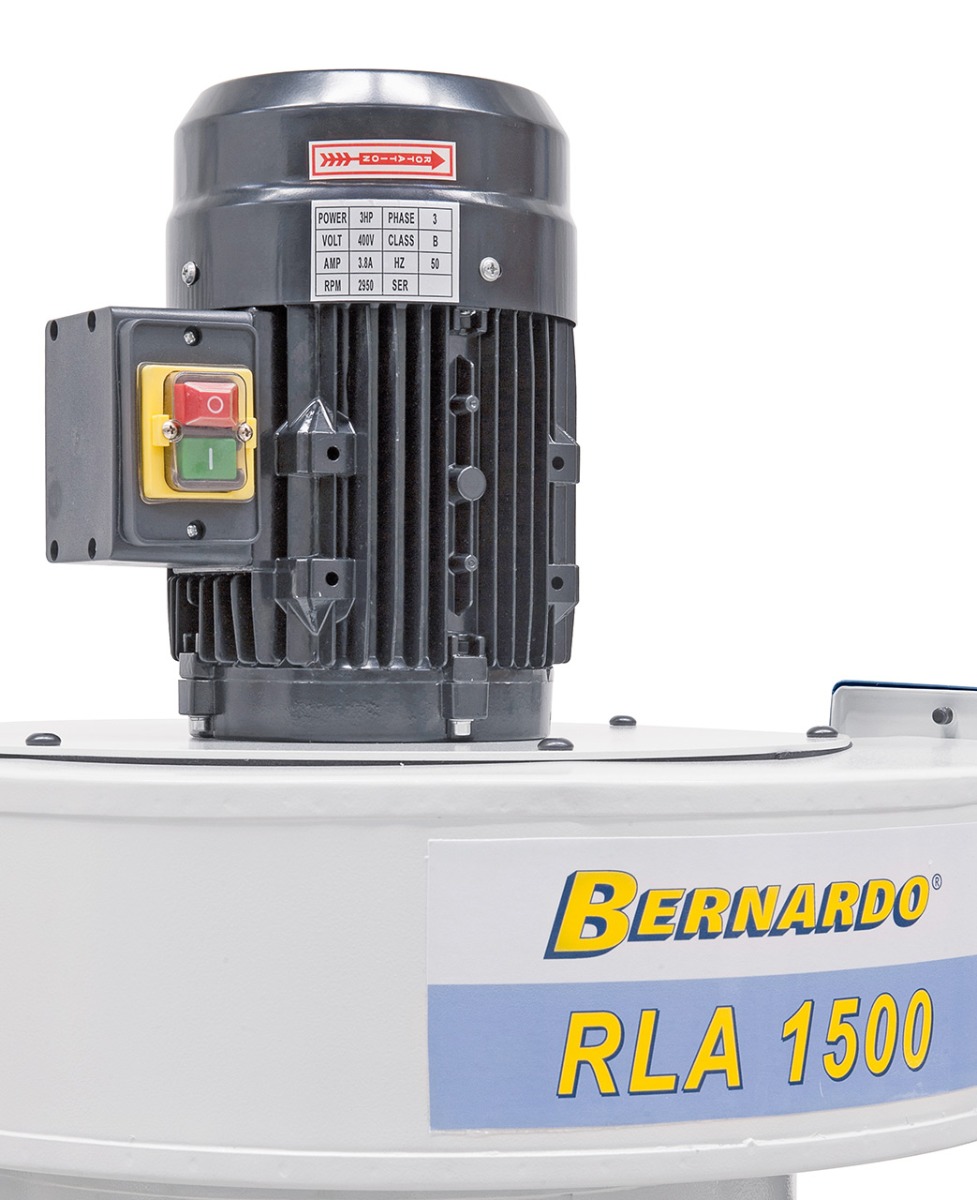

- Powerful drive motor guarantees constant level of extraction
- Mobil cyclone-extractors for small to mid-sized trades

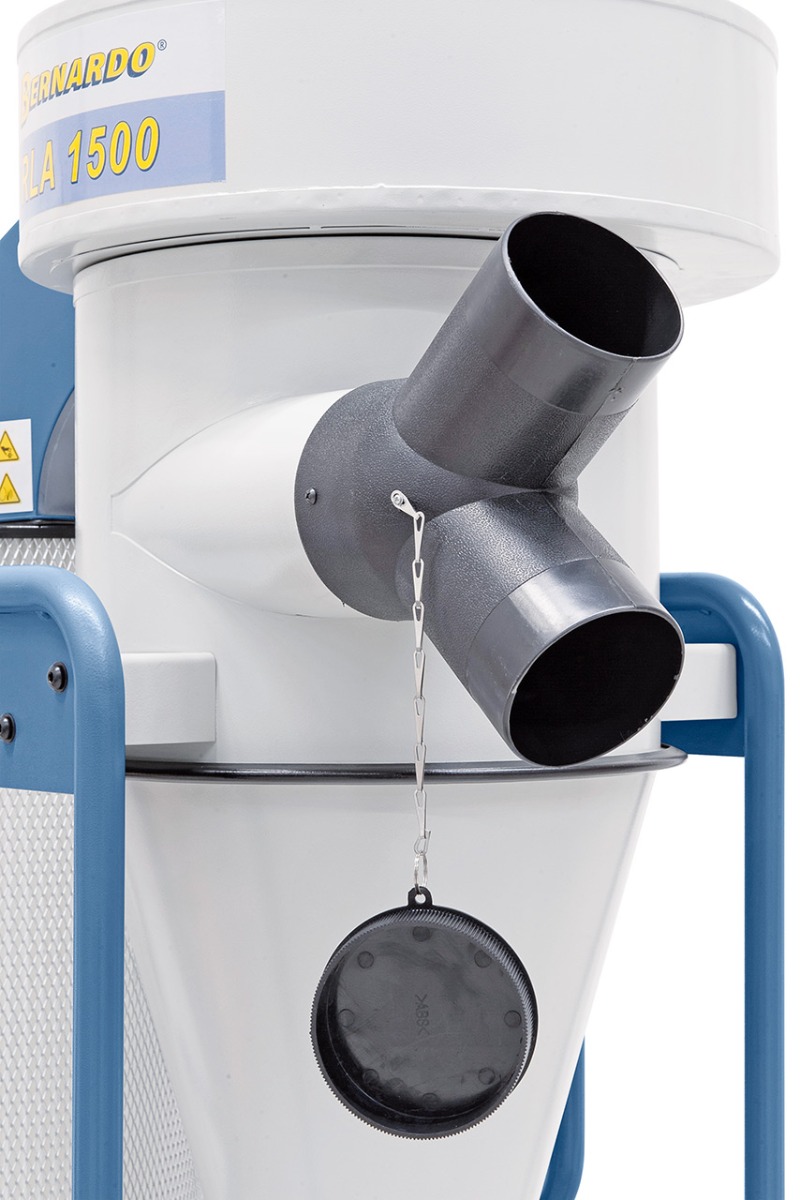

- Includes adapter to attach two machines simultanously
- Steel fan wheel resistant to suction of small pieces of wood
- High-quality powder coating creates scratch-resistant surface
- Complete with cartridge filter out of polyester, residual dust content 0,1 mg/m³
- Aerodynamically shaped, steel plate fan wheel ensures top performance
- Cartridge filter including cleaning brushes for removal of fine dust are part of equipment
Technical details Dust collectors Bernardo RLA 1500 / 400 V
|
Capacity |
950 m3/h
|
|
Filter area
|
3,5 m2 |
|
Low pressure max.
|
2600 Pa
|
|
Inlet diameter
|
1x 125 mm / 2x 100 mm
|
|

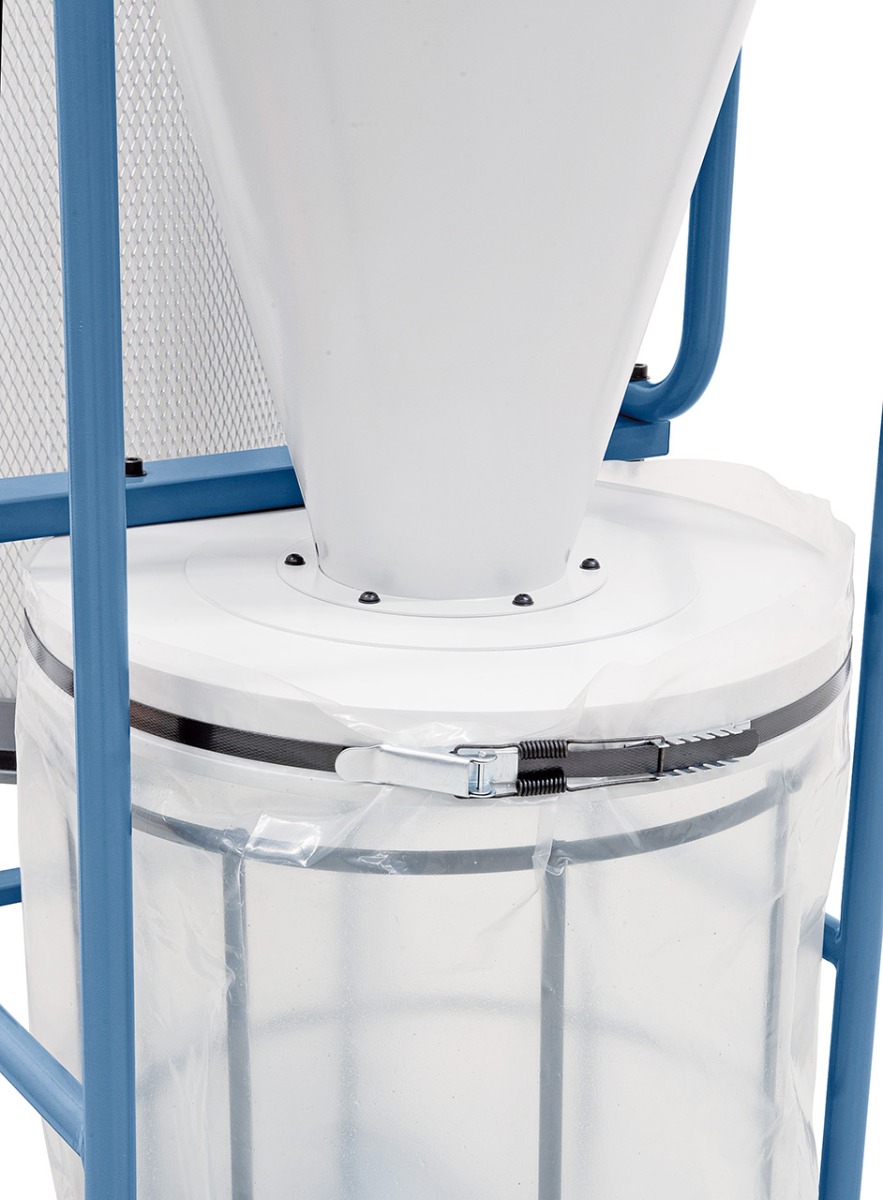

Waste bag
|
Ø 370 x 500 mm
|
|
Waste bag volume
|
45 l
|
|
Volume dust bag
|
130 l
|
|
Idle speed
|
2850 rpm
|
|
Sound pressure
|
80 dB
|
|
Motor power output S1 100% |
2,2 KW (3,0 HP) / 400 V
|
|
Motor power input S6 40% |
3,0 kW (4,2 HP) / 400 V
|
|
Machine dimension (W x D x H) |
1020 x 580 x 1940 mm
|
|
Weight approx.
|
80 kg
|
