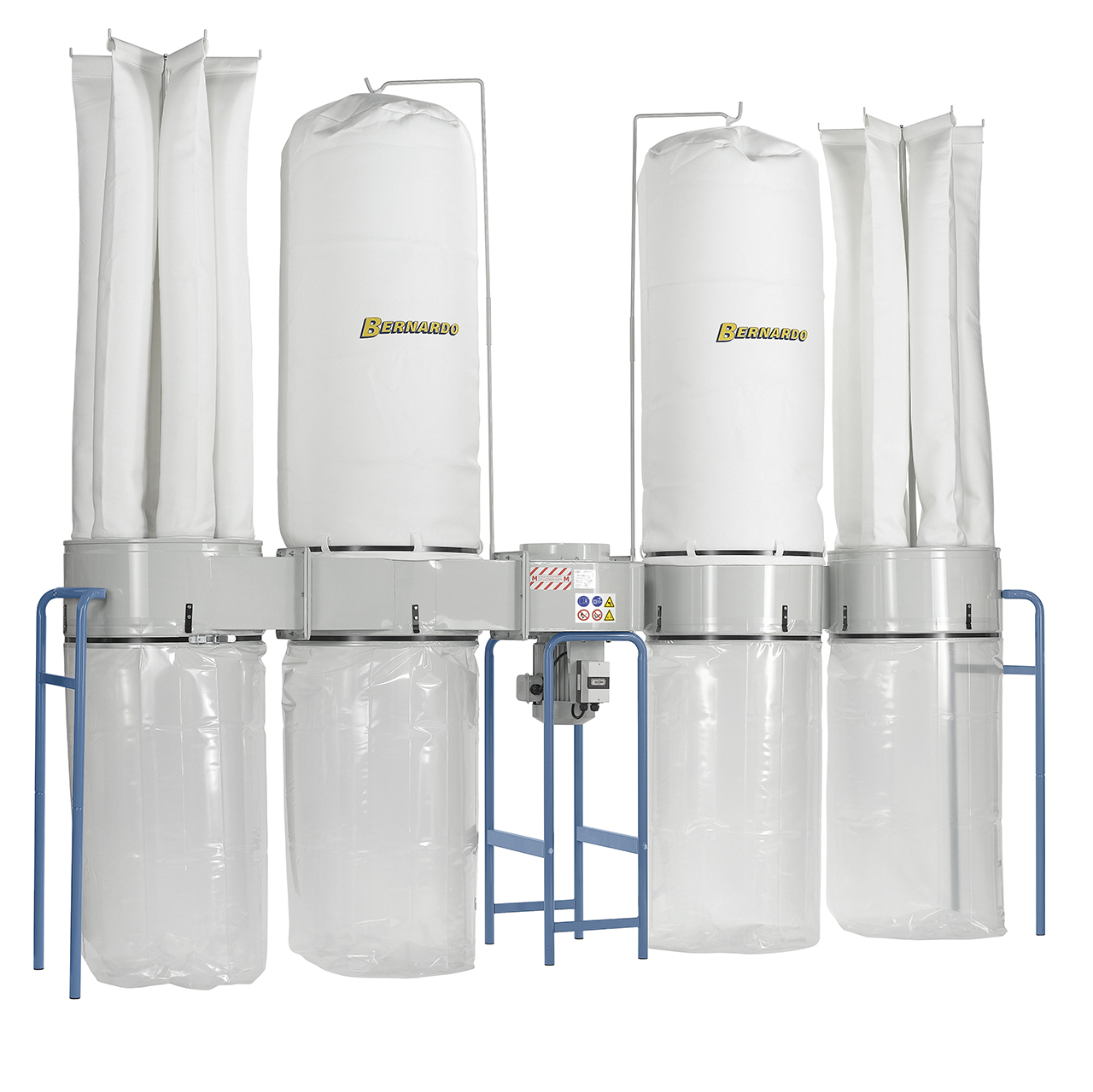

The FT 540 SF powerful dust collector is suitable for the commercial use of dust extraction - grade M, norm IEC 60335-2-69.
Scope of delivery Dust collectors Bernardo FT 504 SF
- Hose filter

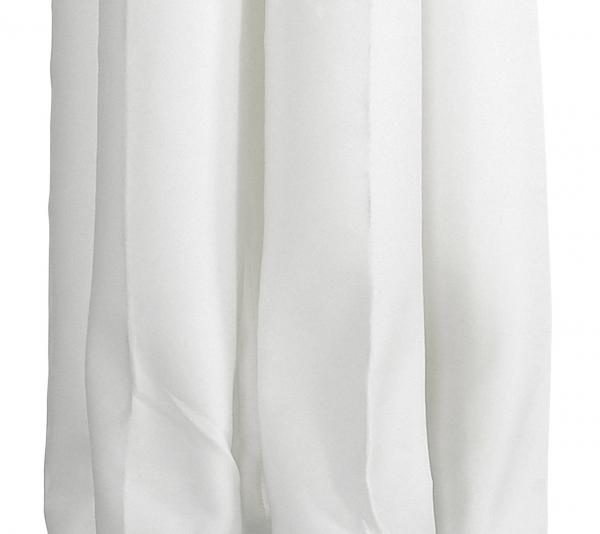

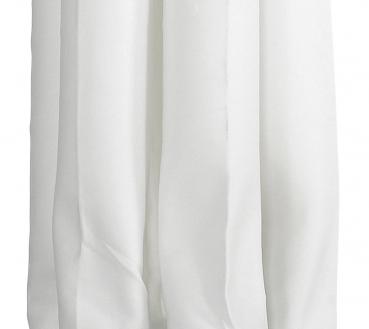

- Filter bag
- Waste bag
Features Dust collectors Bernardo FT 504 SF
- Fine filter bags (dust grade M) reduce dust content in air
- Modern design and optimal price-to-performance ratio
- Paddle-shaped profi le of the metal fan-wheel ensures top performance
- Steel fan wheel resistant to extracting small pieces of wood
- Fine filter bags ensure clean work conditions, significant reduction of dust content in the air
- Suitable for wood, plastics, metals, polystyrene etc.
- High-grade powder coating makes surface scratch-resistant
Technical details Dust collectors Bernardo FT 504 SF
|
Capacity
|
8900 m3/h
|
|
Filter area
|
19,0 m2 |
|
Low pressure max.
|
1900 Pa
|
|
Inlet diameter
|
300 mm
|
|
Waste sack volume
|
1130 l
|
|
Idle speed
|
2850 rpm
|
|
Sound pressure
|
82 dB
|
|
Motor power output S1 100%
|
3,75 kW (5,0 HP)
|
|
Motor power input S6 40%
|
5,25 kW (7,1 HP)
|
|
Voltage
|
400 V / 50 Hz
|
|
Machine dimension (W x D x H)
|
2800 x 700 x 2700 mm
|
|
Weight approx.
|
105 kg
|
