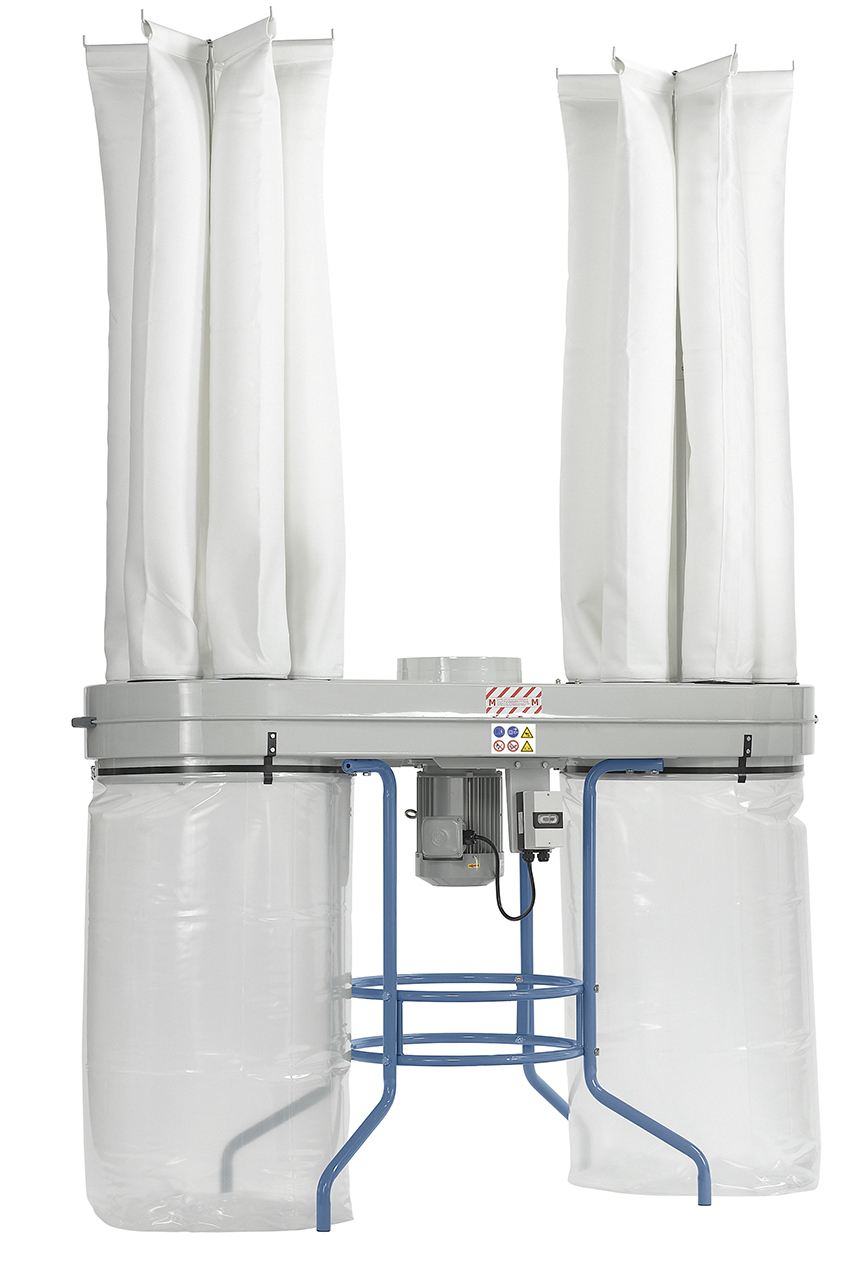

The FT 502 SF is a powerful dust collector suitable for commercial use of dust extraction - grade M, norm IEC 60335-2-69.

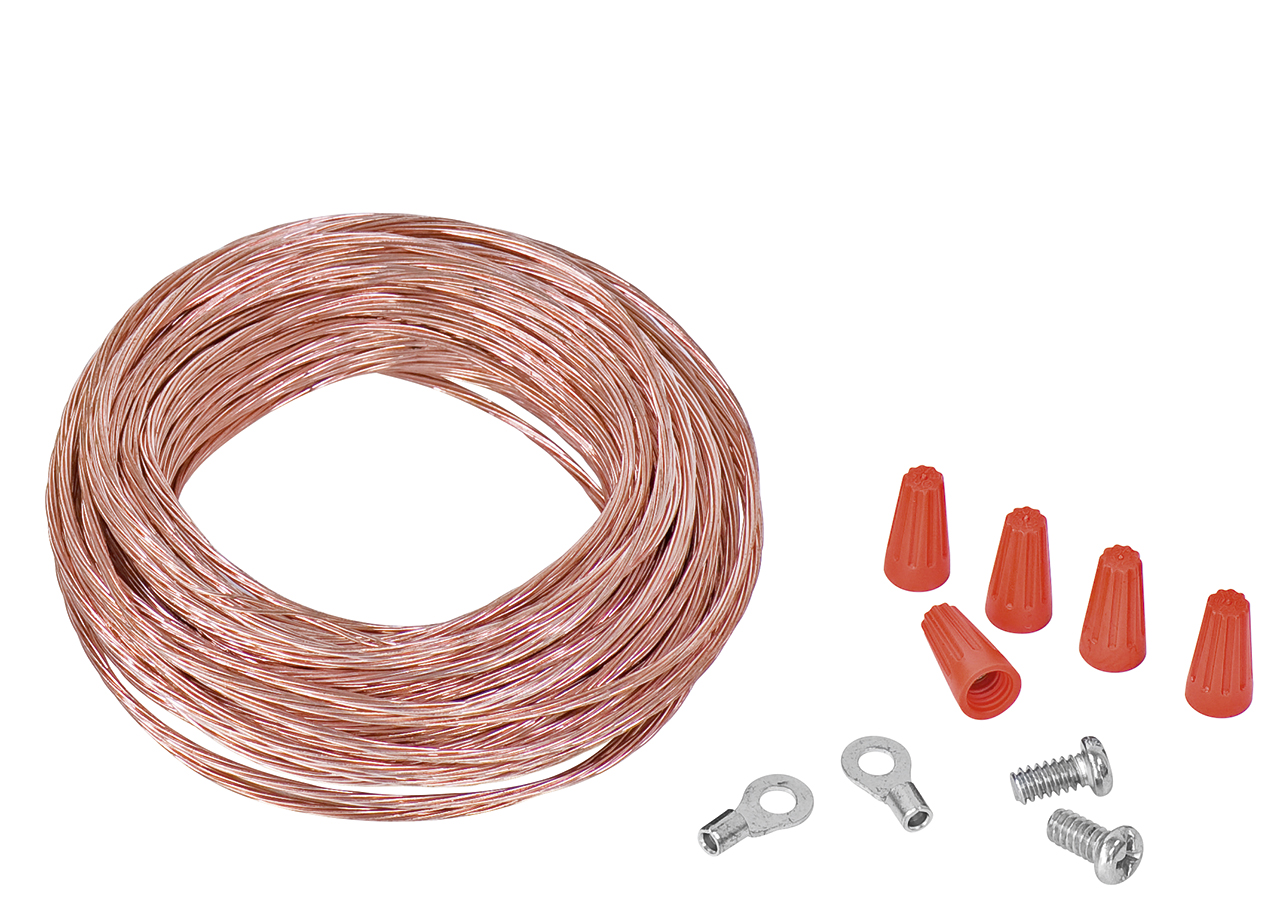

Scope of delivery Dust collectors Bernardo FT 502 SF
Features Dust collectors Bernardo FT 502 SF

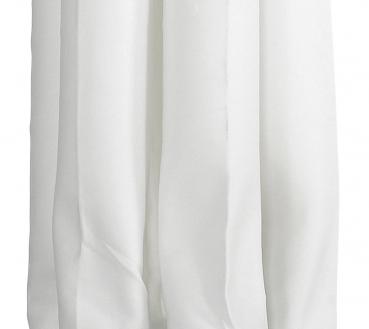

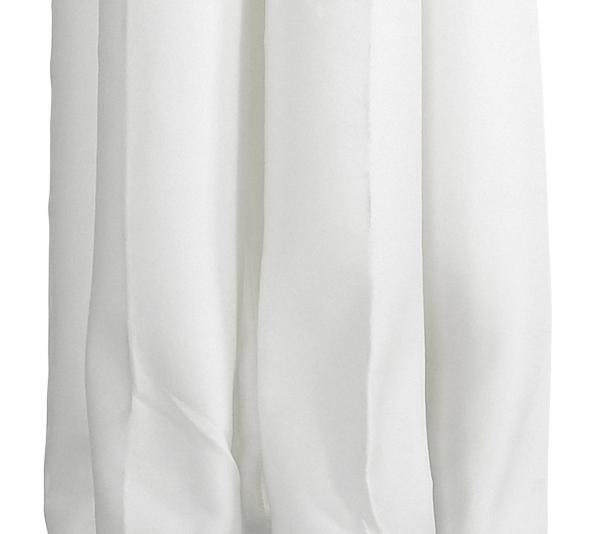

- Fine filter bags allow for clean work space and signifi cant reduction of dust content in air
- Fine filter bags (dust grade M) reduce dust content in air
- Steel fan wheel resistant to extracting small pieces of wood
- Paddle-shaped profi le of the metal fan-wheel ensures top performance
- Suitable for wood, plastics, metals, polystyrene etc.
- High-grade powder coating makes surface scratch-resistant
- Modern design and attractive price-to-benefit ratio
Technical details Dust collectors Bernardo FT 502 SF
|
Capacity
|
7900 m3/h
|
|
Filter area
|
13,2 m2 |
|
Low pressure max.
|
1900 Pa
|
|
Inlet diameter
|
300 mm
|
|

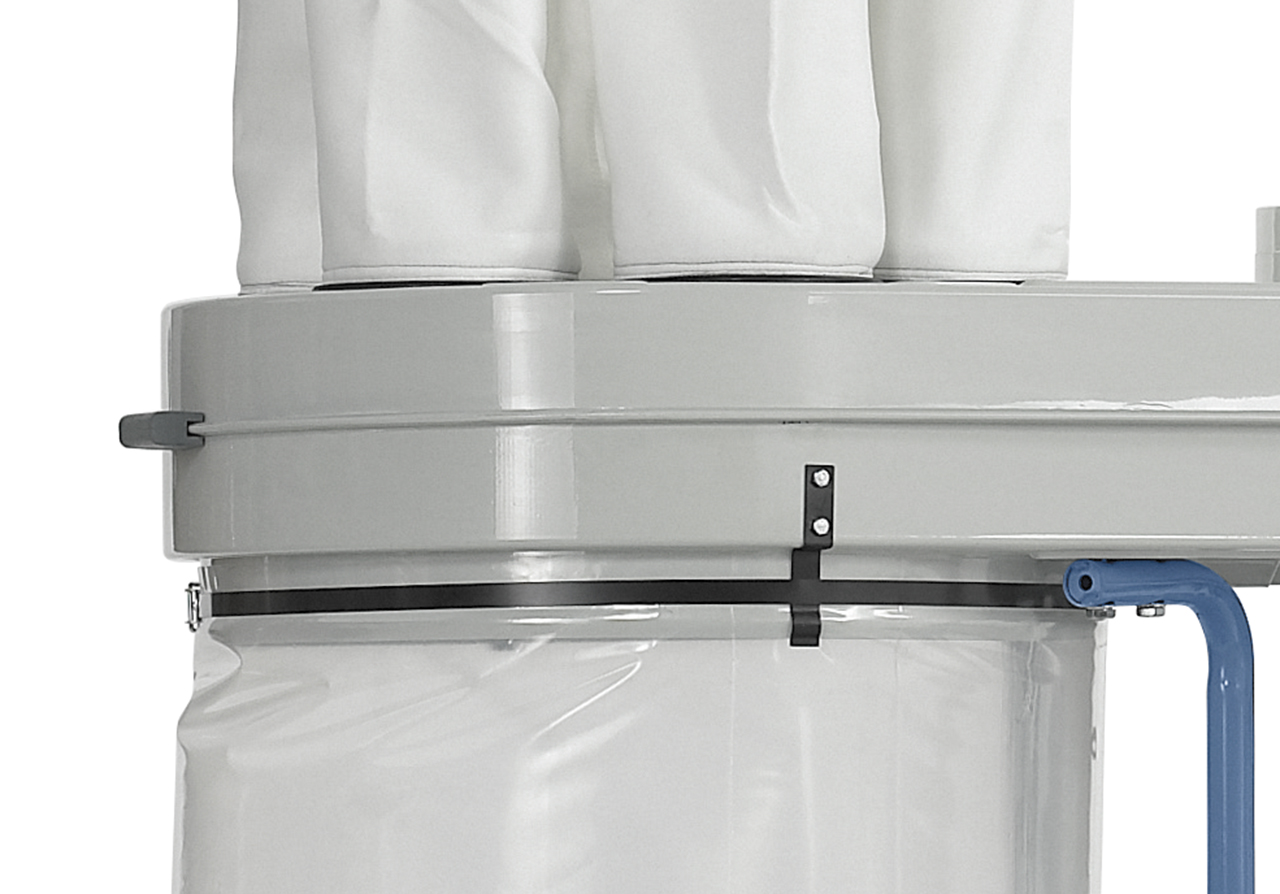

Waste sack volume
|
565 l
|
|
Idle speed
|
2850 rpm
|
|
Sound pressure
|
82 dB
|
|

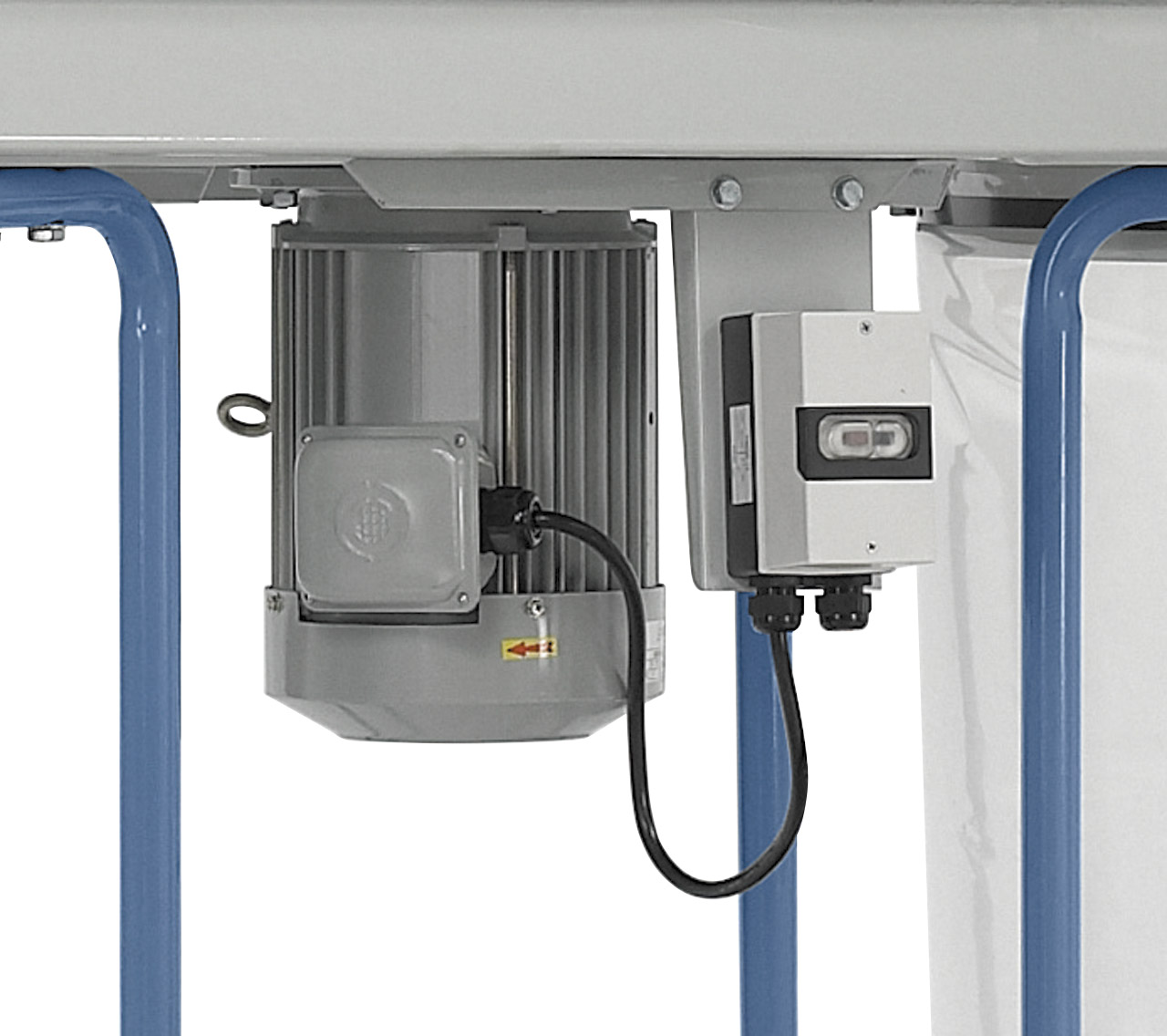

Motor power output S1 100%
|
3,75 kW (5,1 HP)
|
|
Motor power input S6 40%
|
5,25 kW (7,1 HP)
|
|
Voltage
|
400 V / 50 Hz
|
|
Machine dimension (W x D x H)
|
1900 x 700 x 2700 mm
|
|
Weight approx.
|
95 kg
|
