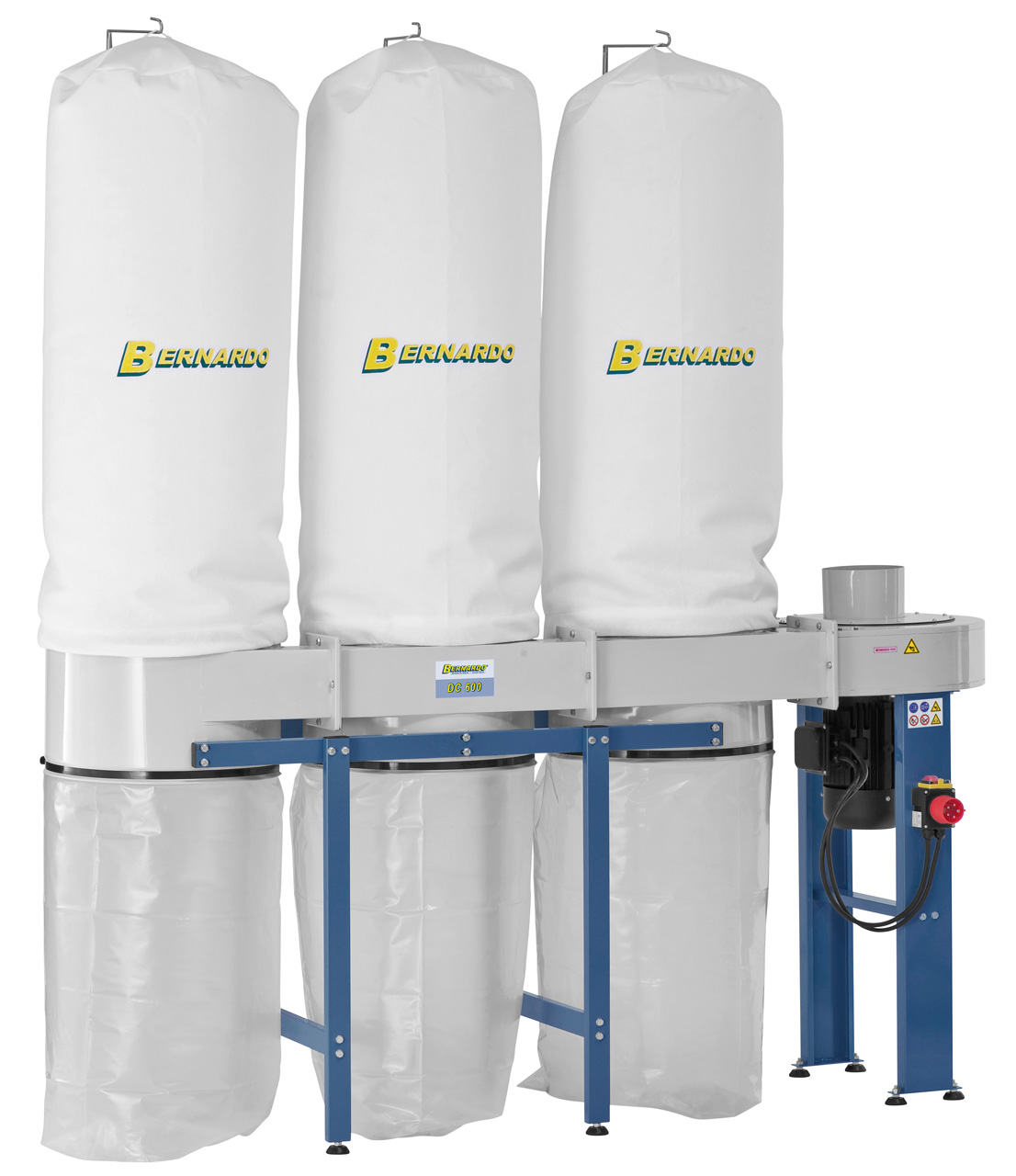

The DC 600 dust collector comes with significant advantages - economic operation, cost effectiveness and the chance to connect four machines simultanously - making these models ideal for smaller workshops.
Scope of delivery Dust collectors Bernardo DC 600

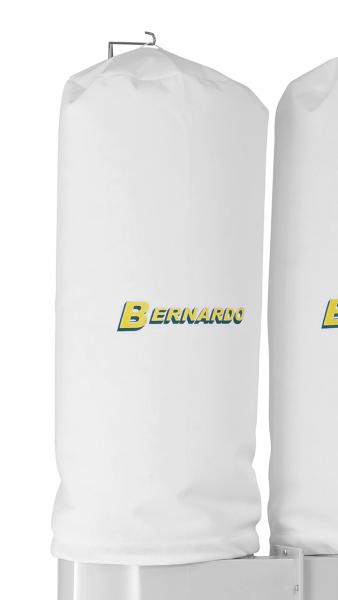

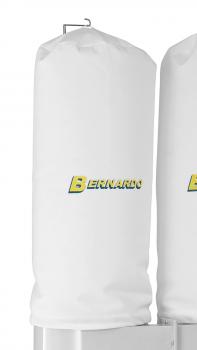

- 3 filter bags
- Waste bags

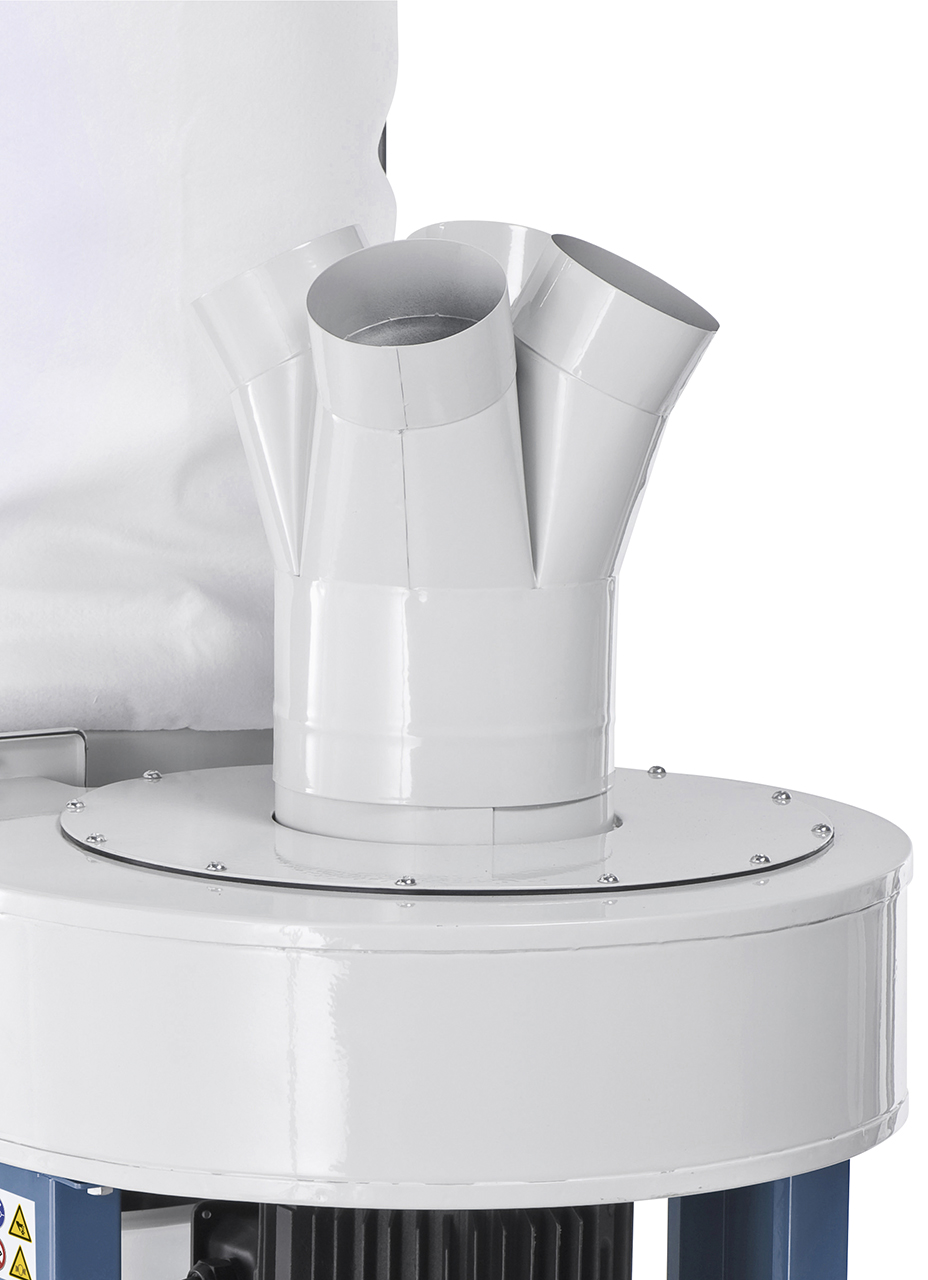

- Adapter 1 x 180 mm / 4 x 100 mm
Features Dust collectors Bernardo DC 600
- Suitable for a variety of materials, such as wood, plastics, polystyrene etc.
- Generous size of dust bags for maximum work comfort
- Steel fan wheel resistant to suction of small pieces of wood
- Optimized design increases performance level

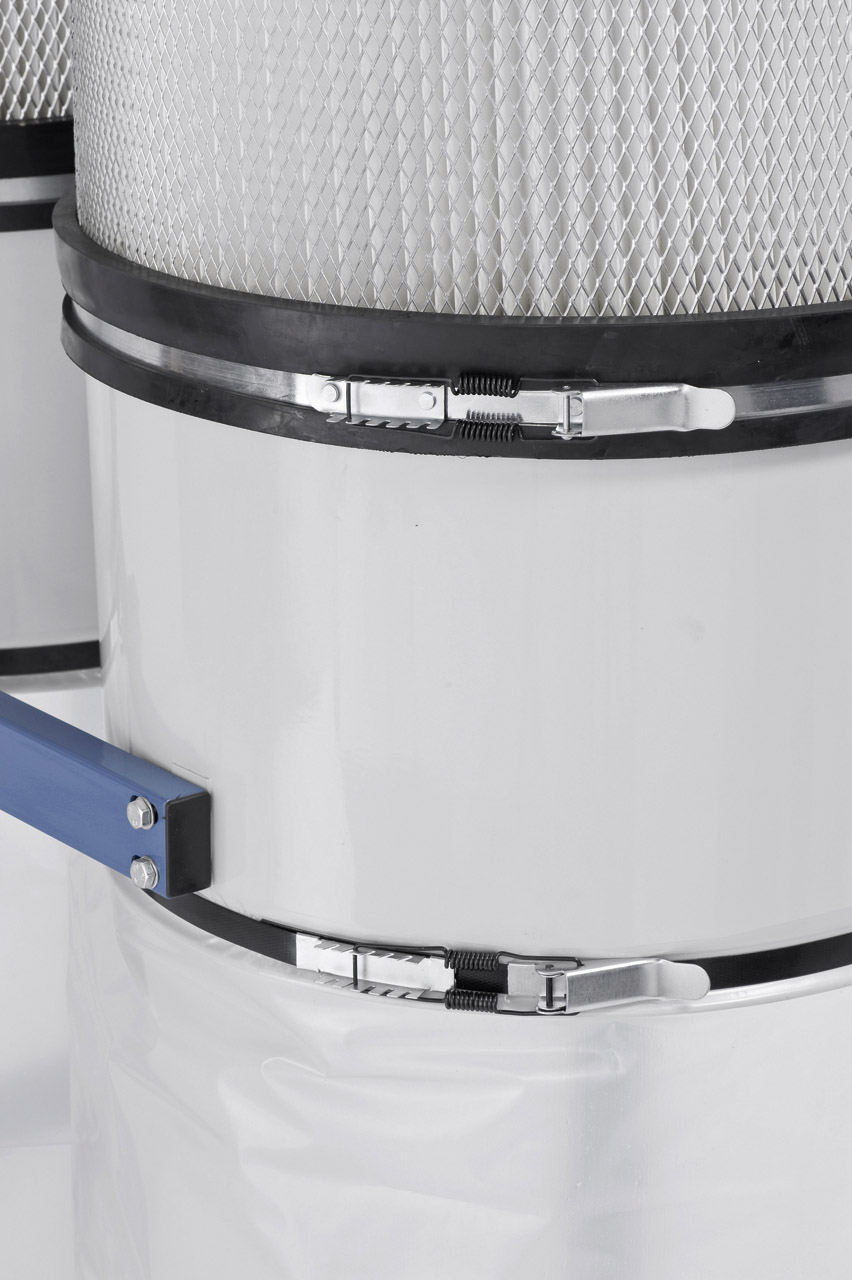

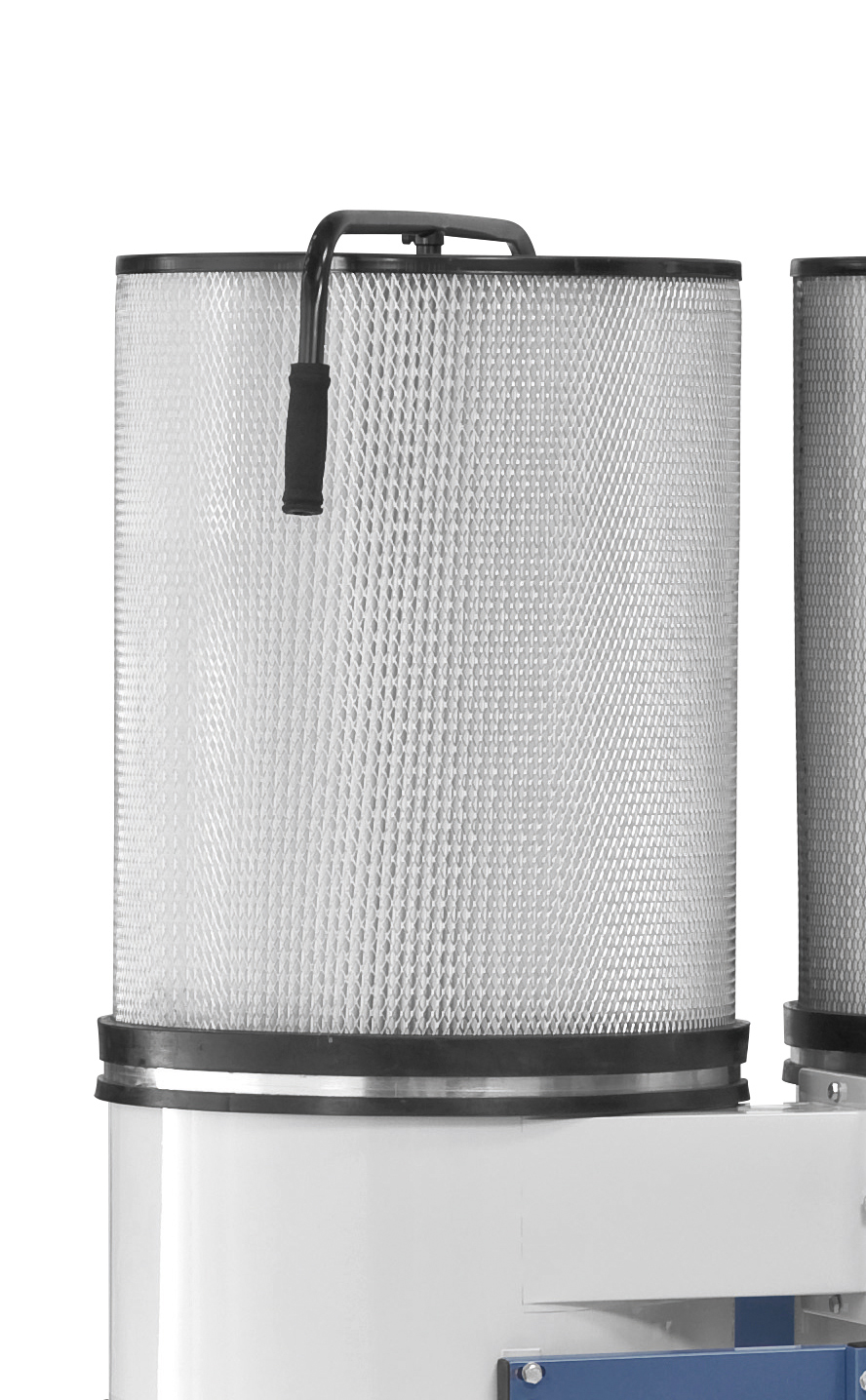

- Replaceable cartridge filter increases the level of extraction significantly
- Includes adapter to attach four machines simultanously
Technical details Dust collectors Bernardo DC 600
|
Capacity
|
4560 m³/h
|
|
Filter area
|
6,0 m²
|
|
Low pressure max.
|
2340 Pa
|
|
Inlet diameter
|
1 x 180 mm
|
|
Inlet diameter with adapter
|
4 x 100 mm
|
|
Waste bag volume
|
570 l (3 x 190 l)
|
|
Idle speed
|
2950 rpm
|
|
Sound pressure
|
80 dB
|
|

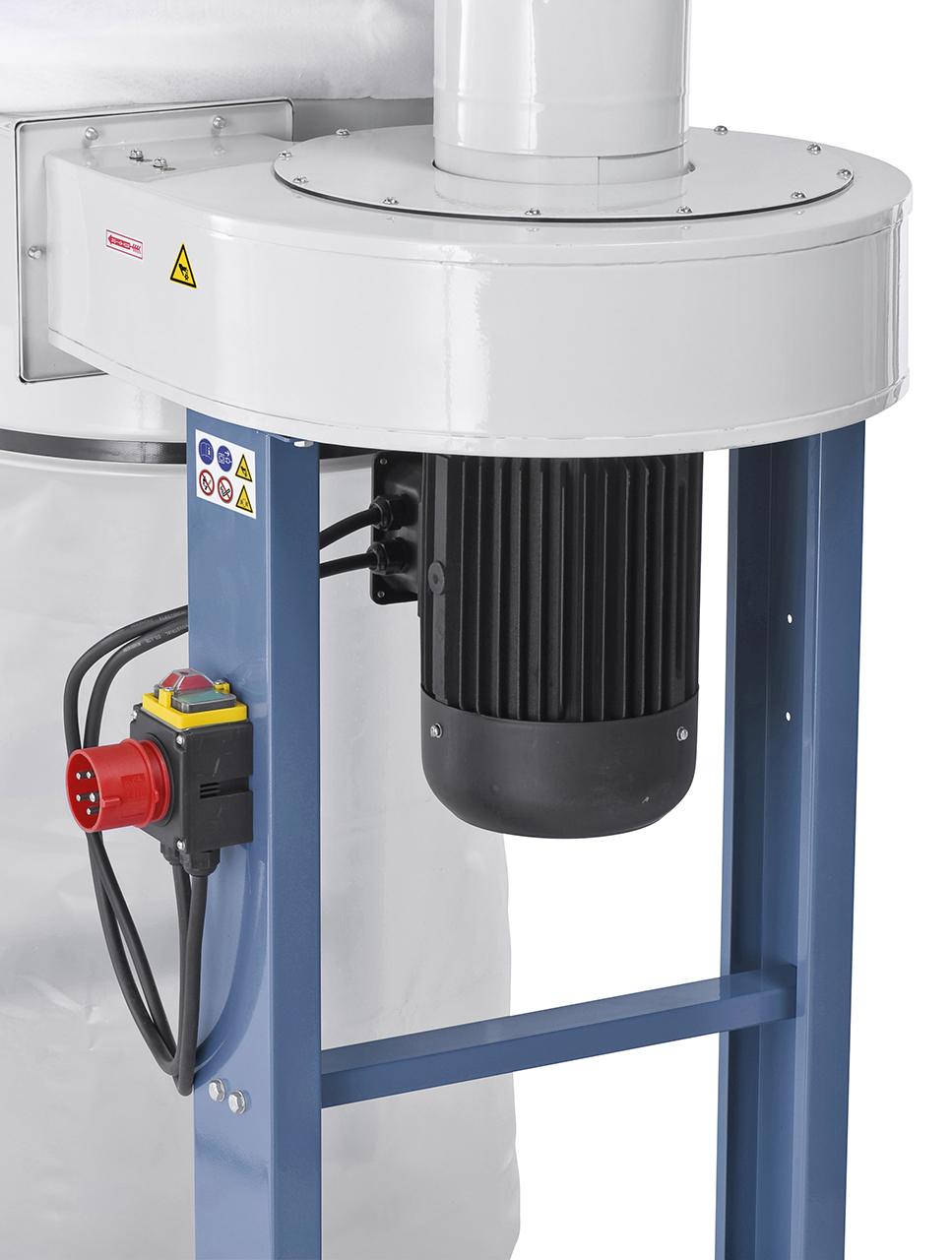

Motor power output S1 100%
|
3,7 kW (5,0 HP)
|
|
Motor power input S6 40%
|
5,1 kW (7,0 HP)
|
|
Voltage
|
400 V / 50 Hz
|
|
Machine dimension (W x D x H)
|
2184 x 582 x 2355 mm
|
|
Weight approx.
|
85 kg
|
