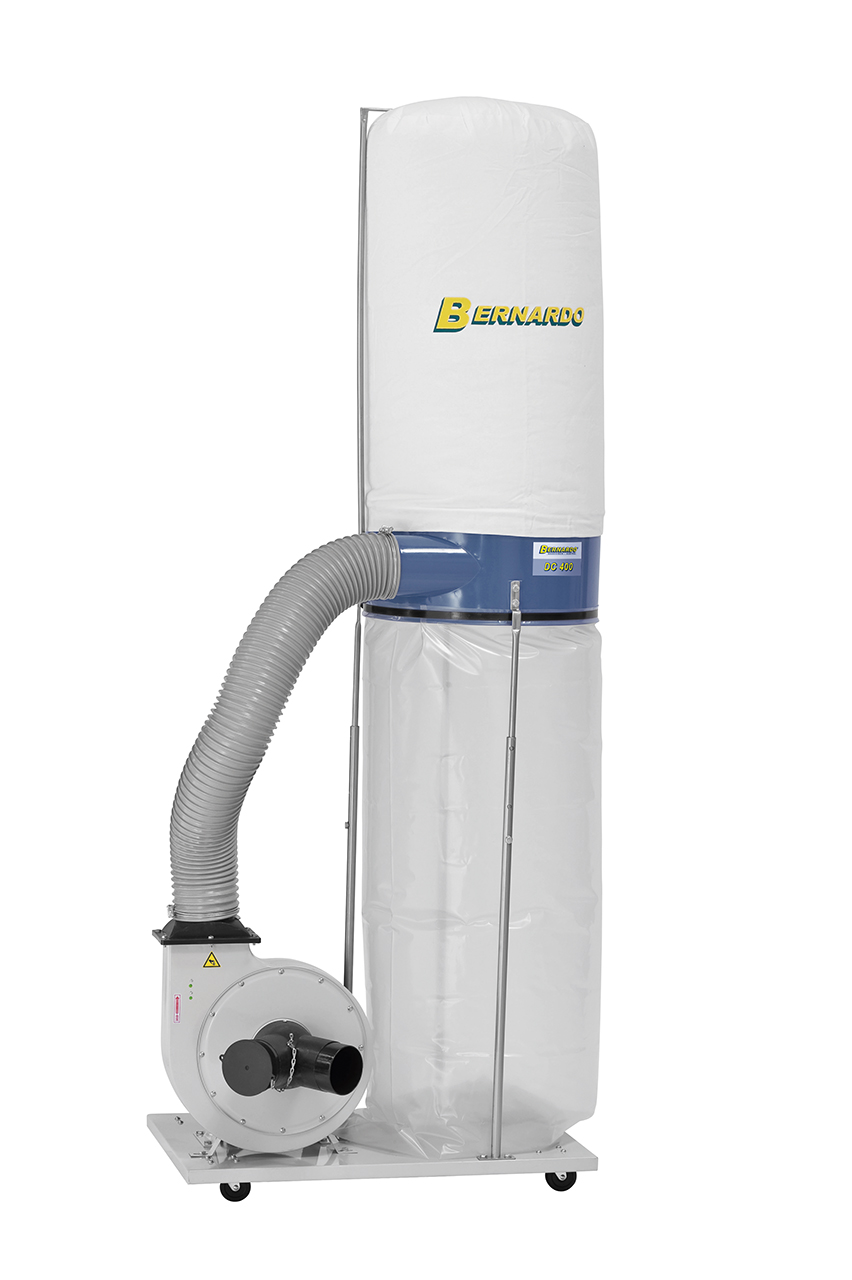

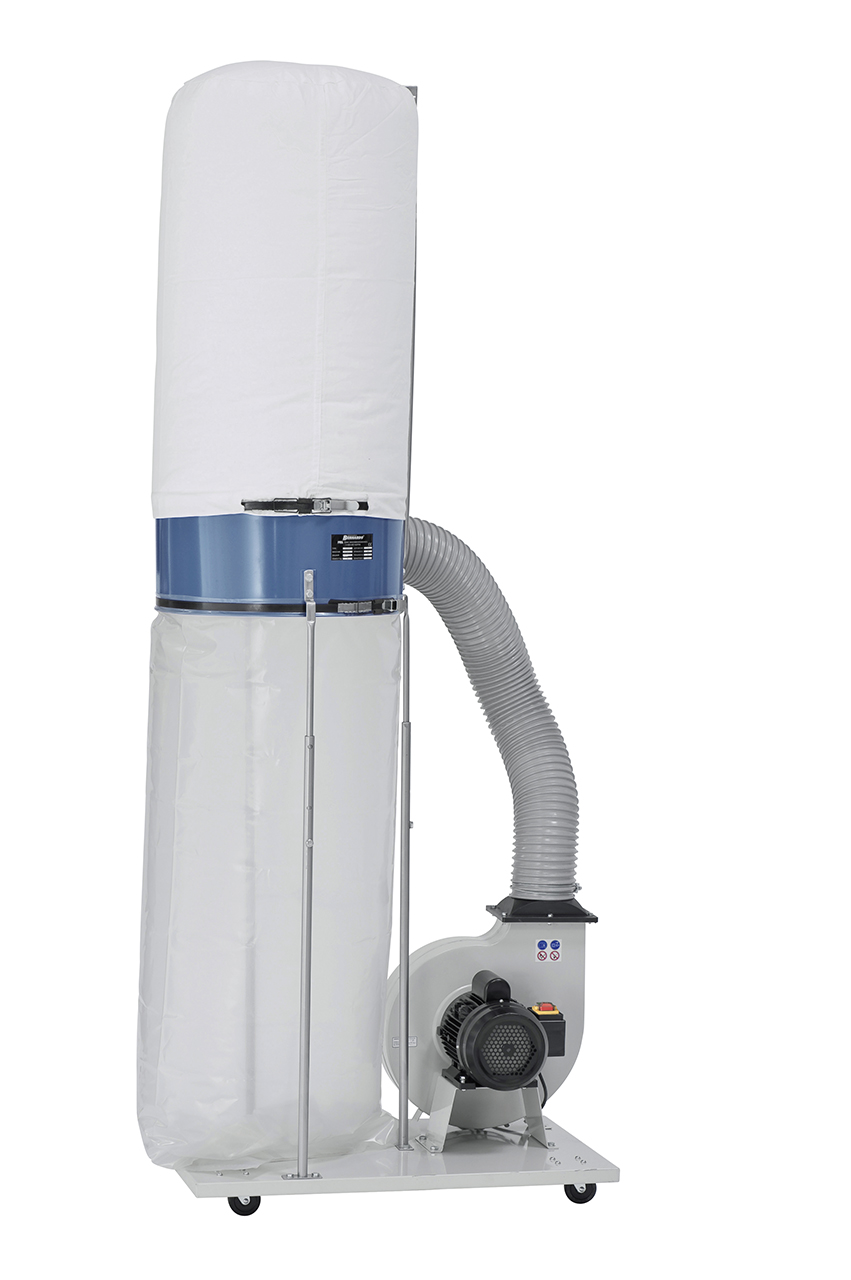

The DC 400 dust collector features a 50% larger dust bag volume (compared to DC 300), reducing the number of bag changes significantly, therefore making this model exremely user-friendly. Highly recommended for enthusiastic hobbyists who aim to keep their workshop clean at a relatively low price.
Scope of delivery Dust collectors Bernardo DC 400 - 230 V

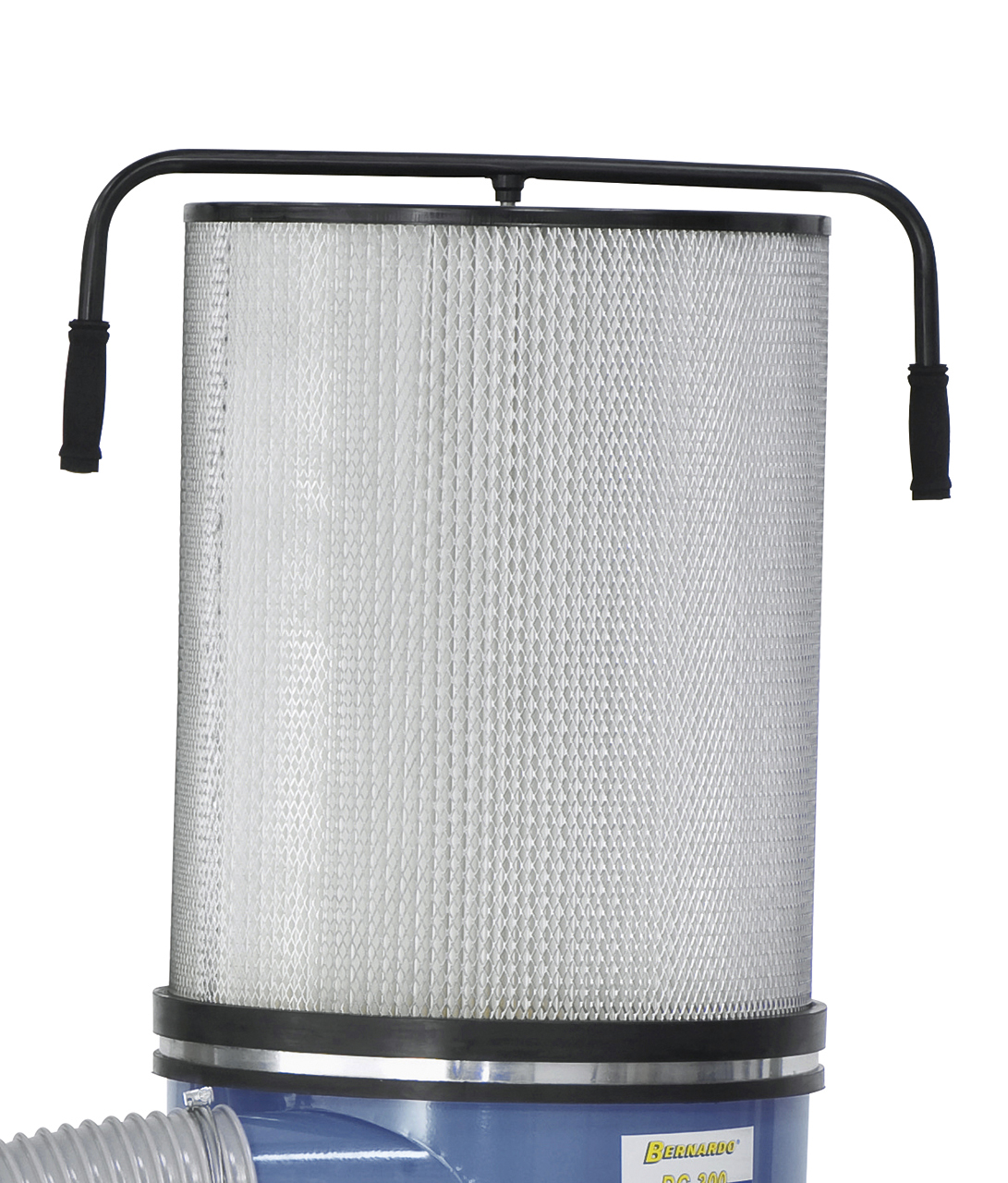

- Filter bag
- Waste bag
- Y-adapter 1 x 130 mm / 2 x 100 mm

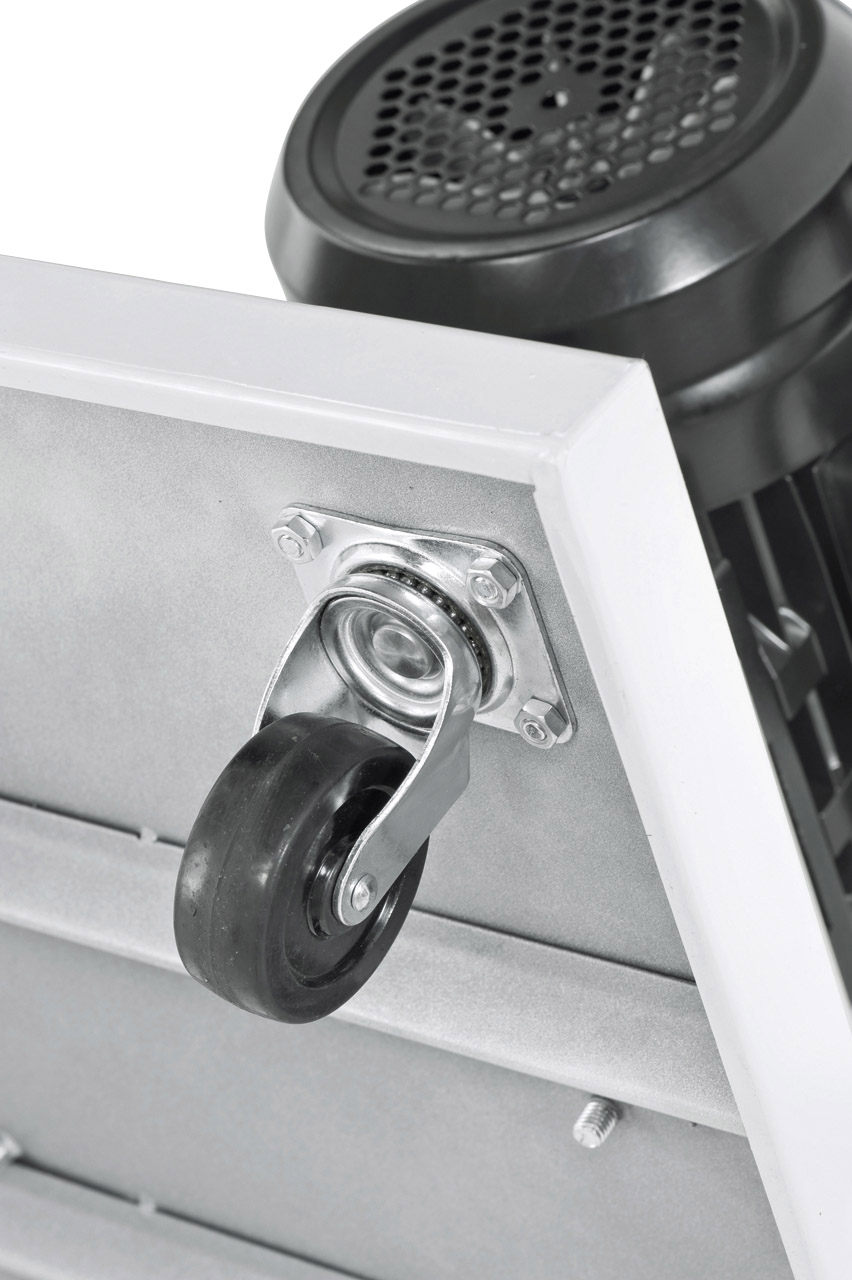

- Carriage
Features Dust collectors Bernardo DC 400 - 230 V
- Ideal device for extraction of sawdust, milling chips and wood shavings
- Y-adapter allows simultaneous connection of 2 machines
- Generous waste bag volume increases user-friendliness

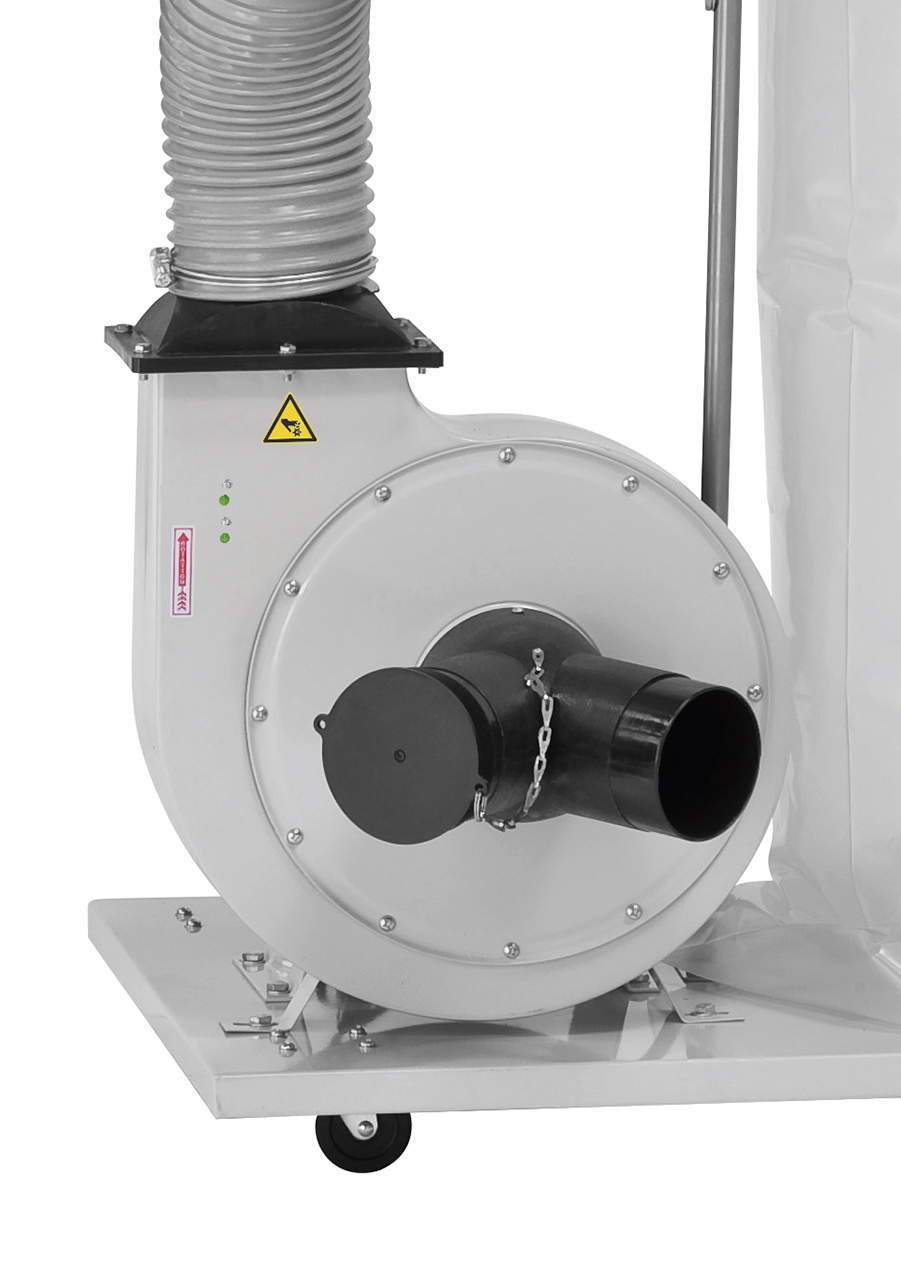

- Aerodynamically shaped, steel plate fan wheel ensures top performance

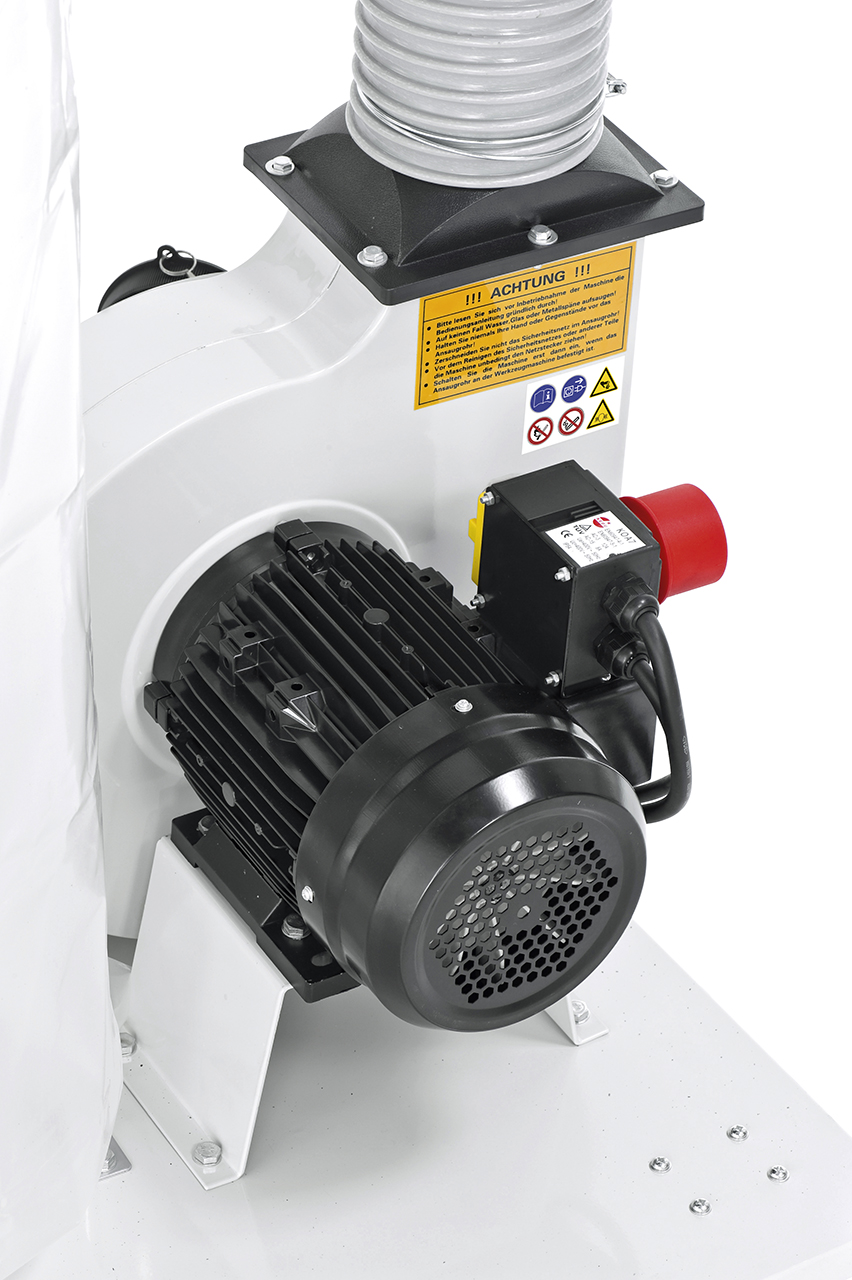

- Powerful motor with thermo relay guarantees optimal extraction force

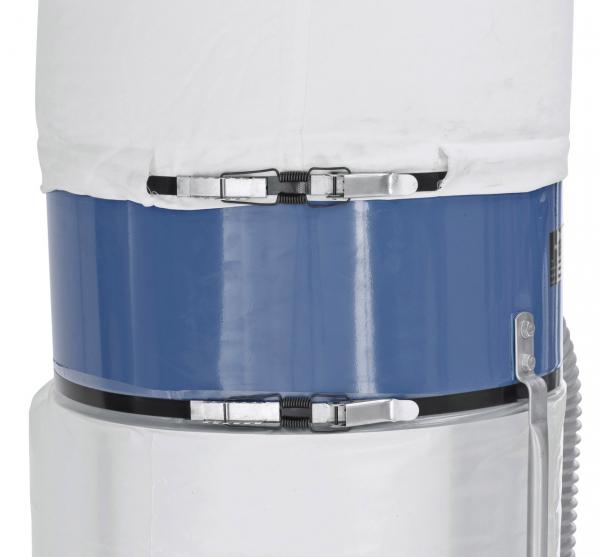

- Clamping belt allows for convenient, quick bag change
Technical details Dust collectors Bernardo DC 400 - 230 V
|
Capacity
|
2520 m³/h
|
|
Filter area
|
1,45 m2 |
|
Low pressure max.
|
1800 Pa
|
|
Inlet diameter
|
1 x 130 / 2 x 100 mm
|
|
Waste bag volume
|
300 l
|
|
Idle speed
|
2950 rpm
|
|
Sound pressure
|
87,1 dB
|
|
Motor power output S1 100%
|
1,5 kW (2,0 HP)
|
|
Motor power input S6 40%
|
2,1 kW (2,8 HP)
|
|
Voltage
|
230 V / 50 Hz
|
|
Machine dimension (W x D x H)
|
860 x 670 x 2330 mm
|
|
Weight approx.
|
40 kg
|
