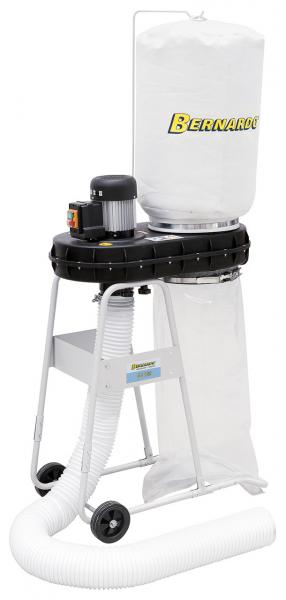

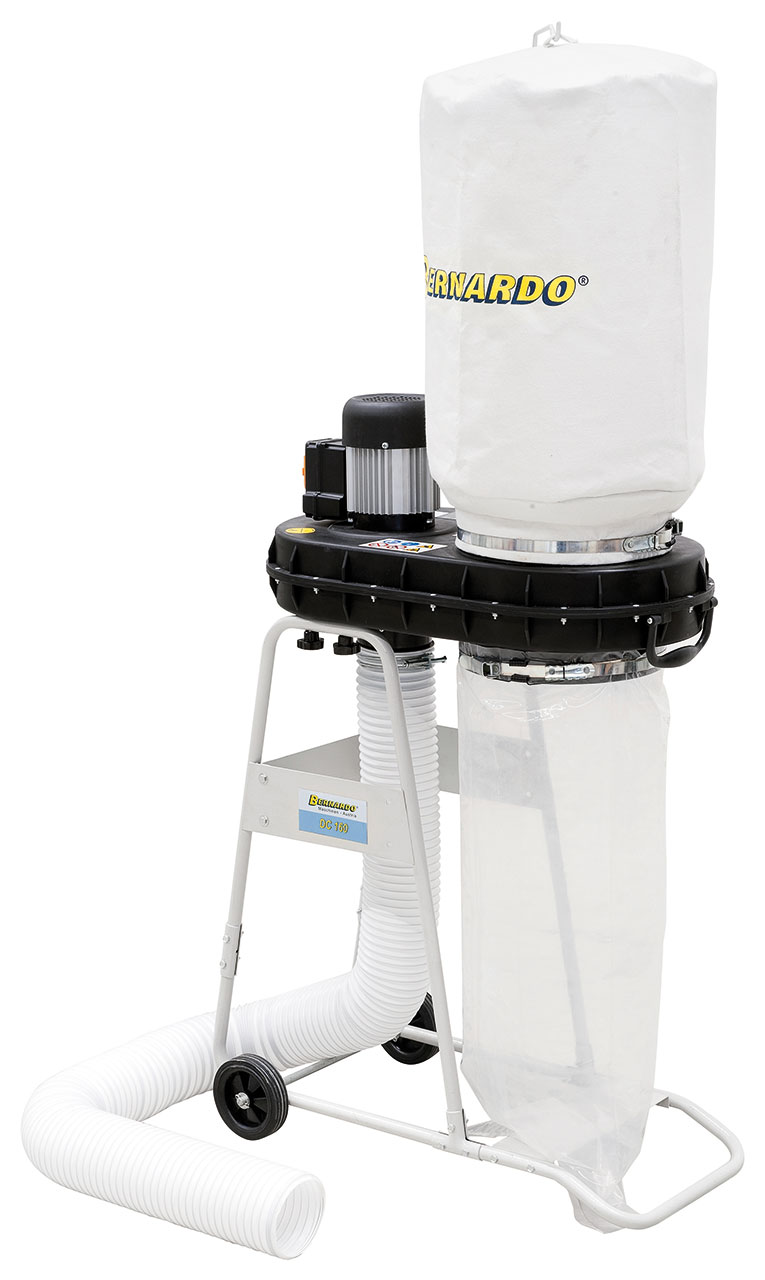

The DC 160, transportable dust collector improves the performance of your wood working machines significantly and it will keep your workspace free from chips and sawdust.
Scope of delivery Dust collectors Bernardo DC 160 - 230 V
Dust collectors Bernardo DC 160 - 230 V
Features Dust collectors Bernardo DC 160 - 230 V
- Aerodynamically shaped, plastic fan wheel for top suction
- Connect to fixed or mobile wood working machines
- Powerful aluminium drive motor, extremely smooth running

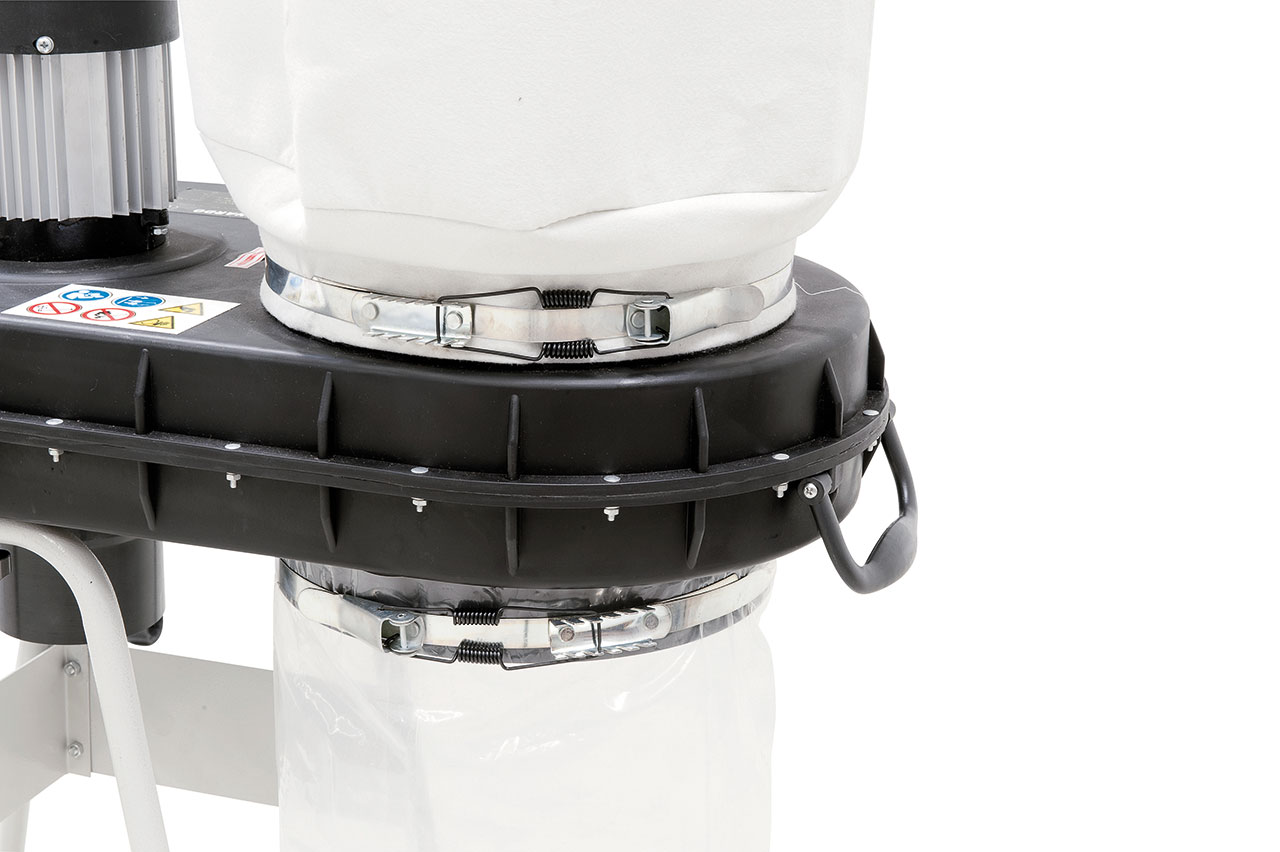

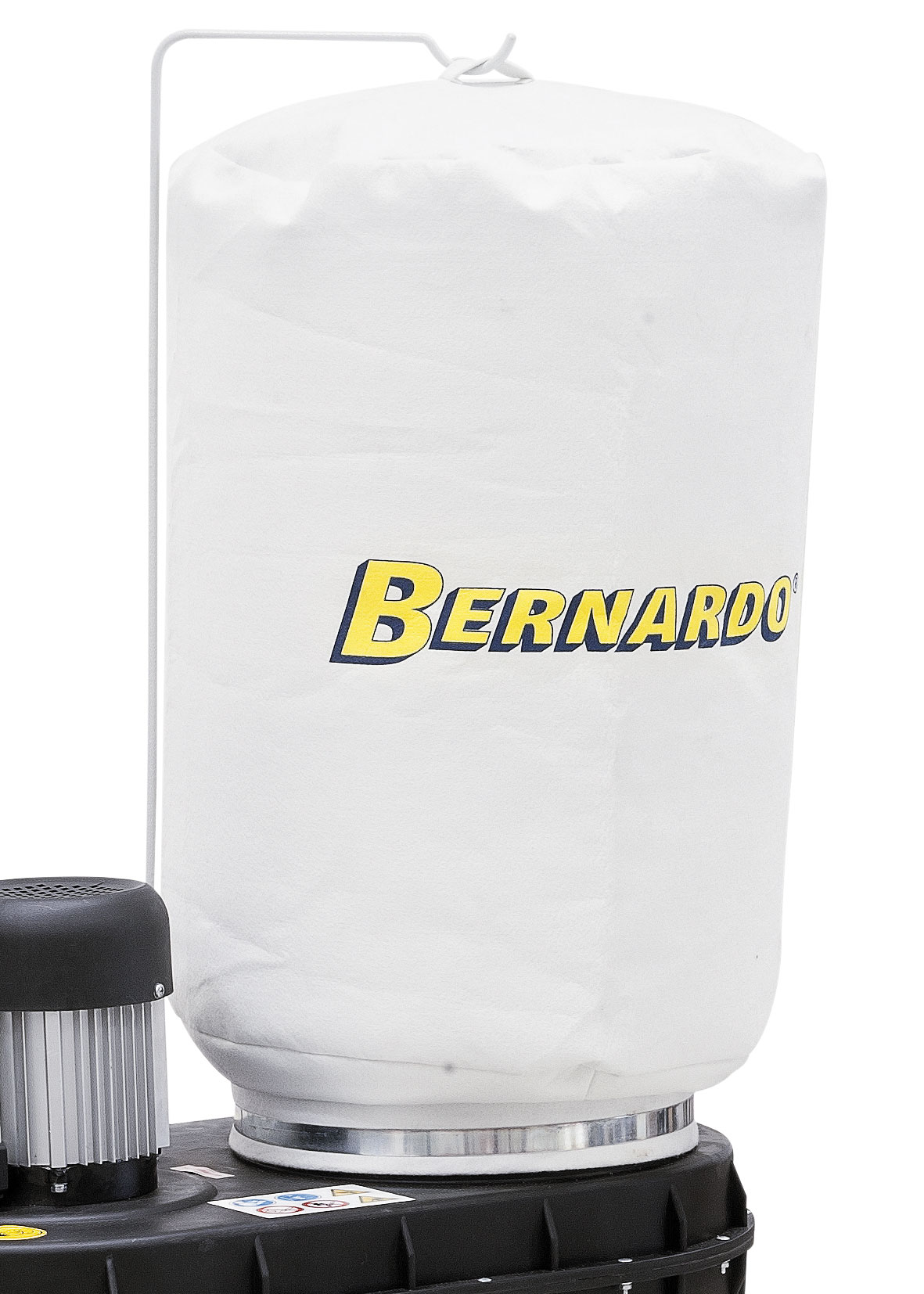

- Uncomplicated, quick bag change
- 2.0 m spiral suction hose is part of standard equipment

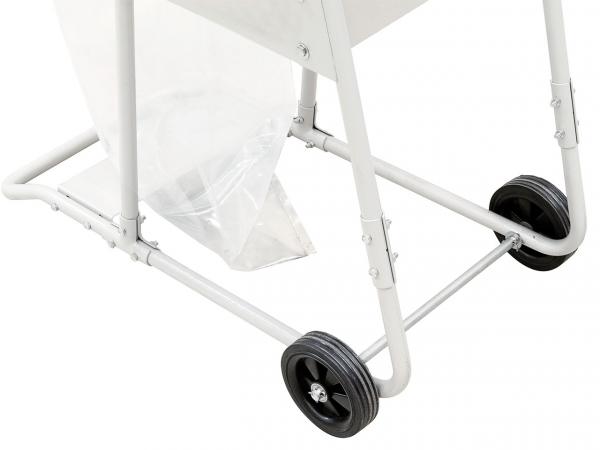

- Including carriage for increased mobility
- Unbelievable price-to-performance ratio
Technical details Dust collectors Bernardo DC 160 - 230 V
|
Capacity
|
850 m³/h
|
|
Filter area
|
0,8 m²
|
|
Low pressure max.
|
700 Pa
|
|
Inlet diameter
|
100 mm
|
|
Waste sack volume
|
40 l
|
|
Idle speed
|
2850 rpm
|
|
Sound pressure
|
80 db
|
|
Motor power output S1 100%
|
0,55 kW (0,75 HP)
|
|
Motor power input S6 40%
|
0,75 kW (1,0 HP)
|
|
Voltage
|
230 V / 50 Hz
|
|
Machine dimension (W x D x H)
|
730 x 420 x 1530 mm
|
|
Weight approx.
|
17 kg
|
