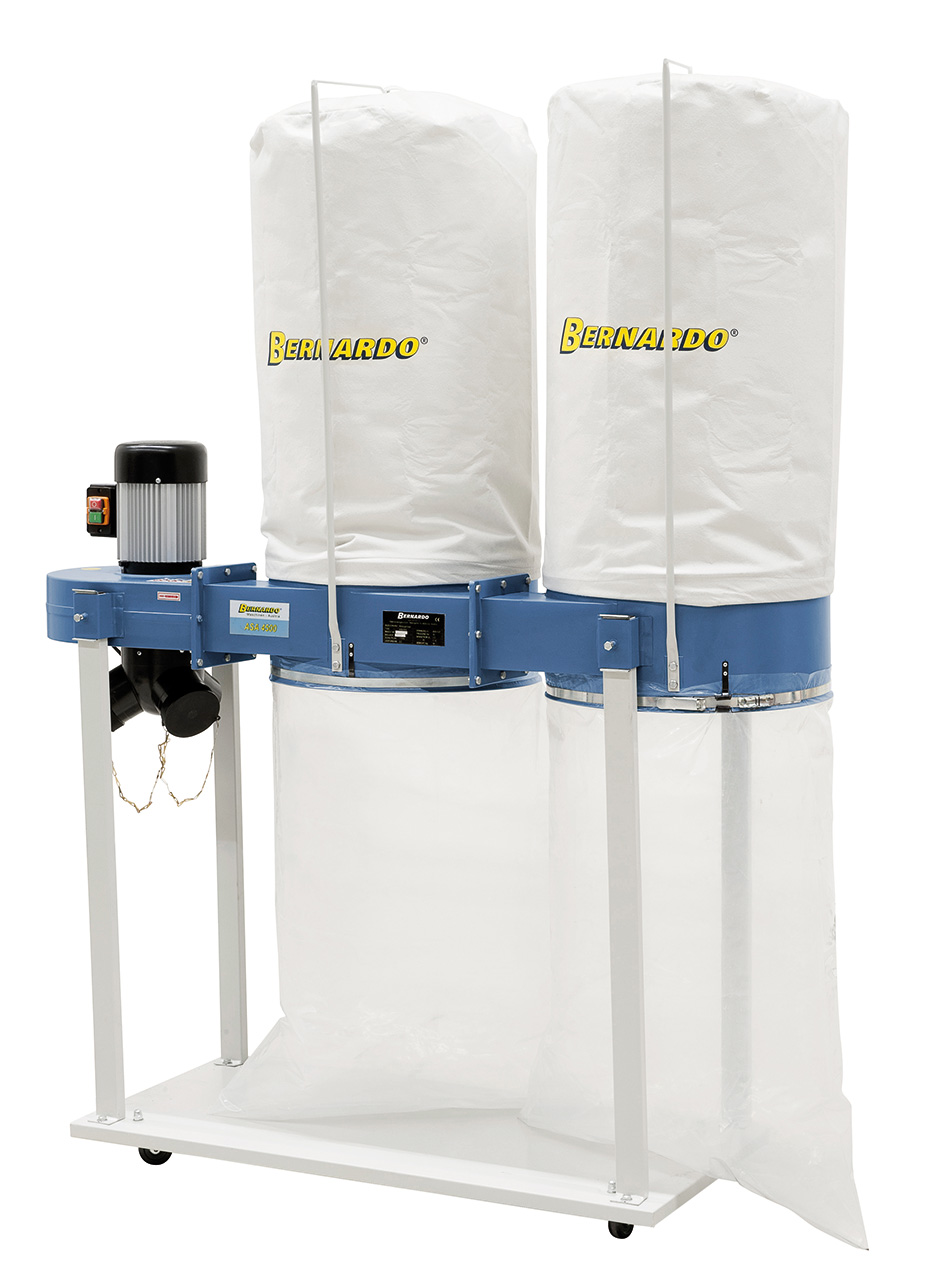

The ASA 4500 dust collector features a larger dust bag volume (compared to ASA 3500), reducing the number of bag changes significantly, therefore making this model extremely user-friendly. Highly recommended for enthusiastic hobbyists who aim to keep their workshop clean at a relatively low price.
Scope of delivery Dust collectors Bernardo ASA 4500 - 400 V
- Filter bag
- Waste bag
- Y-adapter 1 x 150 mm / 3 x 100 mm
- Carriage
Features Dust collectors Bernardo ASA 4500 - 400 V
- Ideal device for extraction of sawdust, milling chips and wood shavings
- Connect to three machines at the same time

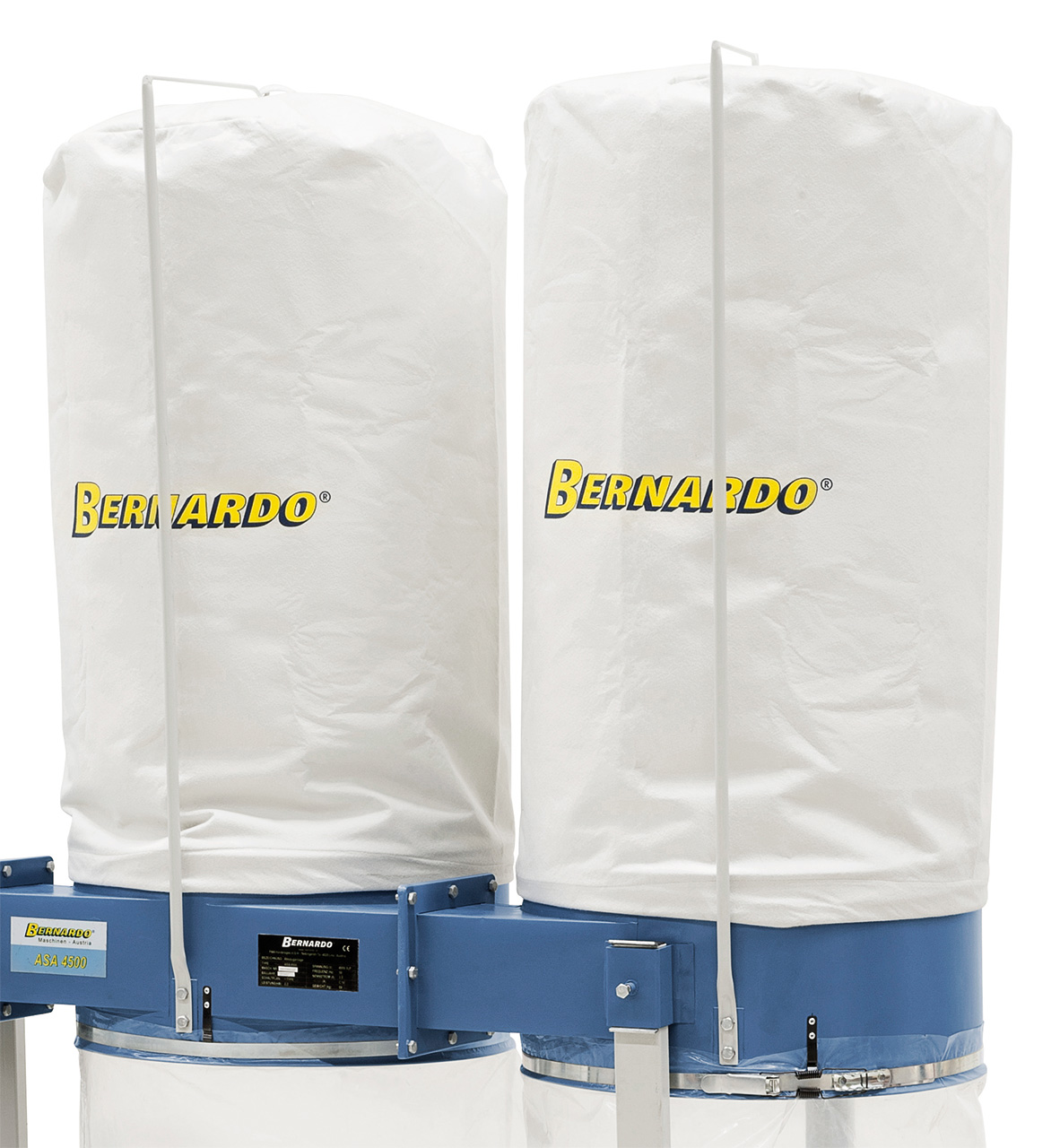

- Generous waste bag volume increases user-friendliness
- Aerodynamically shaped, steel plate fan wheel ensures top performance
- Clamping belt allows for convenient, quick bag change
- Complete with carriage to allow for easy transport
Technical details Dust collectors Bernardo ASA 4500 - 400 V
|
Capacity
|
3900 m³/h
|
|
Filter area
|
2,9 m²
|
|
Low pressure max.
|
1800 Pa
|
|
Inlet diameter
|
1 x 150 mm / 3 x 100 mm
|
|
Waste sack volume
|
2 x 165 l
|
|
Idle speed
|
2950 rpm
|
|
Sound pressure
|
87 dB
|
|
Motor power output S1 100%
|
2,2 kW (3,0 HP)
|
|
Motor power input S6 40%
|
3,0 kW (4,2 HP)
|
|
Voltage
|
230 V bzw. 400 V / 50 Hz
|
|
Machine dimension (W x D x H)
|
1530 x 600 x 1950 mm
|
|
Weight approx.
|
48 kg
|
