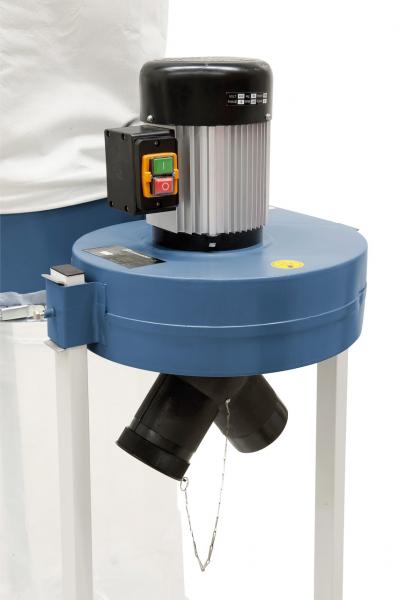

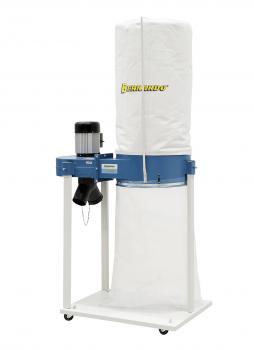

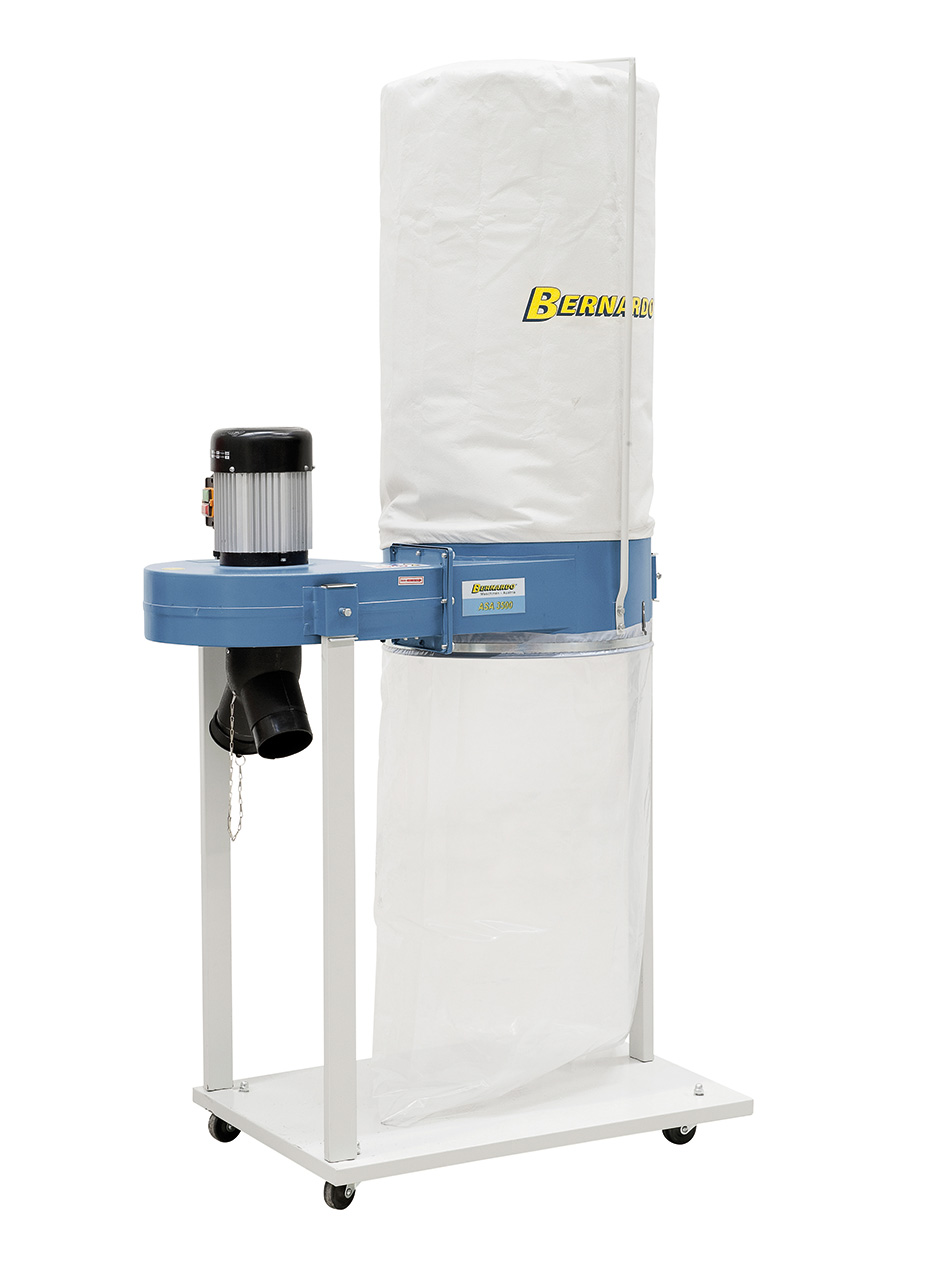

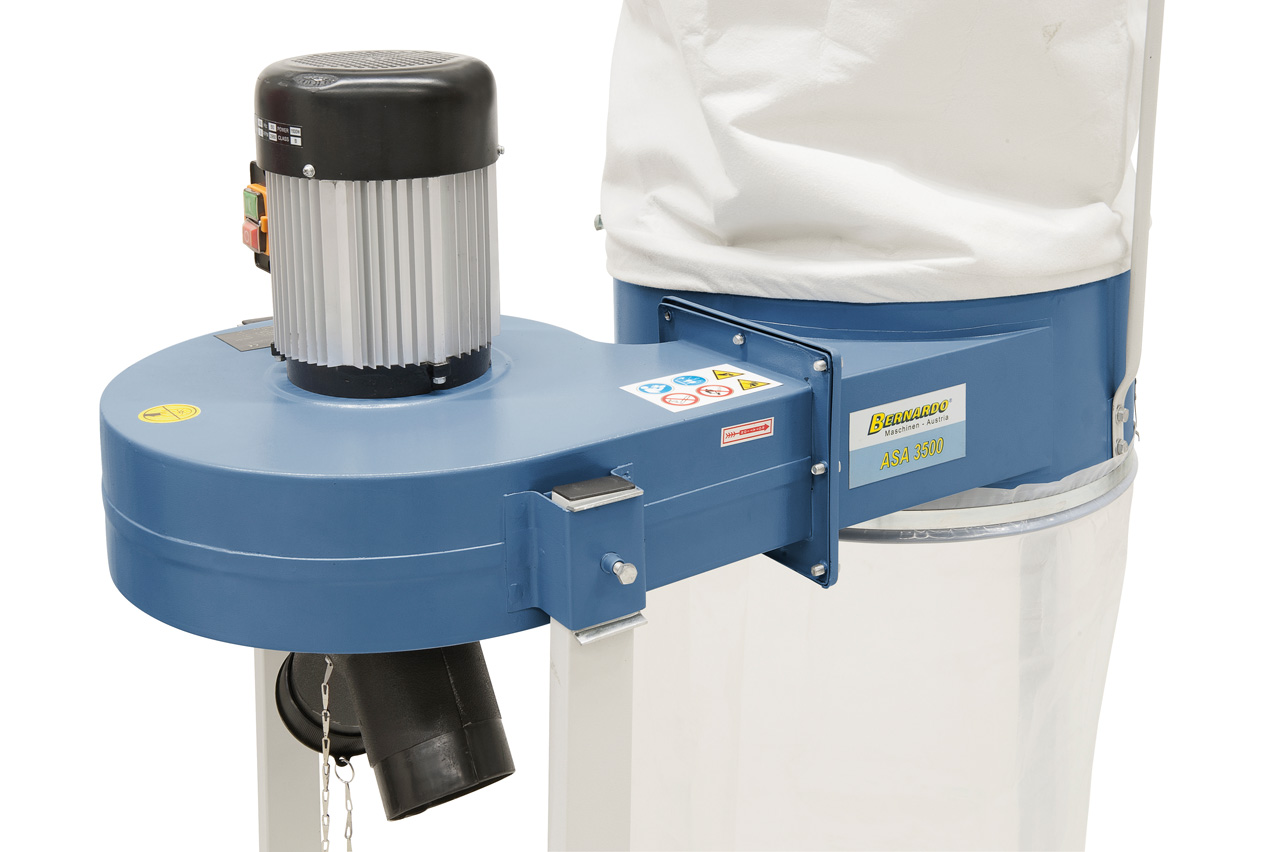

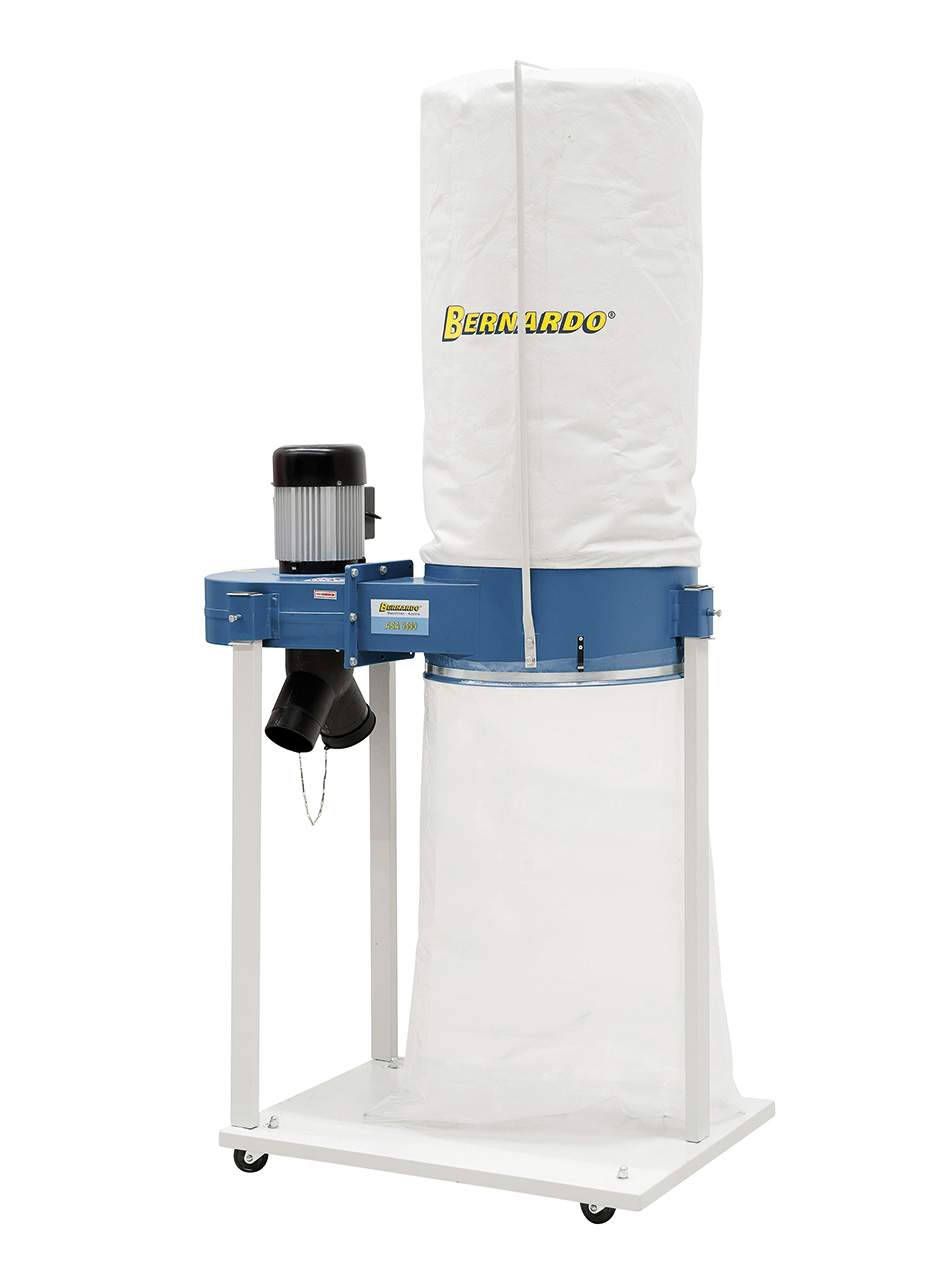

The ASA 3500 powerful, transportable dust collector improves the performance of your wood working machines significantly and it will keep your workspace free from chips and sawdust.
Scope of delivery Dust collectors Bernardo ASA 3500 - 230 V
- Filter bag
- Waste bag
- Y-adapter 1 x 130 mm / 2 x 100 mm
- Carriage
Features Dust collectors Bernardo ASA 3500 - 230 V
- Solid steel plate construction reduces static charge - compared to plastic housing
- Connect to fixed or mobile wood working machines
- Constant extraction force even during long operations
- Steel fan wheel resistant to suction of small pieces of wood
- Includes adapter to attach two machines simultanously
- Strap with quick clamping guarantees straightforward bag changes
Technical details Dust collectors Bernardo ASA 3500 - 230 V
|
Capacity
|
2530 m³/h
|
|
Filter area
|
1,45 m²
|
|
Low pressure max.
|
1800 Pa
|
|
Inlet diameter
|
1 x 130 mm / 2 x 100 mm
|
|
Waste sack volume
|
165 l
|
|
Idle speed
|
2950 rpm
|
|
Sound pressure
|
87 dB
|
|
Motor power output S1 100%
|
1,5 kW (2,0 HP)
|
|
Motor power input S6 40%
|
2,1 kW (2,8 HP)
|
|
Voltage
|
230 V / 50 Hz
|
|
Machine dimension (W x D x H)
|
1000 x 600 x 1950 mm
|
|
Weight approx.
|
37 kg
|
