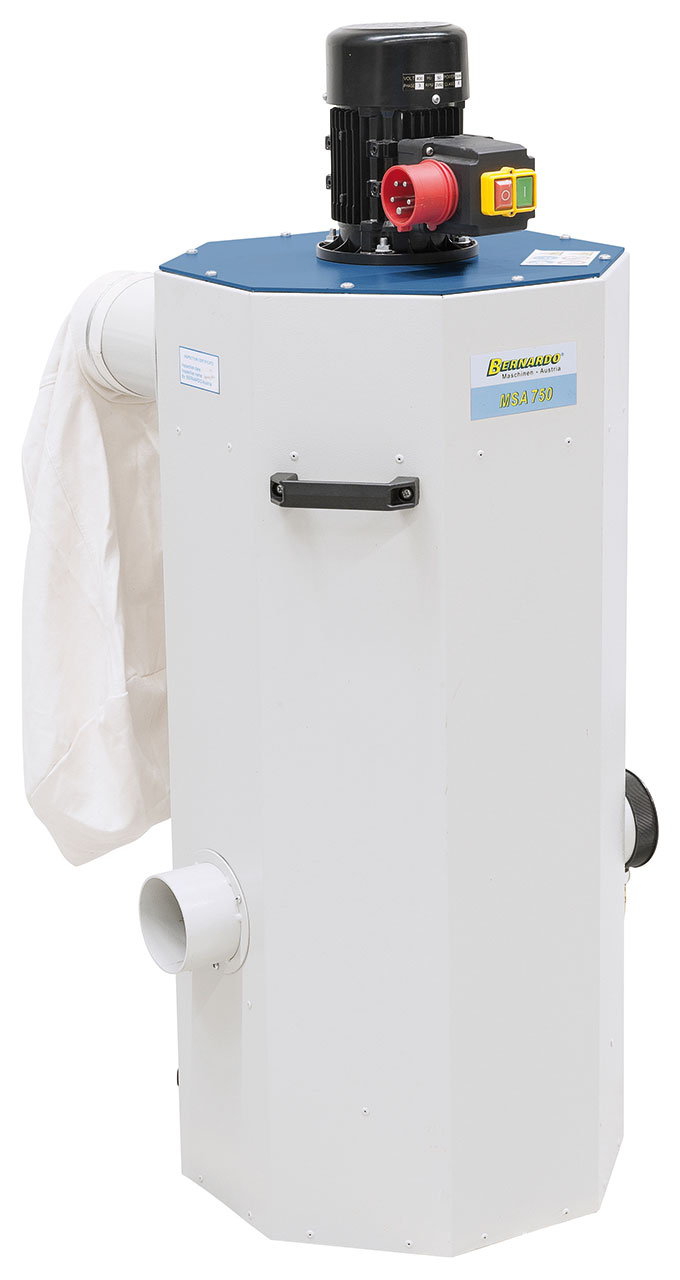

The dust collector MSA 750 is particularly suitable for extraction of metal dust and chips at bench grinding machines, metal belt sanders etc. This model is predominantely used by mechanical workshops and metal working factories.
Scope of delivery Dust collector for metal chips Bernardo MSA 750
- Filter bag
- Chip drawer
- Carry handles

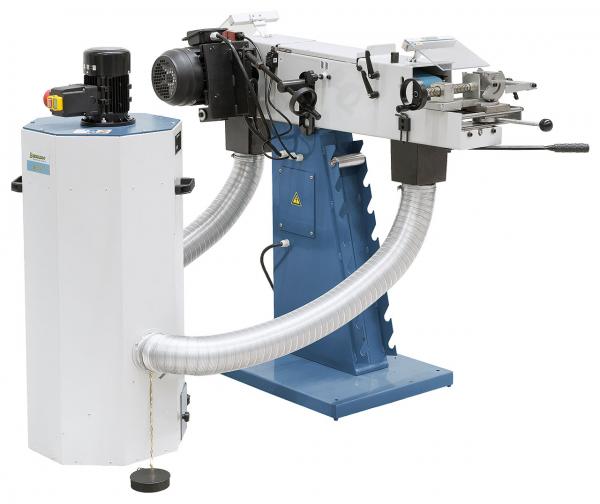

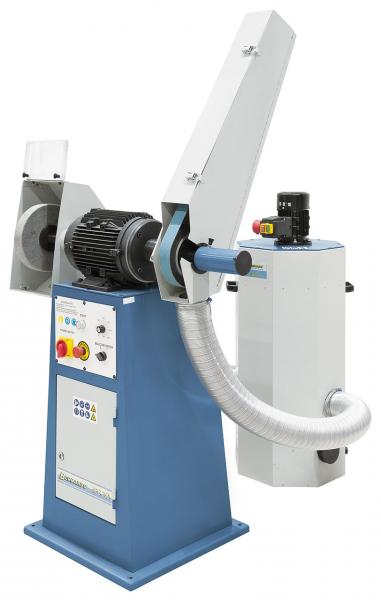

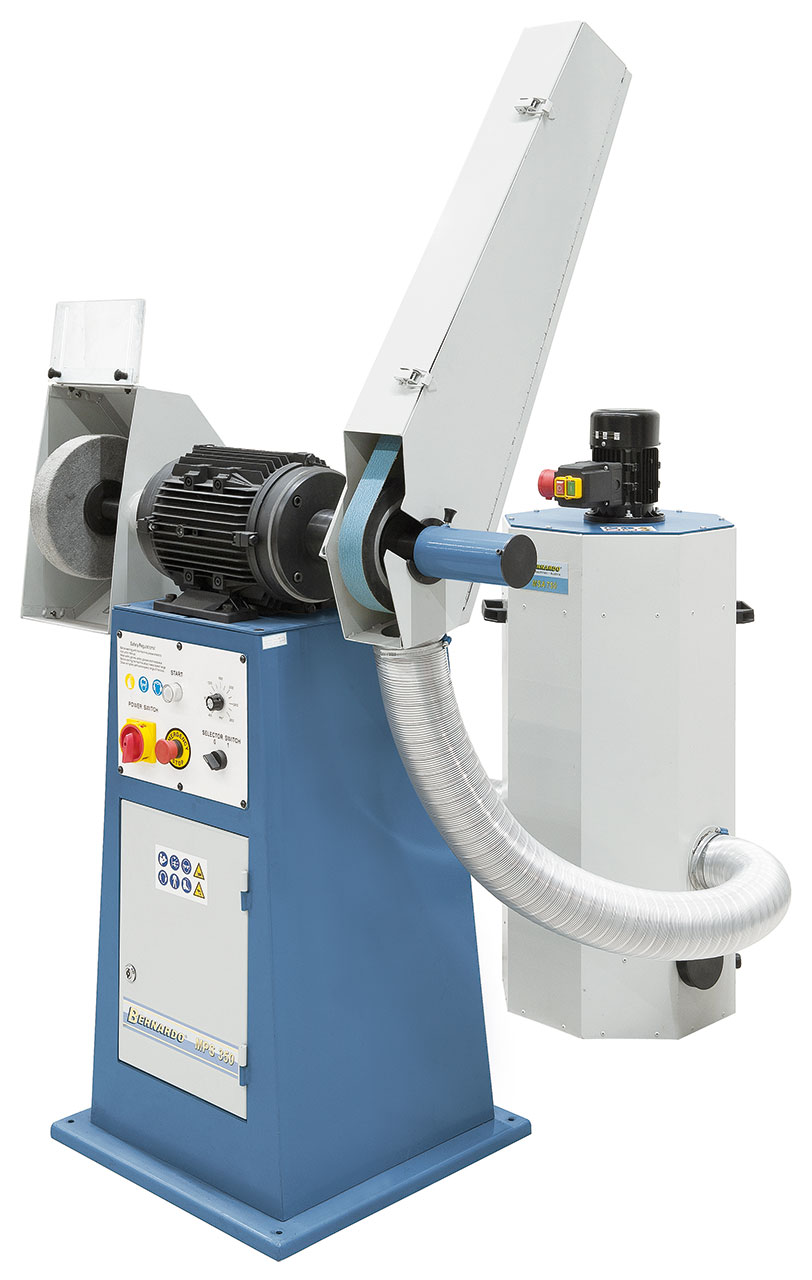

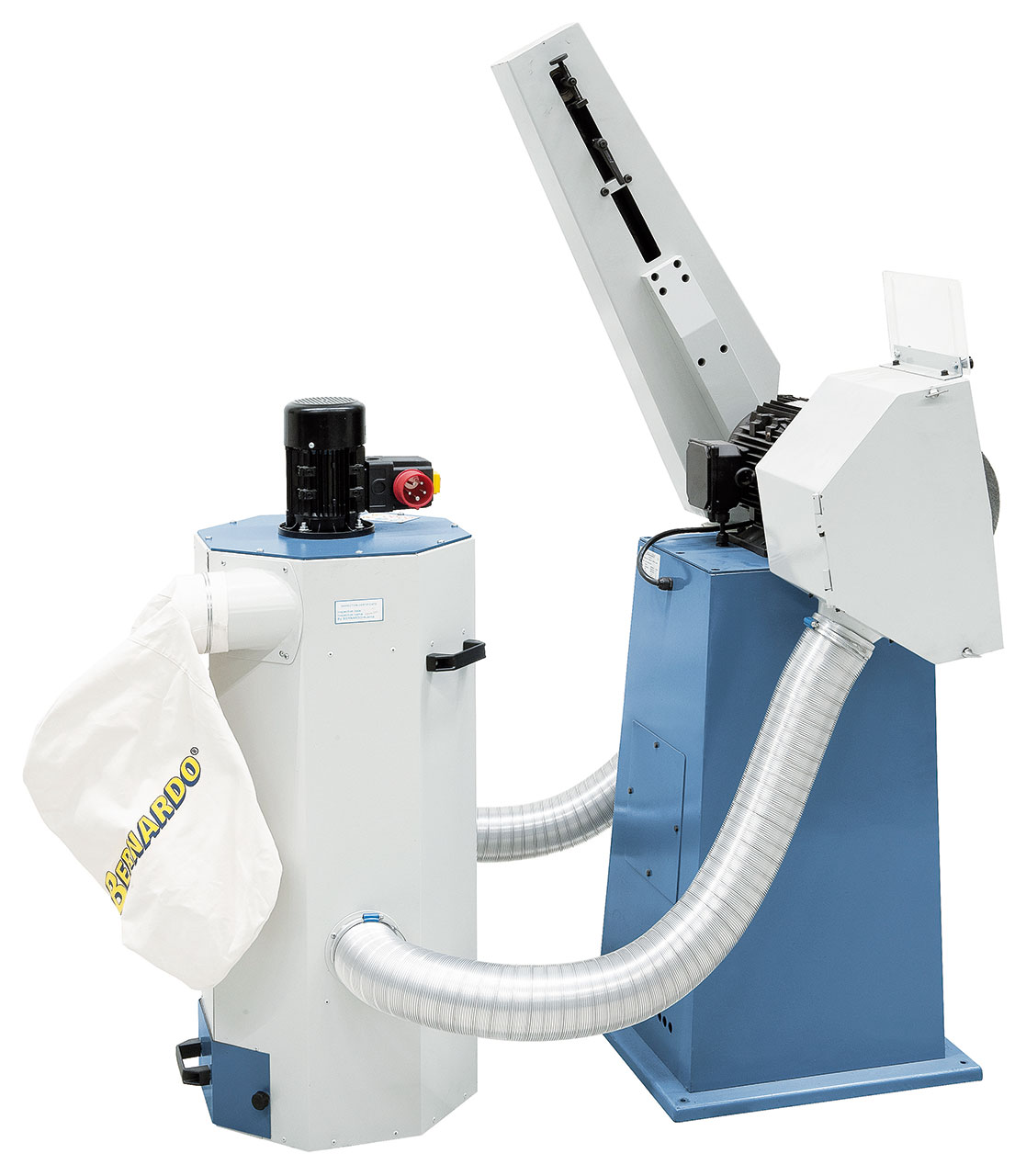

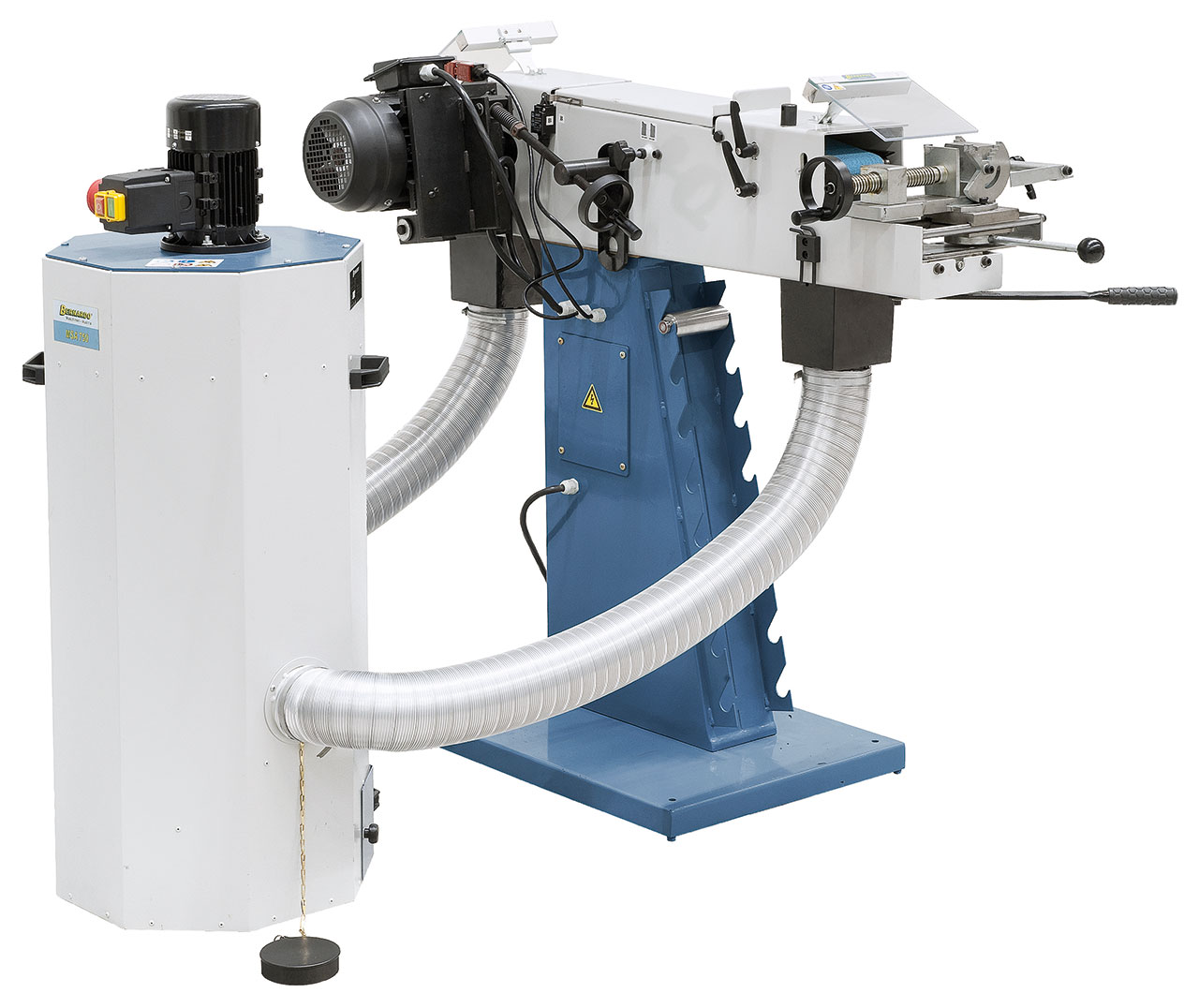

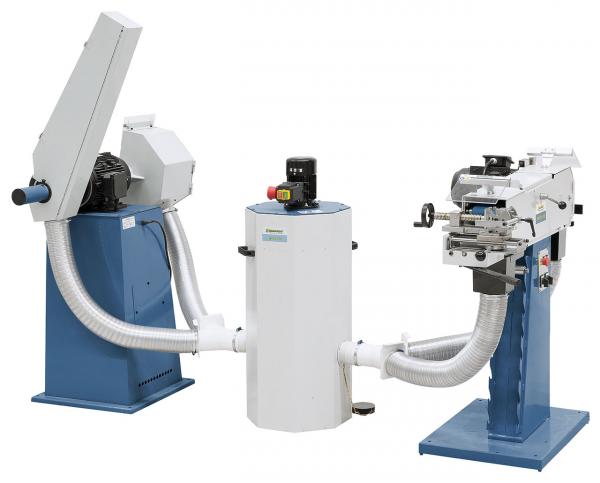

Pictures with different sanding machines, not equipped in standard accessories.
"
Features Dust collector for metal chips Bernardo MSA 750

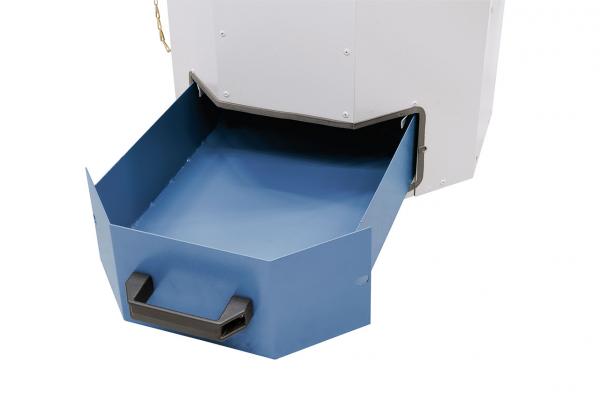

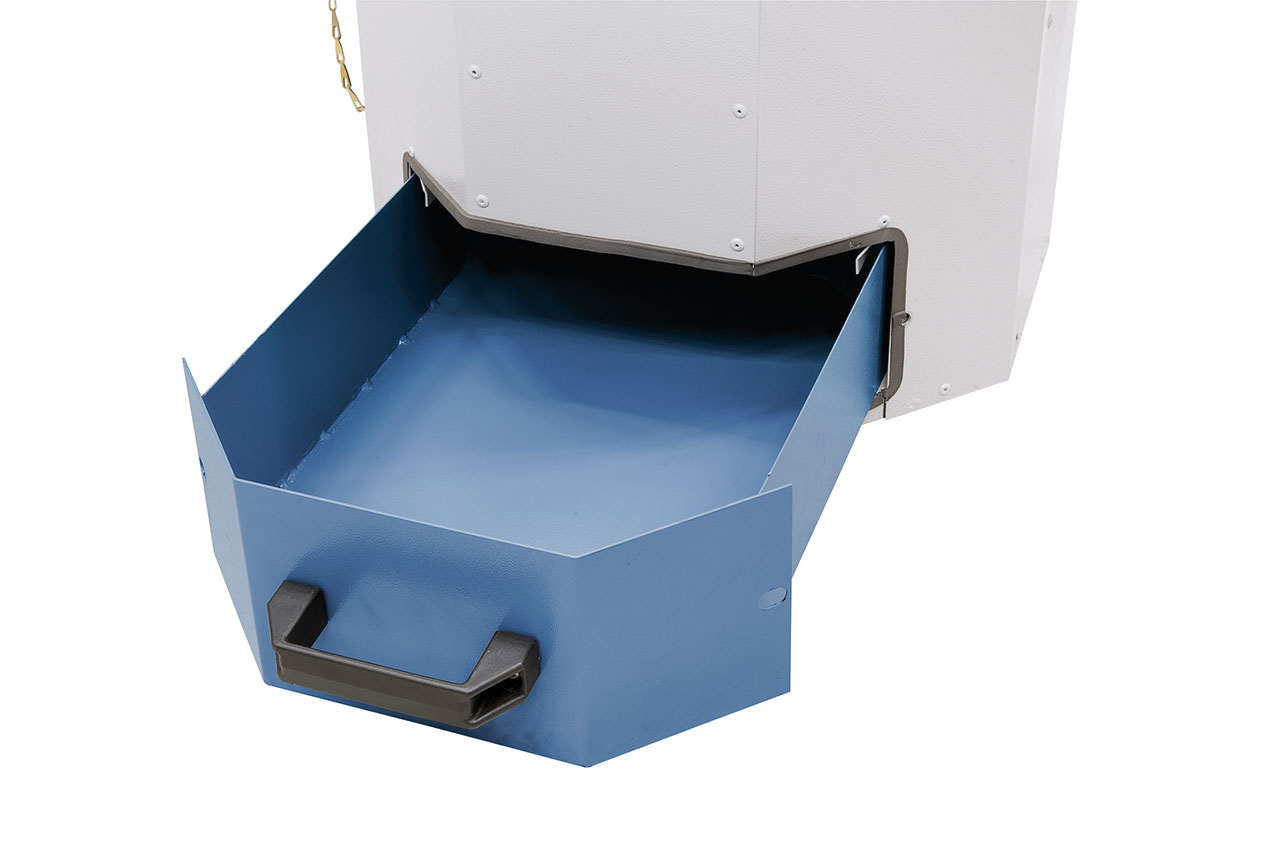

- Extractable chip drawer at the front of machine
- Optimal fan design guarantees top efficiency and smooth run
- Serially equipped with 2 dust extractor outlets Ø 100 mm
- Statically and dynamically balanced steel fan wheels
- High-quality powder coating creates scratch-resistant and shock-proof surface
- Requires minimum space but features top performance
- Simultaneous operation of several machines possible
Technical details Dust collector for metal chips Bernardo MSA 750
| Capacity | 1100 m³/h |
| Inlet diameter Ø | 2 x 100 mm |
| Motor power | 0,75 kW |
| Voltage | 400 V |
| Dimension without dust bag | 570 x 490 x 1180 mm |
| Dimension with dust bag | 940 x 490 x 1180 mm |
| Weight approx. | 36 kg |
