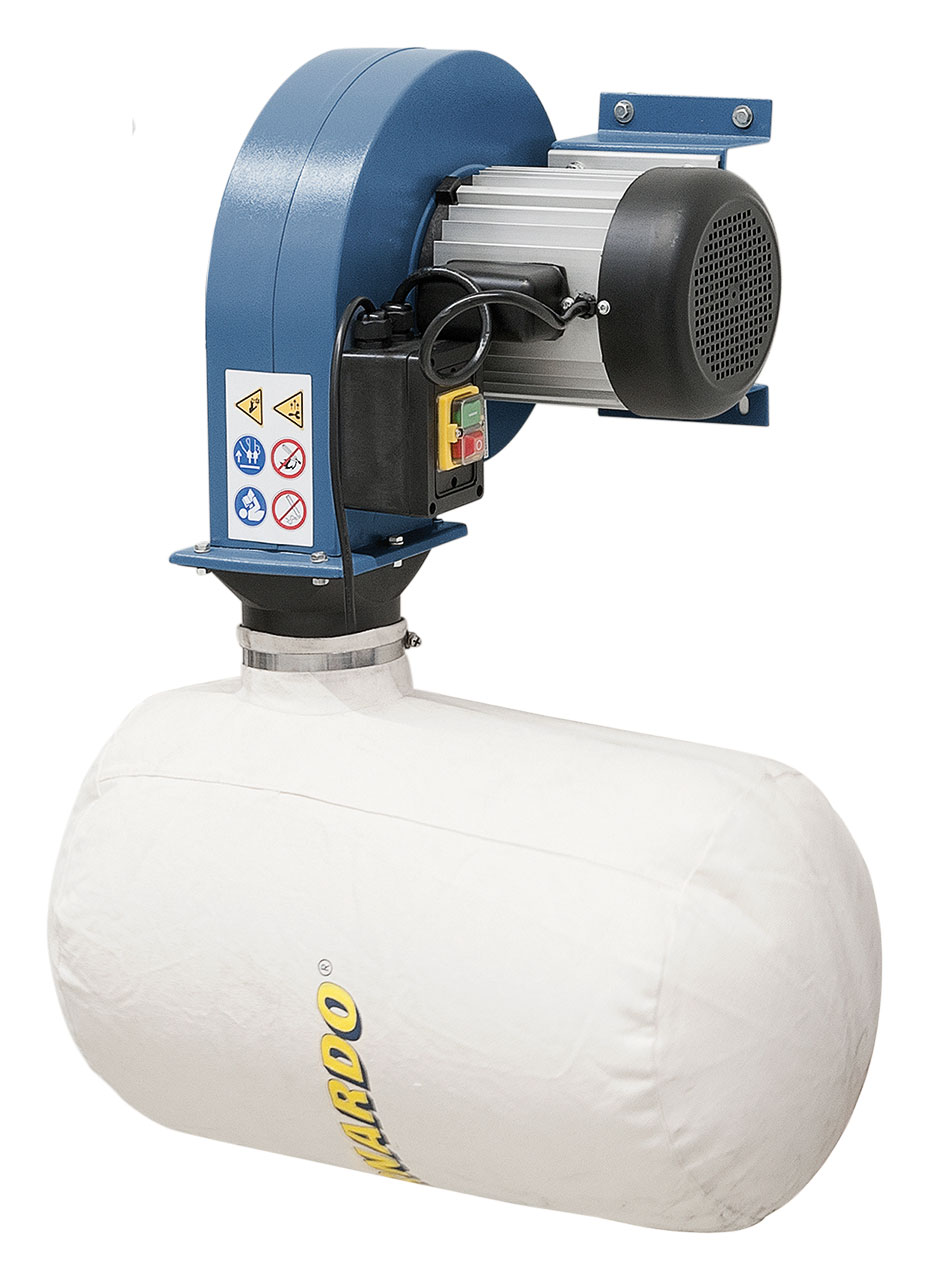

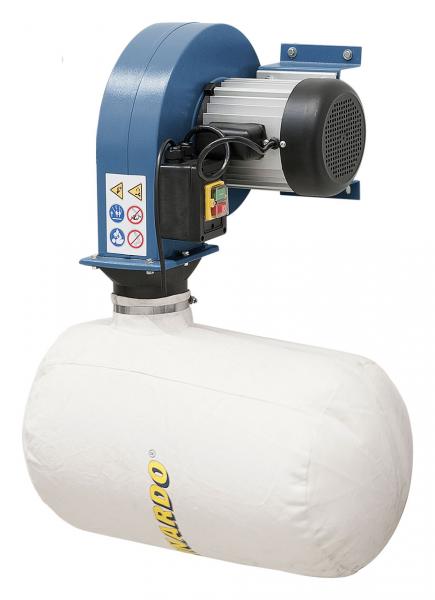

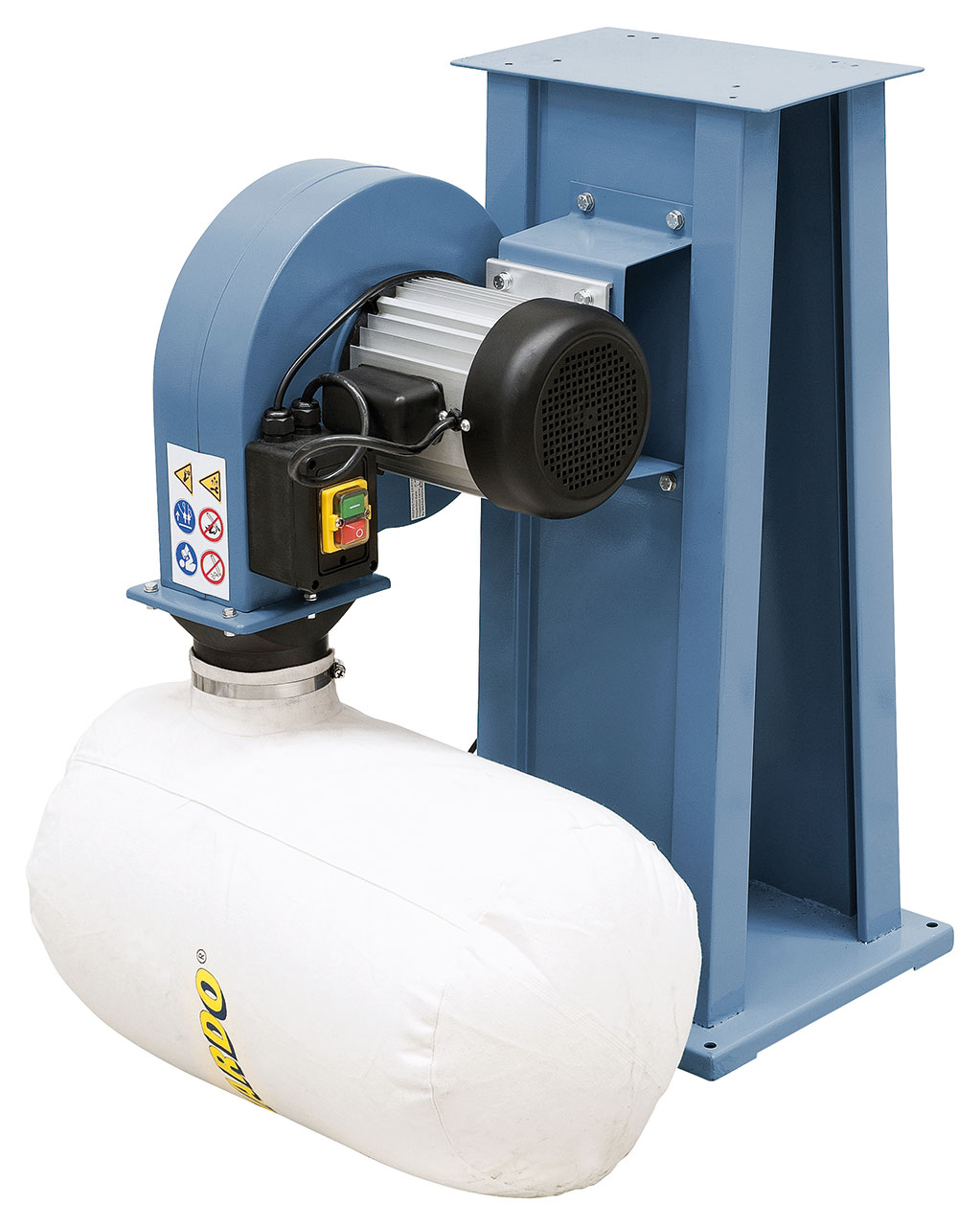

The dust collector MSA 300 is particularly suitable for extraction of metal dust and chips at bench grinding machines, metal belt sanders etc. With the serially bracket this model can be mounted on the wall or directly on the machine base. The optionally available branch connection with slider allows the connection on 2 machines at the same time.
Scope of delivery Dust collector for metal chips Bernardo MSA 300
- Filter bag
- On-Off-switch
- Adapter round / square
- Bracket

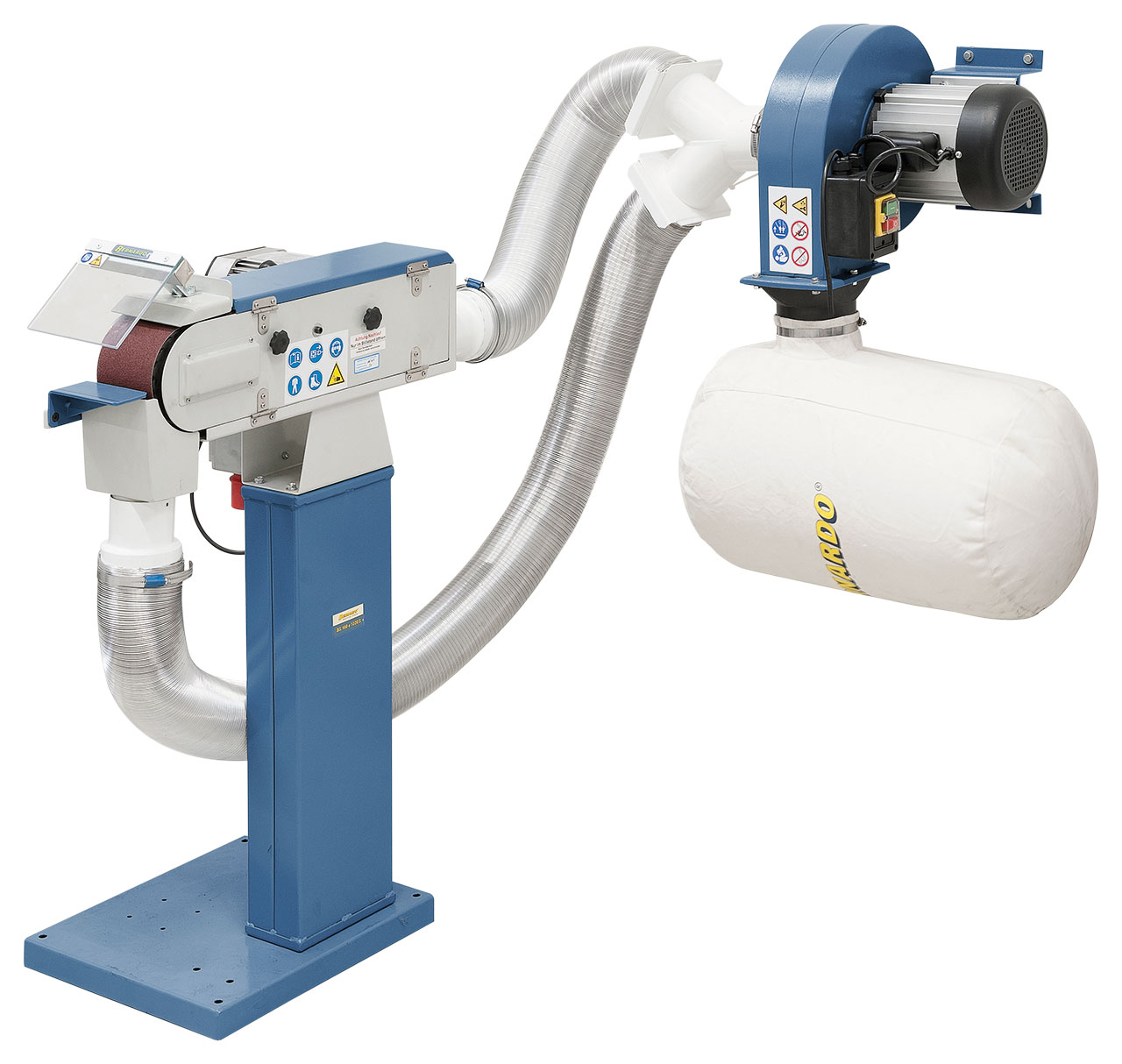

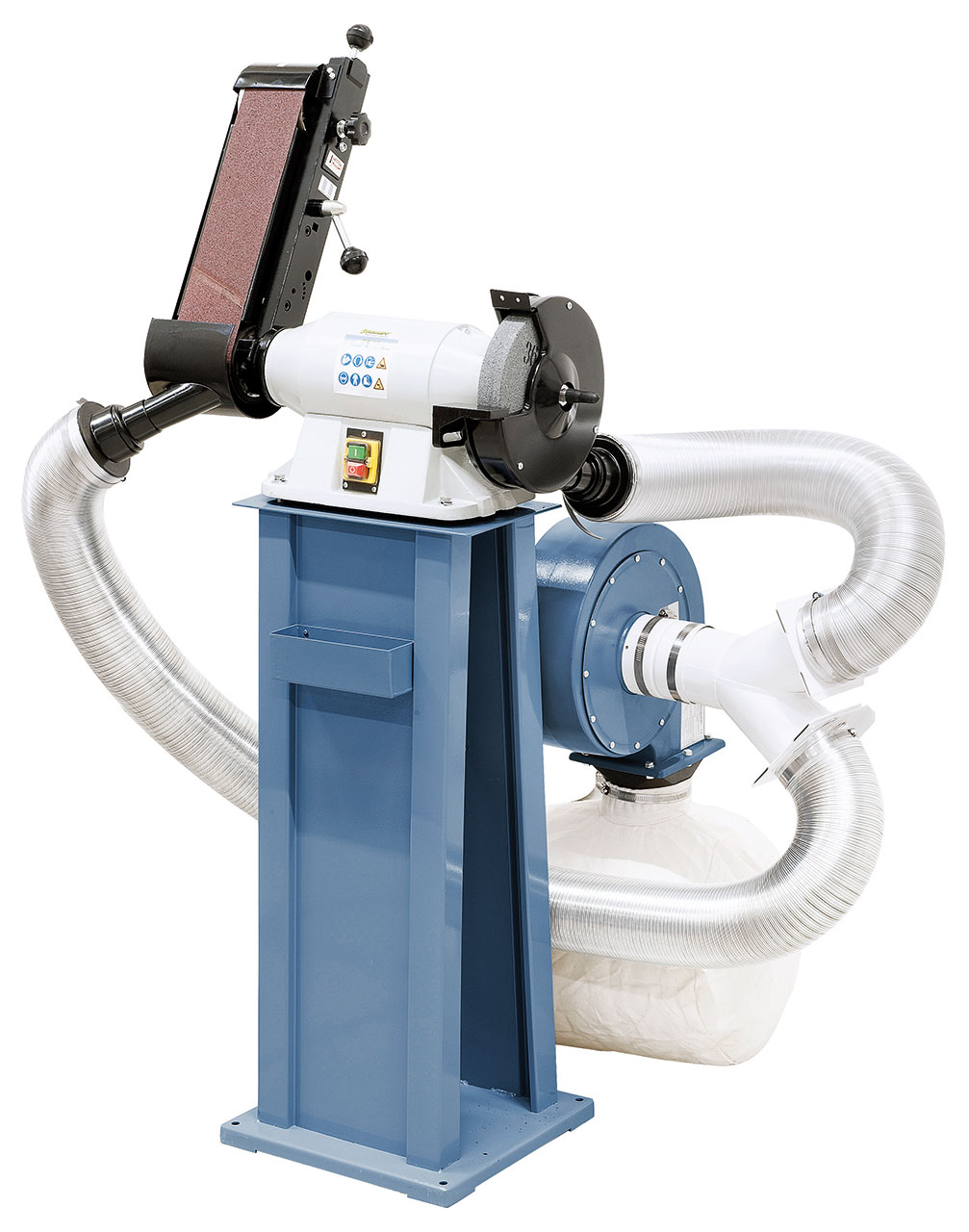

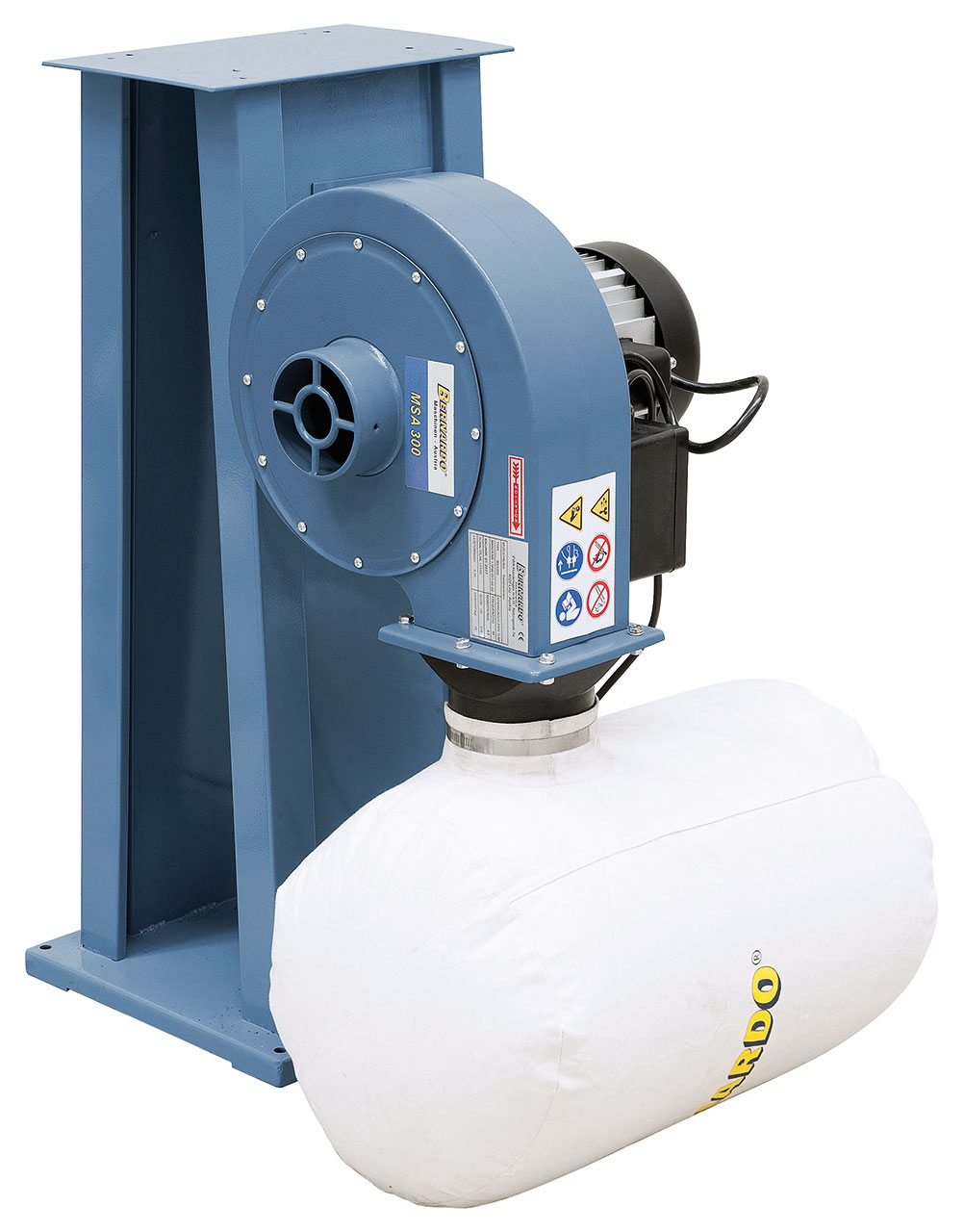

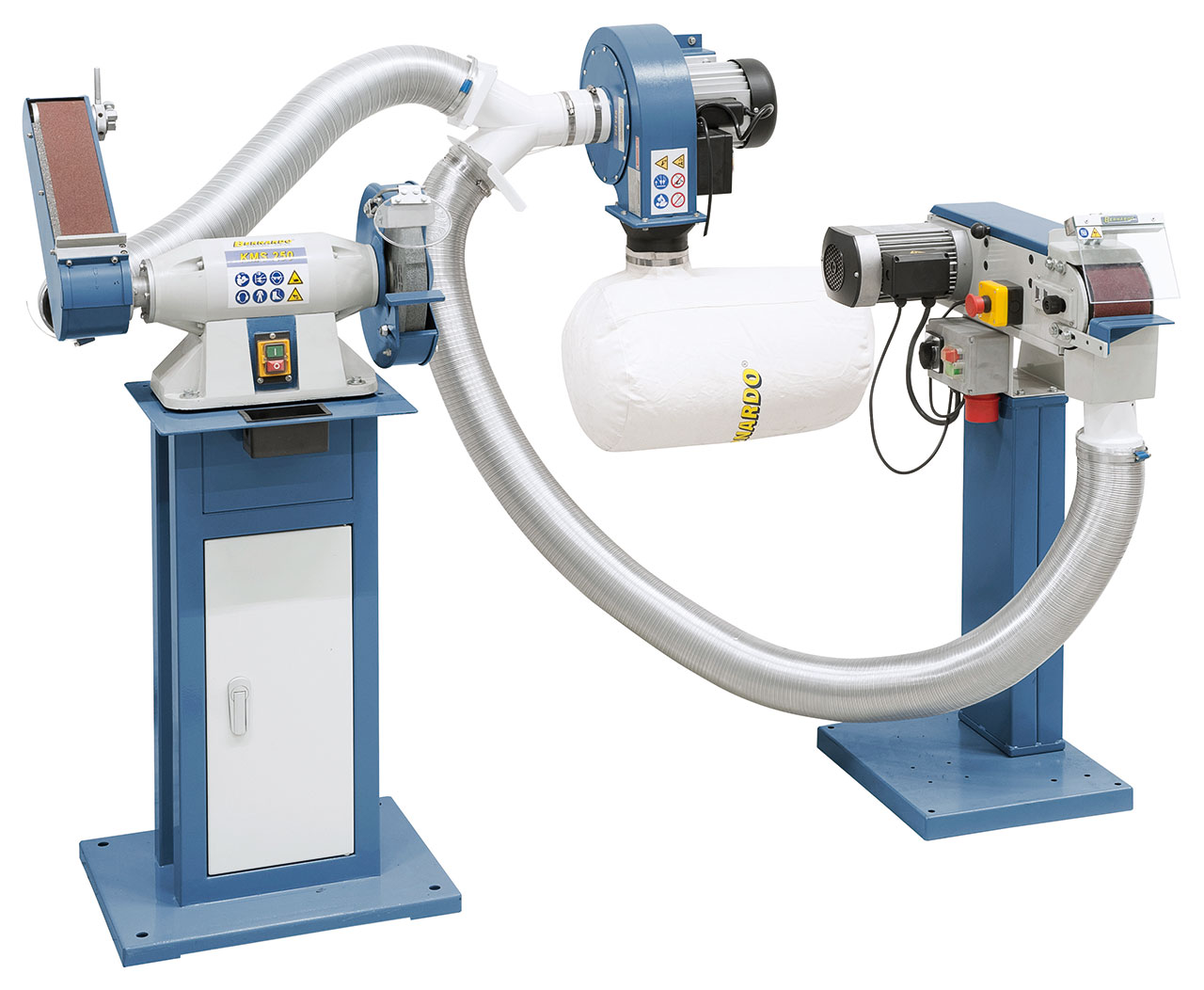

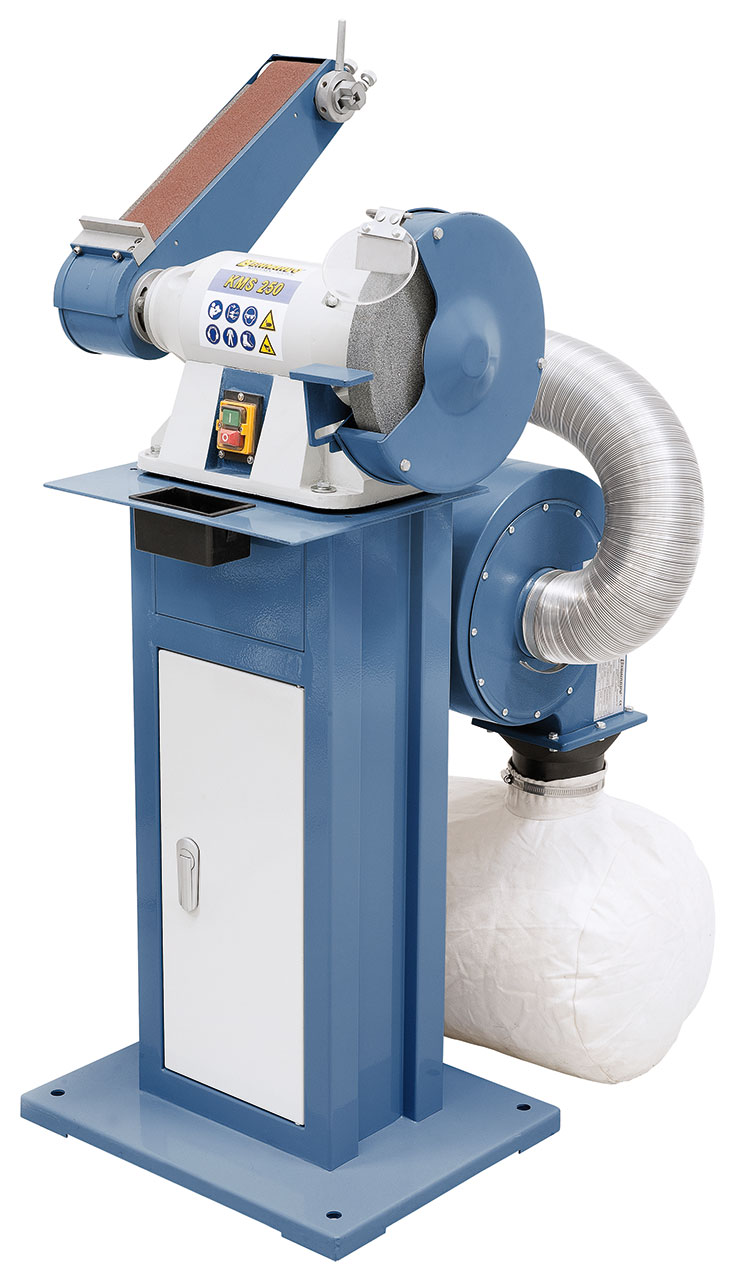

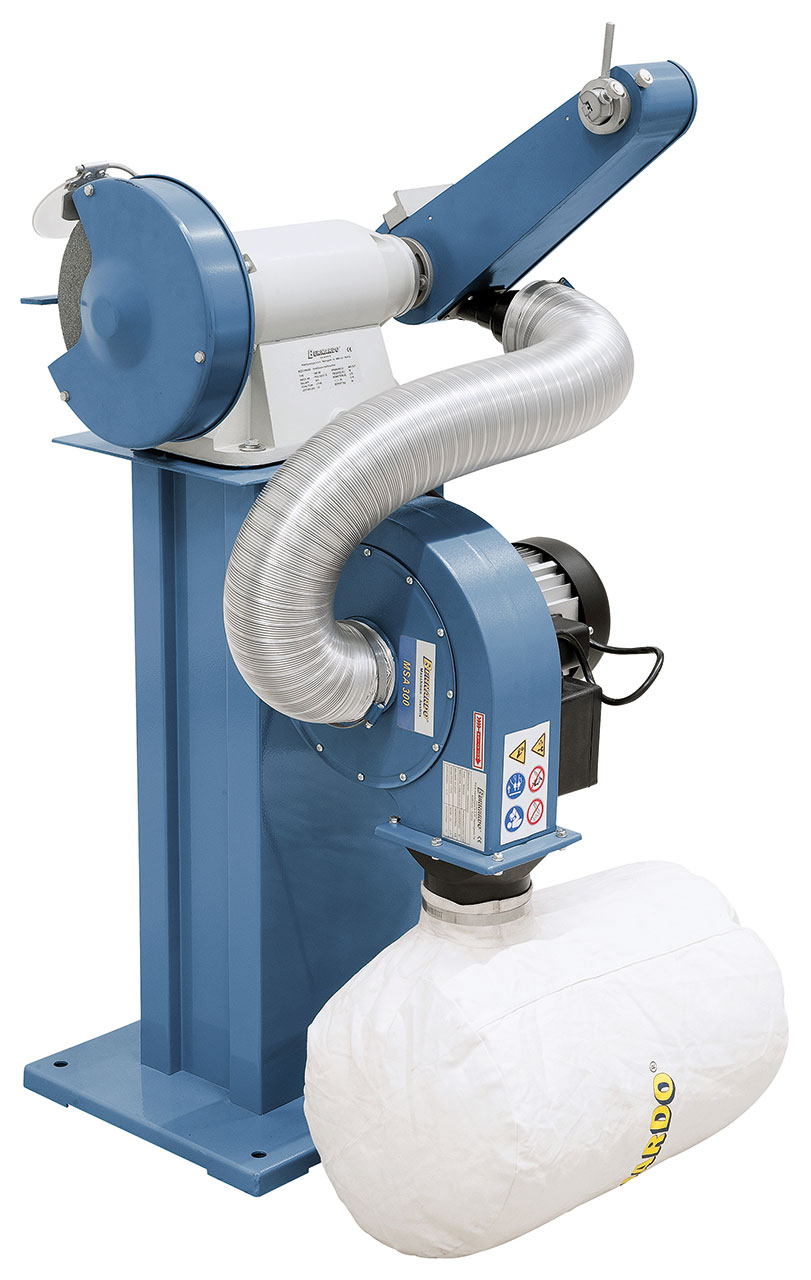

Pictures with different sanding machines, stands and connection parts, not equipped in standard accessories.
"
Features Dust collector for metal chips Bernardo MSA 300
- Care for ideal production conditions and clean air at the workplace
- High-quality powder coating creates scratch-resistant and shock-proof surface
- Optimal fan design guarantees top efficiency and smooth run
- Ideal for metal working factories, mechanical workshops,...
- Statically and dynamically balanced steel fan wheel
- Easy mounting through serially bracket
- Simultaneous operation of several machines possible
Technical details Dust collector for metal chips Bernardo MSA 300
| Capactiy | 870 m³/h |
| Dust extraction outlet | 100 mm |
| Outlet diameter | 112 mm |
| Motor power | 0,75 kW |
| Voltage | 230 V |
| Dimension without dust bag | 430 x 400 x 420 mm |
| Dimension with dust bag | 430 x 400 x 780 mm |
| Weight approx. | 15,6 kg |
