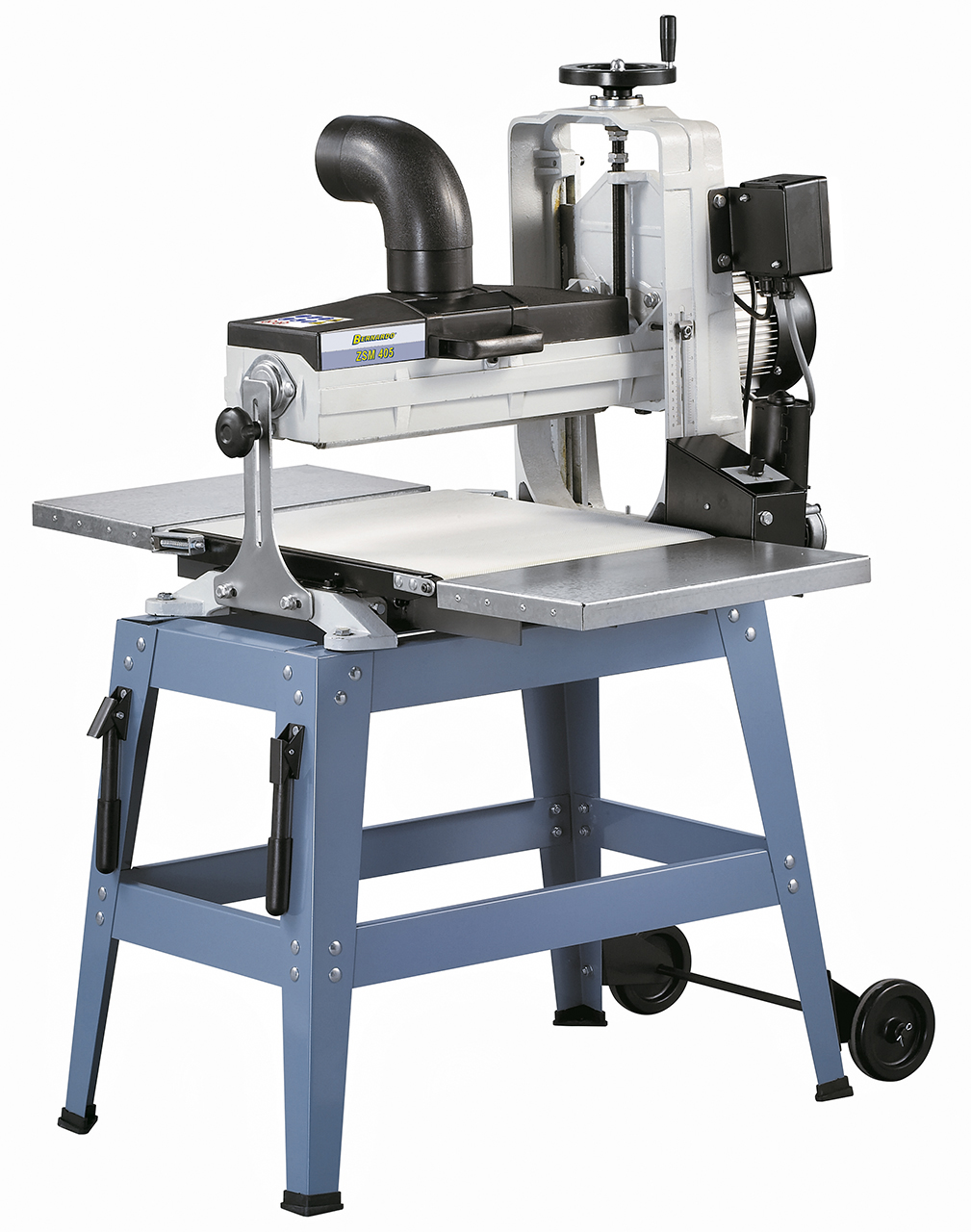

The ZSM 405 cylinder sanding machine is suitable for sanding works up to a width of 810 mm. The feed of the conveyor belt can be adjusted steplessly to the workpiece to achieve optimal grinding results. Main application area of this model is predominantly among experienced amateurs.
Scope of delivery Drum sander Bernardo ZSM 405 - 400 V
- Sanding belt grit 100

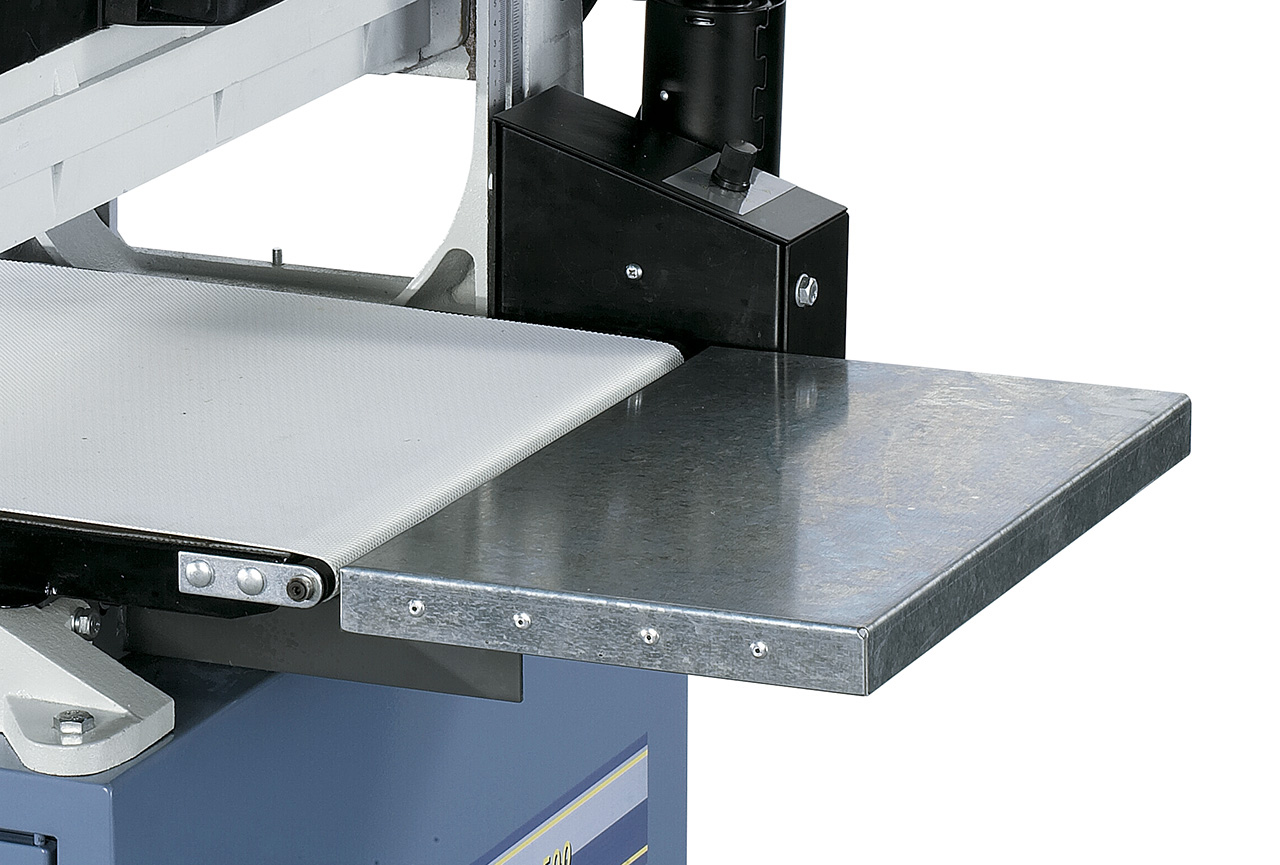

- Table extension on both sides

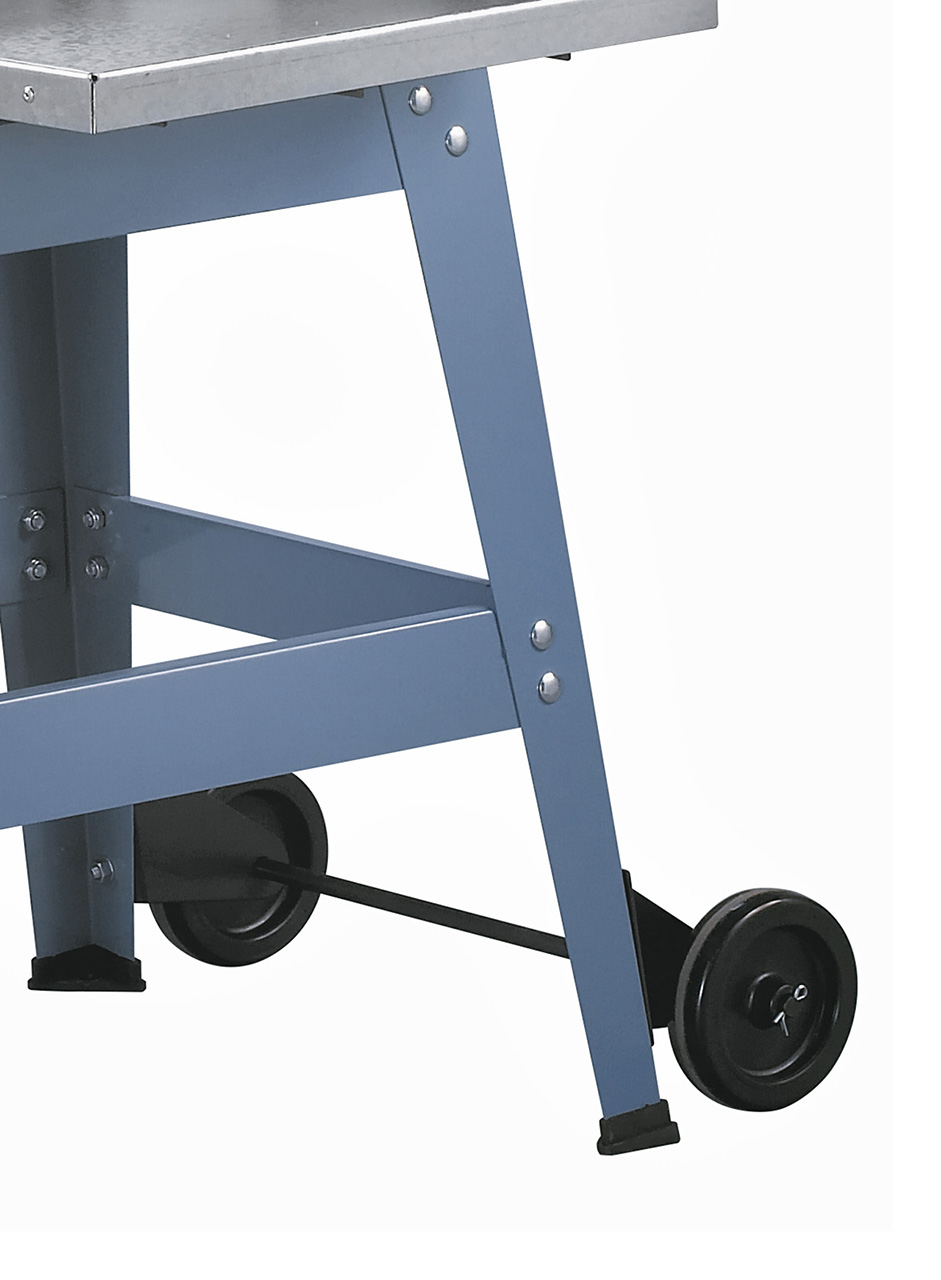

- Stand with rollers
Features Drum sander Bernardo ZSM 405 - 400 V

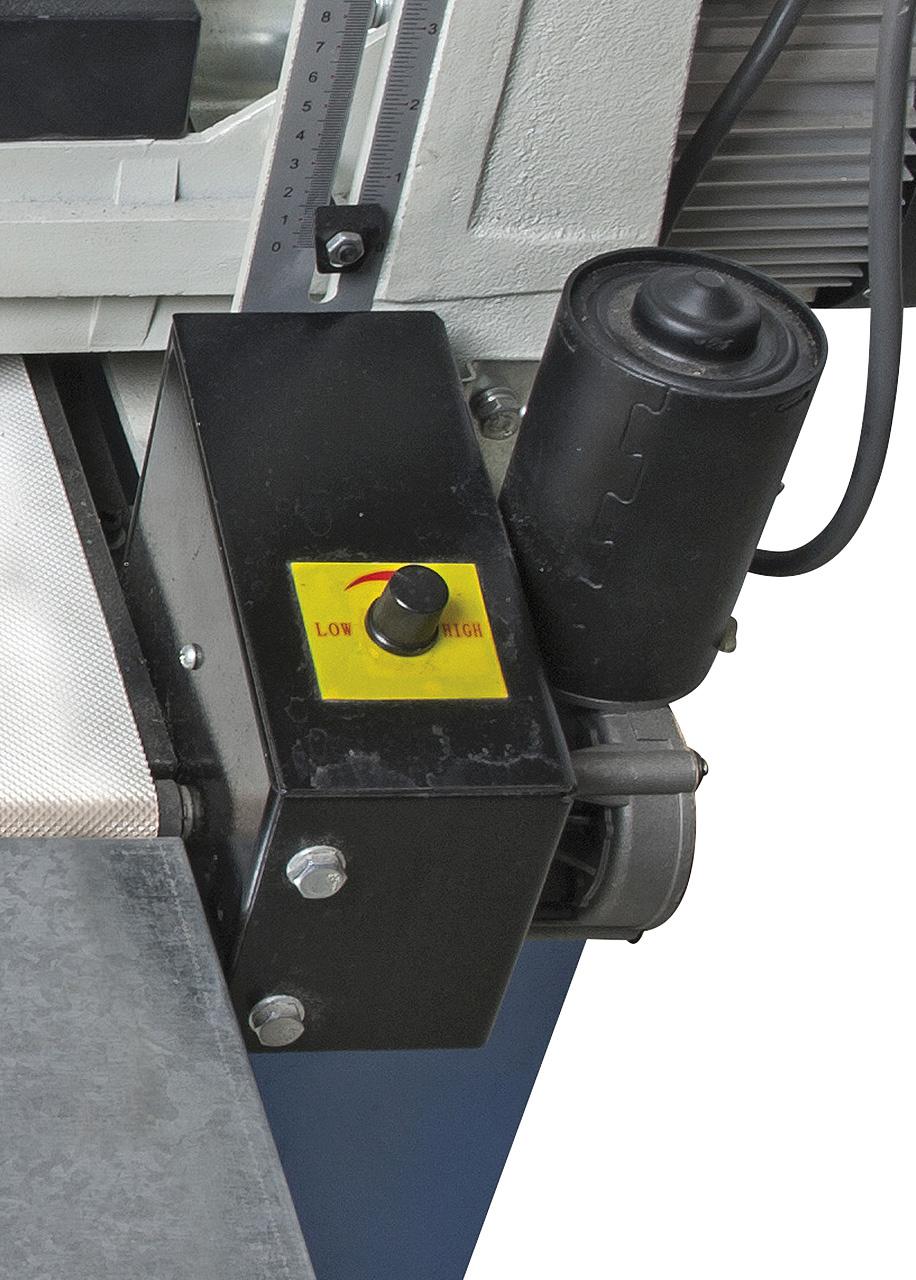

- Set variable conveyor belt speed
- Suitable for major commercial grinding abrasive cloths
- Scale ensures precise height adjustment of sanding unit

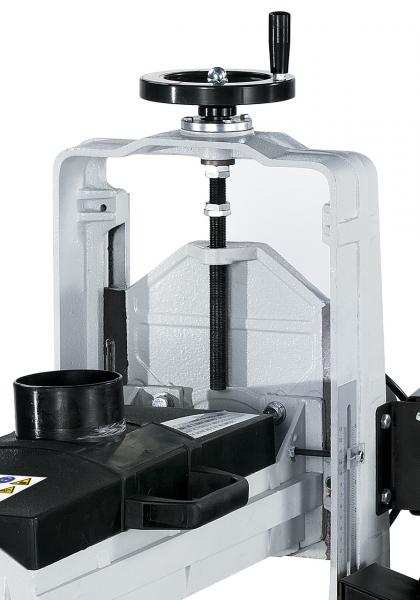

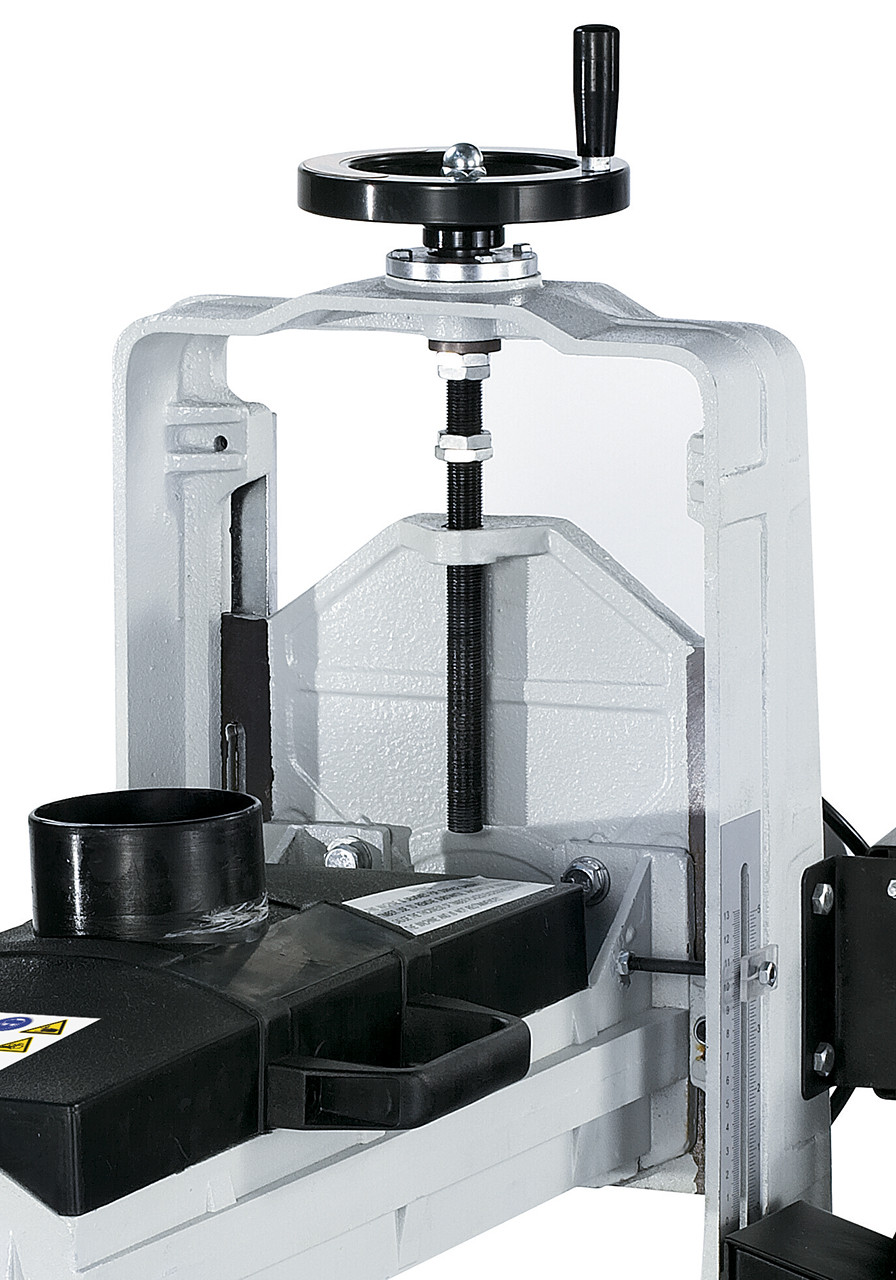

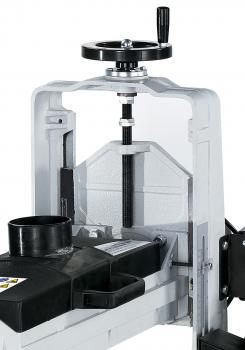

- Handwheel and scale allow for accurate adjustment of the sanding unit to thickness of workpiece
- Complete with dust port to connect an dust collector for a clean workplace
- Powerful motor guarantees best results

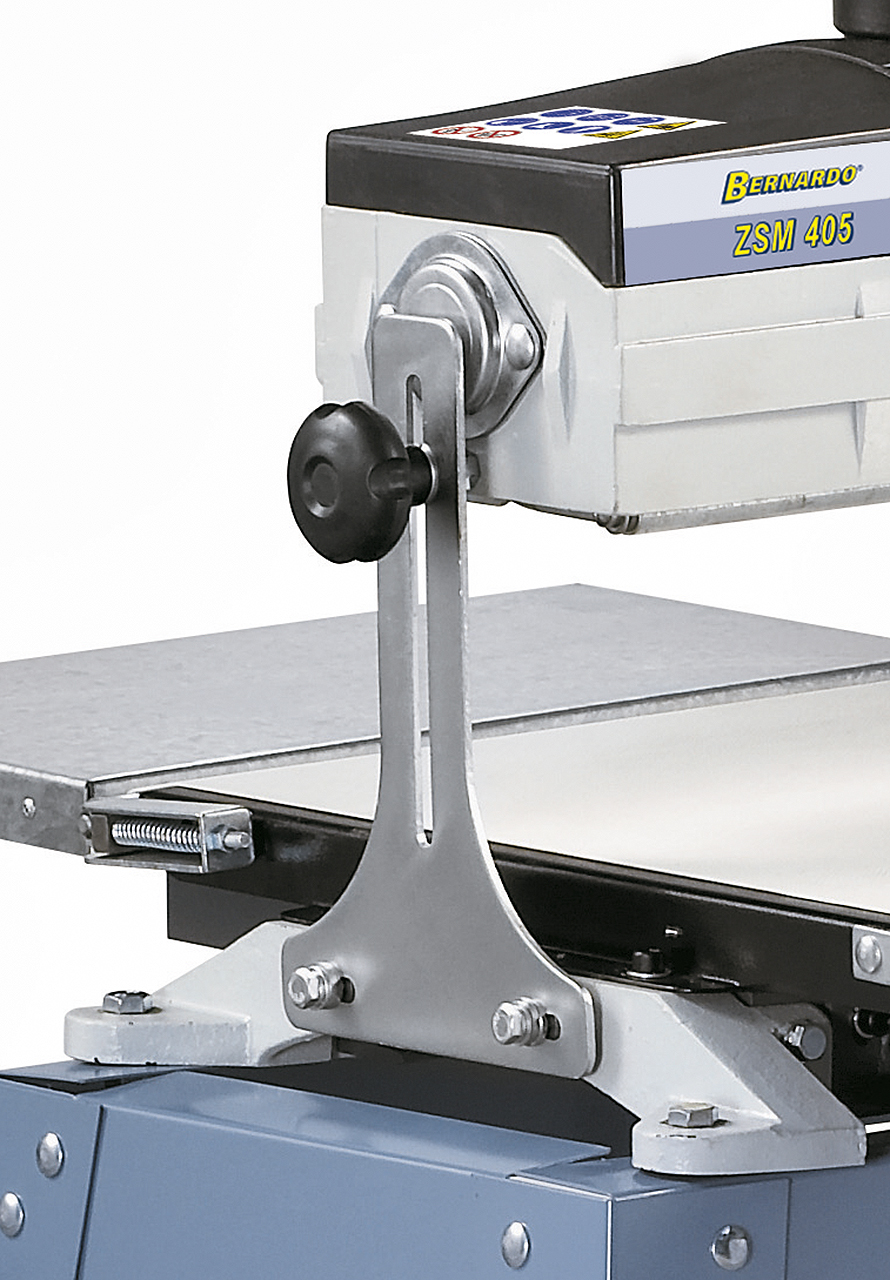

- When side support not in use machine suitable for double the grinding width (eg. for frames etc.)
Technical details Drum sander Bernardo ZSM 405 - 400 V
| Max. sanding widht | 405 (810 mm) |
| Min. sanding length | 60 mm |
| Workpiece thickness, min./max. | 5 - 80 mm |
| Table size (L x W) | 470 x 425 mm |
| Both-sided table extension (L x W) | 245 x 425 mm |
| Working height | 695 mm |

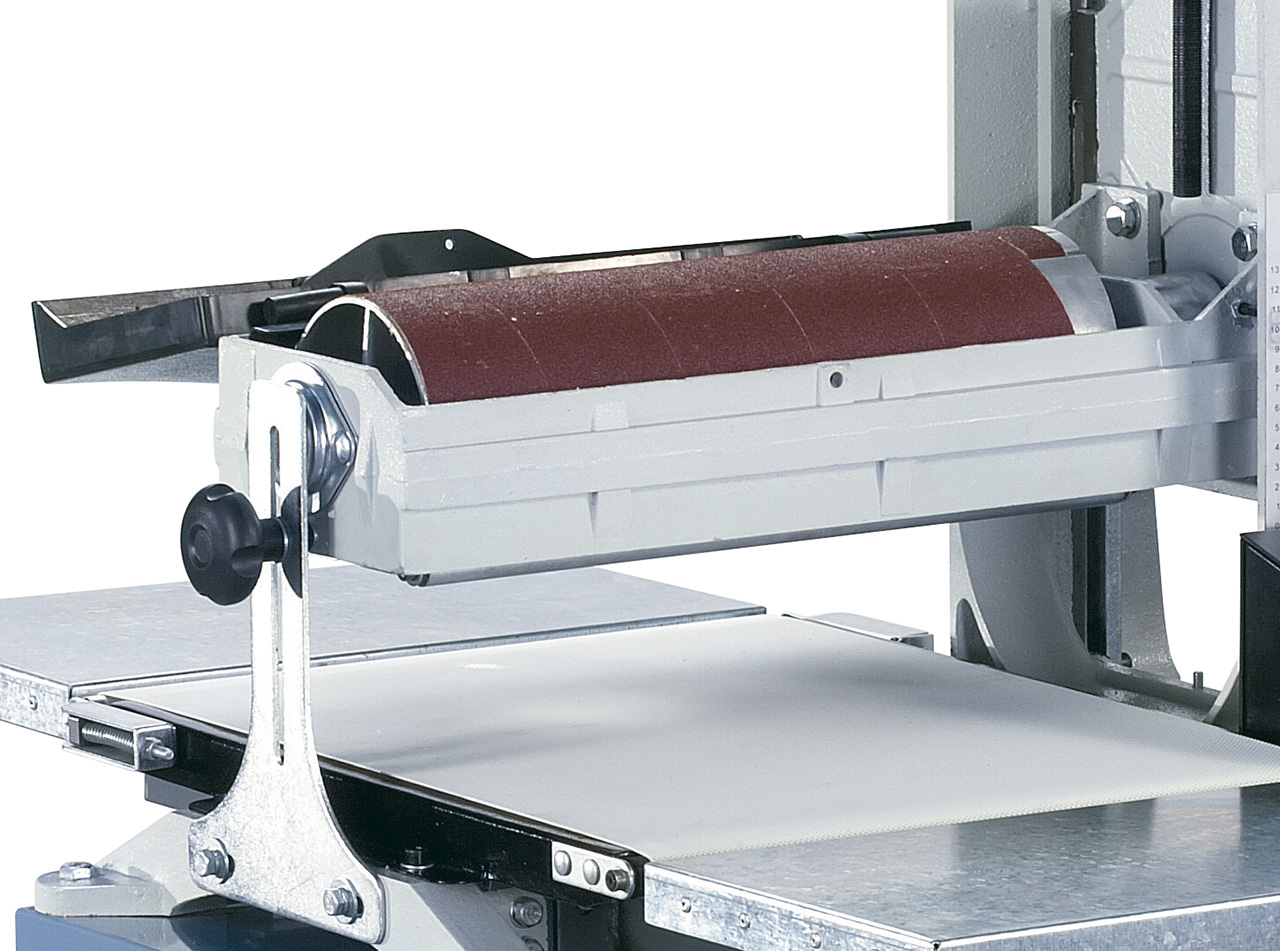

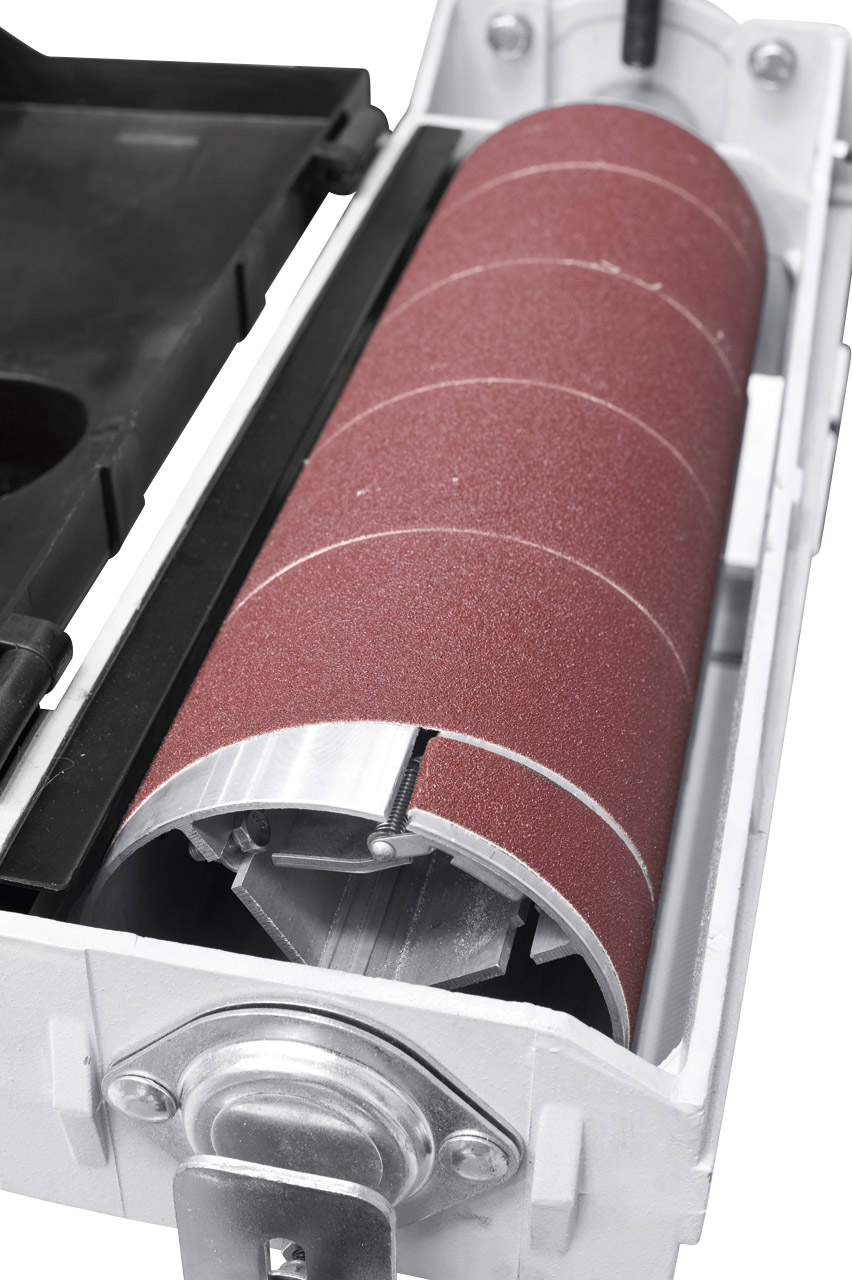

| Sanding roller | Ø 130 x 410 mm |
| Feed stepless | 0,5 - 3 m/min |
| Speed | 1420 rpm |
| Dust extraction outlet | 100 mm |
| Motor power | 1,1 kW (1,5 HP) |
| Voltage | 400 V |
| Machine dimension (W x D x H) | 950 x 1030 x 1290 mm |
| Weight approx. | 86 kg |
