Drilling and milling machine Bernardo KF 25 Pro

The drilling and milling machine KF 25 Pro features a high speed range up to 3000 rpm, a powerful drive motor (900 W) and a MT 3 spindle taper making this model ideal for user with high expectations. For reducing the non-productive time, this model is also available with a 3-axis digital readout and a stepless adjustable table feed.

Scope of delivery Drilling and milling machine Bernardo KF 25 Pro

• Drill chuck arbor MT 3 / B 16
• Drawbar

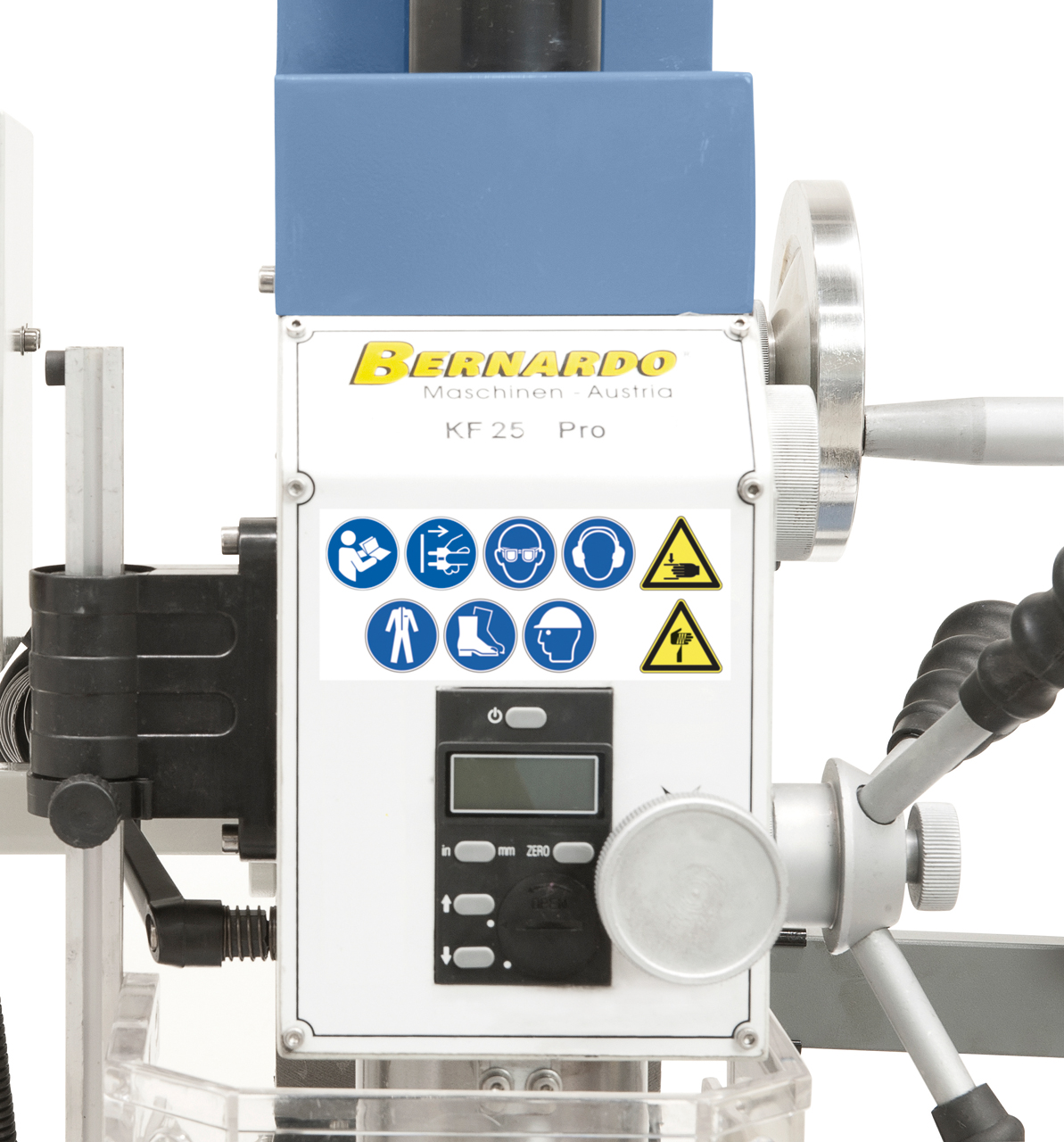

• Digital display of spindle stroke
• Digital display of speed range
• EMC filter according to CE standard
• Height adjustable protective cover
• Tools

Features Drilling and milling machine Bernardo KF 25 Pro

• High speed range from 50 - 3000 rpm, 2-step gear box ensures optimal transmission

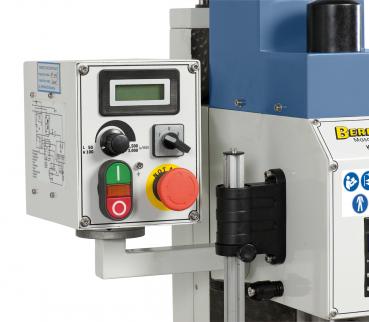

• Variable speed adjustment, stepless speed change for ideal adjustment to the workpiece
• Model can optional be equipped with stepless table feed and 3-axis digital readout

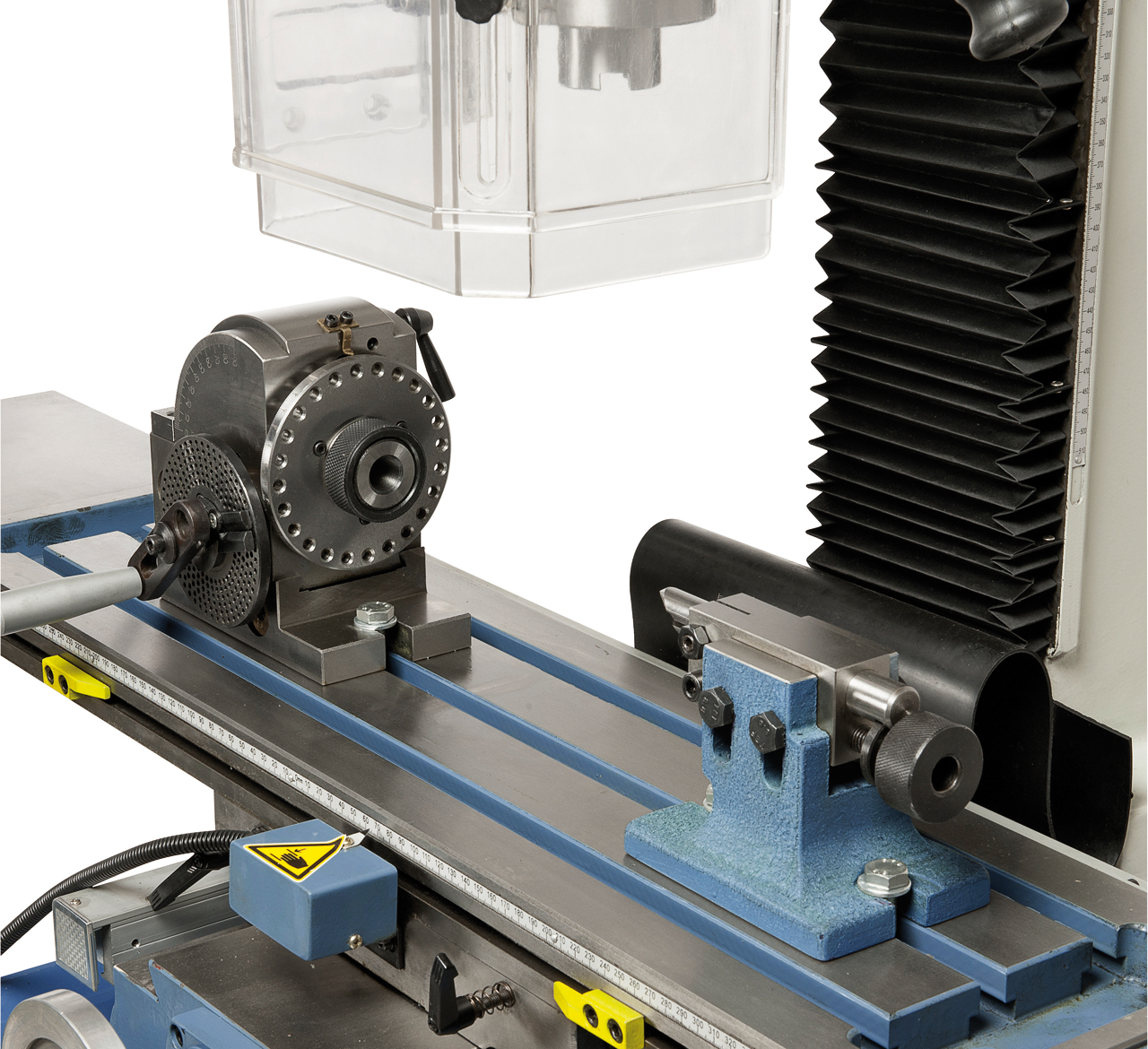

• Oversize cross table features T-slots, high grade surface finish
• Many possible applications, such as groove milling, face milling, reboring, etc.
• Direct current motor for ideal torque at lower speed
• Mill head tilts to both sides allowing angular boring, milling of bevels, etc.
• Incl. EMC filter, protect electrical equipment against electromagnetic interferences
• Left and right rotation for thread cutting comes standard
• Taper roller bearing guarantees high spindle concentricity (≤ 0,015 mm)
• Dovetail guiding in x-, y- and z-axis, adjustable via gibs
• Spindle adjustment via handle, fine feed via handwheel

Technical details Drilling and milling machine Bernardo KF 25 Pro

* without stand
