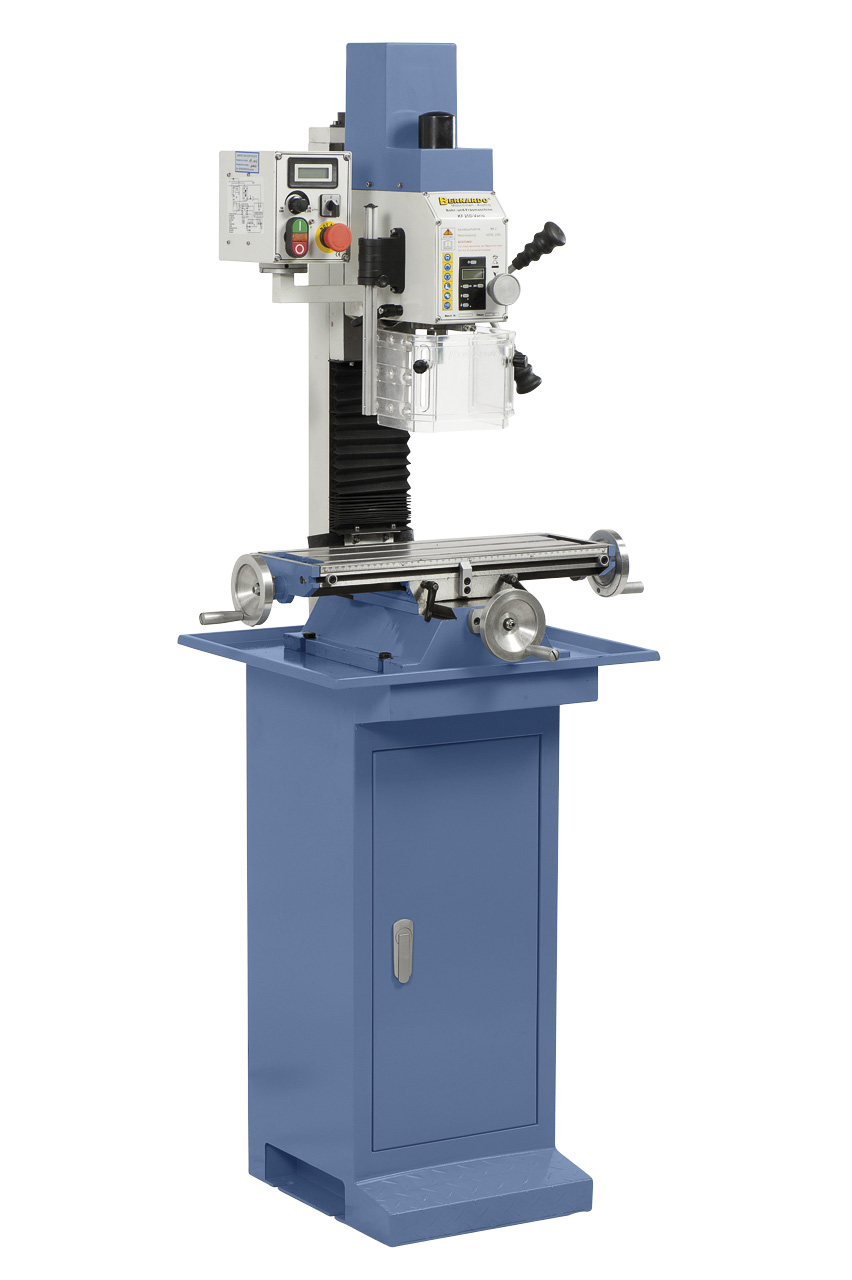

Drilling and milling machine Bernardo KF 25 D Vario

The model KF 25 D Vario comes complete with a digital speed and spindle stroke display as a standard feature. The machine is very popular among both professionals and model-markers along with all areas of training.

Scope of delivery Drilling and milling machine Bernardo KF 25 D Vario

• Drill chuck arbor B 16
• Drawbar
• Digital display of spindle stroke
• Digital display of speed range
• EMC filter according to CE standard
• Height adjustable protective cover
• Tools

Features Drilling and milling machine Bernardo KF 25 D Vario

• Wide range of applications, such as thread cutting, groove milling, horizontal slotting etc.
• Left and right rotation for thread cutting comes standard
• Ergonomically arranged control elements

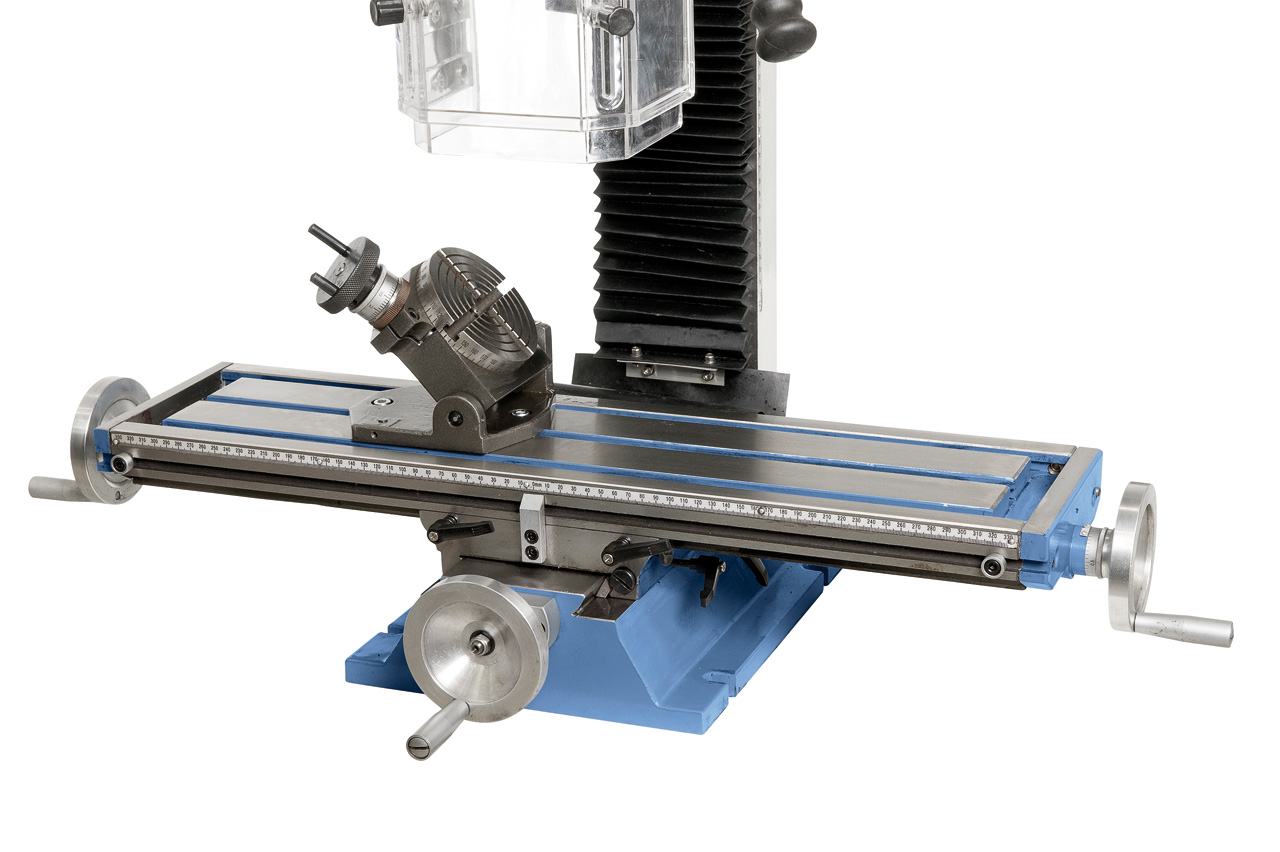

• Large cross table with scale
• Stepless speed change for ideal adjustment to the workpiece
• 2-step gear unit for optimal power transmission
• Taper roll bearings guarantee high spindle concentricity (≤ 0,015 mm)
• Mill head tilts to both sides allowing angular boring, milling of bevels etc.

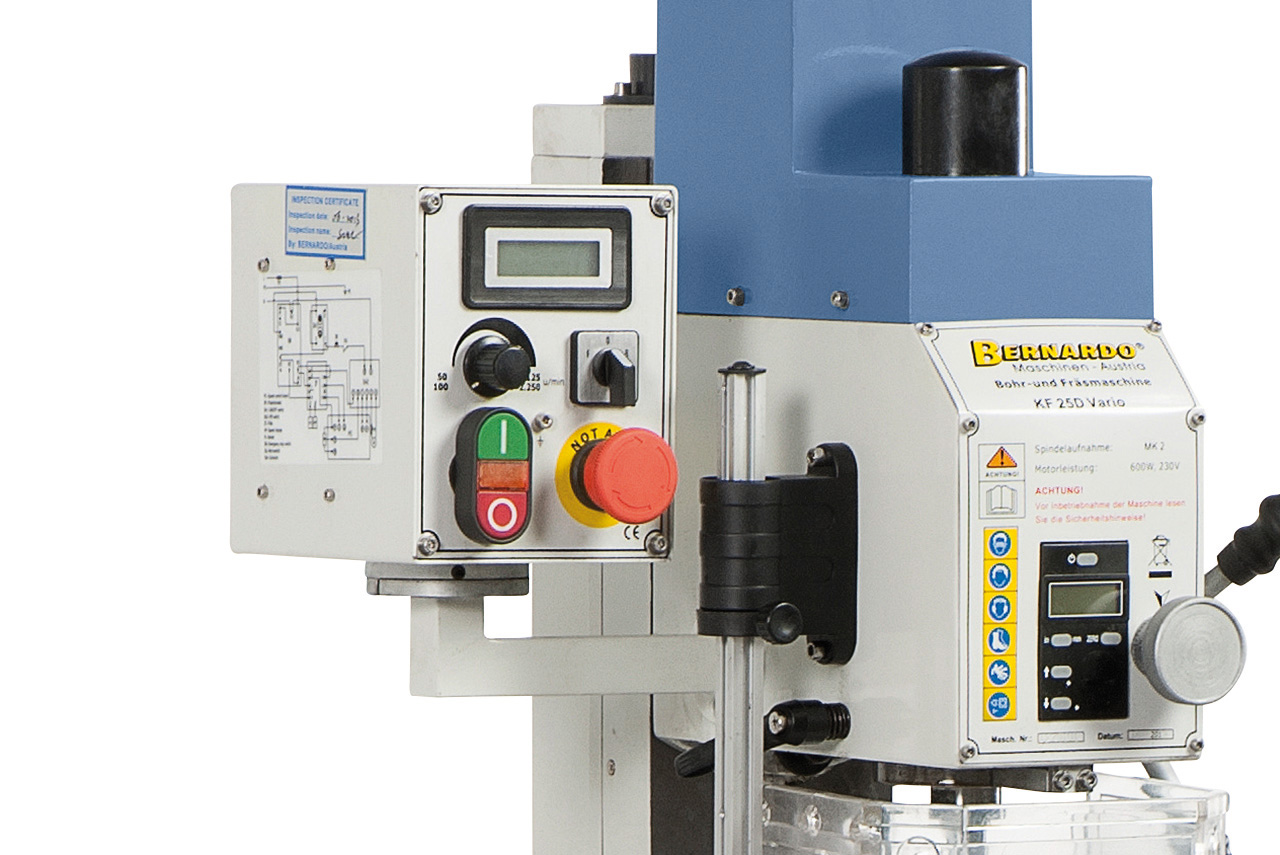

• Digital spindle stroke and speed display come standard
• Dovetail guiding in x-, y- and z-axis, adjustable via gibs
• Spindle adjustment via handle, fine feed via handwheel
• Incl. EMC filter; protect electrical equipment against electromagnetic interferences

Technical details Drilling and milling machine Bernardo KF 25 D Vario

* without stand
